●高精度，25mm、50mm、100mm和200mm行程选项
●集成化的电动控制器
●可提供集成式、每转200次（CPR）电机安装的编码器
●简单的X-Y或X-Y-Z配置

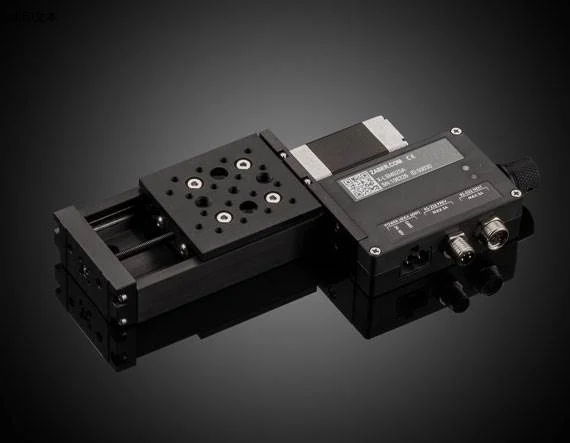

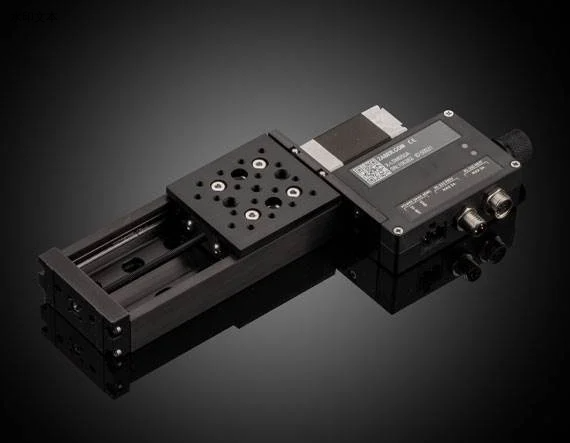

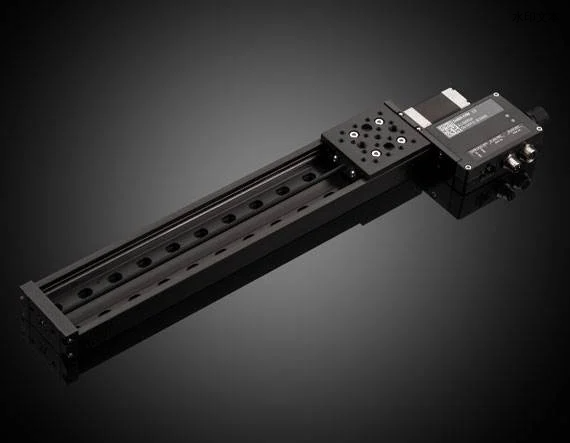

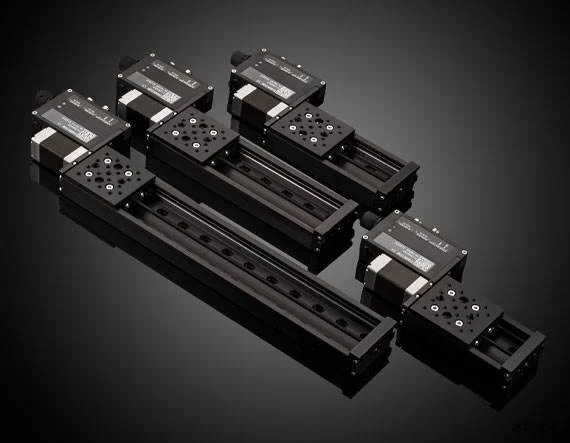

Zaber™高精密电动调整台系统是一个独立的线性调整台，由计算机控制，包括一个步进电机和内置控制器。Zaber™高精密电动调整台系统可直接连接到计算机的RS-232端口，而其随附的软件则有助于轻松地控制行程距离或位置。另外，手动控制电位器允许顺畅的手动运动。编码器版本可用于所有行程长度，200次/转（CPR）旋转正交编码器集成到步进电机中。集成的旋转编码器提供闭环控制和滑移/失速检测和恢复。
产品
| 标题 | 产品编码 | Type of Movement | Guide System | 驱动类型 | 类型 | 工作台大小 (mm) | 行程 (mm) | 精度 (μm) | 齿隙 (μm) | 电流 (mA) | 编码器 | 高度 (mm) | 负载容量 (kg) | 负载容量 (N) |
| 50mm Travel, High Vacuum (10-6 Torr) Motorized Linear Stage, Integrated Controller | 74-699 | Linear (X) | Needle Roller Bearing | Lead Screw | Metric | 173.4 x 101.2 | 50.8 | 20 | <12 | 350 | No | 21.4 | 10 | 100 |
| 100mm Travel, High Vacuum (10-6 Torr) Motorized Linear Stage, Integrated Controller | 74-700 | Linear (X) | Needle Roller Bearing | Lead Screw | Metric | 224.2 x 152.0 | 101.6 | 20 | <12 | 350 | No | 21.4 | 10 | 100 |
| 25 mm Travel, Motorized Linear Stage, Integrated Controller | 15-285 | Linear (X) | Needle Roller Bearing | Precision Lead Screw | Metric | 45 x 162.6 | 25.4 | 15 (Unidirectional) | <12 | 21 | 10 | |||
| 25mm Travel, Motorized Linear Stage, Integrated Controller, Rotary Encoder | 22-217 | Linear (X) | Needle Roller Bearing | Precision Lead Screw | Metric | 45 x 162.6 | 25.4 | 15 (Unidirectional) | <12 | Yes | 21 | 10 | ||
| 50 mm Travel, Motorized Linear Stage, Integrated Controller | 15-286 | Linear (X) | Needle Roller Bearing | Precision Lead Screw | Metric | 45 x 188.0 | 50.8 | 20 (Unidirectional) | <12 | 21 | 10 | |||
| 50mm Travel, Motorized Linear Stage, Integrated Controller, Rotary Encoder | 22-218 | Linear (X) | Needle Roller Bearing | Precision Lead Screw | Metric | 45 x 188.0 | 50.8 | 20 (Unidirectional) | <12 | Yes | 21 | 10 | ||
| 100 mm Travel, Motorized Linear Stage, Integrated Controller | 15-287 | Linear (X) | Needle Roller Bearing | Precision Lead Screw | Metric | 45 x 238.8 | 101.6 | 35 (Unidirectional) | <12 | 21 | 10 | |||
| 100mm Travel, Motorized Linear Stage, Integrated Controller, Rotary Encoder | 22-219 | Linear (X) | Needle Roller Bearing | Precision Lead Screw | Metric | 45 x 238.8 | 101.6 | 35 (Unidirectional) | <12 | Yes | 21 | 10 | ||
| 200 mm Travel, Motorized Linear Stage, Integrated Controller | 15-288 | Linear (X) | Needle Roller Bearing | Precision Lead Screw | Metric | 45 x 340.4 | 203.2 | 60 (Unidirectional) | <12 | 21 | 10 | |||
| 200mm Travel, Motorized Linear Stage, Integrated Controller, Rotary Encoder | 22-220 | Linear (X) | Needle Roller Bearing | Precision Lead Screw | Metric | 45 x 340.4 | 203.2 | 60 (Unidirectional) | <12 | Yes | 21 | 10 |
技术数据
