TECHSPEC Cw 系列定焦镜头
￥ 0.00
0.00

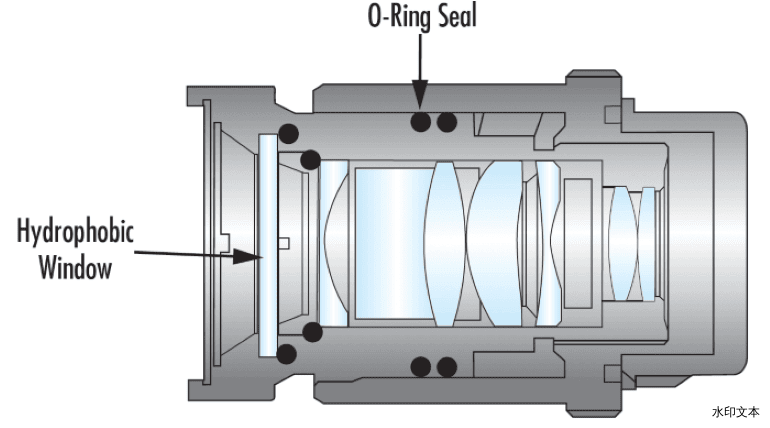

TECHSPEC® Cw 系列定焦镜头是 TECHSPEC® C 系列定焦镜头的防水版本。这些镜头专为符合 IEC 异物防护等级 IPX7 与 IPX9K 而设计，可以在水下最多 1 米的深度承受 30 分钟，并在近距离高压高温的水喷雾中工作，所有 3.5 和 4.5 毫米版本仅符合 IPX7。这些镜头包含具有疏水镀膜的窗口片，可以防止水滴落到镜头表面。为了防止湿气进入外壳，镜头采用多个 O 形环进行密封。TECHSPEC® Cw 系列定焦镜头专为最高 5 百万像素的 2/3" 传感器而设计，非常适用于包括食品、制药、汽车及安保在内的应用。这些镜头荣获了《视觉系统设计》杂志2021年度创新者奖铜奖。
高达⅔" C接口镜头
C系列固定焦距镜头的防水（Cw）版本
符合IPX7和IPX9K的IEC异物防护等级
设计用于消除对保护性镜头盖的需求
产品
| 标题 | 产品编码 | 虹膜选项 | 长度 (mm) | Horizontal FOV, 1/2" Sensor | Horizontal FOV, 2/3" Sensor | 滤光片螺纹 | 最大直径 (mm) | 外径 (mm) | Horizontal FOV, 1/3" Sensor | 最大后端突出 (mm) | 最大像圈 (mm) | NA, Object Side |
| 3.5mm f/2.0 Sealed Cw Series Fixed Focal Length Lens | 15-607 | Fixed | 41.96 | 94.13° | M62 x 0.75 (Female) | 65.00 | 74.44° | 2.7 | 9.00 | 0.073 | ||
| 3.5mm f/2.8 Sealed Cw Series Fixed Focal Length Lens | 15-608 | Fixed | 41.96 | 94.13° | M62 x 0.75 (Female) | 65.00 | 74.44° | 2.7 | 9.00 | 0.052 | ||
| 3.5mm f/4.0 Sealed Cw Series Fixed Focal Length Lens | 15-609 | Fixed | 41.96 | 94.13° | M62 x 0.75 (Female) | 65.00 | 74.44° | 2.7 | 9.00 | 0.036 | ||
| 3.5mm f/5.6 Sealed Cw Series Fixed Focal Length Lens | 15-610 | Fixed | 41.96 | 94.13° | M62 x 0.75 (Female) | 65.00 | 74.44° | 2.7 | 9.00 | 0.026 | ||
| 3.5mm f/8.0 Sealed Cw Series Fixed Focal Length Lens | 15-611 | Fixed | 41.96 | 94.13° | M62 x 0.75 (Female) | 65.00 | 74.44° | 2.7 | 9.00 | 0.018 | ||
| 3.5mm f/11 Sealed Cw Series Fixed Focal Length Lens | 15-612 | Fixed | 41.96 | 94.13° | M62 x 0.75 (Female) | 65.00 | 74.44° | 2.7 | 9.00 | 0.013 | ||
| 4.5mm f/2.0 Sealed Cw Series Fixed Focal Length Lens | 15-613 | Fixed | 40.82 | 76.8° | M49 x 0.75 (Female) | 54.00 | 59.34° | 3.3 | 9.00 | 0.0270 | ||
| 4.5mm f/2.8 Sealed Cw Series Fixed Focal Length Lens | 15-614 | Fixed | 40.82 | 76.8° | M49 x 0.75 (Female) | 54.00 | 59.34° | 3.3 | 9.00 | 0.0270 | ||
| 4.5mm f/4.0 Sealed Cw Series Fixed Focal Length Lens | 15-615 | Fixed | 40.82 | 76.8° | M49 x 0.75 (Female) | 54.00 | 59.34° | 3.3 | 9.00 | 0.0130 | ||
| 4.5mm f/5.6 Sealed Cw Series Fixed Focal Length Lens | 15-616 | Fixed | 40.82 | 76.8° | M49 x 0.75 (Female) | 54.00 | 59.34° | 3.3 | 9.00 | 0.0100 | ||
| 4.5mm f/8.0 Sealed Cw Series Fixed Focal Length Lens | 15-617 | Fixed | 40.82 | 76.8° | M49 x 0.75 (Female) | 54.00 | 59.34° | 3.3 | 9.00 | 0.0070 | ||
| 4.5mm f/11 Sealed Cw Series Fixed Focal Length Lens | 15-618 | Fixed | 40.82 | 76.8° | M49 x 0.75 (Female) | 54.00 | 59.34° | 3.3 | 9.00 | 0.0050 | ||
| 6mm, f/1.4 Cw Series Fixed Focal Length Lens | 15-619 | Fixed | 51.40 | 55.8° | M30.5 x 0.50 (Female) | 46.00 | 42.7° | 1.2 | 9.00 | 0.0230 | ||
| 6mm, f/1.8 Cw Series Fixed Focal Length Lens | 15-620 | Fixed | 51.40 | 55.8° | M30.5 x 0.50 (Female) | 46.00 | 42.7° | 1.2 | 9.00 | 0.0180 | ||
| 6mm, f/2.8 Cw Series Fixed Focal Length Lens | 15-621 | Fixed | 51.40 | 55.8° | M30.5 x 0.50 (Female) | 46.00 | 42.7° | 1.2 | 9.00 | 0.0110 | ||
| 6mm, f/4.0 Cw Series Fixed Focal Length Lens | 15-622 | Fixed | 51.40 | 55.8° | M30.5 x 0.50 (Female) | 46.00 | 42.7° | 1.2 | 9.00 | 0.0080 | ||
| 6mm, f/5.6 Cw Series Fixed Focal Length Lens | 15-623 | Fixed | 51.40 | 55.8° | M30.5 x 0.50 (Female) | 46.00 | 42.7° | 1.2 | 9.00 | 0.0060 | ||
| 6mm, f/8.0 Cw Series Fixed Focal Length Lens | 15-624 | Fixed | 51.40 | 55.8° | M30.5 x 0.50 (Female) | 46.00 | 42.7° | 1.2 | 9.00 | 0.0040 | ||
| 8.5mm, f/1.3 Cw Series Fixed Focal Length Lens | 15-625 | Fixed | 38.98 | 43.6° | 60.6° | M30.5 x 0.50 (Female) | 37.77 | 32.6° | 0.6 | 11.00 | 0.0276 | |
| 8.5mm, f/1.8 Cw Series Fixed Focal Length Lens | 15-626 | Fixed | 38.98 | 43.6° | 60.6° | M30.5 x 0.50 (Female) | 37.77 | 32.6° | 0.6 | 11.00 | 0.0200 | |
| 8.5mm, f/2.8 Cw Series Fixed Focal Length Lens | 15-627 | Fixed | 38.98 | 43.6° | 60.6° | M30.5 x 0.50 (Female) | 37.77 | 32.6° | 0.6 | 11.00 | 0.0128 | |
| 8.5mm, f/4 Cw Series Fixed Focal Length Lens | 15-628 | Fixed | 38.98 | 43.6° | 60.6° | M30.5 x 0.50 (Female) | 37.77 | 32.6° | 0.6 | 11.00 | 0.0090 | |
| 8.5mm, f/5.6 Cw Series Fixed Focal Length Lens | 15-629 | Fixed | 38.98 | 43.6° | 60.6° | M30.5 x 0.50 (Female) | 37.77 | 32.6° | 0.6 | 11.00 | 0.0064 | |
| 8.5mm, f/8 Cw Series Fixed Focal Length Lens | 15-630 | Fixed | 38.98 | 43.6° | 60.6° | M30.5 x 0.50 (Female) | 37.77 | 32.6° | 0.6 | 11.00 | 0.0045 | |
| 12mm, f/1.8 Cw Series Fixed Focal Length Lens | 15-631 | Fixed | 30.2° | 41.0° | M30.5 x 0.50 (Female) | 22.8° | 0.6 | 11.00 | 0.0262 | |||
| 12mm, f/2.8 Cw Series Fixed Focal Length Lens | 15-632 | Fixed | 30.2° | 41.0° | M30.5 x 0.50 (Female) | 22.8° | 0.6 | 11.00 | 0.0168 | |||
| 12mm, f/4 Cw Series Fixed Focal Length Lens | 15-633 | Fixed | 30.2° | 41.0° | M30.5 x 0.50 (Female) | 22.8° | 0.6 | 11.00 | 0.0118 | |||
| 12mm, f/5.6 Cw Series Fixed Focal Length Lens | 15-634 | Fixed | 30.2° | 41.0° | M30.5 x 0.50 (Female) | 22.8° | 0.6 | 11.00 | 0.0084 | |||
| 12mm, f/8 Cw Series Fixed Focal Length Lens | 15-635 | Fixed | 30.2° | 41.0° | M30.5 x 0.50 (Female) | 22.8° | 0.6 | 11.00 | 0.0059 | |||
| 12mm, f/11 Cw Series Fixed Focal Length Lens | 15-636 | Fixed | 30.2° | 41.0° | M30.5 x 0.50 (Female) | 22.8° | 0.6 | 11.00 | 0.0043 | |||
| 12mm, f/16 Cw Series Fixed Focal Length Lens | 15-637 | Fixed | 30.2° | 41.0° | M30.5 x 0.50 (Female) | 22.8° | 0.6 | 11.00 | 0.003 | |||

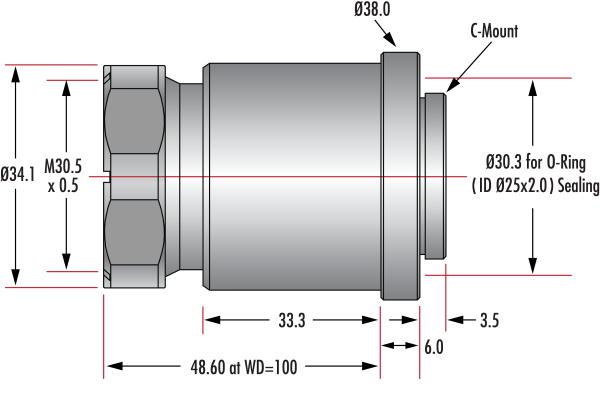

| 16mm, f/1.6 Cw Series Fixed Focal Length Lens | 15-638 | Fixed | 48.60 | 20.4° | 27.8° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 15.3° | 1.9 | 11.00 | 0.0407 |
| 16mm, f/1.8 Cw Series Fixed Focal Length Lens | 15-639 | Fixed | 48.60 | 20.4° | 27.8° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 15.3° | 1.9 | 11.00 | 0.0337 |
| 16mm, f/2.8 Cw Series Fixed Focal Length Lens | 15-640 | Fixed | 48.60 | 20.4° | 27.8° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 15.3° | 1.9 | 11.00 | 0.0217 |
| 16mm, f/4 Cw Series Fixed Focal Length Lens | 15-641 | Fixed | 48.60 | 20.4° | 27.8° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 15.3° | 1.9 | 11.00 | 0.0152 |
| 16mm, f/5.6 Cw Series Fixed Focal Length Lens | 15-642 | Fixed | 48.60 | 20.4° | 27.8° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 15.3° | 1.9 | 11.00 | 0.0108 |
| 16mm, f/8 Cw Series Fixed Focal Length Lens | 15-643 | Fixed | 48.60 | 20.4° | 27.8° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 15.3° | 1.9 | 11.00 | 0.0076 |
| 16mm, f/11 Cw Series Fixed Focal Length Lens | 15-644 | Fixed | 48.60 | 20.4° | 27.8° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 15.3° | 1.9 | 11.00 | 0.0055 |
| 16mm, f/16 Cw Series Fixed Focal Length Lens | 15-645 | Fixed | 48.60 | 20.4° | 27.8° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 15.3° | 1.9 | 11.00 | 0.0038 |

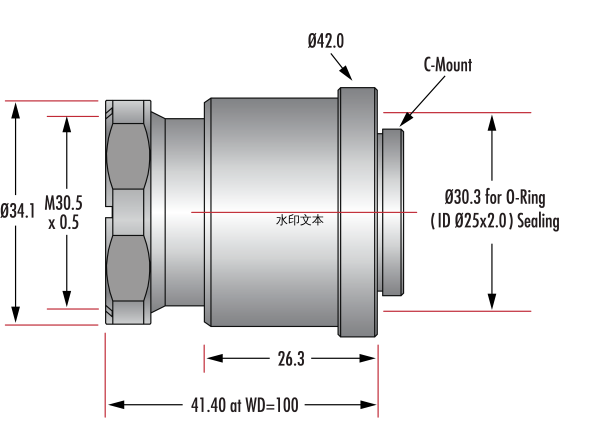

| 25mm, f/1.6 Cw Series Fixed Focal Length Lens | 15-646 | Fixed | 41.40 | 12.1° | 16.6° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 9.1° | 4.2 | 11.00 | 0.0683 |
| 25mm, f/1.8 Cw Series Fixed Focal Length Lens | 15-647 | Fixed | 41.40 | 12.1° | 16.6° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 9.1° | 4.2 | 11.00 | 0.0533 |
| 25mm, f/2.8 Cw Series Fixed Focal Length Lens | 15-648 | Fixed | 41.40 | 12.1° | 16.6° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 9.1° | 4.2 | 11.00 | 0.0343 |
| 25mm, f/4 Cw Series Fixed Focal Length Lens | 15-649 | Fixed | 41.40 | 12.1° | 16.6° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 9.1° | 4.2 | 11.00 | 0.024 |
| 25mm, f/5.6 Cw Series Fixed Focal Length Lens | 15-650 | Fixed | 41.40 | 12.1° | 16.6° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 9.1° | 4.2 | 11.00 | 0.0172 |
| 25mm, f/8 Cw Series Fixed Focal Length Lens | 15-651 | Fixed | 41.40 | 12.1° | 16.6° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 9.1° | 4.2 | 11.00 | 0.012 |
| 25mm, f/11 Cw Series Fixed Focal Length Lens | 15-652 | Fixed | 41.40 | 12.1° | 16.6° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 9.1° | 4.2 | 11.00 | 0.0087 |
| 25mm, f/16 Cw Series Fixed Focal Length Lens | 15-653 | Fixed | 41.40 | 12.1° | 16.6° | M30.5 x 0.50 (Female) | 37.77 | 34.1 | 9.1° | 4.2 | 11.00 | 0.006 |

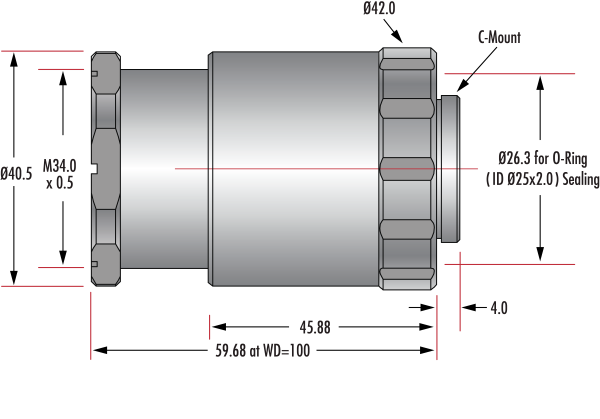

| 35mm, f/1.65 Cw Series Fixed Focal Length Lens | 15-654 | Fixed | 59.68 | 10.4° | 14.3° | M34.0 x 0.50 (Female) | 41.82 | 42 | 7.8° | 1.82 | 11.00 | 0.077 |
| 35mm, f/1.8 Cw Series Fixed Focal Length Lens | 15-655 | Fixed | 59.68 | 10.4° | 14.3° | M34.0 x 0.50 (Female) | 41.82 | 42 | 7.8° | 1.82 | 11.00 | 0.0711 |
| 35mm, f/2.8 Cw Series Fixed Focal Length Lens | 15-656 | Fixed | 59.68 | 10.4° | 14.3° | M34.0 x 0.50 (Female) | 41.82 | 42 | 7.8° | 1.82 | 11.00 | 0.0458 |
| 35mm, f/4 Cw Series Fixed Focal Length Lens | 15-657 | Fixed | 59.68 | 10.4° | 14.3° | M34.0 x 0.50 (Female) | 41.82 | 42 | 7.8° | 1.82 | 11.00 | 0.0321 |
| 35mm, f/5.6 Cw Series Fixed Focal Length Lens | 15-658 | Fixed | 59.68 | 10.4° | 14.3° | M34.0 x 0.50 (Female) | 41.82 | 42 | 7.8° | 1.82 | 11.00 | 0.0229 |
| 35mm, f/8 Cw Series Fixed Focal Length Lens | 15-659 | Fixed | 59.68 | 10.4° | 14.3° | M34.0 x 0.50 (Female) | 41.82 | 42 | 7.8° | 1.82 | 11.00 | 0.016 |
| 35mm, f/11 Cw Series Fixed Focal Length Lens | 15-660 | Fixed | 59.68 | 10.4° | 14.3° | M34.0 x 0.50 (Female) | 41.82 | 42 | 7.8° | 1.82 | 11.00 | 0.0117 |
| 35mm, f/16 Cw Series Fixed Focal Length Lens | 15-661 | Fixed | 59.68 | 10.4° | 14.3° | M34.0 x 0.50 (Female) | 41.82 | 42 | 7.8° | 1.82 | 11.00 | 0.008 |
| 50mm, f/2.0 Sealed Cw Series Fixed Focal Length Lens | 15-662 | Fixed | 51.80 | 7.31° | 10.0° | M36 x 0.50 (Female) | 41.00 | 5.49° | 2.1 | 11.00 | 0.043 | |
| 50mm, f/2.8 Sealed Cw Series Fixed Focal Length Lens | 15-663 | Fixed | 51.80 | 7.31° | 10.0° | M36 x 0.50 (Female) | 41.00 | 5.49° | 2.1 | 11.00 | 0.030 | |
| 50mm, f/4.0 Sealed Cw Series Fixed Focal Length Lens | 15-664 | Fixed | 51.80 | 7.31° | 10.0° | M36 x 0.50 (Female) | 41.00 | 5.49° | 2.1 | 11.00 | 0.021 | |
| 50mm, f/5.6 Sealed Cw Series Fixed Focal Length Lens | 15-665 | Fixed | 51.80 | 7.31° | 10.0° | M36 x 0.50 (Female) | 41.00 | 5.49° | 2.1 | 11.00 | 0.015 | |
| 50mm, f/8.0 Sealed Cw Series Fixed Focal Length Lens | 15-666 | Fixed | 51.80 | 7.31° | 10.0° | M36 x 0.50 (Female) | 41.00 | 5.49° | 2.1 | 11.00 | 0.011 | |
| 50mm, f/11 Sealed Cw Series Fixed Focal Length Lens | 15-667 | Fixed | 51.80 | 7.31° | 10.0° | M36 x 0.50 (Female) | 41.00 | 5.49° | 2.1 | 11.00 | 0.008 | |
| 50mm, f/16 Sealed Cw Series Fixed Focal Length Lens | 15-668 | Fixed | 51.80 | 7.31° | 10.0° | M36 x 0.50 (Female) | 41.00 | 5.49° | 2.1 | 11.00 | 0.005 |
技术数据
