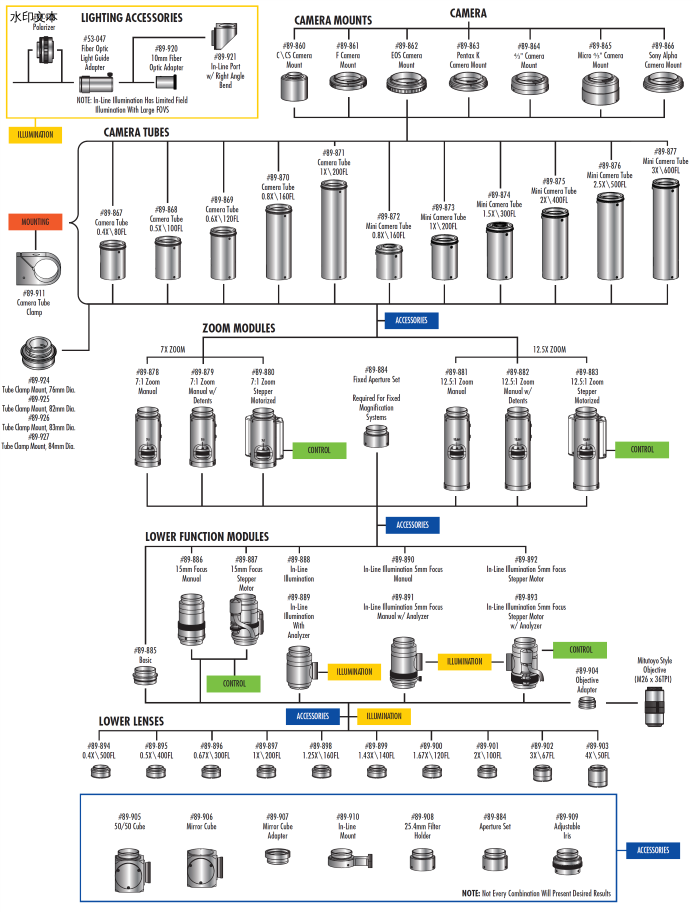

7X与12.5X高精度微距镜头为模块化镜头系统，内含相机接口、摄像管、核心模块、底部功能模块与底部镜头。可通过切换模块以改变放大倍率、视场或光学通道，从而增加其多功能性。7X与12.5X高精度微距镜头与M26 x 36 TPI Mitutoyo型物镜相兼容，同时也与适用于C接口至F接口至35mm DSLR相机的相机传感器覆盖与固定座相兼容。备有50/50与 90° 棱镜以引进直角转动或支持多个成像路径。同时也备有适用于多轴微距和聚焦功能的电动控制器，并可连接至USB、以太网或RS-232/422/285端口。
可实现多种放大倍率
可切换组件提供最大灵活性
备有电动与内置选项
另有7X 和 12.5X 高精度变焦镜头套件 可供选择
产品
| 标题 | 产品编码 | 内径 (mm) | 总长度 (mm) | 外径 (mm) | 注意 | 类型 | 支架 | 放大率 | 延展长度 (mm) | 螺纹类型 |
| C接口光导安装适配器 | 53-047 | 25.4 | 19.25 | 29.85 | Tube Mount | 15.0 | C-Mount | |||
| C接口相机转换器 | 89-860 | Camera Mount (One Required) | Zoom Lens, Modular | C-Mount | ||||||
| F接口相机转换器 | 89-861 | Camera Mount (One Required) | Zoom Lens, Modular | F-Mount | ||||||
| EOS相机转换器 | 89-862 | Camera Mount (One Required) | Zoom Lens, Modular | EOS | ||||||
| K接口相机适配器 | 89-863 | Camera Mount (One Required) | Zoom Lens, Modular | K-Mount | ||||||
| 4/3"接口相机适配器 | 89-864 | Camera Mount (One Required) | Zoom Lens, Modular | 4/3" | ||||||
| 4/3 英寸接口相机适配器 | 89-865 | Camera Mount (One Required) | Zoom Lens, Modular | Micro 4/3" | ||||||
| Sony Alpha相机适配器 | 89-866 | Camera Mount (One Required) | Zoom Lens, Modular | Sony Alpha | ||||||
| 0.4X 相机聚焦镜 | 89-867 | Camera Tube (One Required) | Zoom Lens, Modular | 0.4X | ||||||
| 0.5X 相机聚焦镜 | 89-868 | Camera Tube (One Required) | Zoom Lens, Modular | 0.5X | ||||||
| 0.6X 相机聚焦镜 | 89-869 | Camera Tube (One Required) | Zoom Lens, Modular | 0.6X | ||||||
| 0.8X 相机聚焦镜 | 89-870 | Camera Tube (One Required) | Zoom Lens, Modular | 0.8X | ||||||
| 1.0X 相机聚焦镜 | 89-871 | Camera Tube (One Required) | Zoom Lens, Modular | 1.0X | ||||||
| 0.8X 微型相机聚焦镜 | 89-872 | Camera Tube (One Required) | Zoom Lens, Modular | 0.8X | ||||||
| 1.0X 微型相机聚焦镜 | 89-873 | Camera Tube (One Required) | Zoom Lens, Modular | 1.0X | ||||||
| 1.5X 微型相机聚焦镜 | 89-874 | Camera Tube (One Required) | Zoom Lens, Modular | 1.5X | ||||||
| 2.0X 微型相机聚焦镜 | 89-875 | Camera Tube (One Required) | Zoom Lens, Modular | 2.0X | ||||||
| 2.5X微型相机聚焦镜 | 89-876 | Camera Tube (One Required) | Zoom Lens, Modular | 2.5X | ||||||
| 3.0X 微型相机聚焦镜 | 89-877 | Camera Tube (One Required) | Zoom Lens, Modular | 3.0X | ||||||
| 7X 变焦模组 | 89-878 | Zoom Module (One Required) | Zoom Lens, Modular | 7X | ||||||
| 7倍变焦模组 ，手动带制动 | 89-879 | Zoom Module (One Required) | Zoom Lens, Modular | 7X | ||||||
| 7X 变焦模组，步进电机驱动 | 89-880 | Zoom Module (One Required) | Zoom Lens, Modular | 7X | ||||||
| 12.5X 手动变焦模组 | 89-881 | Zoom Module (One Required) | Zoom Lens, Modular | 12.5X | ||||||
| 12.5X， w/Detents 手动变焦模组 | 89-882 | Zoom Module (One Required) | Zoom Lens, Modular | 12.5X | ||||||
| 12.5X 步进电机变焦模组 | 89-883 | Zoom Module (One Required) | Zoom Lens, Modular | 12.5X | ||||||
| 光阑固定设定装置（要求无变焦模组） | 89-884 | Zoom Module (One Required) | Zoom Lens, Modular | 7X | ||||||
| 基本低倍率模组， 无聚焦 | 89-885 | Lower Function Module (One Required) | Zoom Lens, Modular | |||||||
| 低倍率模组W/15毫米 手动调焦 | 89-886 | Lower Function Module (One Required) | Zoom Lens, Modular | |||||||
| 低倍率模组W/15毫米 步进电机调焦 | 89-887 | Lower Function Module (One Required) | Zoom Lens, Modular | |||||||
| 低倍率模组 内照明 | 89-888 | Lower Function Module (One Required) | Zoom Lens, Modular | |||||||
| 低倍率模组 内照明加吸收器 | 89-889 | Lower Function Module (One Required) | Zoom Lens, Modular | |||||||
| 低倍率模组 内照明加 5毫米手动调焦 | 89-890 | Lower Function Module (One Required) | Zoom Lens, Modular | |||||||
| 低倍率模组 内照明，吸收器加5毫米手动调焦 | 89-891 | Lower Function Module (One Required) | Zoom Lens, Modular | |||||||
| 低倍率模组 内照明加 5毫米步进电机调焦 | 89-892 | Lower Function Module (One Required) | Zoom Lens, Modular | |||||||
| 低倍率模组 内照明，吸收器加5毫米步进电机调焦 | 89-893 | Lower Function Module (One Required) | Zoom Lens, Modular | |||||||
| 0.4X 低倍镜头 | 89-894 | Lower Lens (One Required) | Zoom Lens, Modular | 0.4X | ||||||
| 0.5X 低倍镜头 | 89-895 | Lower Lens (One Required) | Zoom Lens, Modular | 0.5X | ||||||
| 0.67X 低倍镜头 | 89-896 | Lower Lens (One Required) | Zoom Lens, Modular | 0.67X | ||||||
| 1.0X 低倍镜头 | 89-897 | Lower Lens (One Required) | Zoom Lens, Modular | 1.0X | ||||||
| 1.25X 低倍镜头 | 89-898 | Lower Lens (One Required) | Zoom Lens, Modular | 1.25X | ||||||
| 1.43X 低倍镜头 | 89-899 | Lower Lens (One Required) | Zoom Lens, Modular | 1.43X | ||||||
| 1.67X 低倍镜头 | 89-900 | Lower Lens (One Required) | Zoom Lens, Modular | 1.67X | ||||||
| 2.0X 低倍镜头 | 89-901 | Lower Lens (One Required) | Zoom Lens, Modular | 2.0X | ||||||
| 3.0X 低倍镜头 | 89-902 | Lower Lens (One Required) | Zoom Lens, Modular | 3.0X | ||||||
| 4.0X 低倍镜头 | 89-903 | Lower Lens (One Required) | Zoom Lens, Modular | 4.0X | ||||||
| Mitutoyo 物镜转换器 (M26 x 36TPI) | 89-904 | Lower Lens (One Required) | Zoom Lens, Modular | M26 x 36 TPI | ||||||

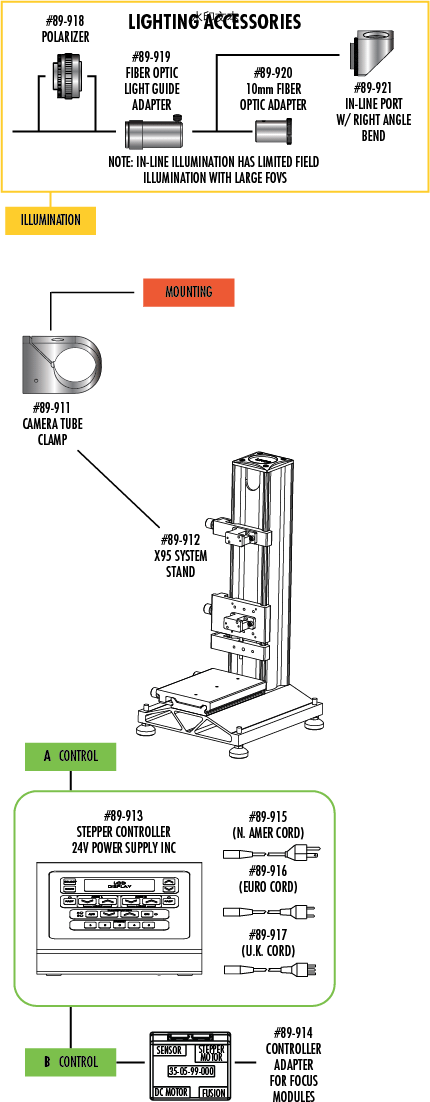

| 50/50 立方分光镜 | 89-905 | Lens Accessory | ||||||||
| 为直角弯曲的镜面立方体（夹具） | 89-906 | Lens Accessory | ||||||||
| 低倍率镜头使用的镜面立方体适配器 | 89-907 | Lens Accessory | ||||||||
| 25.4mm滤波片夹具 | 89-908 | Lens Accessory | ||||||||
| 可变光阑 | 89-909 | Lens Accessory | ||||||||
| 辅助接口点 | 89-910 | Lens Accessory | ||||||||
| 相机管式安装夹具 | 89-911 | Lens Accessory | ||||||||
| 可调导轨基座 | 89-912 | Lens Accessory | ||||||||
| 步进电机控制器 | 89-913 | Lens Accessory | ||||||||
| 低倍率聚焦模组控制适配器 | 89-914 | Lens Accessory | ||||||||
| 北美类型线缆 | 89-915 | Lens Accessory | ||||||||

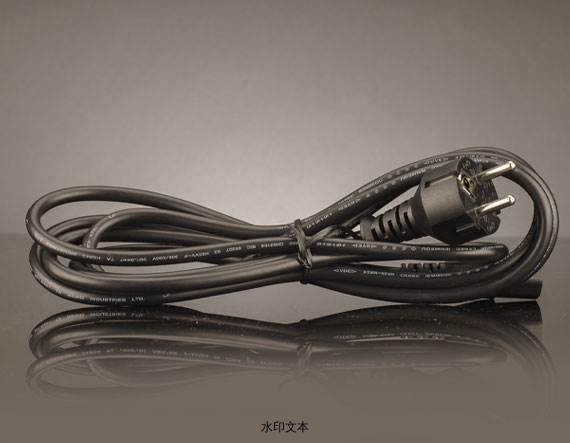

| 欧式（插头）线 | 89-916 | Lens Accessory | ||||||||
| UK 类型线缆 | 89-917 | Lens Accessory | ||||||||
| 偏振照明配件 | 89-918 | Lens Accessory | ||||||||
| 光纤导光适配器 | 89-919 | Lens Accessory | ||||||||
| 10毫米光纤导光适配器 | 89-920 | Lens Accessory | ||||||||
| 内照明直角弯曲端口 | 89-921 | Lens Accessory | ||||||||
| 光纤环形灯适配器 | 89-922 | Lens Accessory | ||||||||
| LED 环形灯适配器 | 89-923 | Lens Accessory | ||||||||
| 76毫米直角显微镜平台使用的安装夹具 | 89-924 | Lens Accessory | ||||||||
| 82毫米直角显微镜平台使用的安装夹具 | 89-925 | Lens Accessory | ||||||||
| 83毫米直角显微镜平台使用的安装夹具 | 89-926 | Lens Accessory | ||||||||
| 84毫米直角显微镜平台使用的安装夹具 | 89-927 | Lens Accessory |

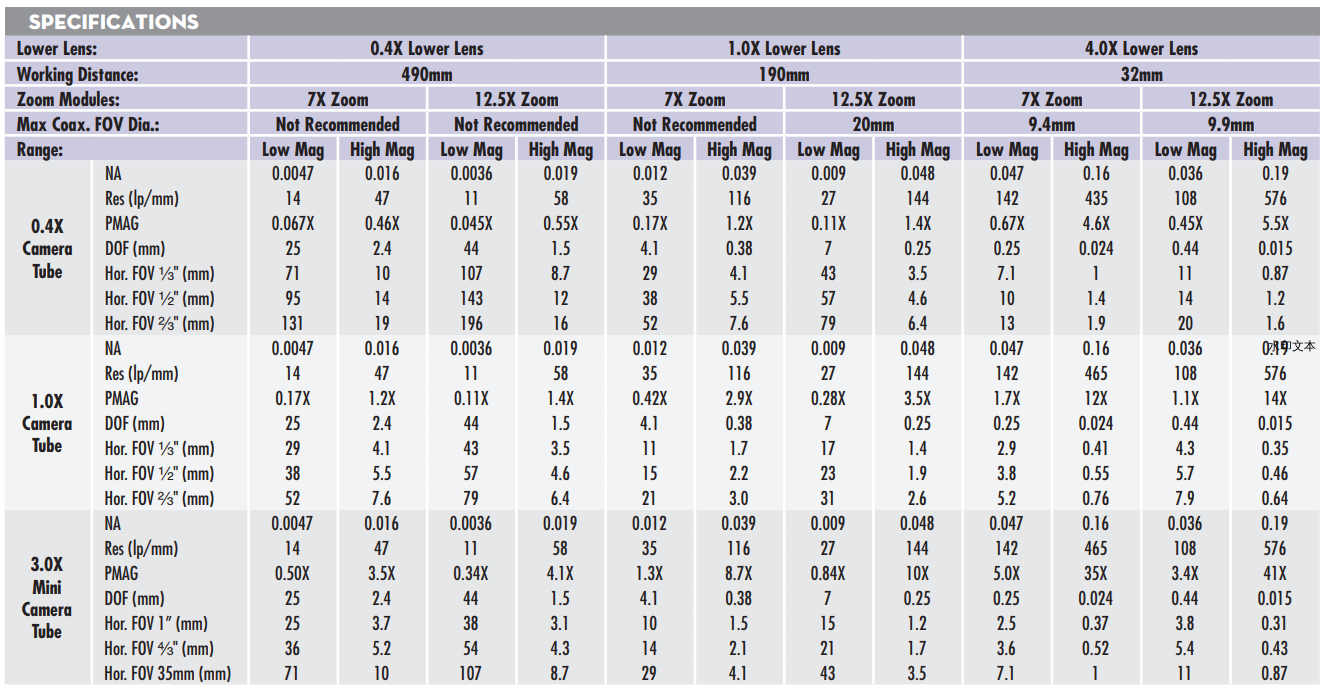

技术数据
