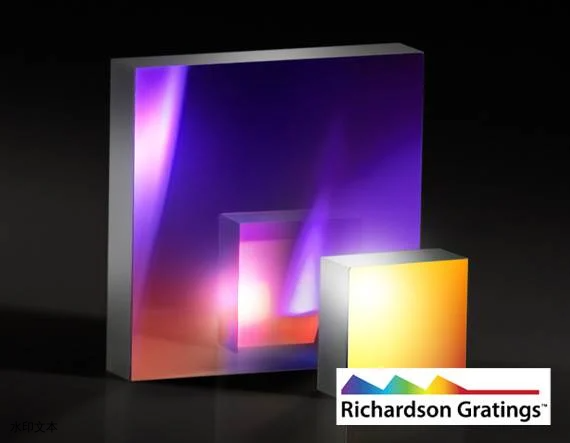

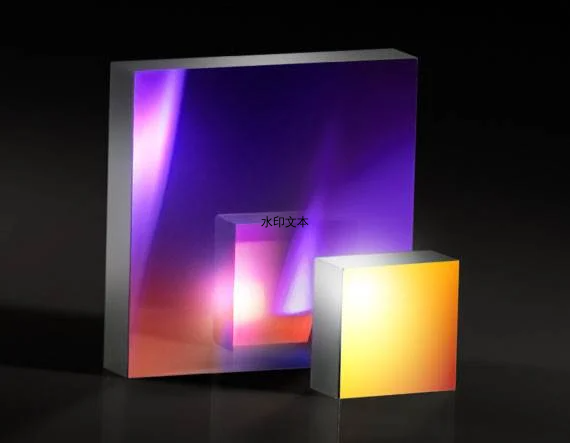

Richardson Gratings™ 高精度反射式全息衍射光栅

Richardson Gratings™ 高精度反射式全息衍射光栅

￥ 0.00
0.00


与刻线式光栅相比，Richardson Gratings™ 高精度反射式全息衍射光栅的光散射更低，使其成为对拉曼光谱仪等杂散光敏感的应用的理想选择。通过暴露于强激光干涉图样，光栅被记录在光刻胶中，然后用化学方法显影以显示具有正弦横截面的条纹图样。可提供从 UV 到 NIR 光谱区域使用的光栅。


  • 高衍射效率

  • 与刻线式光栅相比，减少了杂散光并具有更精确的周期性

  • 提供从 UV 到 NIR 区域的波长选项

  • 提供定制尺寸


                                                  产品


标题产品编码槽/mm波长范围 (nm)闪耀波长 (nm)尺寸 (mm)CA (%)涂层构造 长度 (mm)基底厚度 (mm)类型宽度 (mm)
Richardson Gratings™ 1200 Grooves, 12.7 x 12.7mm, 400-1200nm, Plane Holographic Reflection Grating15-7451200 400 - 1200 700 12.7 x 12.7 ±0.1>90 Aluminium Holographic Grating 12.70 Float Glass 6.00 ±0.5Reflective Diffraction Grating 12.70
Richardson Gratings™ 1200 Grooves, 25 x 25mm, 400-1200nm, Plane Holographic Reflection Grating15-7461200 400 - 1200 700 25.0 x 25.0 ±0.1>90 Aluminium Holographic Grating 25.00 Float Glass 6.00 ±0.5Reflective Diffraction Grating 25.00
Richardson Gratings™ 1200 Grooves, 30 x 30mm, 400-1200nm, Plane Holographic Reflection Grating15-7471200 400 - 1200 700 30.0 x 30.0 ±0.1>90 Aluminium Holographic Grating 30.00 Float Glass 6.00 ±0.5Reflective Diffraction Grating 30.00
Richardson Gratings™ 1800 Grooves, 12.7 x 12.7mm, 190-900nm, Plane Holographic Reflection Grating15-7481800 190 - 900 250 12.7 x 12.7 ±0.1>90 Aluminium Holographic Grating 12.70 Float Glass 6.00 ±0.5Reflective Diffraction Grating 12.70
Richardson Gratings™ 1800 Grooves, 12.7 x 12.7mm, 250-900nm, Plane Holographic Reflection Grating15-7511800 250 - 900 450 12.7 x 12.7 ±0.1>90 Aluminium Holographic Grating 12.70 Float Glass 6.00 ±0.5Reflective Diffraction Grating 12.70
Richardson Gratings™ 1800 Grooves, 25 x 25mm, 250-900nm, Plane Holographic Reflection Grating15-7521800 250 - 900 450 25.0 x 25.0 ±0.1>90 Aluminium Holographic Grating 25.00 Float Glass 6.00 ±0.5Reflective Diffraction Grating 25.00
Richardson Gratings™ 1800 Grooves, 25 x 25mm, 190-900nm, Plane Holographic Reflection Grating15-7491800 190 - 900 250 25.0 x 25.0 ±0.1>90 Aluminium Holographic Grating 25.00 Float Glass 6.00 ±0.5Reflective Diffraction Grating 25.00
Richardson Gratings™ 1800 Grooves, 30 x 30mm, 190-900nm, Plane Holographic Reflection Grating15-7501800 190 - 900 250 30.0 x 30.0 ±0.1>90 Aluminium Holographic Grating 30.00 Float Glass 6.00 ±0.5Reflective Diffraction Grating 30.00
Richardson Gratings™ 1800 Grooves, 30 x 30mm, 250-900nm, Plane Holographic Reflection Grating15-7531800 250 - 900 450 30.0 x 30.0 ±0.1>90 Aluminium Holographic Grating 30.00 Float Glass 6.00 ±0.5Reflective Diffraction Grating 30.00
Richardson Gratings™ 2400 Grooves, 12.7 x 12.7mm, 200-800nm, Plane Holographic Reflection Grating15-7542400 200 - 800 270 12.7 x 12.7 ±0.1>90 Aluminium Holographic Grating 12.70 Float Glass 6.00 ±0.5Reflective Diffraction Grating 12.70
Richardson Gratings™ 2400 Grooves, 12.7 x 12.7mm, 150-800nm, Plane Holographic Reflection Grating15-7572400 150 - 800 250 12.7 x 12.7 ±0.1>90 Aluminium Holographic Grating 12.70 Float Glass 6.00 ±0.5Reflective Diffraction Grating 12.70
Richardson Gratings™ 2400 Grooves, 25 x 25mm, 150-800nm, Plane Holographic Reflection Grating15-7582400 150 - 800 250 25.0 x 25.0 ±0.1>90 Aluminium Holographic Grating 25.00 Float Glass 6.00 ±0.5Reflective Diffraction Grating 25.00
Richardson Gratings™ 2400 Grooves, 25 x 25mm, 200-800nm, Plane Holographic Reflection Grating15-7552400 200 - 800 270 25.0 x 25.0 ±0.1>90 Aluminium Holographic Grating 25.00 Float Glass 6.00 ±0.5Reflective Diffraction Grating 25.00
Richardson Gratings™ 2400 Grooves, 30 x 30mm, 200-800nm, Plane Holographic Reflection Grating15-7562400 200 - 800 270 30.0 x 30.0 ±0.1>90 Aluminium Holographic Grating 30.00 Float Glass 6.00 ±0.5Reflective Diffraction Grating 30.00
Richardson Gratings™ 2400 Grooves, 30 x 30mm, 150-800nm, Plane Holographic Reflection Grating15-7592400 150 - 800 250 30.0 x 30.0 ±0.1>90 Aluminium Holographic Grating 30.00 Float Glass 6.00 ±0.5Reflective Diffraction Grating 30.00
