TECHSPEC® N-BK7封装版角锥棱镜回射器固定在铝制外壳中，并使用RTV灌封胶固定。由于其复杂的形状，角锥回射器的安装往往颇具挑战。这些回射器提供了一种便捷且耐用的解决方案。TECHSPEC® N-BK7封装版角锥棱镜回射器可通过两个¼-20螺纹孔轻松集成。此外，每个反射器均具有镀银反射面，以减少偏振效应并扩大视场。如需尺寸详情，请参阅的“技术图像”选项卡。

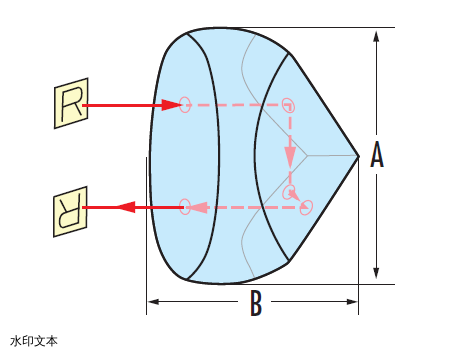

入射光线被反射回光源方向
可用于测量和对齐
易安装的 ¼-20 螺纹孔
也可以选购 未封装版
产品
| 标题 | 产品编码 | 光束偏移（弧秒） | 涂层 | Dia. Tolerance (mm) | 基底 | 内径 (mm) | 外径 (mm) | 表面质量 | 安装螺纹 | 类型 | 防护罩容差 (mm) | 图像定位 |
| 7.16mm，带框，角椎回反射镜 | 49-079 | ±10 | Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 7.20 | 25.40 | 60-40 | (1) ¼-20, (1) #8 | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
| 7.16mm Silver and VIS 0° Coated, Mounted Corner Cube Retroreflector | 12-211 | ±10 | VIS 0° & Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 7.20 | 25.40 | 60-40 | (1) ¼-20, (1) #8 | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
| 7.16mm Silver and NIR II Coated, Mounted Corner Cube Retroreflector | 12-670 | ±10 | NIR II & Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 7.20 | 25.40 | 60-40 | (1) ¼-20, (1) #8 | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
| 封装的直径12.7mm，镀银角锥反射镜 | 45-203 | ±5 | Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 12.70 | 31.75 | 60-40 | (2) ¼-20 Tapped Holes | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
| 12.7mm Silver and VIS 0° Coated, Mounted Corner Cube Retroreflector | 12-216 | ±5 | VIS 0° & Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 12.70 | 31.75 | 60-40 | (2) ¼-20 Tapped Holes | Retroreflector | Outer Diameter: +0/-0.5, Height:± 0.25 | Left-Handed |
| 12.7mm Silver and NIR II Coated, Mounted Corner Cube Retroreflector | 12-671 | ±5 | NIR II & Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 12.70 | 31.75 | 60-40 | (2) ¼-20 Tapped Holes | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
| 封装的直径25.4mm，镀银角锥反射镜 | 45-188 | ±3 | Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 25.40 | 38.10 | 60-40 | (2) ¼-20 Tapped Holes | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
| 25.4mm Silver and VIS 0° Coated, Mounted Corner Cube Retroreflector | 12-217 | ±3 | VIS 0° & Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 25.40 | 38.10 | 60-40 | (2) ¼-20 Tapped Holes | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
| 25.4mm Silver and NIR II Coated, Mounted Corner Cube Retroreflector | 12-672 | ±3 | NIR II & Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 25.40 | 38.10 | 60-40 | (2) ¼-20 Tapped Holes | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
| 封装的直径38.1mm，镀银角锥反射镜 | 45-190 | ±3 | Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 38.10 | 50.80 | 60-40 | (2) ¼-20 Tapped Holes | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
| 封装的直径50.8mm，镀银角锥反射镜 | 45-192 | ±3 | Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 50.80 | 63.50 | 60-40 | (2) ¼-20 Tapped Holes | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
| 63.5mm，带框，角椎回反射镜 | 49-080 | ±3 | Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 63.50 | 76.20 | 60-40 | (2) ¼-20 Tapped Holes | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
| 76.2mm，带框，角椎回反射镜 | 49-081 | ±3 | Silver with protective overcoat | +0.0/-0.1 | N-BK7 | 76.20 | 88.90 | 60-40 | (2) ¼-20 Tapped Holes | Retroreflector | Outer Diameter: +0/-0.5, Height: ±0.25 | Left-Handed |
技术数据
| Dimensions in mm | ||||
| Stock No. | Inner Diameter ID | Outer Diameter OD | H | X |
| #49-079 | 7.16 | 25.40 | 7.92 | 14.27 |
| #45-203 | 12.7 | 31.75 | 11.73 | 18.08 |
| #12-216 | 12.7 | 31.75 | 11.73 | 18.08 |
| #12-671 | 12.7 | 31.75 | 11.73 | 18.08 |
| #45-188 | 25.4 | 38.10 | 20.62 | 26.98 |
| #12-217 | 25.4 | 38.10 | 20.62 | 26.98 |
| #12-672 | 25.4 | 38.10 | 20.62 | 26.98 |
| #45-190 | 38.1 | 50.80 | 31.06 | 37.41 |
| #45-192 | 50.8 | 63.50 | 39.95 | 46.30 |
| #49-080 | 63.5 | 76.20 | 49.83 | 56.18 |
| #49-081 | 76.2 | 88.90 | 58.72 | 65.07 |
