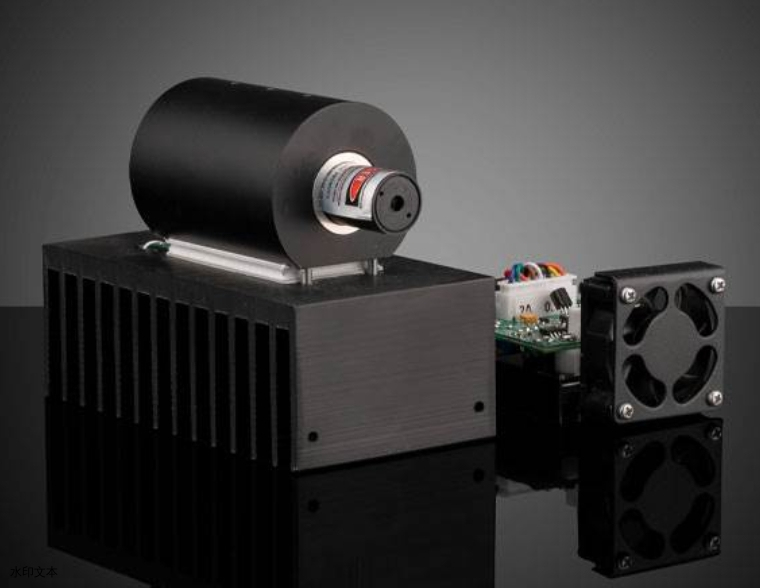

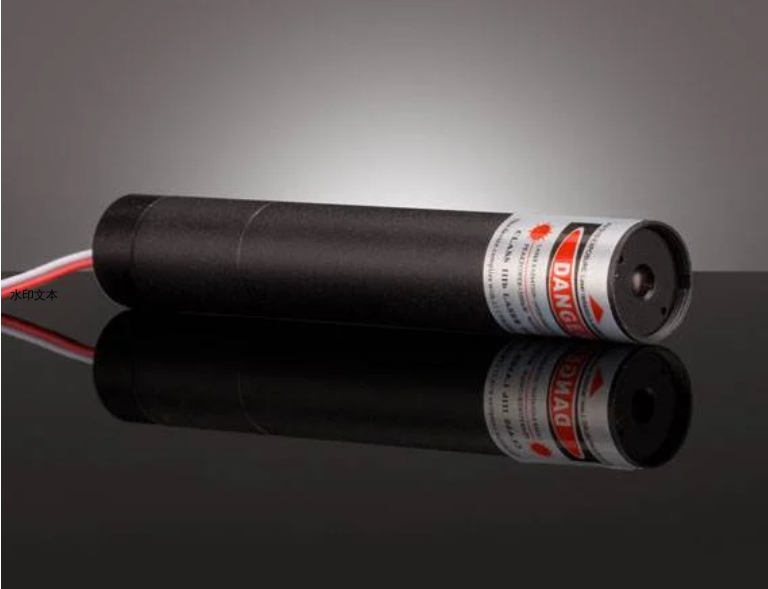

DPSS指向激光器是二极管泵浦固态激光，提供从1到10mW的功率。凭借其固态设计，这些激光提供卓越的模式纯度和低发散，使其成为需要长投射距离的应用的理想之选。该单一设备采用转动开关设计并内置了光学元件和电子元件，适合用于各种即插即用的操作。DPSS指向激光提供532nm和1064nm波长的高亮圆形输出光束，特别适合各种不同的OEM应用。强烈建议使用TEC控制器以确保稳定的输出功率。需要使用 TEC 控制器或散热器来维持 23°C - 27°C 的工作温度范围。
高达10kHz的TTL调制
透镜模式TEM00
蓝光、绿光、黄光和红外输出波长
运行所需的 TEC 或散热器 (单独出售ly)
产品
| 标题 | 产品编码 | 工作温度 (°C) | 工作电压 (V) | 输出功率 (mW) | 空间模式 | 波长 (nm) | 波长容差 (nm) | 电源 |
| 10mW, 473nm DPSS Pointing Laser | 19-469 | 23 to 27 | 3 | 10 | TEM00 | 473.00 ±1 | ±1 | Power Supply Required and Sold Separately: USA: #19-475 Europe: #19-475 Japan: Not Available Korea: Not Available China: #19-475 |
| 1mW, 520nm DPSS Pointing Laser | 29-130 | 23 to 27 | 7 | 1 | TEM00 | 520.00 ±10 | ||
| 5mW, 520nm DPSS Pointing Laser | 29-131 | 23 to 27 | 7 | 5 | TEM00 | 520.00 ±10 | ||
| 10mW, 520nm DPSS Pointing Laser | 29-132 | 23 to 27 | 7 | 10 | TEM00 | 520.00 ±10 | ||
| 25mW, 520nm DPSS Pointing Laser | 29-133 | 23 to 27 | 7 | 25 | TEM00 | 520.00 ±10 | ||
| 50mW, 520nm DPSS Pointing Laser | 29-134 | 23 to 27 | 7 | 50 | TEM00 | 520.00 ±10 | ||
| 1mW Fixed Focus Laser 532nm | 37-026 | 23 to 27 | 5.0 | 1 | TEM00 | 532.00 ±1 | ±1 | Power Supply Required and Sold Separately: USA: #73-818 Europe: #73-818 Japan: #13-640 Korea: #33-770 China: #73-818 |
| 5mW Fixed Focus Laser 532nm | 37-027 | 23 to 27 | 5.0 | 5 | TEM00 | 532.00 ±1 | ±1 | Power Supply Required and Sold Separately: USA: #73-818 Europe: #73-818 Japan: #13-640 Korea: #33-770 China: #73-818 |
| 10mW Fixed Focus Laser 532nm | 37-028 | 23 to 27 | 5.0 | 10 | TEM00 | 532.00 ±1 | ±1 | Power Supply Required and Sold Separately: USA: #73-818 Europe: #73-818 Japan: #13-640 Korea: #33-770 China: #73-818 |
| 25mW, 532nm DPSS Pointing Laser | 19-470 | 23 to 27 | 3 | 25 | TEM00 | 532.00 ±1 | ±1 | Power Supply Required and Sold Separately: USA: #19-475 Europe: #19-475 Japan: Not Available Korea: Not Available China: #19-475 |
| 80mW, 532nm DPSS Pointing Laser | 19-471 | 23 to 27 | 3 | 80 | TEM00 | 532.00 ±1 | ±1 | Power Supply Required and Sold Separately: USA: #19-475 Europe: #19-475 Japan: Not Available Korea: Not Available China: #19-475 |
| 10mW, 589nm DPSS Pointing Laser | 19-472 | 23 to 27 | 3 | 10 | TEM00 | 589.00 ±2 | ±2 | Power Supply Required and Sold Separately: USA: #19-475 Europe: #19-475 Japan: Not Available Korea: Not Available China: #19-475 |
| 1mW Fixed Focus Laser 1064nm | 37-041 | 23 to 27 | 5.0 | 1 | TEM00 | 1,064.00 ±1 | ±1 | Power Supply Required and Sold Separately: USA: #73-818 Europe: #73-818 Japan: #13-640 Korea: #33-770 China: #73-818 |
| 1mW Fixed Focus Laser 1064nm (重新认证 05-P) | 37-041-RCD-05P | 23 to 27 | 5.0 | 1 | TEM00 | 1,064.00 ±1 | ±1 | Power Supply Required and Sold Separately: USA: #73-818 Europe: #73-818 Japan: #13-640 Korea: #33-770 China: #73-818 |
| 5mW Fixed Focus Laser 1064nm | 37-042 | 23 to 27 | 5.0 | 5 | TEM00 | 1,064.00 ±1 | ±1 | Power Supply Required and Sold Separately: USA: #73-818 Europe: #73-818 Japan: #13-640 Korea: #33-770 China: #73-818 |
| 10mW Fixed Focus Laser 1064nm | 37-043 | 23 to 27 | 5.0 | 10 | TEM00 | 1,064.00 ±1 | ±1 | Power Supply Required and Sold Separately: USA: #73-818 Europe: #73-818 Japan: #13-640 Korea: #33-770 China: #73-818 |
| 25mW, 1064nm DPSS Pointing Laser | 19-473 | 23 to 27 | 5 | 25 | TEM00 | 1,064.00 ±2 | ±2 | Power Supply Required and Sold Separately: USA: #73-818 Europe: #73-818 Japan: Not Available Korea: Not Available China: #73-818 |
| 100mW, 1064nm DPSS Pointing Laser | 19-474 | 23 to 27 | 3 | 100 | TEM00 | 1,064.00 ±2 | ±2 | Power Supply Required and Sold Separately: USA: #19-475 Europe: #19-475 Japan: Not Available Korea: Not Available China: #19-475 |
