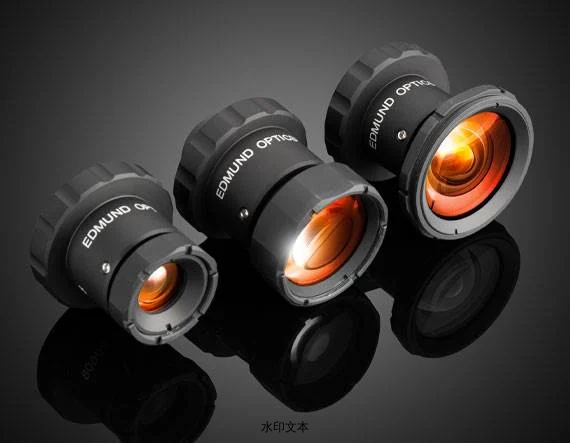

超紧凑型防水镜头

超紧凑型防水镜头

￥ 0.00
0.00


TECHSPEC® UCw系列定焦镜头是我们 TECHSPEC® UC 系列定焦镜头的防水版本，设计符合IEC入侵防护等级IPX7标准，能够承受水深达1米持续30分钟的浸泡.此外，其紧凑的设计在保证高性能的同时，提供了经济实惠的价格，且不牺牲品质和手感。这些镜头配备了疏水涂层窗口，防止水滴在镜头表面凝结，并通过多重O型密封圈确保水分无法进入镜头内部。TECHSPEC® UCw系列定焦镜头非常适合在空间受限且环境恶劣的应用场景中使用，如食品检测、安防监控、医疗设备和工厂自动化等领域。


  • 高达 1/2”的 C-Mount 镜头

  • 超紧凑型（UC）高分辨率镜头，适用于小型传感器

  • UC 系列定焦镜头的防水版本

  • 符合IEC  IPX9K 的密封防护等级

                             产品

标题产品编码虹膜选项长度 (mm)Horizontal FOV, 1/2" Sensor滤光片螺纹Filter Thread Adapter最大直径 (mm)外径 (mm)Horizontal FOV, 1/3" Sensor最大后端突出 (mm) 最大像圈 (mm)NA, Object Side
4mm f/1.8 Sealed UCw Series Fixed Focal Length Lens70-581Fixed 40.71 84.8° M62 x 0.75 (Male) #33-308 (Required) 40 40 65.4° 6.01 8.00 0.09
4mm f/2.8 Sealed UCw Series Fixed Focal Length Lens70-582Fixed 40.71 84.8° M62 x 0.75 (Male) #33-308 (Required) 40 40 65.4° 6.01 8.00 0.06
4mm f/4.0 Sealed UCw Series Fixed Focal Length Lens70-583Fixed 40.71 84.8° M62 x 0.75 (Male) #33-308 (Required) 40 40 65.4° 6.01 8.00 0.04
4mm f/5.6 Sealed UCw Series Fixed Focal Length Lens70-584Fixed 40.71 84.8° M62 x 0.75 (Male) #33-308 (Required) 40 40 65.4° 6.01 8.00 0.03
4mm f/8.0 Sealed UCw Series Fixed Focal Length Lens70-585Fixed 40.71 84.8° M62 x 0.75 (Male) #33-308 (Required) 40 40 65.4° 6.01 8.00 0.02
4mm f/11 Sealed UCw Series Fixed Focal Length Lens70-586Fixed 40.71 84.8° M62 x 0.75 (Male) #33-308 (Required) 40 40 65.4° 6.01 8.00 0.01
4mm f/16 Sealed UCw Series Fixed Focal Length Lens70-587Fixed 40.71 84.8° M62 x 0.75 (Male) #33-308 (Required) 40 40 65.4° 6.01 8.00 0.01
6mm, f/1.85 Sealed UCw Series FIxed Focal Length Lens 70-588Fixed 40.10 60.0° M34 x 0.5 (Female)
38 38 45.4° 3.82 8.00 0.03
6mm, f/2.8 Sealed UCw Series FIxed Focal Length Lens 70-589Fixed 40.10 60.0° M34 x 0.5 (Female)
38 38 45.4° 3.82 8.00 0.02
6mm, f/4 Sealed UCw Series FIxed Focal Length Lens 70-590Fixed 40.10 60.0° M34 x 0.5 (Female)
38 38 45.4° 3.82 8.00 0.01
6mm, f/5.6 Sealed UCw Series FIxed Focal Length Lens 70-591Fixed 40.10 60.0° M34 x 0.5 (Female)
38 38 45.4° 3.82 8.00 0.01
6mm, f/8 Sealed UCw Series FIxed Focal Length Lens 70-592Fixed 40.10 60.0° M34 x 0.5 (Female)
38 38 45.4° 3.82 8.00 0.01
6mm, f/11 Sealed UCw Series FIxed Focal Length Lens 70-593Fixed 40.10 60.0° M34 x 0.5 (Female)
38 38 45.4° 3.82 8.00 0.004
6mm, f/16 Sealed UCw Series FIxed Focal Length Lens 70-594Fixed 40.10 60.0° M34 x 0.5 (Female)
38 38 45.4° 3.82 8.00 0.002
8mm, f/1.8 Sealed UCw Series Fixed Focal Length Lens70-595Fixed 42.00 44.7° M43 x 0.75 (Male) #89-940 (Required) 34 30 33.9° 5.15 8.00 0.03
8mm, f/2.8 Sealed UCw Series Fixed Focal Length Lens70-596Fixed 42.00 44.7° M43 x 0.75 (Male) #89-940 (Required) 34 30 33.9° 5.15 8.00 0.02
8mm, f/4 Sealed UCw Series Fixed Focal Length Lens70-597Fixed 42.00 44.7° M43 x 0.75 (Male) #89-940 (Required) 34 30 33.9° 5.15 8.00 0.01
8mm, f/5.6 Sealed UCw Series Fixed Focal Length Lens70-598Fixed 42.00 44.7° M43 x 0.75 (Male) #89-940 (Required) 34 30 33.9° 5.15 8.00 0.01
8mm, f/8 Sealed UCw Series Fixed Focal Length Lens70-599Fixed 42.00 44.7° M43 x 0.75 (Male) #89-940 (Required) 34 30 33.9° 5.15 8.00 0.01
8mm, f/11 Sealed UCw Series Fixed Focal Length Lens70-600Fixed 42.00 44.7° M43 x 0.75 (Male) #89-940 (Required) 34 30 33.9° 5.15 8.00 0.01
8mm, f/16 Sealed UCw Series Fixed Focal Length Lens70-601Fixed 42.00 44.7° M43 x 0.75 (Male) #89-940 (Required) 34 30 33.9° 5.15 8.00 0.003
12mm, f/1.8 Sealed UCw Series Fixed Focal Length Lens70-602Fixed 34.16 30.3° M25.5 x 0.50 (Female)
30 30 22.8° 4.52 9.00 0.03
12mm, f/2.8 Sealed UCw Series Fixed Focal Length Lens70-603Fixed 34.16 30.3° M25.5 x 0.50 (Female)
30 30 22.8° 4.52 9.00 0.02
12mm, f/4 Sealed UCw Series Fixed Focal Length Lens70-604Fixed 34.16 30.3° M25.5 x 0.50 (Female)
30 30 22.8° 4.52 9.00 0.01
12mm, f/5.6 Sealed UCw Series Fixed Focal Length Lens70-605Fixed 34.16 30.3° M25.5 x 0.50 (Female)
30 30 22.8° 4.52 9.00 0.01
12mm, f/8 Sealed UCw Series Fixed Focal Length Lens70-606Fixed 34.16 30.3° M25.5 x 0.50 (Female)
30 30 22.8° 4.52 9.00 0.01
12mm, f/11 Sealed UCw Series Fixed Focal Length Lens70-607Fixed 34.16 30.3° M25.5 x 0.50 (Female)
30 30 22.8° 4.52 9.00 0.004
12mm, f/16 Sealed UCw Series Fixed Focal Length Lens70-608Fixed 34.16 30.3° M25.5 x 0.50 (Female)
30 30 22.8° 4.52 9.00 0.003
16mm, f/1.8 Sealed UCw Series FIxed Focal Length Lens 70-609Fixed 20.42 22.5° M25.5 x 0.50 (Female)
38 38 17.0° 5.13 9.00 0.02
16mm, f/2.8 Sealed UCw Series FIxed Focal Length Lens 70-610Fixed 20.42 22.5° M25.5 x 0.50 (Female)
38 38 17.0° 5.13 9.00 0.01
16mm, f/4 Sealed UCw Series FIxed Focal Length Lens 70-611Fixed 20.42 22.5° M25.5 x 0.50 (Female)
38 38 17.0° 5.13 9.00 0.01
16mm, f/5.6 Sealed UCw Series FIxed Focal Length Lens 70-612Fixed 20.42 22.5° M25.5 x 0.50 (Female)
38 38 17.0° 5.13 9.00 0.01
16mm, f/8 Sealed UCw Series FIxed Focal Length Lens 70-613Fixed 20.42 22.5° M25.5 x 0.50 (Female)
38 38 17.0° 5.13 9.00 0.005
16mm, f/11 Sealed UCw Series FIxed Focal Length Lens 70-614Fixed 20.42 22.5° M25.5 x 0.50 (Female)
38 38 17.0° 5.13 9.00 0.003
16mm, f/16 Sealed UCw Series FIxed Focal Length Lens 70-615Fixed 20.42 22.5° M25.5 x 0.50 (Female)
38 38 17.0° 5.13 9.00 0.002
25mm, f/1.85 Sealed UCw Series FIxed Focal Length Lens 70-616Fixed 28.17 14.6° M25.5 x 0.50 (Female)
38 38 11.0° 3.44 9.00 0.03
25mm, f/2.8 Sealed UCw Series FIxed Focal Length Lens 70-617Fixed 28.17 14.6° M25.5 x 0.50 (Female)
38 38 11.0° 3.44 9.00 0.02
25mm, f/4 Sealed UCw Series FIxed Focal Length Lens 70-618Fixed 28.17 14.6° M25.5 x 0.50 (Female)
38 38 11.0° 3.44 9.00 0.01
25mm, f/5.6 Sealed UCw Series FIxed Focal Length Lens 70-619Fixed 28.17 14.6° M25.5 x 0.50 (Female)
38 38 11.0° 3.44 9.00 0.01
25mm, f/8 Sealed UCw Series FIxed Focal Length Lens 70-620Fixed 28.17 14.6° M25.5 x 0.50 (Female)
38 38 11.0° 3.44 9.00 0.01
25mm, f/11 Sealed UCw Series FIxed Focal Length Lens 70-621Fixed 28.17 14.6° M25.5 x 0.50 (Female)
38 38 11.0° 3.44 9.00 0.01
25mm, f/16 Sealed UCw Series FIxed Focal Length Lens 70-623Fixed 28.17 14.6° M25.5 x 0.50 (Female)
38 38 11.0° 3.44 9.00 0.004
35mm, f/1.85 Sealed UCw Series FIxed Focal Length Lens 70-624Fixed 51.46 10.6° M25.5 x 0.50 (Female)
38 38 7.9° 2.11 9.00 0.04
35mm, f/2.8 Sealed UCw Series FIxed Focal Length Lens 70-625Fixed 51.46 10.6° M25.5 x 0.50 (Female)
38 38 7.9° 2.11 9.00 0.03
35mm, f/4 Sealed UCw Series FIxed Focal Length Lens 70-626Fixed 51.46 10.6° M25.5 x 0.50 (Female)
38 38 7.9° 2.11 9.00 0.02
35mm, f/5.6 Sealed UCw Series FIxed Focal Length Lens 70-627Fixed 51.46 10.6° M25.5 x 0.50 (Female)
38 38 7.9° 2.11 9.00 0.01
35mm, f/8 Sealed UCw Series FIxed Focal Length Lens 70-628Fixed 51.46 10.6° M25.5 x 0.50 (Female)
38 38 7.9° 2.11 9.00 0.01
35mm, f/11 Sealed UCw Series FIxed Focal Length Lens 70-629Fixed 51.46 10.6° M25.5 x 0.50 (Female)
38 38 7.9° 2.11 9.00 0.01
35mm, f/16 Sealed UCw Series FIxed Focal Length Lens 70-630Fixed 51.46 10.6° M25.5 x 0.50 (Female)
38 38 7.9° 2.11 9.00 0.004
