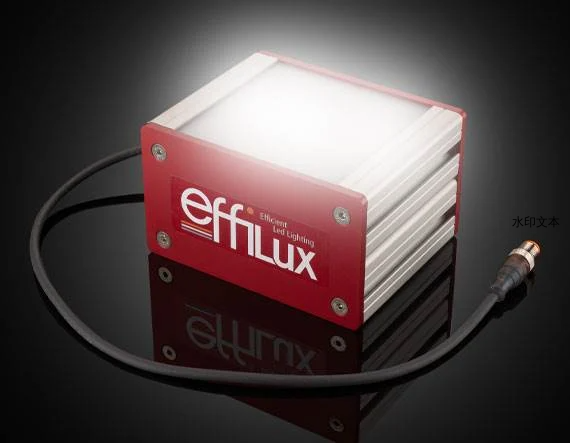

Effilux 短波红外 LED 背光系统

Effilux 短波红外 LED 背光系统

￥ 0.00
0.00


Effilux SWIR LED背光系统为机器视觉、分拣检测及硅材料检测应用提供高强度均匀照明。可选波长覆盖1050、1200、1300、1450、1550和1650nm波段。背光模组在标称波长下可实现>80%的照明均匀性。该产品可与TECHSPEC® C系列短波红外定焦镜头、TECHSPEC® SilverTL™短波红外远心镜头，以及LUCID Vision Labs Triton™千兆网供电（PoE）短波红外相机或Teledyne FLIR IIS Forge 1GigE短波红外相机形成完美光学解决方案。


  • 可提供全范围短波红外波长

  • 可提供高强度且均匀的光线照明

  • 设计波长下具备>80%的均匀性

                           产品

标题产品编码颜色连接器输入电压 (V)型号工作温度 (°C)尺寸 (mm)波长 (nm)电源有效区(mm)Type of Illumination
SWIR 1050nm Homogeneous Backlight28-628SWIR M12, 4 pins 24V DC EFFI-MBL-100T-100-1050P -20 to 70 136.5 x 109.5 x 80.0 1,050.00 Power Supply Required and Sold Separately: USA: #15-874 Europe: #15-875 Japan: #73-409 Korea: #73-409  China: #15-874 100 x 100 LED Illuminator
SWIR 1200nm Homogeneous Backlight28-629SWIR M12, 4 pins 24V DC EFFI-MBL-100T-100-1200 -20 to 70 136.5 x 109.5 x 80.0 1,200.00 Power Supply Required and Sold Separately: USA: #15-874 Europe: #15-875 Japan: #73-409 Korea: #73-409  China: #15-874 100 x 100 LED Illuminator
SWIR 1300nm Homogeneous Backlight28-630SWIR M12, 4 pins 24V DC EFFI-MBL-100T-100-1300 -20 to 70 136.5 x 109.5 x 80.0 1,300.00 Power Supply Required and Sold Separately: USA: #15-874 Europe: #15-875 Japan: #73-409 Korea: #73-409  China: #15-874 100 x 100 LED Illuminator
SWIR 1450nm Homogeneous Backlight28-631SWIR M12, 4 pins 24V DC EFFI-MBL-100T-100-1450 -20 to 70 136.5 x 109.5 x 80.0 1,450.00 Power Supply Required and Sold Separately: USA: #15-874 Europe: #15-875 Japan: #73-409 Korea: #73-409  China: #15-874 100 x 100 LED Illuminator
SWIR 1550nm Homogeneous Backlight28-632SWIR M12, 4 pins 24V DC EFFI-MBL-100T-100-1550 -20 to 70 136.5 x 109.5 x 80.0 1,550.00 Power Supply Required and Sold Separately: USA: #15-874 Europe: #15-875 Japan: #73-409 Korea: #73-409  China: #15-874 100 x 100 LED Illuminator
SWIR 1650nm Homogeneous Backlight28-633SWIR M12, 4 pins 24V DC EFFI-MBL-100T-100-1650 -20 to 70 136.5 x 109.5 x 80.0 1,650.00 Power Supply Required and Sold Separately: USA: #15-874 Europe: #15-875 Japan: #73-409 Korea: #73-409  China: #15-874 100 x 100 LED Illuminator
