棋盘格校准目标板

市场价：￥ 0.00

价格：￥ 0.00

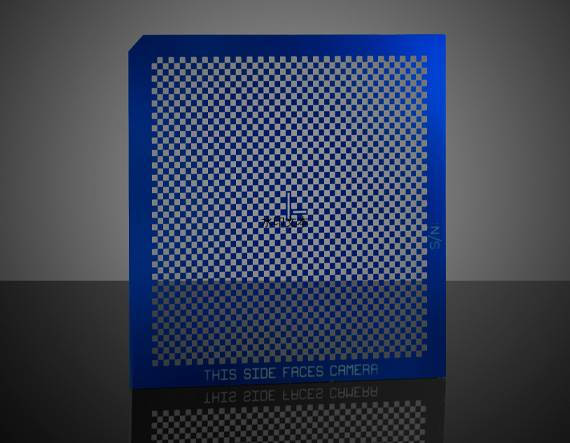

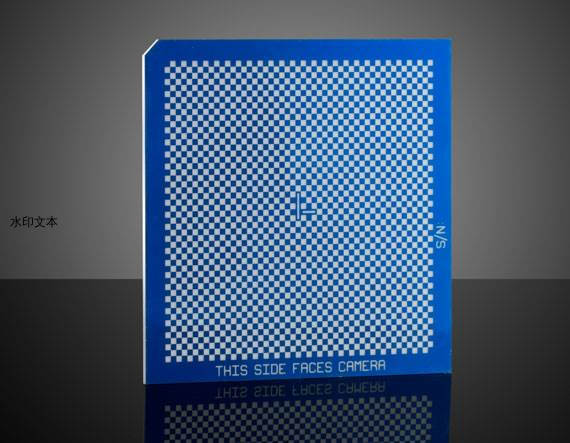

棋盘格校准目标板用于二维工业和机器视觉相机的校准，用于检测图像畸变或传感器问题，以保证测量精度。这些棋盘格目标板采用坚硬的象牙色和乳白色玻璃基片，因此不会使图案弯曲。这些棋盘格目标板能最大程度地降低背射阴影的影响，使它们成为具有广泛视场的成像系统反射照明校准的理想选择。这些目标板提供各种尺寸，以补充视场较大或较小的相机.

尺寸稳定的玻璃基片上的铬图案
经优化适用于成像系统的反射照明校准
从 20mm 起的各种尺寸适用于较大和较小视场

产品

标题	产品编码	涂层	基底	模型大小 (mm)	尺寸 (mm)	厚度 (mm)	NIST Certification	RoHS 2015
20 x 20mm Opal Checkerboard Target	12-197	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	0.2 x 0.2 ±0.002	20 x 20 ±0.10	1.52 ±0.10	No	符合标准
20 x 20mm Opal Checkerboard Target NIST Certified	20-283	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	0.2 x 0.2 ±0.002	20 x 20 ±0.10	1.52 ±0.10	Yes
20 x 20mm Glass Checkerboard Target	15-974	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	0.2 x 0.2 ±0.002	20 x 20 ±0.10	1.52 ±0.10	No	符合标准
20 x 20mm Glass Checkerboard Target NIST Certified	29-425	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	0.2 x 0.2 ±0.002	20 x 20 ±0.10	1.52 ±0.10	Yes
30 x 30mm Opal Checkerboard Target	12-198	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	0.4 x 0.4 ±0.002	30 x 30 ±0.10	1.52 ±0.10	No	符合标准
30 x 30mm Opal Checkerboard Target NIST Certified	29-426	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	0.4 x 0.4 ±0.002	30 x 30 ±0.10	1.52 ±0.10	Yes
30 x 30mm Glass Checkerboard Target	15-975	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	0.4 x 0.4 ±0.002	30 x 30 ±0.10	1.52 ±0.10	No	符合标准
30 x 30mm Glass Checkerboard Target NIST Certified	29-427	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	0.4 x 0.4 ±0.002	30 x 30 ±0.10	1.52 ±0.10	Yes
40 x 40mm Opal Checkerboard Target	12-199	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	0.6 x 0.6 ±0.002	40 x 40 ±0.10	1.52 ±0.10	No	符合标准
40 x 40mm Opal Checkerboard Target NIST Certified	29-428	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	0.6 x 0.6 ±0.002	40 x 40 ±0.10	1.52 ±0.10	Yes
40 x 40mm Glass Checkerboard Target	15-976	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	0.6 x 0.6 ±0.002	40 x 40 ±0.10	1.52 ±0.10	No	符合标准
40 x 40mm Glass Checkerboard Target NIST Certified	29-429	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	0.6 x 0.6 ±0.002	40 x 40 ±0.10	1.52 ±0.10	Yes
50 x 50mm Opal Checkerboard Target	12-200	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	0.8 x 0.8 ±0.002	50 x 50 ±0.10	1.52 ±0.10	No	符合标准
50 x 50mm Opal Checkerboard Target NIST Certified	29-430	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	0.8 x 0.8 ±0.002	50 x 50 ±0.10	1.52 ±0.10	Yes
50 x 50mm Glass Checkerboard Target	15-977	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	0.8 x 0.8 ±0.002	50 x 50 ±0.10	1.52 ±0.10	No	符合标准
50 x 50mm Glass Checkerboard Target NIST Certified	29-431	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	0.8 x 0.8 ±0.002	50 x 50 ±0.10	1.52 ±0.10	Yes
60 x 60mm Opal Checkerboard Target	12-201	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	1.0 x 1.0 ±0.002	60 x 60 ±0.10	1.52 ±0.10	No	符合标准
60 x 60mm Opal Checkerboard Target NIST Certified	29-432	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	1.0 x 1.0 ±0.002	60 x 60 ±0.10	1.52 ±0.10	Yes
60 x 60mm Glass Checkerboard Target	15-978	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	1.0 x 1.0 ±0.002	60 x 60 ±0.10	1.52 ±0.10	No	符合标准
60 x 60mm Glass Checkerboard Target NIST Certified	29-433	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	1.0 x 1.0 ±0.002	60 x 60 ±0.10	1.52 ±0.10	Yes
80 x 80mm Opal Checkerboard Target	12-202	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	1.4 x 1.4 ±0.005	80 x 80 ±0.10	1.52 ±0.10	No	符合标准
80 x 80mm Opal Checkerboard Target NIST Certified	29-434	Blue Chrome (reflectivity <7% @ 550nm)	Opal Glass	1.4 x 1.4 ±0.005	80 x 80 ±0.10	1.52 ±0.10	Yes
80 x 80mm Glass Checkerboard Target	15-979	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	1.4 x 1.4 ±0.005	80 x 80 ±0.10	1.52 ±0.10	No	符合标准
80 x 80mm Glass Checkerboard Target NIST Certified	29-435	Low Reflective Chrome (reflectivity <25% at 550nm)	Float Glass	1.4 x 1.4 ±0.005	80 x 80 ±0.10	1.52 ±0.10	Yes

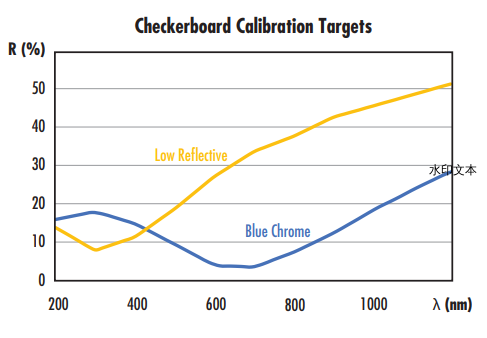

技术数据
