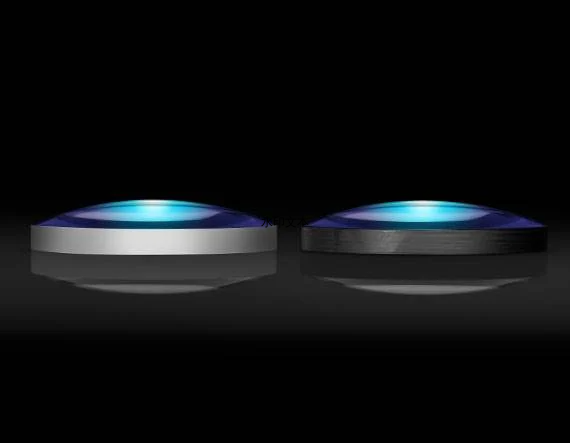

UV熔融二氧化硅平凸（PCX）镜片- UV- ar涂层

UV熔融二氧化硅平凸（PCX）镜片- UV- ar涂层

￥ 0.00
0.00


TECHSPEC®UV熔融石英平面凸透镜（PCX）UV-AR涂层在宽带基板上具有精确的规格和多种涂层选项。 熔融二氧化硅通常用于从紫外线（UV）到近红外（NIR）的应用。 其低折射率、低热膨胀系数和低夹杂物含量使其成为激光应用和恶劣环境条件的理想选择。 TECHSPEC®UV熔融石英平面凸透镜（PCX）UV-AR涂层具有行业领先的直径和浓度规格，使其成为集成到要求苛刻的成像和瞄准应用中的理想选择。 这些镜片涂有UV-AR涂层，以提高其在紫外线区域的涂层性能。  

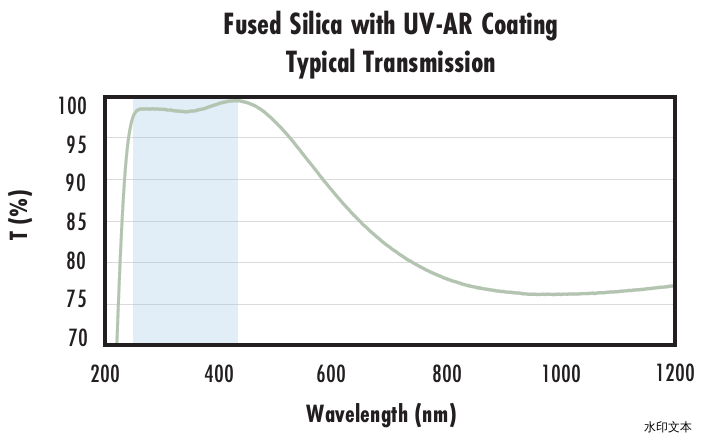

  • AR涂层，在250-425nm的波长范围内，每个表面的反射率小于0.75%

  • 精密熔融石英基板

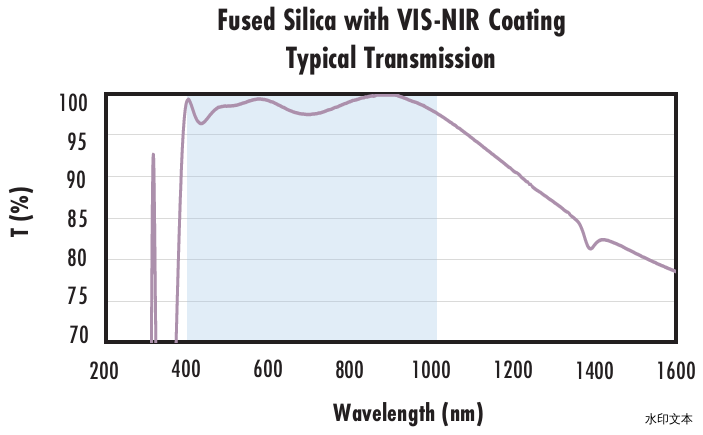

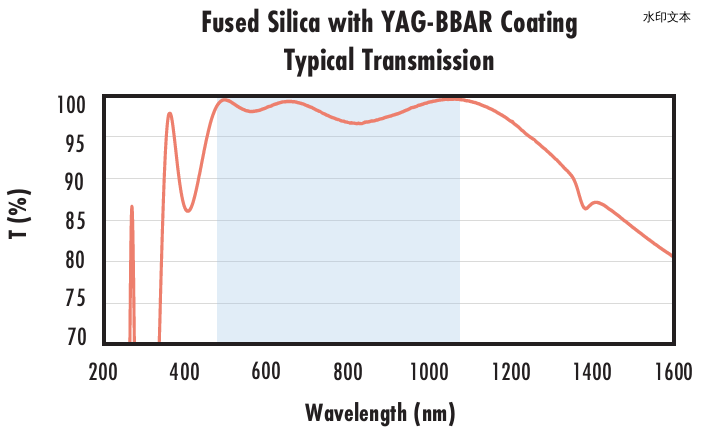

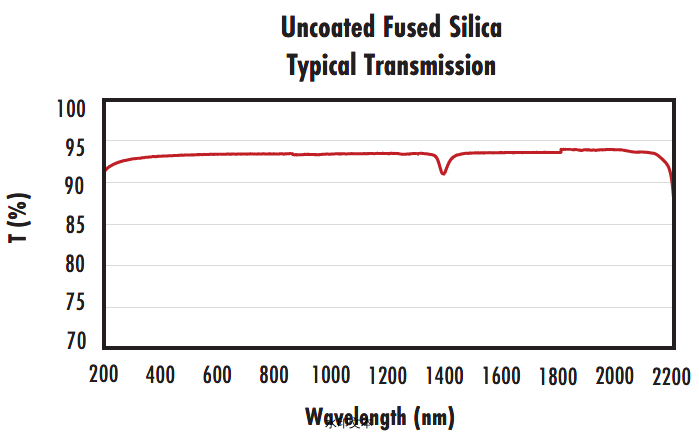

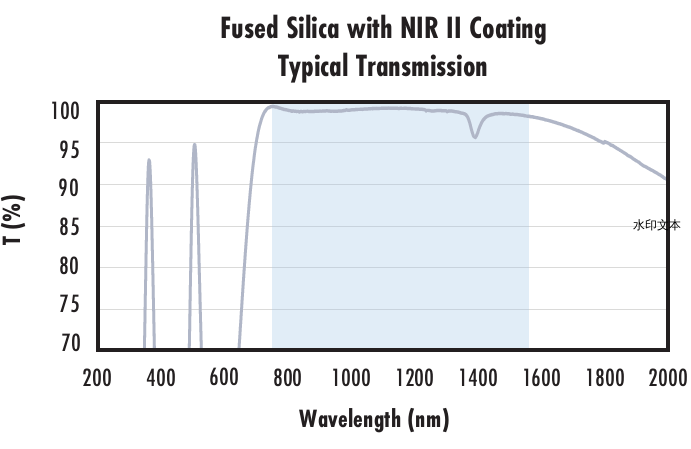

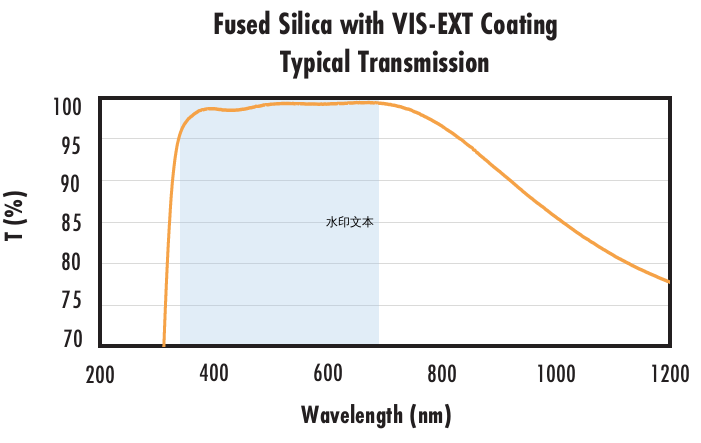

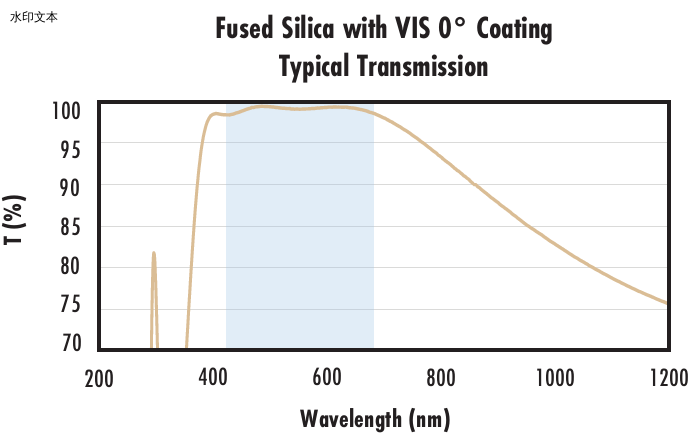

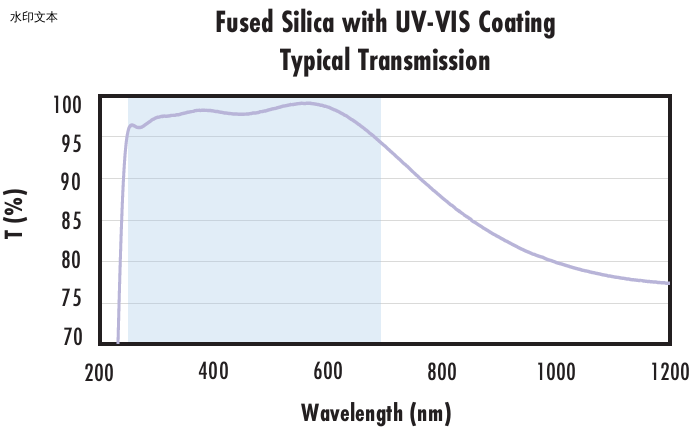

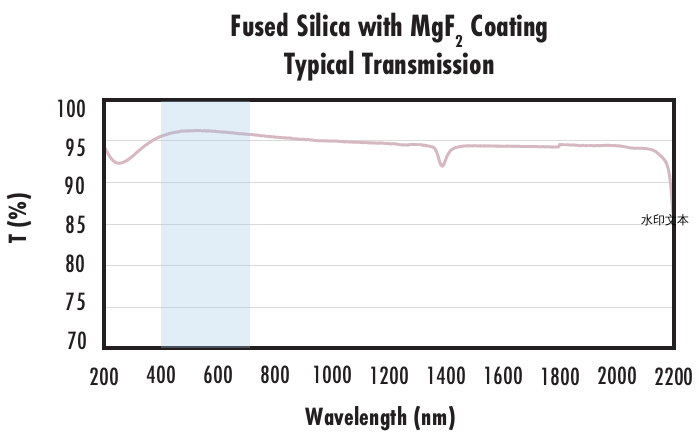

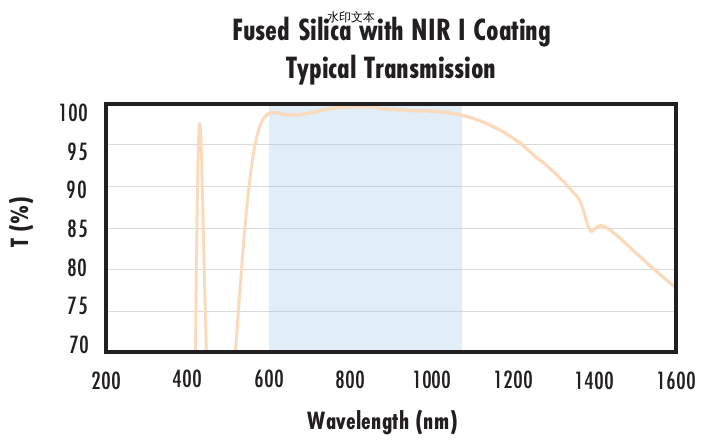

  • 多种涂层选项：无涂层、MgF2、UV-VIS、VIS-EXT、VIS-NIR、VIS 0°、YAG-BBAR、NIR I和NIR II


                             产品

标题产品编码Dia. (mm)EFL (mm)BFL (mm)涂层涂层规格基底表面质量Power (P-V) @ 632.8nmIrregularity (P-V) @ 632.8nmFL Tolerance (%)
2mm Dia. x 4mm FL UV-AR Coated, UV Plano-Convex Lens72-2522.00 4.00 @ 587.63.46 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980) 20-10 3λ λ/2 ±1
2mm Dia. x 6mm FL UV-AR Coated, UV Plano-Convex Lens72-2602.00 6.00 @ 587.65.45 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980) 20-10 3λ λ/2 ±1
3mm Dia. x 6mm FL UV-AR Coated, UV Plano-Convex Lens72-2683.00 6.00 @ 587.65.01 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980) 20-10 3λ λ/2 ±1
3mm Dia. x 9mm FL UV-AR Coated, UV Plano-Convex Lens72-2773.00 9.00 @ 587.68.11 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980) 20-10 3λ λ/2 ±1
4mm Dia. x 8mm FL UV-AR Coated, UV Plano-Convex Lens72-2854.00 8.00 @ 587.66.91 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980) 20-10 3λ λ/2 ±1
4mm Dia. x 12mm FL UV-AR Coated, UV Plano-Convex Lens72-2934.00 12.00 @ 587.611.04 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980) 20-10 3λ λ/2 ±1
LENS PCX UV 5 X 10 UV-AR CTD TS89-4155.00 +0.0/-0.02510.00 @ 587.6nm8.63 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
LENS PCX UV 5 X 15 UV-AR CTD TS89-4165.00 +0.0/-0.02515.00 @ 587.6nm13.83 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
LENS PCX UV 5 X 20 UV-AR CTD TS89-4175.00 +0.0/-0.02520.00 @ 587.6nm18.97 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
LENS PCX UV 5 X 25 UV-AR CTD TS89-4185.00 +0.0/-0.02525.00 @ 587.6nm23.97 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
6mm 直径 x 9mm 焦距，镀紫外光增透膜，紫外平凸透镜46-2556.00 +0.0/-0.0259.00 @ 587.6nm7.29 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
6mm 直径 x 12mm 焦距，镀紫外光增透膜，紫外平凸透镜46-2566.00 +0.0/-0.02512.00 @ 587.6nm10.63 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
6mm直径 x 15mm焦距，镀紫外增透膜，紫外平凸透镜48-6716.00 +0.0/-0.02515.00 @ 587.6nm13.63 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
6mm 直径 x 18mm 焦距，镀紫外光增透膜，紫外平凸透镜46-2576.00 +0.0/-0.02518.00 @ 587.6nm16.62 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 6 X 21 UV-AR TS36-6916.00 +0.0/-0.02521.00 @ 587.6nm19.63 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
6mm直径 x 24mm焦距，镀紫外增透膜，紫外平凸透镜48-6726.00 +0.0/-0.02524.00 @ 587.6nm22.63 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 6 X 36 UV-AR TS36-6926.00 +0.0/-0.02536.00 @ 587.6nm34.63 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
9mm直径 x 12mm焦距，镀紫外增透膜，紫外平凸透镜48-6739.00 +0.0/-0.02512.00 @ 587.6nm9.26 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
9mm 直径 x 13.5mm 焦距，镀紫外光增透膜，紫外平凸透镜46-2589.00 +0.0/-0.02513.50 @ 587.6nm11.44 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
9mm 直径 x 18mm 焦距，镀紫外光增透膜，紫外平凸透镜46-2599.00 +0.0/-0.02518.00 @ 587.6nm15.94 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 9 X 22 UV-AR TS36-6939.00 +0.0/-0.02522.00 @ 587.6nm19.94 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
9mm 直径 x 27mm 焦距，镀紫外光增透膜，紫外平凸透镜46-2609.00 +0.0/-0.02527.00 @ 587.6nm25.63 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
9mm直径 x 36mm焦距，镀紫外增透膜，紫外平凸透镜48-6749.00 +0.0/-0.02536.00 @ 587.6nm34.63 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 10 X 20 UV-AR TS36-69410.00 +0.0/-0.02520.00 @ 587.6nm17.94 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 10 X 25 UV-AR TS36-69510.00 +0.0/-0.02525.00 @ 587.6nm22.94 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
12mm直径 x 18mm焦距，镀紫外增透膜，紫外平凸透镜48-67512.00 +0.0/-0.02518.00 @ 587.6nm15.26 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
直径12mm x 25mm FL UV-AR 镀膜， UV 平凸透镜48-02912.00 +0.0/-0.02525.00 @ 587.6nm22.31 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
直径12mm x 30mm FL UV-AR 镀膜， UV 平凸透镜48-03012.00 +0.0/-0.02530.00 @ 587.6nm27.56 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
12mm直径 x 36mm焦距，镀紫外增透膜，紫外平凸透镜48-67612.00 +0.0/-0.02536.00 @ 587.6nm34.29 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
直径12mm x 40mm FL UV-AR 镀膜， UV 平凸透镜48-03112.00 +0.0/-0.02540.00 @ 587.6nm37.85 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
直径12mm x 50mm FL UV-AR 镀膜， UV 平凸透镜48-03212.00 +0.0/-0.02550.00 @ 587.6nm48.01 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 12 X 72 UV-AR TS36-69612.00 +0.0/-0.02572.00 @ 587.6nm70.29 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 12 X 84 UV-AR TS36-69712.00 +0.0/-0.02584.00 @ 587.6nm82.28 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
直径12mm x 100mm FL UV-AR 镀膜， UV 平凸透镜48-03312.00 +0.0/-0.025100.00 @ 587.6nm98.33 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
15mm直径 x 25mm焦距，镀紫外增透膜，紫外平凸透镜84-28715.00 +0.0/-0.02525.00 @ 587.6nm22.09 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
15mm直径 x 30mm焦距，镀紫外增透膜，紫外平凸透镜84-28815.00 +0.0/-0.02530.00 @ 587.6nm27.53 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
15mm直径 x 45mm焦距，镀紫外增透膜，紫外平凸透镜84-28915.00 +0.0/-0.02545.00 @ 587.6nm42.94 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
15mm直径 x 60mm焦距，镀紫外增透膜，紫外平凸透镜84-29015.00 +0.0/-0.02560.00 @ 587.6nm57.94 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
15mm直径 x 75mm焦距，镀紫外增透膜，紫外平凸透镜84-29115.00 +0.0/-0.02575.00 @ 587.6nm72.94 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 18 X 27 UV-AR TS36-69818.00 +0.0/-0.02527.00 @ 587.6nm23.23 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 18 X 36 UV-AR TS36-69918.00 +0.0/-0.02536.00 @ 587.6nm32.92 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 18 X 54 UV-AR TS36-70018.00 +0.0/-0.02554.00 @ 587.6nm51.6 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
20mm直径 x 30mm焦距，镀紫外增透膜，紫外平凸透镜49-96520.00 +0.0/-0.02530.00 @ 587.6nm25.88 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
20mm直径 x 35mm焦距，镀紫外增透膜，紫外平凸透镜49-96620.00 +0.0/-0.02535.00 @ 587.6nm31.58 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
20mm直径 x 40mm焦距，镀紫外增透膜，紫外平凸透镜49-96720.00 +0.0/-0.02540.00 @ 587.6nm36.92 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
20mm直径 x 50mm焦距，镀紫外增透膜，紫外平凸透镜49-96820.00 +0.0/-0.02550.00 @ 587.6nm47.25 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
20mm直径 x 60mm焦距，镀紫外增透膜，紫外平凸透镜49-96920.00 +0.0/-0.02560.00 @ 587.6nm57.60 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
20mm直径 x 80mm焦距，镀紫外增透膜，紫外平凸透镜49-97020.00 +0.0/-0.02580.00 @ 587.6nm77.95 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 25 X 35 UV-AR TS36-70125.00 +0.0/-0.02535.00 @ 587.6nm29.17 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
25mm直径 x 38mm焦距，镀紫外增透膜，紫外平凸透镜48-28325.00 +0.0/-0.02538.00 @ 587.6nm33.03 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
Lens PCX UV 25 X 40 UV-AR TS36-70225.00 +0.0/-0.02540.00 @ 587.6nm34.86 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
25mm直径 x 50mm焦距，镀紫外增透膜，紫外平凸透镜48-28425.00 +0.0/-0.02550.00 @ 587.6nm46.00 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
25mm直径 x 60mm焦距，镀紫外增透膜，紫外平凸透镜48-67725.00 +0.0/-0.02560.00 @ 587.6nm56.92 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
25mm直径 x 75mm焦距，镀紫外增透膜，紫外平凸透镜48-28525.00 +0.0/-0.02575.00 @ 587.6nm71.96 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
25mm直径 x 100mm焦距，镀紫外增透膜，紫外平凸透镜48-28625.00 +0.0/-0.025100.00 @ 587.6nm97.40 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
25mm直径 x 125mm焦距，镀紫外增透膜，紫外平凸透镜48-28725.00 +0.0/-0.025125.00 @ 587.6nm122.65 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
25mm直径 x 150mm焦距，镀紫外增透膜，紫外平凸透镜48-28825.00 +0.0/-0.025150.00 @ 587.6nm147.82 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
25mm直径 x 175mm焦距，镀紫外增透膜，紫外平凸透镜48-28925.00 +0.0/-0.025175.00 @ 587.6nm172.94 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
25mm直径 x 200mm焦距，镀紫外增透膜，紫外平凸透镜48-29025.00 +0.0/-0.025200.00 @ 587.6nm198.02 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
25mm直径 x 250mm焦距，镀紫外增透膜，紫外平凸透镜48-29125.00 +0.0/-0.025250.00 @ 587.6nm248.14 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
25mm直径 x 400mm焦距，镀紫外增透膜，紫外平凸透镜48-29225.00 +0.0/-0.025400.00 @ 587.6nm398.33 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
30mm直径 x 50mm焦距，镀紫外增透膜，紫外平凸透镜84-29230.00 +0.0/-0.02550.00 @ 587.6nm45.2 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
30mm直径 x 60mm焦距，镀紫外增透膜，紫外平凸透镜84-29330.00 +0.0/-0.02560.00 @ 587.6nm55.89 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
30mm直径 x 90mm焦距，镀紫外增透膜，紫外平凸透镜84-29430.00 +0.0/-0.02590.00 @ 587.6nm86.57 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
30mm直径 x 120mm焦距，镀紫外增透膜，紫外平凸透镜84-29530.00 +0.0/-0.025120.00 @ 587.6nm116.57 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
30mm直径 x 150mm焦距，镀紫外增透膜，紫外平凸透镜84-29630.00 +0.0/-0.025150.00 @ 587.6nm146.57 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
50mm直径 x 75mm焦距，镀紫外增透膜，紫外平凸透镜67-21850.00 +0.0/-0.02575.00 @ 587.6nm66.43 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
50mm直径 x 100mm焦距，镀紫外增透膜，紫外平凸透镜67-21950.00 +0.0/-0.025100.00 @ 587.6nm93.84 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
50mm直径 x 150mm焦距，镀紫外增透膜，紫外平凸透镜67-22050.00 +0.0/-0.025150.00 @ 587.6nm145.20 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
50mm直径 x 200mm焦距，镀紫外增透膜，紫外平凸透镜67-22150.00 +0.0/-0.025200.00 @ 587.6nm195.19 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
50mm直径 x 250mm焦距，镀紫外增透膜，紫外平凸透镜67-22250.00 +0.0/-0.025250.00 @ 587.6nm245.21 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980)40-20 1.5λ λ/4 ±1
75mm Dia. x 100mm FL UV-AR Coated, UV Plano-Convex Lens72-30175.00 100.00 @ 587.685.61 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980) 40-20 3λ λ/2 ±1
75mm Dia. x 125mm FL UV-AR Coated, UV Plano-Convex Lens72-30975.00 125.00 @ 587.6112.66 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980) 40-20 3λ λ/2 ±1
75mm Dia. x 150mm FL UV-AR Coated, UV Plano-Convex Lens72-31775.00 150.00 @ 587.6136.31 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980) 40-20 3λ λ/2 ±1
75mm Dia. x 200mm FL UV-AR Coated, UV Plano-Convex Lens72-32575.00 200.00 @ 587.6187.18 UV-AR (250-425nm) Rabs ≤1.0% @ 250 - 425nm Ravg ≤0.75% @ 250 - 425nm Ravg ≤0.5% @ 370 - 420nm Fused Silica (Corning 7980) 40-20 3λ λ/2 ±1


                              技术数据
