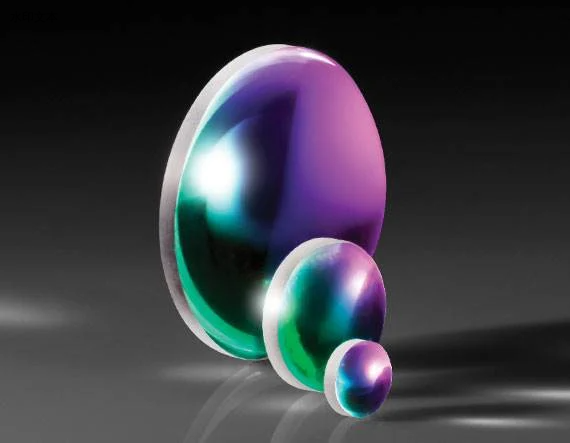

532nm 激光线镀膜熔融石英平凸（PCX）透镜

532nm 激光线镀膜熔融石英平凸（PCX）透镜

￥ 0.00
0.00


TECHSPEC® 激光线镀膜熔融石英平凸（PCX）透镜可镀多种激光线V型增透膜。在指定激光波长可提供最大吞吐量，这款镜头非常适用于采用低功率氦氖，二极管和Nd:YAG激光源的应用。在其设计波长，表面最大反射率<0.25%，透镜可为多光学元件应用提供卓越的透射率。>


  • 设计波长反射率<0.25％

  • 镀膜可用于二极管，氦氖和Nd：YAG激光源

  • 可选多种直径尺寸和焦距

  • 提供405nm, 633nm, 1064nm, 和1550nmV型镀膜

                            产品



标题产品编码Dia. (mm)EFL (mm)BFL (mm)涂层涂层规格基底表面质量Power (P-V) @ 632.8nmIrregularity (P-V) @ 632.8nm
LENS PCX UV 5 X 10 532NM CTD TS34-0835.00 +0.0/-0.02510.00 @ 587.6nm8.63 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 5 X 15 532NM CTD TS34-0845.00 +0.0/-0.02515.00 @ 587.6nm13.83 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 5 X 20 532NM CTD TS34-0855.00 +0.0/-0.02520.00 @ 587.6nm18.97 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 5 X 25 532NM CTD TS34-0865.00 +0.0/-0.02525.00 @ 587.6nm23.97 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
6mm Dia. x 12mm FL 532nm V-Coat, UV PCX Lens25-8636.00 +0.0/-0.02512.00 @ 587.6nm10.63 532nm V-Coat Rabs <0.25% @ 532nm Fused Silica (Corning 7980) 40-20 1.5λ λ/4
6mm Dia x 21mm FL 532nm V-Coat, UV PCX Lens25-8646.00 +0.0/-0.02521.00 @ 587.6nm19.63 532nm V-Coat Rabs <0.25% @ 532nm Fused Silica (Corning 7980) 40-20 1.5λ λ/4
6mm Dia. x 24mm FL 532nm V-Coat, UV PCX Lens25-8656.00 +0.0/-0.02524.00 @ 587.6nm22.63 532nm V-Coat Rabs <0.25% @ 532nm Fused Silica (Corning 7980) 40-20 1.5λ λ/4
6mm Dia x 36mm FL 532nm V-Coat, UV PCX Lens25-8666.00 +0.0/-0.02536.00 @ 587.6nm34.63 532nm V-Coat Rabs <0.25% @ 532nm Fused Silica (Corning 7980) 40-20 1.5λ λ/4
9mm Dia. x 12mm FL 532nm V-Coat, UV PCX Lens25-8679.00 +0.0/-0.02512.00 @ 587.6nm9.26 532nm V-Coat Rabs <0.25% @ 532nm Fused Silica (Corning 7980) 40-20 1.5λ λ/4
9mm Dia. x 18mm FL 532nm V-Coat, UV PCX Lens25-8689.00 +0.0/-0.02518.00 @ 587.6nm15.94 532nm V-Coat Rabs <0.25% @ 532nm Fused Silica (Corning 7980) 40-20 1.5λ λ/4
9mm Dia. x 27mm FL 532nm V-Coat, UV PCX Lens25-8699.00 +0.0/-0.02527.00 @ 587.6nm25.63 532nm V-Coat Rabs <0.25% @ 532nm Fused Silica (Corning 7980) 40-20 1.5λ λ/4
9mm Dia. x 36mm FL 532nm V-Coat, UV PCX Lens25-8709.00 +0.0/-0.02536.00 @ 587.6nm34.63 532nm V-Coat Rabs <0.25% @ 532nm Fused Silica (Corning 7980) 40-20 1.5λ λ/4
LENS PCX UV 12 X 18 532NM CTD TS34-08712.00 +0.0/-0.02518.00 @ 587.6nm15.26 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 12 X 25 532NM CTD TS34-08812.00 +0.0/-0.02525.00 @ 587.6nm22.31 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 12 X 30 532NM CTD TS34-08912.00 +0.0/-0.02530.00 @ 587.6nm27.56 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 12 X 36 532NM CTD TS34-09012.00 +0.0/-0.02536.00 @ 587.6nm34.29 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 12 X 50 532NM CTD TS34-09112.00 +0.0/-0.02550.00 @ 587.6nm48.01 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 12 X 100 532NM CTD TS34-09212.00 +0.0/-0.025100.00 @ 587.6nm98.33 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 25 X 38 532NM CTD TS34-09325.00 +0.0/-0.02538.00 @ 587.6nm33.03 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 25 X 50 532NM CTD TS34-09425.00 +0.0/-0.02550.00 @ 587.6nm46.00 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 25 X 60 532NM CTD TS34-09525.00 +0.0/-0.02560.00 @ 587.6nm56.92 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 25 X 75 532NM CTD TS34-09625.00 +0.0/-0.02575.00 @ 587.6nm71.96 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 25 X 100 532NM CTD TS34-09725.00 +0.0/-0.025100.00 @ 587.6nm97.40 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 25 X 125 532NM CTD TS34-09825.00 +0.0/-0.025125.00 @ 587.6nm122.65 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 25 X 150 532NM CTD TS34-09925.00 +0.0/-0.025150.00 @ 587.6nm147.86 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 25 X 200 532NM CTD TS34-10025.00 +0.0/-0.025200.00 @ 587.6nm198.02 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 50 X 75 532NM CTD TS34-10150.00 +0.0/-0.02575.00 @ 587.6nm66.43 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 50 X 100 532NM CTD TS34-10250.00 +0.0/-0.025100.00 @ 587.6nm93.84 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 50 X 150 532NM CTD TS34-10350.00 +0.0/-0.025150.00 @ 587.6nm145.20 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 50 X 200 532NM CTD TS34-10450.00 +0.0/-0.025200.00 @ 587.6nm195.19 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
LENS PCX UV 50 X 250 532NM CTD TS34-10550.00 +0.0/-0.025250.00 @ 587.6nm245.21 Laser V-Coat (532nm) Rabs <0.25% @ 532nm Fused Silica (Corning 7980)40-20 1.5λ λ/4
