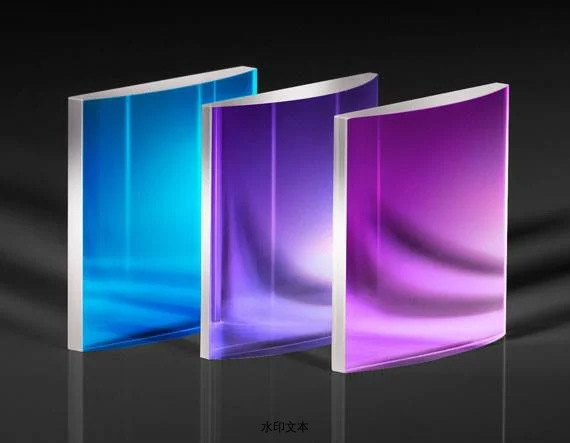

激光级激光线柱面透镜

激光级激光线柱面透镜

￥ 0.00
0.00


TECHSPEC® 激光级激光线柱面透镜具有严格控制的几何楔形容差，以利于兼容。这些激光柱面透镜具有激光级光学规格、 包括平面及柱面表面的20-10 表面质量及 λ/4 表面不规则度.. TECHSPEC® 激光级激光线柱面透镜现有266 nm、355 nm、532 nm和 1064 nm 增透镀膜（AR）版本，提供指定的激光损坏阈值。这些熔融石英透镜是要求严苛的激光加工和医疗应用的理想选择.



  • 镀增透膜（AR）对 Nd:YAG 谐波的反射率 <0.25%

  • 楔形公差<3 弧分

  • 采用熔融石英基片

                                 产品

标题产品编码EFL (mm)基底有效焦距/有效孔径直径比NA涂层类型BFL (mm)倒角CT (mm)CT Tolerance (mm)CA (mm)
12.7mm Square x 25 FL, 355nm AR Coated, Laser Grade PCX Cylinder Lens13-47725.00 Fused Silica (Corning 7980)2 0.25 Laser V-Coat (355nm) Cylinder Lens, Plano-Convex 22.94 Protective bevel as needed 3.00 ±0.1 11.43 x 11.43
12.7mm Square x -25 FL, 355nm AR Coated, Laser Grade PCV Cylinder Lens13-476-25.00 Fused Silica (Corning 7980)2 0.25 Laser V-Coat (355nm) Cylinder Lens, Plano-Concave -27.06 Protective bevel as needed 3.00 ±0.1 11.43 x 11.43
12.7mm Square x 50 FL, 266nm AR Coated, Laser Grade PCX Cylinder Lens37-57350.00 Fused Silica (Corning 7980)4 0.125 Laser V-Coat (266nm) Cylinder Lens, Plano-Convex 47.95 Protective bevel as needed 3.00 ±0.1 11.43 x 11.43
12.7mm Square x 50 FL, 355nm AR Coated, Laser Grade PCX Cylinder Lens37-58250.00 Fused Silica (Corning 7980)4 0.125 Laser V-Coat (355nm) Cylinder Lens, Plano-Convex 47.95 Protective bevel as needed 3.00 ±0.1 11.43 x 11.43
12.7mm Square x 50 FL, 532nm AR Coated, Laser Grade PCX Cylinder Lens37-59150.00 Fused Silica (Corning 7980)4 0.125 Laser V-Coat (532nm) Cylinder Lens, Plano-Convex 47.95 Protective bevel as needed 3.00 ±0.1 11.43 x 11.43
12.7mm Square x 50 FL, 1064nm AR Coated, Laser Grade PCX Cylinder Lens37-60550.00 Fused Silica (Corning 7980)4 0.125 Laser V-Coat (1064nm) Cylinder Lens, Plano-Convex 47.95 Protective bevel as needed 3.00 ±0.1 11.43 x 11.43
12.7mm Square x -50 FL, 266nm AR Coated, Laser Grade PCV Cylinder Lens37-578-50.00 Fused Silica (Corning 7980)1 0.50 Laser V-Coat (266nm) Cylinder Lens, Plano-Concave -52.06 Protective bevel as needed 3.00 ±0.1 11.43 x 11.43
12.7mm Square x -50 FL, 355nm AR Coated, Laser Grade PCV Cylinder Lens37-587-50.00 Fused Silica (Corning 7980)1 0.50 Laser V-Coat (355nm) Cylinder Lens, Plano-Concave -52.06 Protective bevel as needed 3.00 ±0.1 11.43 x 11.43
12.7mm Square x -50 FL, 532nm AR Coated, Laser Grade PCV Cylinder Lens37-599-50.00 Fused Silica (Corning 7980)1 0.50 Laser V-Coat (532nm) Cylinder Lens, Plano-Concave -52.06 Protective bevel as needed 3.00 ±0.1 11.43 x 11.43
12.7mm Square x -50 FL, 1064nm AR Coated, Laser Grade PCV Cylinder Lens37-612-50.00 Fused Silica (Corning 7980)1 0.50 Laser V-Coat (1064nm) Cylinder Lens, Plano-Concave -52.06 Protective bevel as needed 3.00 ±0.1 11.43 x 11.43
12.7mm Square x 150 FL, 355nm AR Coated, Laser Grade PCX Cylinder Lens13-479150.00 Fused Silica (Corning 7980)12 0.04 Laser V-Coat (355nm) Cylinder Lens, Plano-Convex 147.94 Protective bevel as needed 3.00 ±0.1 11.43 x 11.43
25.4mm Square x 50 FL, 266nm AR Coated, Laser Grade PCX Cylinder Lens37-57450.00 Fused Silica (Corning 7980)2 0.17 Laser V-Coat (266nm) Cylinder Lens, Plano-Convex 46.58 Protective bevel as needed 5.00 ±0.1 22.86 x 22.86
25.4mm Square x 50 FL, 355nm AR Coated, Laser Grade PCX Cylinder Lens37-58350.00 Fused Silica (Corning 7980)2 0.17 Laser V-Coat (355nm) Cylinder Lens, Plano-Convex 46.58 Protective bevel as needed 5.00 ±0.1 22.86 x 22.86
25.4mm Square x 50 FL, 532nm AR Coated, Laser Grade PCX Cylinder Lens37-59250.00 Fused Silica (Corning 7980)2 0.17 Laser V-Coat (532nm) Cylinder Lens, Plano-Convex 46.58 Protective bevel as needed 5.00 ±0.1 22.86 x 22.86
25.4mm Square x 50 FL, 1064nm AR Coated, Laser Grade PCX Cylinder Lens37-60650.00 Fused Silica (Corning 7980)2 0.17 Laser V-Coat (1064nm) Cylinder Lens, Plano-Convex 46.58 Protective bevel as needed 5.00 ±0.1 22.86 x 22.86
25.4mm Square x -50 FL, 266nm AR Coated, Laser Grade PCV Cylinder Lens37-579-50.00 Fused Silica (Corning 7980)2 0.25 Laser V-Coat (266nm) Cylinder Lens, Plano-Concave -52.06 Protective bevel as needed 3.00 ±0.1 22.86 x 22.86
25.4mm Square x -50 FL, 355nm AR Coated, Laser Grade PCV Cylinder Lens37-588-50.00 Fused Silica (Corning 7980)2 0.25 Laser V-Coat (355nm) Cylinder Lens, Plano-Concave -52.06 Protective bevel as needed 3.00 ±0.1 22.86 x 22.86
25.4mm Square x -50 FL, 532nm AR Coated, Laser Grade PCV Cylinder Lens37-601-50.00 Fused Silica (Corning 7980)2 0.25 Laser V-Coat (532nm) Cylinder Lens, Plano-Concave -52.06 Protective bevel as needed 3.00 ±0.1 22.86 x 22.86
25.4mm Square x -50 FL, 1064nm AR Coated, Laser Grade PCV Cylinder Lens37-613-50.00 Fused Silica (Corning 7980)2 0.25 Laser V-Coat (1064nm) Cylinder Lens, Plano-Concave -52.06 Protective bevel as needed 3.00 ±0.1 22.86 x 22.86
25.4mm Square x 75 FL, 266nm AR Coated, Laser Grade PCX Cylinder Lens37-57575.00 Fused Silica (Corning 7980)3 0.13 Laser V-Coat (266nm) Cylinder Lens, Plano-Convex 72.26 Protective bevel as needed 4.00 ±0.1 22.86 x 22.86
25.4mm Square x 75 FL, 355nm AR Coated, Laser Grade PCX Cylinder Lens37-58475.00 Fused Silica (Corning 7980)3 0.13 Laser V-Coat (355nm) Cylinder Lens, Plano-Convex 72.26 Protective bevel as needed 4.00 ±0.1 22.86 x 22.86
25.4mm Square x 75 FL, 532nm AR Coated, Laser Grade PCX Cylinder Lens37-59375.00 Fused Silica (Corning 7980)3 0.13 Laser V-Coat (532nm) Cylinder Lens, Plano-Convex 72.26 Protective bevel as needed 4.00 ±0.1 22.86 x 22.86
25.4mm Square x 75 FL, 1064nm AR Coated, Laser Grade PCX Cylinder Lens37-60775.00 Fused Silica (Corning 7980)3 0.13 Laser V-Coat (1064nm) Cylinder Lens, Plano-Convex 72.26 Protective bevel as needed 4.00 ±0.1 22.86 x 22.86
25.4mm Square x -75 FL, 266nm AR Coated, Laser Grade PCV Cylinder Lens37-580-75.00 Fused Silica (Corning 7980)3 0.17 Laser V-Coat (266nm) Cylinder Lens, Plano-Concave -77.06 Protective bevel as needed 3.00 ±0.1 22.86 x 22.86
25.4mm Square x -75 FL, 355nm AR Coated, Laser Grade PCV Cylinder Lens37-589-75.00 Fused Silica (Corning 7980)3 0.17 Laser V-Coat (355nm) Cylinder Lens, Plano-Concave -77.06 Protective bevel as needed 3.00 ±0.1 22.86 x 22.86
25.4mm Square x -75 FL, 532nm AR Coated, Laser Grade PCV Cylinder Lens37-602-75.00 Fused Silica (Corning 7980)3 0.17 Laser V-Coat (532nm) Cylinder Lens, Plano-Concave -77.06 Protective bevel as needed 3.00 ±0.1 22.86 x 22.86
25.4mm Square x -75 FL, 1064nm AR Coated, Laser Grade PCV Cylinder Lens37-614-75.00 Fused Silica (Corning 7980)3 0.17 Laser V-Coat (1064nm) Cylinder Lens, Plano-Concave -77.06 Protective bevel as needed 3.00 ±0.1 22.86 x 22.86
25.4mm Square x 100 FL, 266nm AR Coated, Laser Grade PCX Cylinder Lens37-576100.00 Fused Silica (Corning 7980)4 0.08 Laser V-Coat (266nm) Cylinder Lens, Plano-Convex 97.39 Protective bevel as needed 3.80 ±0.1 22.86 x 22.86
25.4mm Square x 100 FL, 355nm AR Coated, Laser Grade PCX Cylinder Lens37-585100.00 Fused Silica (Corning 7980)4 0.08 Laser V-Coat (355nm) Cylinder Lens, Plano-Convex 97.39 Protective bevel as needed 3.80 ±0.1 22.86 x 22.86
25.4mm Square x 100 FL, 532nm AR Coated, Laser Grade PCX Cylinder Lens37-594100.00 Fused Silica (Corning 7980)4 0.08 Laser V-Coat (532nm) Cylinder Lens, Plano-Convex 97.39 Protective bevel as needed 3.80 ±0.1 22.86 x 22.86
25.4mm Square x 100 FL, 1064nm AR Coated, Laser Grade PCX Cylinder Lens37-610100.00 Fused Silica (Corning 7980)4 0.08 Laser V-Coat (1064nm) Cylinder Lens, Plano-Convex 97.39 Protective bevel as needed 3.80 ±0.1 22.86 x 22.86
