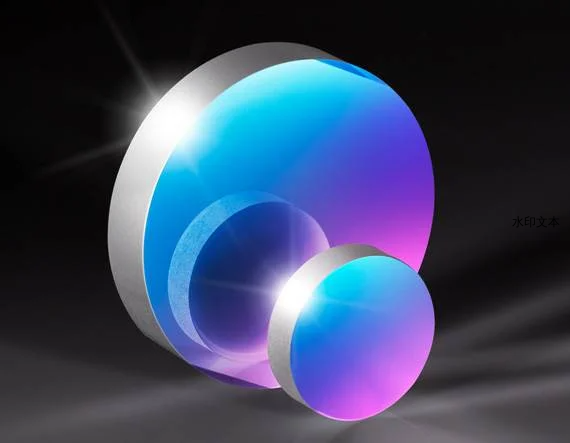

精密紫外反射镜

精密紫外反射镜

￥ 0.00
0.00


TECHSPEC®精密紫外反射镜适用于绝大多数市场上在售的光源，并提供深紫外（DUV）和真空紫外加硬（VUV）镀膜。DUV镀膜在190nm至长波红外（LWIR）波段可提供优异的反射率，而VUV镀膜在120nm至长波红外（LWIR）波段具有最佳反射率。这款TECHSPEC®精密紫外反射镜拥有0°入射角角度，并镀有适用于低偏振灵敏度应用的铝膜。


  • 120nm 和 190nm 设计波长

  • 在指定范围内平均反射率 >85%

  • 实现可见区域宽带反射率的增强金属镀膜

                           产品

标题产品编码Dia. (mm)表面平整度 (P-V)基底后表面表面质量涂层规格涂层镀膜类型AOI (°)CA (%)
5mm 直径, 真空紫外反射镜18-7255.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥78% @ 120 - 125nm Ravg ≥85% @ 120 - 600nm Enhanced Aluminum (120-600nm) Metal 0 90
10mm 直径, 真空紫外反射镜18-72610.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥78% @ 120 - 125nm Ravg ≥85% @ 120 - 600nm Enhanced Aluminum (120-600nm) Metal 0 90
12.5mm 直径, 真空紫外反射镜33-91212.50 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Ground 10-5 Ravg ≥78% @ 120 - 125nm Ravg ≥85% @ 120 - 600nm Enhanced Aluminum (120-600nm) Metal 0 90
15mm 直径, 真空紫外反射镜18-72715.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥78% @ 120 - 125nm Ravg ≥85% @ 120 - 600nm Enhanced Aluminum (120-600nm) Metal 0 90
20mm 直径, 真空紫外反射镜18-72820.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥78% @ 120 - 125nm Ravg ≥85% @ 120 - 600nm Enhanced Aluminum (120-600nm) Metal 0 90
25mm 直径, 真空紫外反射镜33-91325.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Ground 10-5 Ravg ≥78% @ 120 - 125nm Ravg ≥85% @ 120 - 600nm Enhanced Aluminum (120-600nm) Metal 0 90
30mm 直径, 真空紫外反射镜18-72930.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 10-5 Ravg ≥78% @ 120 - 125nm Ravg ≥85% @ 120 - 600nm Enhanced Aluminum (120-600nm) Metal 0 90
35mm 直径, 真空紫外反射镜18-73035.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥78% @ 120 - 125nm Ravg ≥85% @ 120 - 600nm Enhanced Aluminum (120-600nm) Metal 0 90
40mm 直径, 真空紫外反射镜18-73140.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥78% @ 120 - 125nm Ravg ≥85% @ 120 - 600nm Enhanced Aluminum (120-600nm) Metal 0 90
50mm 直径, 真空紫外反射镜33-91450.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Ground 10-5 Ravg ≥78% @ 120 - 125nm Ravg ≥85% @ 120 - 600nm Enhanced Aluminum (120-600nm) Metal 0 90
5mm 直径, 增强型深紫外反射镜18-7395.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥92% @ 190 - 250nm Ravg ≥83% @ 250 - 900nm Enhanced Aluminum (190-900nm) Metal 0 90
10mm 直径, 增强型深紫外反射镜18-74010.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥92% @ 190 - 250nm Ravg ≥83% @ 250 - 900nm Enhanced Aluminum (190-900nm) Metal 0 90
12.5mm 直径, 增强型深紫外反射镜18-74112.50 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Ground 10-5 Ravg ≥92% @ 190 - 250nm Ravg ≥83% @ 250 - 900nm Enhanced Aluminum (190-900nm) Metal 0 90
12.5mm 直径, 深紫外反射镜48-56712.50 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Ground 10-5 Ravg >88% @ 190 - 195nm Ravg >85% @ 200 - 600nm Enhanced Aluminum (190-600nm) Metal 0 90
15mm 直径, 增强型深紫外反射镜18-74215.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥92% @ 190 - 250nm Ravg ≥83% @ 250 - 900nm Enhanced Aluminum (190-900nm) Metal 0 90
20mm 直径, 增强型深紫外反射镜18-74320.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥92% @ 190 - 250nm Ravg ≥83% @ 250 - 900nm Enhanced Aluminum (190-900nm) Metal 0 90
25mm 直径, 增强型深紫外反射镜18-74425.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Ground 10-5 Ravg ≥92% @ 190 - 250nm Ravg ≥83% @ 250 - 900nm Enhanced Aluminum (190-900nm) Metal 0 90
25mm 直径, 深紫外反射镜48-56825.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Ground 10-5 Ravg >88% @ 190 - 195nm Ravg >85% @ 200 - 600nm Enhanced Aluminum (190-600nm) Metal 0 90
30mm 直径, 增强型深紫外反射镜18-74530.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 10-5 Ravg ≥92% @ 190 - 250nm Ravg ≥83% @ 250 - 900nm Enhanced Aluminum (190-900nm) Metal 0 90
35mm 直径, 增强型深紫外反射镜18-74635.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥92% @ 190 - 250nm Ravg ≥83% @ 250 - 900nm Enhanced Aluminum (190-900nm) Metal 0 90
40mm 直径, 增强型深紫外反射镜18-74740.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Commercial Polish 20-10 Ravg ≥92% @ 190 - 250nm Ravg ≥83% @ 250 - 900nm Enhanced Aluminum (190-900nm) Metal 0 90
50mm 直径, 增强型深紫外反射镜18-74850.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Ground 10-5 Ravg ≥92% @ 190 - 250nm Ravg ≥83% @ 250 - 900nm Enhanced Aluminum (190-900nm) Metal 0 90
50mm 直径, 深紫外反射镜48-56950.00 +0.0/-0.2λ/10 Fused Silica (Corning 7980)Ground 10-5 Ravg >88% @ 190 - 195nm Ravg >85% @ 200 - 600nm Enhanced Aluminum (190-600nm) Metal 0 90

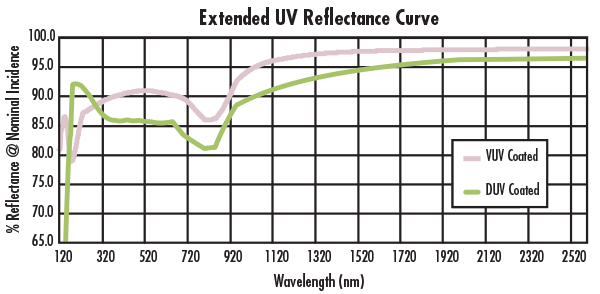

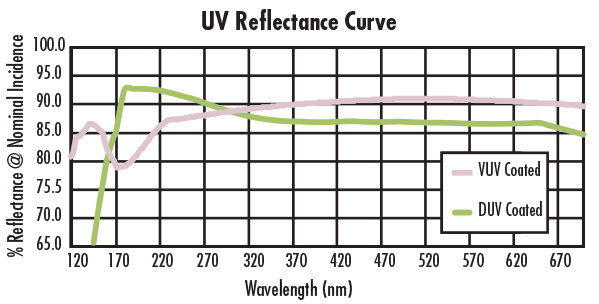

                               技术数据
