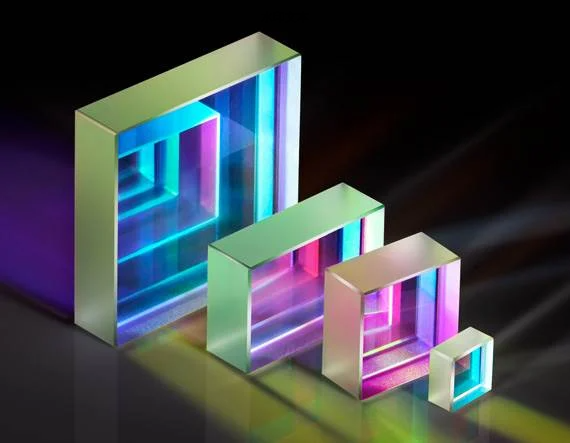

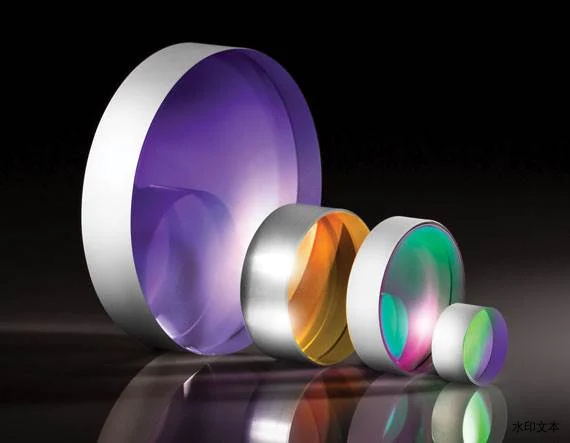

Nd:YAG 激光谱线反射镜

Nd:YAG 激光谱线反射镜

￥ 0.00
0.00


TECHSPEC® 激光谱线反射镜兼具高反射率、优良的表面质量和精密的表面平整度，可满足 Nd:YAG 激光应用的要求。每一种镀膜设计都经过测试，可确保与连续波和脉冲激光系统兼容的高激光损伤阈值。这些熔融石英基片激光镜具有良好的热稳定性，可提供圆形、方形和矩形型材。TECHSPEC Nd:YAG 激光谱线反射镜适合在实验室使用以及集成到更大的激光系统中。提供 266nm、355nm、532nm、1064nm 和多线 Nd:YAG 反射镜镀膜。


  • 在 Nd:YAG 谐波频率下的反射率 >99.2%

  • 较高的激光损伤阈值规格

  • 表面质量 10-5 可降低在敏感激光应用中的散射

  • 另外也备有TECHSPEC® 激光反射镜基片 和 TECHSPEC® Yb:YAG 激光谱线反射镜

                           产品

标题产品编码表面质量类型平行度（弧分）CA (%)耐用性后表面DWL时的反射 (%) 涂层规格波长范围 (nm)表面平整度 (P-V)
6.35mm Dia. 266nm 45°, Nd:YAG Laser Line Mirror38-82910-5 Laser Mirror <3 85
Commercial Polish 99.5 Rabs >99.5% @ 266nm  Ravg >99.5% @ 263 - 268nm 263 - 268 λ/10
MIRROR LASER 266NM 45DEG 12.5MM47-98010-5 Laser Mirror <3 >90
Ground 99.5 Rabs >99.5% @ 266nm @ 45° AOI Ravg >99.5% @ 263 - 268nm @ 45° AOI 263 - 268 λ/10
12.7mm Dia. 266nm 45°, Nd:YAG Laser Line Mirror34-81310-5 Laser Mirror <3 90
Commercial Polish 99.5 Rabs >99.5% @ 266nm  Ravg >99.5% @ 263 - 268nm 263 - 268 λ/10
19.1mm Dia. 266nm 45°, Nd:YAG Laser Line Mirror34-81410-5 Laser Mirror <3 90
Commercial Polish 99.5 Rabs >99.5% @ 266nm  Ravg >99.5% @ 263 - 268nm 263 - 268 λ/10
MIRROR LASER 266NM 45DEG 25MM47-98110-5 Laser Mirror <3 >90
Ground 99.5 Rabs >99.5% @ 266nm @ 45° AOI Ravg >99.5% @ 263 - 268nm @ 45° AOI 263 - 268 λ/10
NdYAG Std LL 266nm 25.4mm dia 45deg mirr34-81510-5 Laser Mirror <3 85
Commercial Polish 99.5 Rabs >99.5% @ 266nm @ 45° AOI Ravg >99.5% @ 263 - 268nm @ 45° AOI 263 - 268 λ/10
38.1mm Dia. 266nm 45°, Nd:YAG Laser Line Mirror34-81610-5 Laser Mirror <3 90
Commercial Polish 99.5 Rabs >99.5% @ 266nm  Ravg >99.5% @ 263 - 268nm 263 - 268 λ/10
MIRROR LASER 266NM 45DEG 50MM63-11610-5 Laser Mirror <3 >90
Ground 99.5 Rabs >99.5% @ 266nm @ 45° AOI Ravg >99.5% @ 263 - 268nm @ 45° AOI 263 - 268 λ/10
50.8mm Dia. 266nm 45°, Nd:YAG Laser Line Mirror38-83110-5 Laser Mirror <3 90
Commercial Polish 99.5 Rabs >99.5% @ 266nm  Ravg >99.5% @ 263 - 268nm 263 - 268 λ/10
12.7 x 12.7mm 266nm 45°, Nd:YAG Laser Line Mirror39-58110-5 Laser Mirror <3 85
Commercial Polish 99.5 Rabs >99.5% @ 266nm   Ravg >99.5% @ 263 - 268nm 263 - 268 λ/10
19.1 x 12.7mm 266nm 45°, Nd:YAG Laser Line Mirror39-58210-5 Laser Mirror <3 85
Commercial Polish 99.5 Rabs >99.5% @ 266nm   Ravg >99.5% @ 263 - 268nm 263 - 268 λ/10
25.4 x 25.4mm 266nm 45°, Nd:YAG Laser Line Mirror39-58310-5 Laser Mirror <3 85
Commercial Polish 99.5 Rabs >99.5% @ 266nm   Ravg >99.5% @ 263 - 268nm 263 - 268 λ/10
38.1 x 25.4mm 266nm 45°, Nd:YAG Laser Line Mirror39-58510-5 Laser Mirror <3 85
Commercial Polish 99.5 Rabs >99.5% @ 266nm   Ravg >99.5% @ 263 - 268nm 263 - 268 λ/10
6.35 x 6.35mm 266nm 45°, Nd:YAG Laser Line Mirror39-57610-5 Laser Mirror <3 85
Commercial Polish 99.5 Rabs >99.5% @ 266nm   Ravg >99.5% @ 263 - 268nm 263 - 268 λ/10
9.53 x 6.35mm 266nm 45°, Nd:YAG Laser Line Mirror39-57910-5 Laser Mirror <3 85
Commercial Polish 99.5 Rabs >99.5% @ 266nm   Ravg >99.5% @ 263 - 268nm 263 - 268 λ/10
MIRROR LASER 266NM 0DEG 12.5MM63-11010-5 Laser Mirror <3 >90
Ground 99.5 Rabs >99.5% @ 266nm Ravg >98% @ 255 - 275nm 255 - 275 λ/10
4mm Dia. 266nm 0-45°, Nd:YAG Laser Line Mirror12-62310-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 266nm 263 - 268 λ/10
6.35mm Dia. 266nm 0-45°, Nd:YAG Laser Line Mirror38-83210-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 266nm 263 - 268 λ/10
266nm Laser Mirror 0-45° 12.5mm88-52310-5 Laser Mirror <3 >90
Ground 99.9 Rabs >99.8% @ 266nm
λ/10
12.7mm Dia. 266nm 0-45°, Nd:YAG Laser Line Mirror38-83310-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 266nm 263 - 268 λ/10
19.1mm Dia. 266nm 0-45°, Nd:YAG Laser Line Mirror38-83410-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 266nm 263 - 268 λ/10
266nm Laser Mirror 0-45° 25mm88-52410-5 Laser Mirror <3 >90
Ground 99.9 Rabs >99.8% @ 266nm
λ/10
25.4mm Dia. 266nm 0-45°, Nd:YAG Laser Line Mirror38-83510-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 266nm 263 - 268 λ/10
38.1mm Dia. 266nm 0-45°, Nd:YAG Laser Line Mirror38-83810-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 266nm 263 - 268 λ/10
266nm Laser Mirror 0-45° 50mm88-52510-5 Laser Mirror <3 >90
Ground 99.9 Rabs >99.8% @ 266nm
λ/10
50.8mm Dia. 266nm 0-45°, Nd:YAG Laser Line Mirror38-84110-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 266nm 263 - 268 λ/10
76.2mm Dia. 266nm 0-45°, Nd:YAG Laser Line Mirror20-41810-5 Laser Mirror <3 90
λ/10 99.8 Rabs >99.8% @ 266nm @ 0-45° AOI
λ/10
12.7 x 12.7mm 266nm 0-45°, Nd:YAG Laser Line Mirror39-58910-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 266nm
λ/10
19.1 x 12.7mm 266nm 0-45°, Nd:YAG Laser Line Mirror39-59010-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 266nm
λ/10
25.4 x 25.4mm 266nm 0-45°, Nd:YAG Laser Line Mirror39-59110-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 266nm
λ/10
38.1 x 25.4mm 266nm 0-45°, Nd:YAG Laser Line Mirror39-59210-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 266nm
λ/10
6.35 x 6.35mm 266nm 0-45°, Nd:YAG Laser Line Mirror39-58610-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 266nm
λ/10
9.53 x 6.35mm 266nm 0-45°, Nd:YAG Laser Line Mirror39-58710-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 266nm
λ/10
6.35mm Dia. 355nm 45°, Nd:YAG Laser Line Mirror38-85810-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs ≥99.8% @ 355nm  Ravg ≥99.5% @ 351 - 358nm 351 - 358 λ/10
MIRROR LASER 355NM 45DEG 12.5MM47-32310-5 Laser Mirror <3 >90
Ground 99.5 Rabs >99.5% @ 355nm @ 45° AOI Ravg >99.5% @ 351 - 358nm @ 45° AOI 351 - 358 λ/10
12.7mm Dia. 355nm 45°, Nd:YAG Laser Line Mirror34-81810-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 355nm  Ravg ≥99.5% @ 351 - 358nm 351 - 358 λ/10
19.1mm Dia. 355nm 45°, Nd:YAG Laser Line Mirror34-81910-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 355nm  Ravg ≥99.5% @ 351 - 358nm 351 - 358 λ/10
MIRROR LASER 355NM 45DEG 25MM47-32410-5 Laser Mirror <3 >90
Ground 99.5 Rabs >99.5% @ 355nm @ 45° AOI Ravg >99.5% @ 351 - 358nm @ 45° AOI 351 - 358 λ/10
NdYAG Std LL 355nm 25.4mm dia 45deg mirr34-82010-5 Laser Mirror <3 >85 MIL-PRF-13830B Commercial Polish 99.5 Rabs >99.8% @ 355nm  Ravg >99.5% @ 351 - 358nm 351 - 358 λ/10
38.1mm Dia. 355nm 45°, Nd:YAG Laser Line Mirror34-82110-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 355nm  Ravg ≥99.5% @ 351 - 358nm 351 - 358 λ/10
MIRROR LASER 355NM 45DEG 50MM63-11710-5 Laser Mirror <3 >90
Ground 99.5 Rabs >99.5% @ 355nm @ 45° AOI Ravg >99.5% @ 351 - 358nm @ 45° AOI 351 - 358 λ/10
50.8mm Dia. 355nm 45°, Nd:YAG Laser Line Mirror38-86210-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 355nm  Ravg ≥99.5% @ 351 - 358nm 351 - 358 λ/10
12.7 x 12.7mm 355nm 45°, Nd:YAG Laser Line Mirror39-61610-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm   Ravg >99.5% @ 351 - 358nm 351 - 358 λ/10
19.1 x 12.7mm 355nm 45°, Nd:YAG Laser Line Mirror39-61710-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm   Ravg >99.5% @ 351 - 358nm 351 - 358 λ/10
25.4 x 25.4mm 355nm 45°, Nd:YAG Laser Line Mirror39-61810-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm   Ravg >99.5% @ 351 - 358nm 351 - 358 λ/10
38.1 x 25.4mm 355nm 45°, Nd:YAG Laser Line Mirror39-61910-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm   Ravg >99.5% @ 351 - 358nm 351 - 358 λ/10
6.35 x 6.35mm 355nm 45°, Nd:YAG Laser Line Mirror39-61110-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm   Ravg >99.5% @ 351 - 358nm 351 - 358 λ/10
9.53 x 6.35mm 355nm 45°, Nd:YAG Laser Line Mirror39-61510-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm   Ravg >99.5% @ 351 - 358nm 351 - 358 λ/10
4mm Dia. 355nm 0-45°, Nd:YAG Laser Line Mirror12-62510-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 355nm 351 - 358 λ/10
6.35mm Dia. 355nm 0-45°, Nd:YAG Laser Line Mirror38-86310-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs ≥99.8% @ 355nm 351 - 358 λ/10
355nm Laser Mirror 0-45° 12.5mm88-52610-5 Laser Mirror <3 >90
Ground 99.9 Rabs >99.8% @ 355nm
λ/10
12.7mm Dia. 355nm 0-45°, Nd:YAG Laser Line Mirror38-86410-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 355nm 351 - 358 λ/10
19.1mm Dia. 355nm 0-45°, Nd:YAG Laser Line Mirror38-86510-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 355nm 351 - 358 λ/10
355nm Laser Mirror 0-45° 25mm88-52710-5 Laser Mirror <3 >90
Ground 99.9 Rabs >99.8% @ 355nm
λ/10
25.4mm Dia. 355nm 0-45°, Nd:YAG Laser Line Mirror38-86610-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 355nm 351 - 358 λ/10
38.1mm Dia. 355nm 0-45°, Nd:YAG Laser Line Mirror38-86810-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 355nm 351 - 358 λ/10
355nm Laser Mirror 0-45° 50mm88-52810-5 Laser Mirror <3 >90
Ground 99.9 Rabs >99.8% @ 355nm
λ/10
50.8mm Dia. 355nm 0-45°, Nd:YAG Laser Line Mirror38-87010-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 355nm 351 - 358 λ/10
76.2mm Dia. 355nm 0-45°, Nd:YAG Laser Line Mirror20-42010-5 Laser Mirror <3 90
λ/10 99.8 Rabs >99.8% @ 355nm @ 0-45° AOI
λ/10
12.7 x 12.7mm 355nm 0-45°, Nd:YAG Laser Line Mirror39-62210-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm
λ/10
19.1 x 12.7mm 355nm 0-45°, Nd:YAG Laser Line Mirror39-62310-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm
λ/10
25.4 x 25.4mm 355nm 0-45°, Nd:YAG Laser Line Mirror39-62410-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm
λ/10
38.1 x 25.4mm 355nm 0-45°, Nd:YAG Laser Line Mirror39-62510-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm
λ/10
6.35 x 6.35mm 355nm 0-45°, Nd:YAG Laser Line Mirror39-62010-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm
λ/10
9.53 x 6.35mm 355nm 0-45°, Nd:YAG Laser Line Mirror39-62110-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 355nm
λ/10
6.35mm Dia. 532nm 45°, Nd:YAG Laser Line Mirror38-88710-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm  Ravg >99.5% @ 523 - 537nm 523 - 537 λ/10
MIRROR LASER 532NM 45DEG 12.545-99010-5 Laser Mirror <3 >90
Ground 99.8 Rabs >99.8% @ 532nm @ 45° AOI Ravg >99.5% @ 523 - 537nm @ 45° AOI 523 - 537 λ/10
12.7mm Dia. 532nm 45°, Nd:YAG Laser Line Mirror34-82310-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 532nm  Ravg >99.5% @ 523 - 537nm 523 - 537 λ/10
19.1mm Dia. 532nm 45°, Nd:YAG Laser Line Mirror34-82410-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 532nm  Ravg >99.5% @ 523 - 537nm 523 - 537 λ/10
MIRROR LASER 532NM 45DEG 25MM45-99110-5 Laser Mirror <3 >90
Ground 99.8 Rabs >99.8% @ 532nm @ 45° AOI Ravg >99.5% @ 523 - 537nm @ 45° AOI 523 - 537 λ/10
NdYAG Std LL 532nm 25.4mm dia 45deg mirr34-82510-5 Laser Mirror <3 85 MIL-C-675C Commercial Polish 99.8 Rabs >99.8% @ 532nm Ravg >99.5% @ 523 - 533nm 523 - 533 λ/10
38.1mm Dia. 532nm 45°, Nd:YAG Laser Line Mirror34-82610-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 532nm  Ravg >99.5% @ 523 - 537nm 523 - 537 λ/10
MIRROR LASER 532NM 45DEG 50MM47-15710-5 Laser Mirror <3 >90
Ground 99.8 Rabs >99.8% @ 532nm @ 45° AOI Ravg >99.5% @ 523 - 537nm @ 45° AOI 523 - 537 λ/10
50.8mm Dia. 532nm 45°, Nd:YAG Laser Line Mirror38-88910-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 532nm  Ravg >99.5% @ 523 - 537nm 523 - 537 λ/10
76.2mm Dia. 532nm 0-45°, Nd:YAG Laser Line Mirror20-42210-5 Laser Mirror <3 90
λ/10 99.8 Rabs >99.8% @ 532nm @ 0-45° AOI
λ/10
12.7 x 12.7mm 532nm 45°, Nd:YAG Laser Line Mirror39-64110-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm   Ravg >99.5% @ 523 - 537nm 523 - 537 λ/10
19.1 x 12.7mm 532nm 45°, Nd:YAG Laser Line Mirror39-64210-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm   Ravg >99.5% @ 523 - 537nm 523 - 537 λ/10
25.4 x 25.4mm 532nm 45°, Nd:YAG Laser Line Mirror39-64310-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm   Ravg >99.5% @ 523 - 537nm 523 - 537 λ/10
38.1 x 25.4mm 532nm 45°, Nd:YAG Laser Line Mirror39-64410-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm   Ravg >99.5% @ 523 - 537nm 523 - 537 λ/10
6.35 x 6.35mm 532nm 45°, Nd:YAG Laser Line Mirror39-63910-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm   Ravg >99.5% @ 523 - 537nm 523 - 537 λ/10
9.53 x 6.35mm 532nm 45°, Nd:YAG Laser Line Mirror39-64010-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm   Ravg >99.5% @ 523 - 537nm 523 - 537 λ/10
4mm Dia. 532nm 0-45°, Nd:YAG Laser Line Mirror12-62710-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 532nm 523 - 537 λ/10
6.35mm Dia. 532nm 0-45°, Nd:YAG Laser Line Mirror38-89010-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs ≥99.8% @ 532nm 523 - 537 λ/10
532nm Laser Mirror 0-45° 12.5mm88-52910-5 Laser Mirror <3 >90
Ground 99.9 Rabs >99.8% @ 532nm
λ/10
12.7mm Dia. 532nm 0-45°, Nd:YAG Laser Line Mirror38-89110-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 532nm 523 - 537 λ/10
19.1mm Dia. 532nm 0-45°, Nd:YAG Laser Line Mirror38-89210-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 532nm 523 - 537 λ/10
532nm Laser Mirror 0-45° 25mm88-53010-5 Laser Mirror <3 >90
Ground 99.9 Rabs >99.8% @ 532nm
λ/10
25.4mm Dia. 532nm 0-45°, Nd:YAG Laser Line Mirror38-89310-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 532nm 523 - 537 λ/10
38.1mm Dia. 532nm 0-45°, Nd:YAG Laser Line Mirror38-89510-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 532nm 523 - 537 λ/10
532nm Laser Mirror 0-45° 50mm88-53110-5 Laser Mirror <3 >90
Ground 99.9 Rabs >99.8% @ 532nm
λ/10
50.8mm Dia. 532nm 0-45°, Nd:YAG Laser Line Mirror38-89710-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 532nm 523 - 537 λ/10
12.7 x 12.7mm 532nm 0-45°, Nd:YAG Laser Line Mirror39-64710-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm
λ/10
19.1 x 12.7mm 532nm 0-45°, Nd:YAG Laser Line Mirror39-64810-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm
λ/10
25.4 x 25.4mm 532nm 0-45°, Nd:YAG Laser Line Mirror39-64910-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm
λ/10
38.1 x 25.4mm 532nm 0-45°, Nd:YAG Laser Line Mirror39-65010-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm
λ/10
6.35 x 6.35mm 532nm 0-45°, Nd:YAG Laser Line Mirror39-64510-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm
λ/10
9.53 x 6.35mm 532nm 0-45°, Nd:YAG Laser Line Mirror39-64610-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 532nm
λ/10
MIRROR LASER 1064NM & 532NM 50MM63-11810-5 Laser Mirror <3 >90
Ground 99.5 Rabs >99.5% @ 532 & 1064nm
λ/10
19.05mm Dia. 1064nm 0°, Nd:YAG Laser Line Mirror17-62410-5 Laser Mirror <5 90
Commercial Polish 99.9 Rabs >99.9% @ 1064nm 1046 - 1074 λ/10
6.35mm Dia. 1064nm 45°, Nd:YAG Laser Line Mirror38-89810-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm  Ravg >99.5% @ 1046 - 1074nm 1046 - 1074 λ/10
MIRROR LASER 1064NM 45DEG 12.545-98610-5 Laser Mirror <3 >90
Ground 99.8 Rabs >99.8% @ 1064nm @ 45° AOI Ravg >99.5% @ 1046 - 1074nm @ 45° AOI 1046 - 1074 λ/10
12.7mm Dia. 1064nm 45°, Nd:YAG Laser Line Mirror34-82810-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 1064nm  Ravg >99.5% @ 1046 - 1074nm 1046 - 1074 λ/10
19.1mm Dia. 1064nm 45°, Nd:YAG Laser Line Mirror34-82910-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 1064nm  Ravg >99.5% @ 1046 - 1074nm 1046 - 1074 λ/10
MIRROR LASER 1064NM 45DEG 25MM45-98710-5 Laser Mirror <3 >90
Ground 99.8 Rabs >99.8% @ 1064nm @ 45° AOI Ravg >99.5% @ 1046 - 1074nm @ 45° AOI 1046 - 1074 λ/10
NdYAG Std LL 1064nm 25.4mm dia 45deg mir34-83010-5 Laser Mirror <3 85 MIL-PRF-13830B Commercial Polish 99.8 Rabs >99.8% @ 1064nm Ravg >99.5% @ 1046 - 1074nm 1046 - 1074 λ/10
38.1mm Dia. 1064nm 45°, Nd:YAG Laser Line Mirror34-83110-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 1064nm  Ravg >99.5% @ 1046 - 1074nm 1046 - 1074 λ/10
MIRROR LASER 1064NM 45DEG 50MM47-15610-5 Laser Mirror <3 >90
Ground 99.8 Rabs >99.8% @ 1064nm @ 45° AOI Ravg >99.5% @ 1046 - 1074nm @ 45° AOI 1046 - 1074 λ/10
50.8mm Dia. 1064nm 45°, Nd:YAG Laser Line Mirror38-90010-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 1064nm  Ravg >99.5% @ 1046 - 1074nm 1046 - 1074 λ/10
76.2mm Dia. 1064nm 0-45°, Nd:YAG Laser Line Mirror20-43010-5 Laser Mirror <3 90
λ/10 99.8 Rabs >99.8% @ 1064nm @ 0-45° AOI
λ/10
12.7 x 12.7mm 1064nm 45°, Nd:YAG Laser Line Mirror39-65310-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm   Ravg >99.5% @ 1046 - 1074nm 1046 - 1074 λ/10
19.1 x 12.7mm 1064nm 45°, Nd:YAG Laser Line Mirror39-65410-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm   Ravg >99.5% @ 1046 - 1074nm 1046 - 1074 λ/10
25.4 x 25.4mm 1064nm 45°, Nd:YAG Laser Line Mirror39-65510-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm   Ravg >99.5% @ 1046 - 1074nm 1046 - 1074 λ/10
38.1 x 25.4mm 1064nm 45°, Nd:YAG Laser Line Mirror39-65610-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm   Ravg >99.5% @ 1046 - 1074nm 1046 - 1074 λ/10
6.35 x 6.35mm 1064nm 45°, Nd:YAG Laser Line Mirror39-65110-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm   Ravg >99.5% @ 1046 - 1074nm 1046 - 1074 λ/10
4mm Dia. 1064nm 0-45°, Nd:YAG Laser Line Mirror12-62910-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs >99.8% @ 1064nm 1046 - 1074 λ/10
6.35mm Dia. 1064nm 0-45°, Nd:YAG Laser Line Mirror38-90110-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs ≥99.8% @ 1064nm 1046 - 1074 λ/10
1064nm Laser Mirror 0-45° 12.5mm88-53210-5 Laser Mirror <3 >90
Ground 99.9 Rabs >99.8% @ 1064nm
λ/10
12.7mm Dia. 1064nm 0-45°, Nd:YAG Laser Line Mirror38-90210-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 1064nm 1046 - 1074 λ/10
19.1mm Dia. 1064nm 0-45°, Nd:YAG Laser Line Mirror38-90410-5 Laser Mirror <3 90
Commercial Polish 99.8 Rabs ≥99.8% @ 1064nm 1046 - 1074 λ/10
1064nm Laser Mirror 0-45° 25mm88-53310-5 Laser Mirror <3 >90
Ground 99.9 Rabs >99.8% @ 1064nm
λ/10
25.4mm Dia., 3.18mm Thick, 1064nm 0-45°, Nd:YAG Laser Line Mirror14-34010-5 Laser Mirror <3 80
Ground 99.8 Rabs >99.8% @ 1064nm 1046 - 1074 λ/10
25.4mm Dia. 1064nm 0-45°, Nd:YAG Laser Line Mirror38-90510-5 Laser Mirror <3 80
Ground 99.8 Rabs ≥99.8% @ 1064nm 1046 - 1074 λ/10
38.1mm Dia. 1064nm 0-45°, Nd:YAG Laser Line Mirror38-90710-5 Laser Mirror <3 80
Ground 99.8 Rabs ≥99.8% @ 1064nm 1046 - 1074 λ/10
1064nm Laser Mirror 0-45° 50mm88-53410-5 Laser Mirror <3 80
Ground 99.9 Rabs >99.8% @ 1064nm
λ/10
50.8mm Dia. 1064nm 0-45°, Nd:YAG Laser Line Mirror38-90910-5 Laser Mirror <3 80
Ground 99.8 Rabs ≥99.8% @ 1064nm 1046 - 1074 λ/10
12.7 x 12.7mm 1064nm 0-45°, Nd:YAG Laser Line Mirror39-65910-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm
λ/10
19.1 x 12.7mm 1064nm 0-45°, Nd:YAG Laser Line Mirror39-66010-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm
λ/10
25.4 x 25.4mm 1064nm 0-45°, Nd:YAG Laser Line Mirror39-66110-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm
λ/10
38.1 x 25.4mm 1064nm 0-45°, Nd:YAG Laser Line Mirror39-66210-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm
λ/10
6.35 x 6.35mm 1064nm 0-45°, Nd:YAG Laser Line Mirror39-65710-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm
λ/10
9.53 x 6.35mm 1064nm 0-45°, Nd:YAG Laser Line Mirror39-65810-5 Laser Mirror <3 85
Commercial Polish 99.8 Rabs >99.8% @ 1064nm
λ/10
