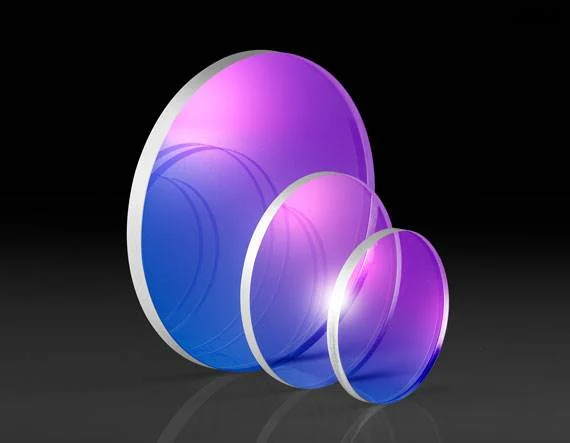

氟化钙(CaF2) 窗口片

氟化钙(CaF2) 窗口片

￥ 0.00
0.00


TECHSPEC® 氟化钙 (CaF2) 具有较低的折射率，在未镀膜的情况下可提供 200 - 7000 纳米的高透过率。 为了进一步提高透射率并减少背向反射，我们还提供了覆盖从紫外 (UV) 到中波红外 (MWIR)波段的各种增透镀膜。 由于氟化钙的块体具有高损伤阈值和低吸收率的特点，因此在包括准分子激光器的激光系统应用中广受欢迎。TECHSPEC® 氟化钙 (CaF2) 窗口片 非常适合在真空紫外（VUV）和中波红外（MWIR）、紫外光谱系统、低温冷却热成像系统中工作的气体探测器中作为保护窗口使用，还可在需要宽带基底传输时作为镀膜基底使用。


  • 具有低吸收和高透过的 UV 等级氟化钙

  • 低折射率

  • 可提供 250 - 5000 纳米的增透镀膜

  • 另有 氟化钙楔形窗口片 可供选择

                          产品

标题产品编码色散系数 (vd)轴方向倒角CA (%)CA (mm)Dia. (mm)尺寸 (mm)厚度 (mm)涂层涂层规格
5mm直径，未镀膜，氟化钙窗片48-85394.99 Random Protective as needed 90 4.50 5.00 +0.0/-0.1
1.00 ±0.1Uncoated
5mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-80094.99 Random Protective as needed 90 4.50 5.00 +0.0/-0.1
1.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
5mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-81294.99 Random Protective as needed 90 4.50 5.00 +0.0/-0.1
1.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
5mm Diameter, NIR II Coated, Calcium Fluoride Window14-82494.99 Random Protective as needed 90 4.50 5.00 +0.0/-0.1
1.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm

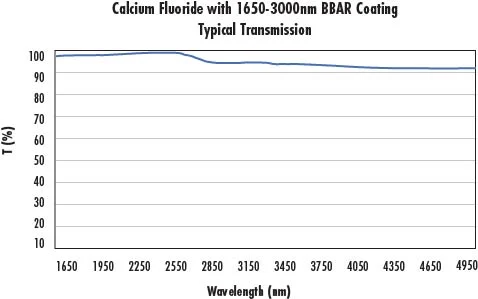

5mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-96294.99 Random Protective as needed 90 4.50 5.00 +0.0/-0.1
1.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm

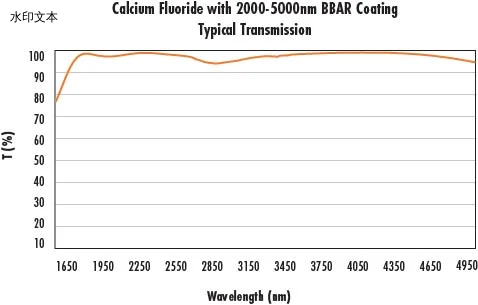

5mm Dia. x 1mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-50994.99 Random Protective as needed 90 4.50 5.00 +0.0/-0.1
1.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
直径10mm 不镀膜， 氟化钙窗片47-68194.99 Random Protective as needed 90 9.00 10.00 +0.0/-0.1
1.50 ±0.1Uncoated
10mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-80194.99 Random Protective as needed 90 9.00 10.00 +0.0/-0.1
1.50 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
10mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-81394.99 Random Protective as needed 90 9.00 10.00 +0.0/-0.1
1.50 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
10mm Diameter, NIR II Coated, Calcium Fluoride Window14-82594.99 Random Protective as needed 90 9.00 10.00 +0.0/-0.1
1.50 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
10mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-96394.99 Random Protective as needed 90 9.00 10.00 +0.0/-0.1
1.50 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm
10mm Dia. x 1.5mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-51094.99 Random Protective as needed 90 9.00 10.00 +0.0/-0.1
1.50 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
直径12.5mm 不镀膜， 氟化钙窗片47-68294.99 Random Protective as needed 90 11.25 12.50 +0.0/-0.1
2.00 ±0.1Uncoated
12.5mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-80294.99 Random Protective as needed 90 11.25 12.50 +0.0/-0.1
2.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
12.5mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-81494.99 Random Protective as needed 90 11.25 12.50 +0.0/-0.1
2.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
12.5mm Diameter, NIR II Coated, Calcium Fluoride Window14-82694.99 Random Protective as needed 90 11.25 12.50 +0.0/-0.1
2.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
12.5mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-96494.99 Random Protective as needed 90 11.25 12.50 +0.0/-0.1
2.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm
12.5mm Dia. x 2mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-51194.99 Random Protective as needed 90 11.25 12.50 +0.0/-0.1
2.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
12.5mm Square, 2mm Thick, Uncoated, Calcium Fluoride Window25-76594.99 Random Protective as needed 90 11.25 x 11.25
12.50 x 12.50 +0.0/-0.12.00 ±0.1Uncoated
直径12.7mm 不镀膜， 氟化钙窗片17-60094.99 Random Protective as needed 90 11.43 12.70 +0.0/-0.1
2.00 ±0.1Uncoated
12.7mm Diameter, UV-VIS Coated, Calcium Fluoride Window17-60194.99 Random Protective as needed 90 11.43 12.70 +0.0/-0.1
2.00 ±0.10UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
12.7mm Diameter, VIS-NIR Coated, Calcium Fluoride Window17-60294.99 Random Protective as needed 90 11.43 12.70 +0.0/-0.1
2.00 ±0.10VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
12.7mm Diameter, NIR II Coated, Calcium Fluoride Window17-60394.99 Random Protective as needed 90 11.43 12.70 +0.0/-0.1
2.00 ±0.10NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
12.7mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window17-60494.99 Random Protective as needed 90 11.43 12.70 +0.0/-0.1
2.00 ±0.10BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm Rabs <2% @ 1650 - 3000nm
12.7mm Dia. x 2mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-51294.99 Random Protective as needed 90 11.43 12.70 +0.0/-0.1
2.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
15mm直径，未镀膜，氟化钙窗片48-85494.99 Random Protective as needed 90 13.50 15.00 +0.0/-0.1
2.00 ±0.1Uncoated
15mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-80394.99 Random Protective as needed 90 13.50 15.00 +0.0/-0.1
2.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
15mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-81594.99 Random Protective as needed 90 13.50 15.00 +0.0/-0.1
2.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
15mm Diameter, NIR II Coated, Calcium Fluoride Window14-82794.99 Random Protective as needed 90 13.50 15.00 +0.0/-0.1
2.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
15mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-96594.99 Random Protective as needed 90 13.50 15.00 +0.0/-0.1
2.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm
15mm Dia. x 2mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-51394.99 Random Protective as needed 90 13.50 15.00 +0.0/-0.1
2.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
氟化钙窗口片，20mm直径，无镀膜63-20794.99 Random Protective as needed 90 18.00 20.00 +0.0/-0.1
2.00 ±0.1Uncoated
20mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-80494.99 Random Protective as needed 90 18.00 20.00 +0.0/-0.1
2.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
20mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-81694.99 Random Protective as needed 90 18.00 20.00 +0.0/-0.1
2.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
20mm Diameter, NIR II Coated, Calcium Fluoride Window14-82894.99 Random Protective as needed 90 18.00 20.00 +0.0/-0.1
2.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
20mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-96694.99 Random Protective as needed 90 18.00 20.00 +0.0/-0.1
2.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm
20mm Dia. x 2mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-51494.99 Random Protective as needed 90 18.00 20.00 +0.0/-0.1
2.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
25mm Dia., 1mm Thick, Uncoated, Calcium Fluoride Window22-45594.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
1.00 ±0.1Uncoated
直径25mm 不镀膜， 氟化钙窗片47-68394.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
3.00 ±0.1Uncoated
25mm Dia., 5mm Thick, Uncoated, Calcium Fluoride Window22-45694.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
5.00 ±0.1Uncoated
25mm Dia., 1mm Thick, UV-VIS Coated, Calcium Fluoride Window22-59794.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
1.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm
25mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-80594.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
3.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
25mm Dia., 5mm Thick, UV-VIS Coated, Calcium Fluoride Window22-60194.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
5.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
25mm Dia., 1mm Thick, VIS-NIR Coated, Calcium Fluoride Window22-59894.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
1.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
25mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-81794.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
3.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
25mm Dia., 5mm Thick, VIS-NIR Coated, Calcium Fluoride Window22-60294.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
5.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
25mm Dia., 1mm Thick, NIR II Coated, Calcium Fluoride Window22-59994.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
1.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
25mm Diameter, NIR II Coated, Calcium Fluoride Window14-82994.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
3.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
25mm Dia., 5mm Thick, NIR II Coated, Calcium Fluoride Window22-60394.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
5.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
25mm Dia., 1mm Thick, BBAR (1650-3000nm) Coated, Calcium Fluoride Window22-60094.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
1.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm Rabs <2% @ 1650 - 3000nm
25mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-96794.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
3.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm
25mm Dia., 5mm Thick, BBAR (1650-3000nm) Coated, Calcium Fluoride Window22-60494.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
5.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm Rabs <2% @ 1650 - 3000nm
25mm Dia. x 1mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-51594.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
1.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
25mm Dia. x 3mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-51694.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
3.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
25mm Dia. x 5mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-51794.99 Random Protective as needed 90 22.50 25.00 +0.0/-0.1
5.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
25mm Square, 3mm Thick, Uncoated, Calcium Fluoride Window25-76694.99 Random Protective as needed 90 22.50 x 22.50
25.00 x 25.00 +0.0/-0.13.00 ±0.1Uncoated
25.4mm Dia., 1mm Thick Uncoated, Calcium Fluoride Window22-45794.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
1.00 ±0.1Uncoated
25.4mm Diameter Uncoated, Calcium Fluoride Window11-87494.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
3.00 ±0.1Uncoated
25.4mm Dia., 1mm Thick, UV-VIS Coated, Calcium Fluoride Window22-60594.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
1.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
25.4mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-80694.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
3.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
25.4mm Dia., 1mm Thick, VIS-NIR Coated, Calcium Fluoride Window22-60694.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
1.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
25.4mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-81894.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
3.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
25.4mm Dia., 1mm Thick, NIR II Coated, Calcium Fluoride Window22-60794.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
1.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
25.4mm Diameter, NIR II Coated, Calcium Fluoride Window14-83094.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
3.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
25.4mm Dia., 1mm Thick, BBAR (1650-3000nm) Coated, Calcium Fluoride Window22-60894.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
1.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm Rabs <2% @ 1650 - 3000nm
25.4mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-96894.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
3.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm
25.4mm Dia. x 1mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-51894.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
1.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
25.4mm Dia. x 3mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-51994.99 Random Protective as needed 90 22.86 25.40 +0.0/-0.1
3.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
氟化钙窗口片，30mm直径，无镀膜63-20894.99 Random Protective as needed 90 27.00 30.00 +0.0/-0.1
3.00 ±0.1Uncoated
30mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-80794.99 Random Protective as needed 90 27.00 30.00 +0.0/-0.1
3.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
30mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-81994.99 Random Protective as needed 90 27.00 30.00 +0.0/-0.1
3.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
30mm Diameter, NIR II Coated, Calcium Fluoride Window14-83194.99 Random Protective as needed 90 27.00 30.00 +0.0/-0.1
3.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
30mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-96994.99 Random Protective as needed 90 27.00 30.00 +0.0/-0.1
3.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm
30mm Dia. x 3mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-52094.99 Random Protective as needed 90 27.00 30.00 +0.0/-0.1
3.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
氟化钙窗口片，40mm直径，无镀膜63-20994.99 Random Protective as needed 90 36.00 40.00 +0.0/-0.1
3.00 ±0.1Uncoated
40mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-80894.99 Random Protective as needed 90 36.00 40.00 +0.0/-0.1
3.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
40mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-82094.99 Random Protective as needed 90 36.00 40.00 +0.0/-0.1
3.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
40mm Diameter, NIR II Coated, Calcium Fluoride Window14-83294.99 Random Protective as needed 90 36.00 40.00 +0.0/-0.1
3.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
40mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-97094.99 Random Protective as needed 90 36.00 40.00 +0.0/-0.1
3.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm
40mm Dia. x 3mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-52194.99 Random Protective as needed 90 36.00 40.00 +0.0/-0.1
3.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
50mm Dia., 1mm Thick Uncoated, Calcium Fluoride Window22-45994.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
1.00 ±0.1Uncoated
直径50mm 不镀膜， 氟化钙窗片47-68494.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
3.00 ±0.1Uncoated
50mm Dia., 1mm Thick, UV-VIS Coated, Calcium Fluoride Window22-60994.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
1.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
50mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-80994.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
3.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
50mm Dia., 1mm Thick, VIS-NIR Coated, Calcium Fluoride Window22-61094.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
1.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
50mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-82194.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
3.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
50mm Dia., 1mm Thick, NIR II Coated, Calcium Fluoride Window22-61194.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
1.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
50mm Diameter, NIR II Coated, Calcium Fluoride Window14-83394.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
3.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
50mm Dia., 1mm Thick, BBAR (1650-3000nm) Coated, Calcium Fluoride Window22-61294.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
1.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm Rabs <2% @ 1650 - 3000nm
50mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-97194.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
3.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm
50mm Dia. x 1mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-52294.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
1.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
50mm Dia. x 3mm THick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-52394.99 Random Protective as needed 90 45.00 50.00 +0.0/-0.1
3.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
50.8mm Diameter Uncoated, Calcium Fluoride Window11-87594.99 Random Protective as needed 90 45.72 50.80 +0.0/-0.1
3.00 ±0.1Uncoated
50.8mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-81094.99 Random Protective as needed 90 45.72 50.80 +0.0/-0.1
3.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
50.8mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-82294.99 Random Protective as needed 90 45.72 50.80 +0.0/-0.1
3.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
50.8mm Diameter, NIR II Coated, Calcium Fluoride Window14-83494.99 Random Protective as needed 90 45.72 50.80 +0.0/-0.1
3.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
50.8mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-97294.99 Random Protective as needed 90 45.72 50.80 +0.0/-0.1
3.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm
50.8mm Dia. x 3mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-52494.99 Random Protective as needed 90 45.72 50.80 +0.0/-0.1
3.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
75mm直径，未镀膜，氟化钙窗片87-70594.99 Random Protective as needed 90 67.50 75.00 +0.0/-0.1
5.00 ±0.1Uncoated
75mm Diameter, UV-VIS Coated, Calcium Fluoride Window14-81194.99 Random Protective as needed 90 67.50 75.00 +0.0/-0.1
5.00 ±0.1UV-VIS (250-700nm) Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm
75mm Diameter, VIS-NIR Coated, Calcium Fluoride Window14-82394.99 Random Protective as needed 90 67.50 75.00 +0.0/-0.1
5.00 ±0.1VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm
75mm Diameter, NIR II Coated, Calcium Fluoride Window14-83594.99 Random Protective as needed 90 67.50 75.00 +0.0/-0.1
5.00 ±0.1NIR II (750-1550nm) Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm
75mm Diameter, BBAR (1650-3000nm) Coated, Calcium Fluoride Window15-97394.99 Random Protective as needed 90 67.50 75.00 +0.0/-0.1
5.00 ±0.1BBAR (1650-3000nm) Ravg <1% @ 1650 - 3000nm   Rabs <2% @ 1650 - 3000nm
75mm Dia. x 5mm Thick, BBAR (2000-5000nm) Coated Calcium Fluoride Window23-52594.99 Random Protective as needed 90 67.50 75.00 +0.0/-0.1
5.00 ±0.1BBAR (2000-5000nm) Ravg <1.5% @ 2000-5000nm Rabs <3.0% @ 2000-5000nm Ravg <1.75% @ 2000-4000nm
100mm Diameter Uncoated, Calcium Fluoride Window17-60594.99 Random Protective as needed 90 90.00 100.00 +0.0/-0.1
6.00 ±0.10Uncoated
125mm Diameter Uncoated, Calcium Fluoride Window17-60694.99 Random Protective as needed 90 112.50 125.00 +0.0/-0.1
6.00 ±0.10Uncoated


                             技术数据
