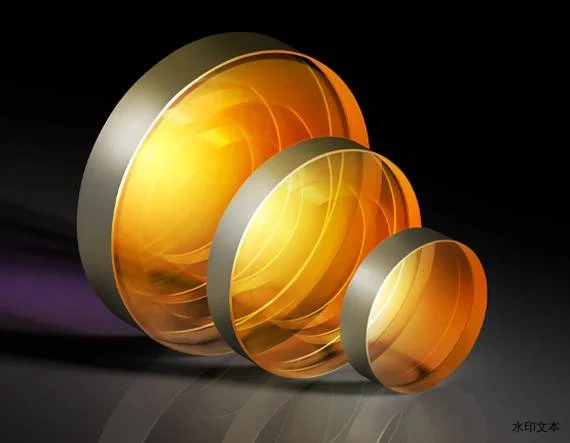

HOLO/OR 衍射分光镜

HOLO/OR 衍射分光镜

￥ 0.00
0.00


HOLO/OR 衍射分光镜是衍射光学元件 (DOE)，可将输入激光光束分割为多个光束（也称为衍射级）。这些衍射级可以排列为一维光束阵列或二维光束网格，各光束点依据定义的分离角而分布。HOLO/OR 衍射分光镜提供适用于 Nd:YAG 谐波（355nm、532nm 与 1064nm）及 CO2 激光的设计。HOLO/OR 衍射分光镜用于材料加工应用（包括并行材料加工与激光划线）以提高激光系统的生产量，也用于诸如分阶段处理等美学处理。


  • 将输入光束分割为多个衍射级

  • 1 维阵列或 2 维网格输出

  • 专为 Nd:YAG 与 CO2激光而设计

  • 与单模或多模激光兼容


                         产品

标题产品编码CA (mm)涂层DWL (nm)Dia. (mm)基底厚度 (mm)Input Beam Mode最小光束直径 (mm)整体效率 (%) 全角 (°)输出光斑的数量
1064nm, 25.4mm Dia., 9x9 Spot Matrix, Diffractive Beamsplitter14-68422.9 Laser V-Coat (1064nm) 1064 25.40 +0.05/-0.15Fused Silica (Corning 7980)3.00 ±0.1SM or MM 0.37 73 4.0 x 4.0 9 x 9
532nm, 25.4mm Dia., 9x9 Spot Matrix, Diffractive Beamsplitter14-68522.9 Laser V-Coat (532nm) 532 25.40 +0.05/-0.15Fused Silica (Corning 7980)3.00 ±0.1SM or MM 0.37 73 2.0 x 2.0 9 x 9
532nm, 11mm Dia., 5x5 Spot Matrix, Diffractive Beamsplitter14-6869.2 Laser V-Coat (532nm) 532 11.00 +0.05/-0.15Fused Silica (Corning 7980)3.00 ±0.1SM or MM 0.18 74 2.0 x 2.0 5 x 5
1064nm, 20mm Dia., 9x9 Spot Matrix, Diffractive Beamsplitter14-68718 Laser V-Coat (1064nm) 1064 20.00 +0.05/-0.15Fused Silica (Corning 7980)3.00 ±0.1SM or MM 0.37 73 4.0 x 4.0 9 x 9
532nm, 20mm Dia., 9x9 Spot Matrix, Diffractive Beamsplitter14-68818 Laser V-Coat (532nm) 532 20.00 +0.05/-0.15Fused Silica (Corning 7980)3.00 ±0.1SM or MM 0.37 73 2.0 x 2.0 9 x 9
1064nm, 25.4mm Dia., 1x6 Spot Array, Diffractive Beamsplitter14-68922.9 Laser V-Coat (1064nm) 1064 25.40 +0.05/-0.15Fused Silica (Corning 7980)3.00 ±0.1SM or MM 0.48 82 3.8 6
355nm, 25.4mm Dia., 1x6 Spot Array, Diffractive Beamsplitter14-69022.9 Laser V-Coat (355nm) 355 25.40 +0.05/-0.15Fused Silica (Corning 7980)3.00 ±0.1SM or MM 0.48 82 1.27 6
1064nm, 18mm Dia., 5x5 Spot Matrix, Diffractive Beamsplitter14-69116.2 Laser V-Coat (1064nm) 1064 18.00 +0.05/-0.15Fused Silica (Corning 7980)3.00 ±0.1SM or MM 0.18 74 4.0 x 4.0 5 x 5
1064nm, 18mm Dia., 9x9 Spot Matrix, Diffractive Beamsplitter14-69216.2 Laser V-Coat (1064nm) 1064 18.00 +0.05/-0.15Fused Silica (Corning 7980)3.00 ±0.1SM or MM 0.37 73 4.0 x 4.0 9 x 9
1064nm, 25.4mm Dia., 7x7 Spot Matrix, Diffractive Beamsplitter14-69322.9 Laser V-Coat (1064nm) 1064 25.40 +0.05/-0.15Fused Silica (Corning 7980)3.00 ±0.1SM or MM 0.09 76 12.69 x 12.69 7 x 7
10.6µm, 27.94mm Dia., 1x2 Spot Array, Diffractive Beamsplitter14-69425.1 Laser V-Coat (10.6µm) 10600 27.94 +0.05/-0.15Zinc Selenide (ZnSe) 3.00 ±0.1SM or MM 1.35 79 2.70 2
10.6µm, 27.94mm Dia., 1x2 Spot Array, Diffractive Beamsplitter (Recertified 05-P)14-694-RCD-05P25.1 Laser V-Coat (10.6µm) 10600 27.94 +0.05/-0.15Zinc Selenide (ZnSe) 3.00 ±0.1SM or MM 1.35 79 2.70 2
1064nm, 20mm Dia., 1x2 Spot Array, Diffractive Beamsplitter14-69518.0 Laser V-Coat (1064nm) 1064 20.00 +0.05/-0.15Fused Silica (Corning 7980)3.00 ±0.1SM or MM 3.12 79 0.12 2
