OD4.0 高性能短波通滤光片

OD4.0 高性能短波通滤光片

￥ 0.00
0.00


TECHSPEC® OD4.0 高性能短波通滤光片和长波通滤光片套件可提供各种配置，非常适用于原型制造、科研和开发以及在实验室内使用。每组套件包含OD4.0 短波通滤光片或OD4.0 长波通滤光片，相较于单个购买的滤光片，这些滤光片价格较优惠。基本版滤光片套件以每50nm增量提供，完整版套件则以每25nm增量提供。


  • 精密起始波长和截止波长

  • OD4.0 短波通或OD4.0 长波通配置

  • 实验室集成的理想选择

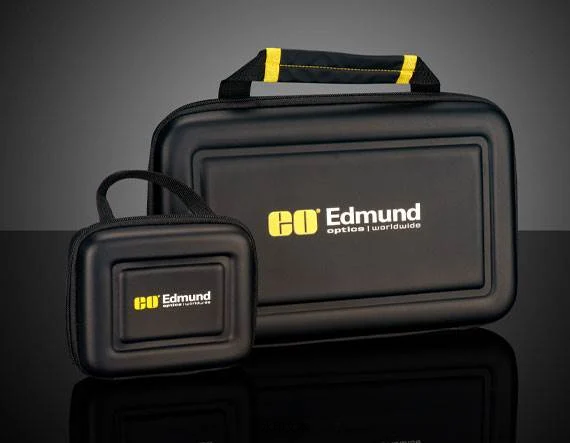

  • 请注意: 包装方式可能有改变


                          产品

标题产品编码Dia. (mm)光密度 OD（平均）基底包含的滤波器 涂层透射率 (%) 类型滤波器数目涂层规格波长范围 (nm)
可见光400 - 700nm，12.5mm直径，短波通滤光片套装(13片)86-45312.50 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm , 425nm, 450nm, 475nm, 500nm, 525nm, 550nm, 575nm, 600nm, 625nm, 650nm, 675nm, 700nm Hard Coated ≥91 Shortpass Filter 13.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1030
可见光400 - 700nm，25mm直径，短波通滤光片套装(13片)86-45925.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm , 425nm, 450nm, 475nm, 500nm, 525nm, 550nm, 575nm, 600nm, 625nm, 650nm, 675nm, 700nm Hard Coated ≥91 Shortpass Filter 13.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1030
可见光400 - 700nm，50mm直径，短波通滤光片套装(13片)86-46550.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm, 425nm, 450nm, 475nm, 500nm, 525nm, 550nm, 575nm, 600nm, 625nm, 650nm, 675nm, 700nm Hard Coated ≥91 Shortpass Filter 13.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1030
可见光400 - 700nm，12.5mm直径，短波通滤光片套装(7片)86-45412.50 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm, 450nm, 500nm, 550nm, 600nm, 650nm, 700nm Hard Coated ≥91 Shortpass Filter 7.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1030
可见光400 - 700nm，25mm直径，短波通滤光片套装(7片)86-46025.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm , 450nm, 500nm, 550nm, 600nm, 650nm, 700nm Hard Coated ≥91 Shortpass Filter 7.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1030
可见光400 - 700nm，50mm直径，短波通滤光片套装(7片)86-46650.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm, 450nm, 500nm, 550nm, 600nm, 650nm, 700nm Hard Coated ≥91 Shortpass Filter 7.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1030
近红外725 - 1100nm，12.5mm直径，短波通滤光片套装(16片)86-45512.50 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 725nm, 750nm, 775nm, 800nm, 825nm, 850nm, 875nm, 900nm, 925nm, 950nm, 975nm, 1000nm, 1025nm, 1050nm, 1075nm, 1100nm Hard Coated ≥91 Shortpass Filter 16.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 400 - 1530
近红外725 - 1100nm，25mm直径，短波通滤光片套装(16片)86-46125.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 725nm, 750nm, 775nm, 800nm, 825nm, 850nm, 875nm, 900nm, 925nm, 950nm, 975nm, 1000nm, 1025nm, 1050nm, 1075nm, 1100nm Hard Coated ≥91 Shortpass Filter 16.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 400 - 1530
近红外725 - 1100nm，50mm直径，短波通滤光片套装(16片)86-46750.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 725nm, 750nm, 775nm, 800nm, 825nm, 850nm, 875nm, 900nm, 925nm, 950nm, 975nm, 1000nm, 1025nm, 1050nm, 1075nm, 1100nm Hard Coated ≥91 Shortpass Filter 16.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 400 - 1530
近红外725 - 1100nm，12.5mm直径，短波通滤光片套装(8片)86-45612.50 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Shortpass Filter 8.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 400 - 1530
近红外725 - 1100nm，25mm直径，短波通滤光片套装(8片)86-46225.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Shortpass Filter 8.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 400 - 1530
近红外725 - 1100nm，50mm直径，短波通滤光片套装(8片)86-46850.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Shortpass Filter 8.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 400 - 1530
可见光-近红外400 - 1100nm，12.5mm直径，短波通滤光片套装(2986-45712.50 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm , 425nm, 450nm, 475nm, 500nm, 525nm, 550nm, 575nm, 600nm, 625nm, 650nm, 675nm, 700nm, 725nm, 750nm, 775nm, 800nm, 825nm, 850nm, 875nm, 900nm, 925nm, 950nm, 975nm, 1000nm, 1025nm, 1050nm, 1075nm, 1100nm Hard Coated ≥91 Shortpass Filter 29.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1530
可见光-近红外400 - 1100nm，25mm直径，短波通滤光片套装(29片)86-46325.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm , 425nm, 450nm, 475nm, 500nm, 525nm, 550nm, 575nm, 600nm, 625nm, 650nm, 675nm, 700nm, 725nm, 750nm, 775nm, 800nm, 825nm, 850nm, 875nm, 900nm, 925nm, 950nm, 975nm, 1000nm, 1025nm, 1050nm, 1075nm, 1100nm Hard Coated ≥91 Shortpass Filter 29.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1530
可见光-近红外400 - 1100nm，50mm直径，短波通滤光片套装(29片)86-46950.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm, 425nm, 450nm, 475nm, 500nm, 525nm, 550nm, 575nm, 600nm, 625nm, 650nm, 675nm, 700nm, 725nm, 750nm, 775nm, 800nm, 825nm, 850nm, 875nm, 900nm, 925nm, 950nm, 975nm, 1000nm, 1025nm, 1050nm, 1075nm, 1100nm Hard Coated ≥91 Shortpass Filter 29.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1530
可见光-近红外400 - 1100nm，12.5mm直径，短波通滤光片套装(1586-45812.50 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm , 450nm, 500nm, 550nm, 600nm, 650nm, 700nm, 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Shortpass Filter 15.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1530
可见光-近红外400 - 1100nm，25mm直径，短波通滤光片套装(15片)86-46425.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm , 450nm, 500nm, 550nm, 600nm, 650nm, 700nm, 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Shortpass Filter 15.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1530
可见光-近红外400 - 1100nm，50mm直径，短波通滤光片套装(15片)86-47050.00 ≥4.0 Fused Silica (Corning 7980)Cut-Off Wavelength: 400nm, 450nm, 500nm, 550nm, 600nm, 650nm, 700nm, 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Shortpass Filter 15.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 300 - 1530
可见光400 - 700nm，12.5mm直径，长波通滤光片套装 (13片)86-47112.50 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 400nm, 425nm, 450nm, 475nm, 500nm, 525nm, 550nm, 575nm, 600nm, 625nm, 650nm, 675nm, 700nm Hard Coated ≥91 Longpass Filter 13.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
可见光400 - 700nm，25mm直径，长波通滤光片套装 (13片)86-47725.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 400nm , 425nm, 450nm, 475nm, 500nm, 525nm, 550nm, 575nm, 600nm, 625nm, 650nm, 675nm, 700nm Hard Coated ≥91 Longpass Filter 13.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
可见光400 - 700nm，50mm直径，长波通滤光片套装 (13片)86-48350.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 400nm, 425nm, 450nm, 475nm, 500nm, 525nm, 550nm, 575nm, 600nm, 625nm, 650nm, 675nm, 700nm Hard Coated ≥91 Longpass Filter 13.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
可见光400 - 700nm，12.5mm直径，长波通滤光片套装 (7片)86-47212.50 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 400nm, 450nm, 500nm, 550nm, 600nm, 650nm, 700nm Hard Coated ≥91 Longpass Filter 7.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
可见光400 - 700nm，25mm直径，长波通滤光片套装 (7片)86-47825.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 400nm, 450nm, 500nm, 550nm, 600nm, 650nm, 700nm Hard Coated ≥91 Longpass Filter 7.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
可见光400 - 700nm，50mm直径，长波通滤光片套装 (7片)86-48450.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 400nm, 450nm, 500nm, 550nm, 600nm, 650nm, 700nm Hard Coated ≥91 Longpass Filter 7.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
近红外725 - 1100nm，12.5mm直径，长波通滤光片套装 (16片)86-47312.50 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 725nm, 750nm, 775nm, 800nm, 825nm, 850nm, 875nm, 900nm, 925nm, 950nm, 975nm, 1000nm, 1025nm, 1050nm, 1075nm, 1100nm Hard Coated ≥91 Longpass Filter 16.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
近红外725 - 1100nm，25mm直径，长波通滤光片套装 (16片)86-47925.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 725nm, 750nm, 775nm, 800nm, 825nm, 850nm, 875nm, 900nm, 925nm, 950nm, 975nm, 1000nm, 1025nm, 1050nm, 1075nm, 1100nm Hard Coated ≥91 Longpass Filter 16.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
近红外725 - 1100nm，50mm直径，长波通滤光片套装 (16片)86-48550.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 725nm, 750nm, 775nm, 800nm, 825nm, 850nm, 875nm, 900nm, 925nm, 950nm, 975nm, 1000nm, 1025nm, 1050nm, 1075nm, 1100nm Hard Coated ≥91 Longpass Filter 16.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
近红外725 - 1100nm，12.5mm直径，长波通滤光片套装 (8片)86-47412.50 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Longpass Filter 8.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
近红外725 - 1100nm，25mm直径，长波通滤光片套装 (8片)86-48025.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Longpass Filter 8.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
近红外725 - 1100nm，50mm直径，长波通滤光片套装 (8片)86-48650.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Longpass Filter 8.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
可见光-近红外400 - 1100nm，25mm直径，长波通滤光片套装 (29片86-48125.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 400nm, 425nm, 450nm, 475nm, 500nm, 525nm, 550nm, 575nm, 600nm, 625nm, 650nm, 675nm, 700nm, 725nm, 750nm, 775nm, 800nm, 825nm, 850nm, 875nm, 900nm, 925nm, 950nm, 975nm, 1000nm, 1025nm, 1050nm, 1075nm, 1100nm Hard Coated ≥91 Longpass Filter 29.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
可见光-近红外400 - 1100nm，50mm直径，长波通滤光片套装 (29片86-48750.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 400nm, 425nm, 450nm, 475nm, 500nm, 525nm, 550nm, 575nm, 600nm, 625nm, 650nm, 675nm, 700nm, 725nm, 750nm, 775nm, 800nm, 825nm, 850nm, 875nm, 900nm, 925nm, 950nm, 975nm, 1000nm, 1025nm, 1050nm, 1075nm, 1100nm Hard Coated ≥91 Longpass Filter 29.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
可见光-近红外400 - 1100nm，12.5mm直径，长波通滤光片套装 (186-47612.50 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 400nm, 450nm, 500nm, 550nm, 600nm, 650nm, 700nm, 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Longpass Filter 15.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
可见光-近红外400 - 1100nm，25mm直径，长波通滤光片套装 (15片86-48225.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 400nm, 450nm, 500nm, 550nm, 600nm, 650nm, 700nm, 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Longpass Filter 15.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
可见光-近红外400 - 1100nm，50mm直径，长波通滤光片套装 (15片86-48850.00 ≥4.0 Fused Silica (Corning 7980)Cut-On Wavelength: 400nm, 450nm, 500nm, 550nm, 600nm, 650nm, 700nm, 750nm, 800nm, 850nm, 900nm, 950nm, 1000nm, 1050nm, 1100nm Hard Coated ≥91 Longpass Filter 15.00 Surface 1: Hard Dielectric Sputtered Surface 2: AR Coated 200 - 1650
