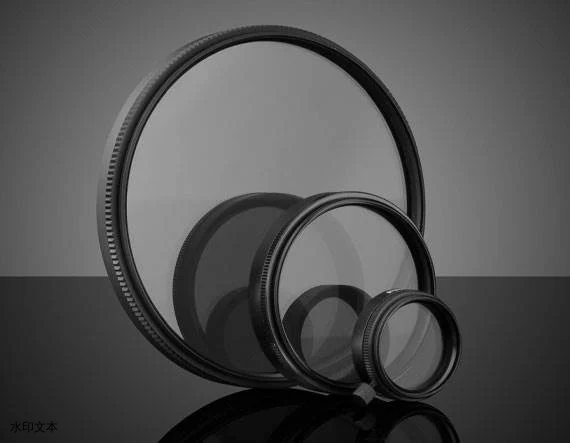

带封装的线性玻璃偏振滤光片

带封装的线性玻璃偏振滤光片

￥ 0.00
0.00


带封装的线性玻璃偏振滤光片具有可旋转螺纹支架，该支架备有各种标准螺纹尺寸可供选择。线性偏光镜传输单轴偏光，可用于在成像系统中减少眩光和亮斑。可堆叠安装两个偏光镜实现不同亮度效果。厚度包括 2mm 外螺纹。 带封装的线性玻璃偏振滤光片的偏振效率为 95% 。同类型的滤光片还有不带封装的版本可选。


  • 可折叠旋转支架

  • 消除亮斑，减少眩光

  • 95% 偏光效率

  • 另有 未安装型 可供选择

                           产品

标题产品编码CA (mm)涂层Dia. (mm)消光比滤光片螺纹基底工作温度 (°C)偏振 透射率 (%) 类型构造
封装的M25.5 x 0.5螺纹玻璃线性偏振片46-57522.5 Uncoated 27.50 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M25.5 x 0.50 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
封装的安装螺纹为M86 x 1.1玻璃材质线偏振片64-89623.00 Uncoated 29.00 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M27 x 0.50 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
M37 x 0.75 Mounted Linear Glass Polarizing Filter22-78433.00 Uncoated 39.00 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M37 x 0.75 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
M40.5 x 0.5 Mounted Linear Glass Polarizing Filter25-08236.00 Uncoated 43.10 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M40.5 x 0.50 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
M43 x 0.75 Mounted Linear Glass Polarizing Filter25-08338.50 Uncoated 45.60 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M43 x 0.75 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
M46 x 0.75 Mounted Linear Glass Polarizing Filter25-08441.50 Uncoated 48.60 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M46 x 0.75 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
封装的M48 x 0.75螺纹，线偏振滤光片52-55944.00 Uncoated 49.90 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M48 x 0.75 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
M49 x 0.75 Mounted Linear Glass Polarizing Filter25-08544.50 Uncoated 51.60 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M49 x 0.75 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
M52 x 0.75 Mounted Linear Glass Polarizing Filter25-08647.50 Uncoated 54.60 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M52 x 0.75 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
M55 x 0.75 Mounted Linear Glass Polarizing Filter25-08750.50 Uncoated 57.60 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M55 x 0.75 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
M58 x 0.75 Mounted Linear Glass Polarizing Filter25-08853.50 Uncoated 60.60 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M58 x 0.75 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
M72 x 0.75 Mounted Linear Glass Polarizing Filter22-78568.00 Uncoated 74.50 Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M72 x 0.75 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
封装的安装螺纹为M105 x 1.00玻璃材质线偏振片64-90399.00 Uncoated 110.00 +0/-0.2Approx. 19:1 at 400nm Approx. 200:1 at 500nm ≥2700:1 at 550-650nm Approx. 600:1 at 700nm M105 x 1.00 Float Glass -15 to +70 95% Efficency Single: 30  Crossed: 0.15 Mounted Imaging Filter Dichroic
