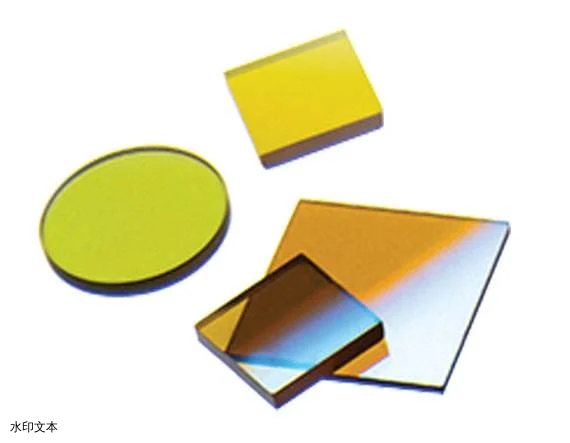

Corning Polarcor™ 玻璃偏振片
￥ 0.00
0.00
Corning Polarcor™ 玻璃偏振片在 NIR 的波长范围内具有高消光比和低插入损耗。这些线性偏振片由硼硅酸盐玻璃基片内排列的细长银晶体构成，能根据谐振吸收提供偏振机制。通过此偏振机制，会吸收不需要偏振的方向的光，从而确保消除杂散光。Corning Polarcor™ 玻璃偏振片可用于对光进行偏振、阻挡偏振光、减少反射、改善影像对比度、调节和控制光强度或提高信噪比。这些偏振片非常适合在电讯、医疗和国防行业集成到依赖偏振的光学隔离器、光学调制器及其他基于偏振的设备中。
在 NIR 范围内具有高消光比和低插入损耗
对化学、物理和热损伤具有耐受性
适用于高功率应用
可提供标准尺寸和定制尺寸
产品
| 标题 | 产品编码 | AOI (°) | 涂层 | DWL (nm) | Dia. (mm) | 消光比 | 基底 | 长度 (mm) | 最小传输 (%) | 尺寸 (mm) | 表面质量 | 厚度 (mm) |
| 5 x 5mm, 633nm, Corning Polarcor™ Glass Polarizer | 13-612 | 0 ±5 | BBAR (630-700nm) | 633 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | 5.00 | >83.9 | 5.0 x 5.0 | 40-20 | 0.50 ±0.05 | |
| 11 x 11mm, 633nm, Corning Polarcor™ Glass Polarizer | 13-611 | 0 ±5 | BBAR (630-700nm) | 633 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | 11.00 | >83.9 | 11.0 x 11.0 | 40-20 | 0.50 ±0.05 | |
| 12.5mm Dia., 633nm, Corning Polarcor™ Glass Polarizer | 13-610 | 0 ±5 | BBAR (630-700nm) | 633 | 12.50 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | >83.9 | 40-20 | 0.50 ±0.05 | ||
| 25mm Dia., 633nm, Corning Polarcor™ Glass Polarizer | 13-609 | 0 ±5 | BBAR (630-700nm) | 633 | 25.00 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | >83.9 | 40-20 | 0.50 ±0.05 | ||
| 5 x 5mm, 800nm, Corning Polarcor™ Glass Polarizer | 13-616 | 0 ±5 | BBAR (740-860nm) | 800 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | 5.00 | >91.3 | 5.0 x 5.0 | 40-20 | 0.50 ±0.05 | |
| 11 x 11mm, 800nm, Corning Polarcor™ Glass Polarizer | 13-615 | 0 ±5 | BBAR (740-860nm) | 800 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | 11.00 | >91.3 | 11.0 x 11.0 | 40-20 | 0.50 ±0.05 | |
| 12.5mm Dia., 800nm, Corning Polarcor™ Glass Polarizer | 13-614 | 0 ±5 | BBAR (740-860nm) | 800 | 12.50 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | >91.3 | 40-20 | 0.50 ±0.05 | ||
| 25mm Dia., 800nm, Corning Polarcor™ Glass Polarizer | 13-613 | 0 ±5 | BBAR (740-860nm) | 800 | 25.00 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | >91.3 | 40-20 | 0.50 ±0.05 | ||
| 5 x 5mm, 1060nm, Corning Polarcor™ Glass Polarizer | 13-620 | 0 ±5 | BBAR (960-1160nm) | 1060 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | 5.00 | >95.7 | 5.0 x 5.0 | 40-20 | 0.50 ±0.05 | |
| 11 x 11mm, 1060nm, Corning Polarcor™ Glass Polarizer | 13-619 | 0 ±5 | BBAR (960-1160nm) | 1060 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | 11.00 | >95.7 | 11.0 x 11.0 | 40-20 | 0.50 ±0.05 | |
| 12.5mm Dia., 1060nm, Corning Polarcor™ Glass Polarizer | 13-618 | 0 ±5 | BBAR (960-1160nm) | 1060 | 12.50 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | >95.7 | 40-20 | 0.50 ±0.05 | ||
| 25mm Dia., 1060nm, Corning Polarcor™ Glass Polarizer | 13-617 | 0 ±5 | BBAR (960-1160nm) | 1060 | 25.00 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | >95.7 | 40-20 | 0.50 ±0.05 | ||
| 5 x 5mm, 1550nm, Corning Polarcor™ Glass Polarizer | 13-624 | 0 ±5 | BBAR (1510-1590nm) | 1550 | >100,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | 5.00 | >98.5 | 5.0 x 5.0 | 40-20 | 0.50 ±0.05 | |
| 11 x 11mm, 1550nm, Corning Polarcor™ Glass Polarizer | 13-623 | 0 ±5 | BBAR (1510-1590nm) | 1550 | >100,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | 11.00 | >98.5 | 11.0 x 11.0 | 40-20 | 0.50 ±0.05 | |
| 12.5mm Dia., 1550nm, Corning Polarcor™ Glass Polarizer | 13-622 | 0 ±5 | BBAR (1510-1590nm) | 1550 | 12.50 | >100,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | >98.5 | 40-20 | 0.50 ±0.05 | ||
| 25mm Dia., 1550nm, Corning Polarcor™ Glass Polarizer | 13-621 | 0 ±5 | BBAR (1510-1590nm) | 1550 | 25.00 | >100,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | >98.5 | 40-20 | 0.50 ±0.05 | ||
| 5 x 5mm, 600 - 1100nm, Corning Polarcor™ Glass Polarizer | 13-628 | 0 ±5 | BBAR (600-1100nm) | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | 5.00 | >66 | 5.0 x 5.0 | 40-20 | 0.50 ±0.05 | ||
| 11 x 11mm, 600 - 1100nm, Corning Polarcor™ Glass Polarizer | 13-627 | 0 ±5 | BBAR (600-1100nm) | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | 11.00 | >66 | 11.0 x 11.0 | 40-20 | 0.50 ±0.05 | ||
| 12.5mm Dia., 600 - 1100nm, Corning Polarcor™ Glass Polarizer | 13-626 | 0 ±5 | BBAR (600-1100nm) | 12.50 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | >66 | 40-20 | 0.50 ±0.05 | |||
| 25mm Dia., 600 - 1100nm, Corning Polarcor™ Glass Polarizer | 13-625 | 0 ±5 | BBAR (600-1100nm) | 25.00 | >10,000:1 | Borosilicate Glass Containing Elongated Silver Crystals | >66 | 40-20 | 0.50 ±0.05 |
