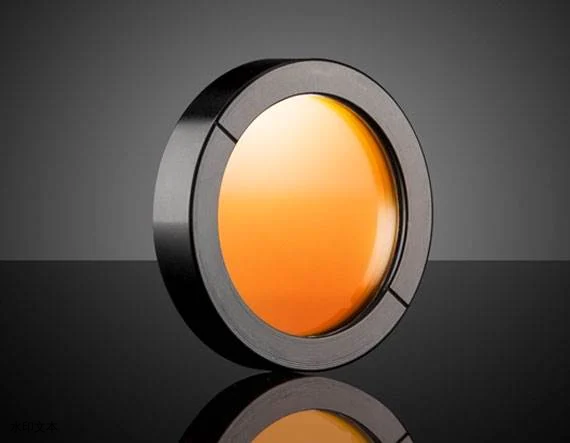

石英波片（相位延迟片）
￥ 0.00
0.00
石英波片（相位延迟片）备有多级及零级型号可供选择，适用各种应用。多级波片适合波长偏离波片设计波长少于 ±1% 的应用。对于偏离超过 ±1% 的应用，建议使用零级波片，这类波片具有更大的带宽，对温度变化较不敏感。为简化系统整合，快光轴在支架边缘标出。
零级及多级波片
λ/4 和 λ/2 延迟性
安装于黑色阳极电镀铝框中
零级聚合物波片 另外也备有
产品
| 标题 | 产品编码 | CA (mm) | 涂层 | DWL (nm) | Dia. (mm) | 基底 | 延迟性 | 表面质量 | 厚度 (mm) | 类型 | 构造 | 传输波前，P-V (λ) | 平行度（弧秒） |
| WP ZO 12.7mm/8mm CA 1/4W 266nm | 85-017 | 8.00 | Laser V-Coat (266nm) | 266 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 266nm | 85-031 | 8.00 | Laser V-Coat (266nm) | 266 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| 12.7mm Dia. 343nm λ/2 Quartz Waveplate Zero Order | 16-883 | 8.0 | Laser V-Coat (343nm) | 343 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/10 @ 632.8 nm | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 355nm | 85-032 | 8.00 | Laser V-Coat (355nm) | 355 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/4W 405nm | 85-019 | 8.00 | Laser V-Coat (405nm) | 405 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 405nm | 85-033 | 8.00 | Laser V-Coat (405nm) | 405 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/4W 488nm | 85-020 | 8.00 | Laser V-Coat (488nm) | 488 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 488nm | 85-034 | 8.00 | Laser V-Coat (488nm) | 488 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/4W 515nm | 85-021 | 8.00 | Laser V-Coat (514.5nm) | 514.5 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 515nm | 85-035 | 8.00 | Laser V-Coat (514.5nm) | 514.5 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/4W 532nm | 85-022 | 8.00 | Laser V-Coat (532nm) | 532 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 532nm | 85-037 | 8.00 | Laser V-Coat (532nm) | 532 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/4W 633nm | 85-023 | 8.00 | Laser V-Coat (632.8nm) | 632.8 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 633nm | 85-038 | 8.00 | Laser V-Coat (632.8nm) | 632.8 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 670nm | 85-039 | 8.00 | Laser V-Coat (670nm) | 670 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/4W 780nm | 85-025 | 8.00 | Laser V-Coat (780nm) | 780 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 780nm | 85-041 | 8.00 | Laser V-Coat (780nm) | 780 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 800nm | 85-042 | 8.00 | Laser V-Coat (800nm) | 800 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/4W 830nm | 85-027 | 8.00 | Laser V-Coat (830nm) | 830 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 830nm | 85-043 | 8.00 | Laser V-Coat (830nm) | 830 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/4W 980nm | 85-028 | 8.00 | Laser V-Coat (980nm) | 980 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 980nm | 85-044 | 8.00 | Laser V-Coat (980nm) | 980 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/4W 1064nm | 85-029 | 8.00 | Laser V-Coat (1064nm) | 1064 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 1064nm | 85-045 | 8.00 | Laser V-Coat (1064nm) | 1064 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/4W 1550nm | 85-030 | 8.00 | Laser V-Coat (1550nm) | 1550 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 12.7mm/8mm CA 1/2W 1550nm | 85-046 | 8.00 | Laser V-Coat (1550nm) | 1550 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/4W 266nm | 85-068 | 8.00 | Laser V-Coat (266nm) | 266 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WPMO 12.7mm/8mm CA 1/4W 266nm | 85-079 | 8.00 | Laser V-Coat (266nm) | 266 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| 12.7mm Dia. 343nm λ/4 Quartz Waveplate Zero Order | 16-882 | 8.0 | Laser V-Coat (343nm) | 343 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/10 @ 632.8 nm | <3 |
| WP MO 12.7mm/8mm CA 1/4W 355nm | 85-072 | 8.00 | Laser V-Coat (355nm) | 355 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/2W 355nm | 85-080 | 8.00 | Laser V-Coat (355nm) | 355 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/4W 405nm | 85-073 | 8.00 | Laser V-Coat (405nm) | 405 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/2W 405nm | 85-081 | 8.00 | Laser V-Coat (405nm) | 405 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/4W 488nm | 85-074 | 8.00 | Laser V-Coat (488nm) | 488 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/2W 488nm | 85-082 | 8.00 | Laser V-Coat (488nm) | 488 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/4W 515nm | 85-075 | 8.00 | Laser V-Coat (514.5nm) | 514.5 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/2W 515nm | 85-083 | 8.00 | Laser V-Coat (514.5nm) | 514.5 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/4W 532nm | 85-076 | 8.00 | Laser V-Coat (532nm) | 532 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/2W 532nm | 85-084 | 8.00 | Laser V-Coat (532nm) | 532 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/4W 633nm | 85-077 | 8.00 | Laser V-Coat (632.8nm) | 632.8 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/2W 633nm | 85-085 | 8.00 | Laser V-Coat (632.8nm) | 632.8 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| 12.7mm Dia. 1030nm λ/2 Quartz Waveplate Zero Order | 16-887 | 8.0 | Laser V-Coat (1030nm) | 1030 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/10 @ 632.8 nm | <3 |
| 12.7mm Dia. 1030nm λ/4 Quartz Waveplate Zero Order | 16-886 | 8.0 | Laser V-Coat (1030nm) | 1030 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/10 @ 632.8 nm | <3 |
| WP MO 12.7mm/8mm CA 1/4W1064nm | 85-078 | 8.00 | Laser V-Coat (1064nm) | 1064 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 12.7mm/8mm CA 1/2W1064nm | 85-086 | 8.00 | Laser V-Coat (1064nm) | 1064 | 12.70 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.40 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/4W 266nm | 48-485 | 15.00 | Laser V-Coat (266nm) | 266 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/2W 266nm | 48-486 | 15.00 | Laser V-Coat (266nm) | 266 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| 302 nm half waveplate | 35-132 | 15.00 | Laser V-Coat (302nm) | 302 | 25.40 +0.0/-0.2 | Crystal Quartz | λ/2 | 10-5 | 7.80 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| 25.4mm Dia. 343nm λ/4 Quartz Waveplate Zero Order | 11-049 | >18.0 | Laser V-Coat (343nm) | 343 | 25.40 ±0.15 | Crystal Quartz | λ/4 | 10-5 | 6.00 | Crystalline Waveplate | Crystalline | λ/10 | <3 |
| 25.4mm Dia. 343nm λ/2 Quartz Waveplate Zero Order | 11-048 | >18.0 | Laser V-Coat (343nm) | 343 | 25.40 ±0.15 | Crystal Quartz | λ/2 | 10-5 | 6.00 | Crystalline Waveplate | Crystalline | λ/10 | <3 |
| WP ZO 25.4mm/15mm CA 1/4W 355nm | 46-548 | 15.00 | Laser V-Coat (355nm) | 355 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/2W 355nm | 46-549 | 15.00 | Laser V-Coat (355nm) | 355 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| 25.4mm Dia. 405nm λ/4 Quartz Waveplate Zero Order | 14-297 | 20.00 | Laser V-Coat (405nm) | 405 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 | <3 |
| 25.4mm Dia. 405nm λ/2 Quartz Waveplate Zero Order | 14-296 | 20.00 | Laser V-Coat (405nm) | 405 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 | <3 |
| WP ZO 25.4mm/15mm CA 1/4W 488nm | 46-550 | 15.00 | Laser V-Coat (488nm) | 488 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/2W 488nm | 46-551 | 15.00 | Laser V-Coat (488nm) | 488 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/4W 514.5nm | 43-692 | 15.00 | Laser V-Coat (514.5nm) | 514.5 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/2W 514.5nm | 43-693 | 15.00 | Laser V-Coat (514.5nm) | 514.5 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/4W 532nm | 43-696 | 15.00 | Laser V-Coat (532nm) | 532 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/2W 532nm | 43-697 | 15.00 | Laser V-Coat (532nm) | 532 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/4W 632.8nm | 43-700 | 15.00 | Laser V-Coat (632.8nm) | 632.8 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/2W 632.8nm | 43-701 | 15.00 | Laser V-Coat (632.8nm) | 632.8 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/2W 670nm | 46-553 | 15.00 | Laser V-Coat (670nm) | 670 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/4W 780nm | 46-410 | 15.00 | Laser V-Coat (780nm) | 780 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/2W 780nm | 46-411 | 15.00 | Laser V-Coat (780nm) | 780 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/4W 800nm | 46-554 | 15.00 | Laser V-Coat (800nm) | 800 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/2W 800nm | 46-555 | 15.00 | Laser V-Coat (800nm) | 800 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/4W 830nm | 46-412 | 15.00 | Laser V-Coat (830nm) | 830 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/4W 980nm | 46-556 | 15.00 | Laser V-Coat (980nm) | 980 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/2W 980nm | 46-557 | 15.00 | Laser V-Coat (980nm) | 980 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| 25.4mm Dia. 1064nm λ/4 Quartz Waveplate Zero Order | 14-289 | 20.00 | Laser V-Coat (1064nm) | 1064 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 | <3 |
| 25.4mm Dia. 1064nm λ/2 Quartz Waveplate Zero Order | 14-288 | 20.00 | Laser V-Coat (1064nm) | 1064 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 | <3 |
| WP ZO 25.4mm/15mm CA 1/4W 1550nm | 46-414 | 15.00 | Laser V-Coat (1550nm) | 1550 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 25.4mm/15mm CA 1/2W 1550nm | 46-415 | 15.00 | Laser V-Coat (1550nm) | 1550 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 25.4mm/15mm CA 1/4W 355nm | 48-473 | 15.00 | Laser V-Coat (355nm) | 355 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 25.4mm/15mm CA 1/2W 355nm | 48-474 | 15.00 | Laser V-Coat (355nm) | 355 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 25.4mm/15mm CA 1/4W 532nm | 43-694 | 15.00 | Laser V-Coat (532nm) | 532 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 25.4mm/15mm CA 1/2W 532nm | 43-695 | 15.00 | Laser V-Coat (532nm) | 532 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 25.4mm/15mm CA 1/4W 632.8nm | 43-698 | 15.00 | Laser V-Coat (632.8nm) | 632.8 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 25.4mm/15mm CA 1/2W 632.8nm | 43-699 | 15.00 | Laser V-Coat (632.8nm) | 632.8 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| 25.4mm Dia. 1030nm λ/2 Quartz Waveplate Zero Order | 16-889 | 20.0 | Laser V-Coat (1030nm) | 1030 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/10 @ 632.8 nm | <3 |
| 25.4mm Dia. 1030nm λ/4 Quartz Waveplate Zero Order | 16-888 | 20.0 | Laser V-Coat (1030nm) | 1030 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/10 @ 632.8 nm | <3 |
| WP MO 25.4mm/15mm CA 1/4W 1064nm | 43-702 | 15.00 | Laser V-Coat (1064nm) | 1064 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP MO 25.4mm/15mm CA 1/2W 1064nm | 43-703 | 15.00 | Laser V-Coat (1064nm) | 1064 | 25.40 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 7.80 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/10 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/4W 266nm | 65-897 | 23.0 | Laser V-Coat (266nm) | 266 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/4W 355nm | 65-899 | 23.0 | Laser V-Coat (355nm) | 355 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/2W 355nm | 65-900 | 23.0 | Laser V-Coat (355nm) | 355 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/4W 405nm | 83-929 | 23.0 | Laser V-Coat (405nm) | 405 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/2W 405nm | 83-930 | 23.0 | Laser V-Coat (405nm) | 405 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/4W 532nm | 48-489 | 23.0 | Laser V-Coat (532nm) | 532 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/2W 532nm | 48-490 | 23.0 | Laser V-Coat (532nm) | 532 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/4W 632.8nm | 48-491 | 23.0 | Laser V-Coat (632.8nm) | 632.8 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/2W 632.8nm | 48-492 | 23.0 | Laser V-Coat (632.8nm) | 632.8 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/4W 800nm | 65-905 | 23.0 | Laser V-Coat (800nm) | 800 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/2W 800nm | 65-906 | 23.0 | Laser V-Coat (800nm) | 800 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/2W 1064nm | 48-496 | 23.0 | Laser V-Coat (1064nm) | 1064 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 30mm/23mm CA 1/4W 1550nm | 65-911 | 23.0 | Laser V-Coat (1550nm) | 1550 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP MO 30mm/23mm CA 1/2W 266nm | 65-914 | 23.0 | Laser V-Coat (266nm) | 266 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP MO 30mm/23mm CA 1/4W 405nm | 83-925 | 23.0 | Laser V-Coat (405nm) | 405 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WPMO 30mm/23mm CA 1/4W 532nm | 48-479 | 23.0 | Laser V-Coat (532nm) | 532 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP MO 30mm/23mm CA 1/2W 532nm | 48-480 | 23.0 | Laser V-Coat (532nm) | 532 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP MO 30mm/23mm CA 1/4W 632.8nm | 48-481 | 23.0 | Laser V-Coat (632.8nm) | 632.8 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP MO 30mm/23mm CA 1/2W 632.8nm | 48-482 | 23.0 | Laser V-Coat (632.8nm) | 632.8 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP MO 30mm/23mm CA 1/2W 1064nm | 48-484 | 23.0 | Laser V-Coat (1064nm) | 1064 | 30.00 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| 50.8mm Dia. 343nm λ/4 Quartz Waveplate Zero Order | 16-884 | 35.0 | Laser V-Coat (343nm) | 343 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/4 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/8 @ 632.8 nm | <3 |
| 50.8mm Dia. 343nm λ/2 Quartz Waveplate Zero Order | 16-885 | 35.0 | Laser V-Coat (343nm) | 343 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/2 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/8 @ 632.8 nm | <3 |
| 50.8mm Dia. 355nm λ/4 Quartz Waveplate Zero Order | 26-735 | 35.00 | Laser V-Coat (355nm) | 355 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/4 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 @ 632.8nm | <3 |
| 50.8mm Dia. 355nm λ/2 Quartz Waveplate Zero Order | 26-731 | 35.00 | Laser V-Coat (355nm) | 355 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/2 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 @ 632.8nm | <3 |
| 50.8mm Dia. 532nm λ/4 Quartz Waveplate Zero Order | 26-736 | 35.00 | Laser V-Coat (532nm) | 532 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/4 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 @ 632.8nm | <3 |
| 50.8mm Dia. 532nm λ/2 Quartz Waveplate Zero Order | 26-732 | 35.00 | Laser V-Coat (532nm) | 532 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/2 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 @ 632.8nm | <3 |
| 50.8mm Dia. 632.8nm λ/4 Quartz Waveplate Zero Order | 26-737 | 35.00 | Laser V-Coat (632.8nm) | 632.8 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/4 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 @ 632.8nm | <3 |
| 50.8mm Dia. 632.8nm λ/2 Quartz Waveplate Zero Order | 26-733 | 35.00 | Laser V-Coat (632.8nm) | 632.8 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/2 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 @ 632.8nm | <3 |
| WP ZO 50.8mm/34mm CA 1/4W 800nm | 85-050 | 34.00 | Laser V-Coat (800nm) | 800 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 9.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 50.8mm/34mm CA 1/2W 800nm | 85-055 | 34.00 | Laser V-Coat (800nm) | 800 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 9.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| 50.8mm Dia. 1030nm λ/4 Quartz Waveplate Zero Order | 16-890 | 35.0 | Laser V-Coat (1030nm) | 1030 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/4 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/8 @ 632.8 nm | <3 |
| 50.8mm Dia. 1030nm λ/2 Quartz Waveplate Zero Order | 16-891 | 35.0 | Laser V-Coat (1030nm) | 1030 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/2 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/8 @ 632.8 nm | <3 |
| 50.8mm Dia. 1064nm λ/4 Quartz Waveplate Zero Order | 26-738 | 35.00 | Laser V-Coat (1064nm) | 1064 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/4 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 @ 632.8nm | <3 |
| 50.8mm Dia. 1064nm λ/2 Quartz Waveplate Zero Order | 26-734 | 35.00 | Laser V-Coat (1064nm) | 1064 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/2 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 @ 632.8nm | <3 |
| 50.8mm Dia. 1550nm λ/4 Quartz Waveplate Zero Order | 16-892 | 35.0 | Laser V-Coat (1550nm) | 1550 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/4 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/8 @ 632.8 nm | <3 |
| 50.8mm Dia. 1550nm λ/2 Quartz Waveplate Zero Order | 16-893 | 35.0 | Laser V-Coat (1550nm) | 1550 | 50.80 +0.00/-0.25 | Crystal Quartz | λ/2 | 20-10 | 6.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | <λ/8 @ 632.8 nm | <3 |
| WP ZO 76.2mm/46mm CA 1/4W 355nm | 85-058 | 46.00 | Laser V-Coat (355nm) | 355 | 76.20 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 10.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 76.2mm/46mm CA 1/2W 355nm | 85-063 | 46.00 | Laser V-Coat (355nm) | 355 | 76.20 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 10.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 76.2mm/46mm CA 1/4W 532nm | 85-059 | 46.00 | Laser V-Coat (532nm) | 532 | 76.20 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 10.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 76.2mm/46mm CA 1/2W 532nm | 85-064 | 46.00 | Laser V-Coat (532nm) | 532 | 76.20 +0.00/-0.25 | Crystal Quartz | λ/2 | 10-5 | 10.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 76.2mm/46mm CA 1/4W 800nm | 85-061 | 46.00 | Laser V-Coat (800nm) | 800 | 76.20 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 10.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
| WP ZO 76.2mm/46mm CA 1/4W 1064nm | 85-062 | 46.00 | Laser V-Coat (1064nm) | 1064 | 76.20 +0.00/-0.25 | Crystal Quartz | λ/4 | 10-5 | 10.00 +0.00/-0.25 | Crystalline Waveplate | Crystalline | λ/8 for central 80% of clear aperture | <3 |
