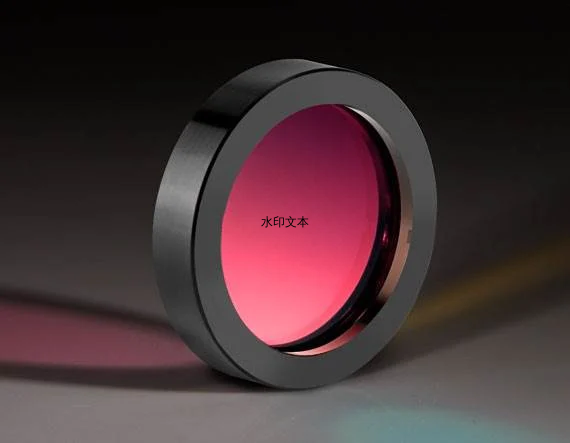

高能石英波片

高能石英波片

￥ 0.00
0.00


高能石英波片是为了激光应用而设计，在 1064 nm 时能承受高达 20 J/cm2 以上的能量密度。这些波片工作温度范围广，适合在恶劣环境中使用。针对从紫外线 到近红外线的离散设计波长，高能石英波片都有 λ/4 和 λ/2 的相位延迟版本，而级数取决于设计波长和相位延迟。这些石英波片被安装在黑色阳极电镀铝外壳上，轻松实现系统集成，并提供宽广的接收角，可最大程度地降低调整灵敏度.


  • 在 1064 纳米时，损伤阈值高达20 J/cm2以上

  • λ/4 和 λ/2 相位延迟性

  • 带有黑色阳极电镀铝接口

  • 提供从紫外线 到近红外线的设计波长

                             产品

标题产品编码CA (mm)涂层DWL (nm)Dia. (mm)基底延迟性表面质量类型尺寸容差 (mm)构造 传输波前，P-V (λ)平行度（弧秒）
12.7mm Dia., 355nm, λ/2 High Energy Waveplate25-4478.0 Ravg <0.3% 355 12.70 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
12.7mm Dia., 355nm, λ/4 High Energy Waveplate25-4488.0 Ravg <0.3% 355 12.70 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
12.7mm Dia., 532nm, λ/2 High Energy Waveplate25-4498.0 Ravg <0.3% 532 12.70 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
12.7mm Dia., 532nm, λ/4 High Energy Waveplate25-4508.0 Ravg <0.3% 532 12.70 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
12.7mm Dia., 1030nm, λ/2 High Energy Waveplate25-4518.0 Ravg <0.3% 1030 12.70 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
12.7mm Dia., 1030nm, λ/4 High Energy Waveplate25-4528.0 Ravg <0.3% 1030 12.70 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
12.7mm Dia., 1064nm, λ/2 High Energy Waveplate25-4538.0 Ravg <0.3% 1064 12.70 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
12.7mm Dia., 1064nm, λ/4 High Energy Waveplate25-4548.0 Ravg <0.3% 1064 12.70 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 266nm, λ/4 High Energy Waveplate39-16018.0 Ravg <0.5% 266 25.40 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 266nm, λ/2 High Energy Waveplate39-16118.0 Ravg <0.5% 266 25.40 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 343nm, λ/4 High Energy Waveplate39-16218.0 Ravg <0.3% 343 25.40 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 343nm, λ/2 High Energy Waveplate39-16318.0 Ravg <0.3% 343 25.40 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 355nm, λ/4 High Energy Waveplate39-16418.0 Ravg <0.3% 355 25.40 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 355nm, λ/2 High Energy Waveplate39-16518.0 Ravg <0.3% 355 25.40 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 400nm, λ/4 High Energy Waveplate39-16618.0 Ravg <0.25% 400 25.40 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 400nm, λ/2 High Energy Waveplate39-16718.0 Ravg <0.25% 400 25.40 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 515nm, λ/4 High Energy Waveplate39-16818.0 Ravg <0.2% 515 25.40 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 515nm, λ/2 High Energy Waveplate39-16918.0 Ravg <0.2% 515 25.40 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 532nm, λ/4 High Energy Waveplate39-17018.0 Ravg <0.2% 532 25.40 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 532nm, λ/2 High Energy Waveplate39-17118.0 Ravg <0.2% 532 25.40 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 780nm, λ/4 High Energy Waveplate39-17218.0 Ravg <0.2% 780 25.40 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 780nm, λ/2 High Energy Waveplate39-17318.0 Ravg <0.2% 780 25.40 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 800nm, λ/4 High Energy Waveplate39-17418.0 Ravg <0.2% 800 25.40 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 800nm, λ/2 High Energy Waveplate39-17518.0 Ravg <0.2% 800 25.40 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 1030nm, λ/4 High Energy Waveplate39-17618.0 Ravg <0.2% 1030 25.40 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 1030nm, λ/2 High Energy Waveplate39-17718.0 Ravg <0.2% 1030 25.40 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 1064nm, λ/4 High Energy Waveplate39-17818.0 Ravg <0.2% 1064 25.40 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 1064nm, λ/2 High Energy Waveplate39-17918.0 Ravg <0.2% 1064 25.40 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 1550nm, λ/4 High Energy Waveplate39-18018.0 Ravg <0.2% 1550 25.40 Crystalline Quartz λ/4 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
25.4mm Dia., 1550nm, λ/2 High Energy Waveplate39-18118.0 Ravg <0.2% 1550 25.40 Crystalline Quartz λ/2 20-10 High Energy Waveplate +0/-0.2 Optically Bonded on UVFS (C7980) Substrate <λ/10 @ 632.8nm <3
