Nd:YAG 谐波分离器

市场价：￥ 0.00

价格：￥ 0.00

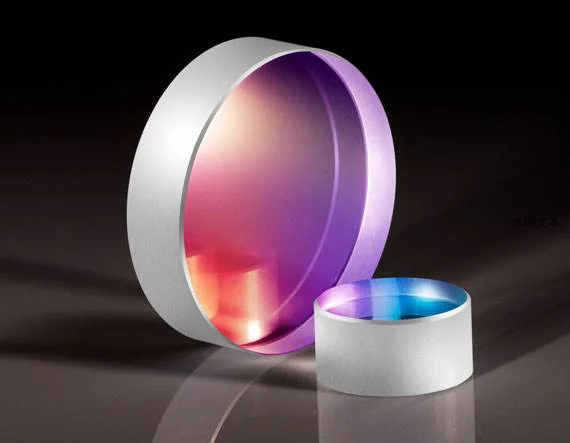

TECHSPEC® Nd:YAG 谐波分离器用于分隔 Nd:YAG 激光器的常见谐波波长。第一表面上的分光镜镀膜至少能反射一个波长，并传输另一个波长。分光镜的第二表面具有防反射镀膜，以最大限度地减少反射导致的损失. TECHSPEC® Nd:YAG 谐波分离器可提供 45° 和 0° 入射角选项。这些谐波分离器在多种波长配置中提供，用于使系统设计获得最佳灵活性.

用于分隔 Nd:YAG 谐波波长
分光镜镀膜透射率 >95%
λ/10 熔融石英基片

产品

标题

产品编码

AOI (°)

CA (%)

涂层规格

构造

Dia. (mm)

平行度（弧分）

反射波长 (nm)

基底

表面平整度 (P-V)

表面质量

厚度 (mm)

传输波长 (nm)

12.7mm Dia., 532 & 1064nm T, 266nm R 45° Harmonic Separator

11-545

45

>90

Surface 1: Rabs: >95% @ 266nm, Tabs: >98% @ 532nm, Tabs: >98% @ 1064nm Surface 2: Rabs: <1.0% @ 532nm, Rabs <1.0% @ 1064nm

Dichroic

12.70 +0.00/-0.10

<3

266

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532, 1064

25.4mm Dia., 532 & 1064nm T, 266nm R 45° Harmonic Separator

11-546

45

>90

Surface 1: Rabs: >95% @ 266nm, Tabs: >98% @ 532nm, Tabs: >98% @ 1064nm Surface 2: Rabs: <1.0% @ 532nm, Rabs <1.0% @ 1064nm

Dichroic

25.40 +0.00/-0.10

<3

266

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532, 1064

12.7mm Dia., 355nm T, 266nm R 45° Harmonic Separator

37-722

45

>85

Surface 1: Rabs: >99% @ 266nm, Tabs: >95% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

12.70 +0.00/-0.10

<3

266

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

355

25.4mm Dia., 355nm T, 266nm R 45° Harmonic Separator

37-721

45

>85

Surface 1: Rabs: >99% @ 266nm, Tabs: >95% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

25.40 +0.00/-0.10

<3

266

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

355

12.7mm Dia., 532nm T, 355nm R 45° Harmonic Separator

37-720

45

>85

Surface 1: Rabs: >99% @ 355nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

12.70 +0.00/-0.10

<3

355

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532

25.4mm Dia., 532nm T, 355nm R 45° Harmonic Separator

37-719

45

>85

Surface 1: Rabs: >99% @ 355nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

25.40 +0.00/-0.10

<3

355

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532

12.7mm Dia., 532 & 1064nm T, 355nm R 45° Harmonic Separator

38-779

45

>85

Surface 1: Rabs: >99% @ 355nm, Tabs: >95% @ 532, 1064nm Surface 2: Rabs: <0.75% @ 532, 1064nm

Dichroic

12.70 +0.00/-0.10

<3

355

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532, 1064

25.4mm Dia., 532 & 1064nm T, 355nm R 45° Harmonic Separator

38-778

45

>85

Surface 1: Rabs: >99% @ 355nm, Tabs: >95% @ 532, 1064nm Surface 2: Rabs: <0.75% @ 532, 1064nm

Dichroic

25.40 +0.00/-0.10

<3

355

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532, 1064

12.7mm Dia., 355nm T, 532nm R 45° Harmonic Separator

37-718

45

>85

Surface 1: Rabs: >99% @ 532nm, Tabs: >95% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

12.70 +0.00/-0.10

<3

532

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

355

25.4mm Dia., 355nm T, 532nm R 45° Harmonic Separator

37-717

45

>85

Surface 1: Rabs: >99% @ 532nm, Tabs: >95% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

25.40 +0.00/-0.10

<3

532

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

355

12.7mm Dia., 1064nm T, 532nm R 45° Harmonic Separator

37-716

45

>85

Surface 1: Rabs: >99% @ 532nm, Tabs: >95% @ 1064nm Surface 2: Rabs: <0.5% @ 1064nm

Dichroic

12.70 +0.00/-0.10

<3

532

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

1064

25.4mm Dia., 1064nm T, 532nm R 45° Harmonic Separator

37-715

45

>85

Surface 1: Rabs: >99% @ 532nm, Tabs: >95% @ 1064nm Surface 2: Rabs: <0.5% @ 1064nm

Dichroic

25.40 +0.00/-0.10

<3

532

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

1064

12.7mm Dia., 266nm T, 532 & 1064nm R 45° Harmonic Separator

11-547

45

>90

Surface 1: Rabs: >99% @ 532nm, Rabs: >99% @ 1064nm, Tabs: >70% @ 266nm Surface 2: Rabs: <1.0% @ 266nm

Dichroic

12.70 +0.00/-0.10

<3

532, 1064

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

266

25.4mm Dia., 266nm T, 532 & 1064nm R 45° Harmonic Separator

11-548

45

>90

Surface 1: Rabs: >99% @ 532nm, Rabs: >99% @ 1064nm, Tabs: >70% @ 266nm Surface 2: Rabs: <1.0% @ 266nm

Dichroic

25.40 +0.00/-0.10

<3

532, 1064

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

266

12.7mm Dia., 355nm T, 532 & 1064nm R 45° Harmonic Separator

38-781

45

>85

Surface 1: Rabs: >99% @ 532, 1064nm, Tabs: >90% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

12.70 +0.00/-0.10

<3

532, 1064

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

355

25.4mm Dia., 355nm T, 532 & 1064nm R 45° Harmonic Separator

38-780

45

>85

Surface 1: Rabs: >99% @ 532, 1064nm, Tabs: >90% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

25.40 +0.00/-0.10

<3

532, 1064

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

355

12.7mm Dia., 532nm T, 1064nm R 45° Harmonic Separator

37-714

45

>85

Surface 1: Rabs: >99% @ 1064nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

12.70 +0.00/-0.10

<3

1064

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532

25.4mm Dia., 532nm T, 1064nm R 45° Harmonic Separator

37-698

45

>85

Surface 1: Rabs: >99% @ 1064nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

25.40 +0.00/-0.10

<3

1064

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532

12.7mm Dia., 532 & 1064nm T, 266nm R 0° Harmonic Separator

22-658

0

>90

Surface 1: Rabs: >95% @ 266nm, Tabs: >98% @ 532nm, Tabs: >98% @ 1064nm Surface 2: Rabs: <1.0% @ 532nm, Rabs <1.0% @ 1064nm

Dichroic

12.70 +0.00/-0.10

<3

266

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532, 1064

25.4mm Dia., 532 & 1064nm T, 266nm R 0° Harmonic Separator

22-659

0

>90

Surface 1: Rabs: >95% @ 266nm, Tabs: >98% @ 532nm, Tabs: >98% @ 1064nm Surface 2: Rabs: <1.0% @ 532nm, Rabs <1.0% @ 1064nm

Dichroic

25.40 +0.00/-0.10

<3

266

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532, 1064

12.7mm Dia., 532nm T, 355nm R 0° Harmonic Separator

22-662

0

>85

Surface 1: Rabs: >99% @ 355nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

12.70 +0.00/-0.10

<3

355

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532

25.4mm Dia., 532nm T, 355nm R 0° Harmonic Separator

22-663

0

>85

Surface 1: Rabs: >99% @ 355nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

25.40 +0.00/-0.10

<3

355

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532

12.7mm Dia., 1064nm T, 532nm R 0° Harmonic Separator

22-668

0

>85

Surface 1: Rabs: >99% @ 532nm, Tabs: >95% @ 1064nm Surface 2: Rabs: <0.5% @ 1064nm

Dichroic

12.70 +0.00/-0.10

<3

532

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

1064

25.4mm Dia., 1064nm T, 532nm R 0° Harmonic Separator

22-669

0

>85

Surface 1: Rabs: >99% @ 532nm, Tabs: >95% @ 1064nm Surface 2: Rabs: <0.5% @ 1064nm

Dichroic

25.40 +0.00/-0.10

<3

532

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

1064

12.7mm Dia., 532nm T, 1064nm R 0° Harmonic Separator

22-674

0

>85

Surface 1: Rabs: >99% @ 1064nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

12.70 +0.00/-0.10

<3

1064

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532

25.4mm Dia., 532nm T, 1064nm R 0° Harmonic Separator

22-675

0

>85

Surface 1: Rabs: >99% @ 1064nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

25.40 +0.00/-0.10

<3

1064

Fused Silica (Corning 7980)

λ/10

10-5

6.35 ±0.20

532

12.7mm Dia., 532 & 1064nm T, 266nm R 45° Thin Harmonic Separator

29-038

45

90

Surface 1: Rabs: >95% @ 266nm, Tabs: >98% @ 532nm, Tabs: >98% @ 1064nm Surface 2: Rabs: <1.0% @ 532nm, Rabs <1.0% @ 1064nm

Dichroic

12.70 +0.00/-0.10

<3

266

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

532, 1064

25.4mm Dia., 532 & 1064nm T, 266nm R 45° Thin Harmonic Separator

29-039

45

90

Surface 1: Rabs: >95% @ 266nm, Tabs: >98% @ 532nm, Tabs: >98% @ 1064nm Surface 2: Rabs: <1.0% @ 532nm, Rabs <1.0% @ 1064nm

Dichroic

25.40 +0.00/-0.10

<3

266

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

532, 1064

12.7mm Dia., 355nm T, 266nm R 45° Thin Harmonic Separator

29-040

45

90

Surface 1: Rabs: >99% @ 266nm, Tabs: >95% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

12.70 +0.00/-0.10

<3

266

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

355

25.4mm Dia., 355nm T, 266nm R 45° Thin Harmonic Separator

29-041

45

90

Surface 1: Rabs: >99% @ 266nm, Tabs: >95% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

25.40 +0.00/-0.10

<3

266

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

355

12.7mm Dia., 532nm T, 355nm R 45° Thin Harmonic Separator

29-042

45

90

Surface 1: Rabs: >99% @ 355nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

12.70 +0.00/-0.10

<3

355

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

532

25.4mm Dia., 532nm T, 355nm R 45° Thin Harmonic Separator

29-043

45

90

Surface 1: Rabs: >99% @ 355nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

25.40 +0.00/-0.10

<3

355

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

532

12.7mm Dia., 532 & 1064nm T, 355nm R 45° Thin Harmonic Separator

29-044

45

90

Surface 1: Rabs: >99% @ 355nm, Tabs: >95% @ 532, 1064nm Surface 2: Rabs: <0.75% @ 532, 1064nm

Dichroic

12.70 +0.00/-0.10

<3

355

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

532, 1064

25.4mm Dia., 532 & 1064nm T, 355nm R 45° Thin Harmonic Separator

29-045

45

90

Surface 1: Rabs: >99% @ 355nm, Tabs: >95% @ 532, 1064nm Surface 2: Rabs: <0.75% @ 532, 1064nm

Dichroic

25.40 +0.00/-0.10

<3

355

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

532, 1064

12.7mm Dia., 355nm T, 532nm R 45° Thin Harmonic Separator

29-046

45

90

Surface 1: Rabs: >99% @ 532nm, Tabs: >95% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

12.70 +0.00/-0.10

<3

532

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

355

25.4mm Dia., 355nm T, 532nm R 45° Thin Harmonic Separator

29-047

45

90

Surface 1: Rabs: >99% @ 532nm, Tabs: >95% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

25.40 +0.00/-0.10

<3

532

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

355

12.7mm Dia., 1064nm T, 532nm R 45° Thin Harmonic Separator

29-048

45

90

Surface 1: Rabs: >99% @ 532nm, Tabs: >95% @ 1064nm Surface 2: Rabs: <0.5% @ 1064nm

Dichroic

12.70 +0.00/-0.10

<3

532

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

1064

12.7mm Dia., 266nm T, 532 & 1064nm R 45° Thin Harmonic Separator

29-049

45

90

Surface 1: Rabs: >99% @ 532nm, Rabs: >99% @ 1064nm, Tabs: >70% @ 266nm Surface 2: Rabs: <1.0% @ 266nm

Dichroic

12.70 +0.00/-0.10

<3

532, 1064

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

266

25.4mm Dia., 266nm T, 532 & 1064nm R 45° Thin Harmonic Separator

29-050

45

90

Surface 1: Rabs: >99% @ 532nm, Rabs: >99% @ 1064nm, Tabs: >70% @ 266nm Surface 2: Rabs: <1.0% @ 266nm

Dichroic

25.40 +0.00/-0.10

<3

532, 1064

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

266

25.4mm Dia., 1064nm T, 532nm R 45° Thin Harmonic Separator

29-051

45

90

Surface 1: Rabs: >99% @ 532nm, Tabs: >95% @ 1064nm Surface 2: Rabs: <0.5% @ 1064nm

Dichroic

25.40 +0.00/-0.10

<3

532

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

1064

12.7mm Dia., 355nm T, 532 & 1064nm R 45° Thin Harmonic Separator

29-052

45

90

Surface 1: Rabs: >99% @ 532, 1064nm, Tabs: >90% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

12.70 +0.00/-0.10

<3

532, 1064

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

355

25.4mm Dia., 355nm T, 532 & 1064nm R 45° Thin Harmonic Separator

29-053

45

90

Surface 1: Rabs: >99% @ 532, 1064nm, Tabs: >90% @ 355nm Surface 2: Rabs: <0.5% @ 355nm

Dichroic

25.40 +0.00/-0.10

<3

532, 1064

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

355

12.7mm Dia., 532nm T, 1064nm R 45° Thin Harmonic Separator

29-054

45

90

Surface 1: Rabs: >99% @ 1064nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

12.70 +0.00/-0.10

<3

1064

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

532

25.4mm Dia., 532nm T, 1064nm R 45° Thin Harmonic Separator

29-055

45

90

Surface 1: Rabs: >99% @ 1064nm, Tabs: >95% @ 532nm Surface 2: Rabs: <0.5% @ 532nm

Dichroic

25.40 +0.00/-0.10

<3

1064

Fused Silica (Corning 7980)

λ/10

10-5

3.18 ± 0.20

532

上一个：超快谐波分离器

下一个：宽带非偏振分光棱镜
