Acktar 吸光箔与吸光膜在不能对零部件直接镀膜的应用（包括光学包装、激光设备和平台、红外系统或被动热控制）中使用可消除光反射。Acktar 吸光箔与吸光膜具有高发射率、低反射率、低释气率、优异的生物相容性、宽泛的工作温度范围以及与 1 级洁净室兼容等特点。Acktar 吸光箔与吸光膜有预先切割样式，也可提供大张版本供使用者定制切割样式。
漫反射、朗伯反射或镜面反射
从 UV 到 IR 的超宽带性能
标准、低释气、无粘合剂版本可选
另有 模切标签 和 小尺寸 可选
产品
| 标题 | 产品编码 | 涂层 | 型号 | 工作温度 (°C) | 尺寸 (mm) | 类型 | 构造 | 镀膜厚度 (μm) | 薄片厚度 (μm) | 抗磨损性 | 背胶厚度 (μm) | 湿度阻抗 | 波长范围 (μm) |
| 100 x 100mm Sheet of MaxiBlack Foil, No Adhesive | 28-943 | MaxiBlack™ | MXB-10X10-0 | -250 to +290 | 100 x 100 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | ||
| 200 x 200mm Sheet of MaxiBlack Film, No Adhesive | 20-049 | MaxiBlack™ | MXB-20X20-0 | -250 to +290 | 200 x 200 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | ||
| 100 x 100mm Sheet of MaxiBlack Foil, Standard Adhesive | 28-944 | MaxiBlack™ | MXB-10X10-1 | -40 to +121 | 100 x 100 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | |
| 200 x 200mm Sheet of MaxiBlack Film, Adhesive | 14-728 | MaxiBlack™ | MXB-20X20-1 | -40 to +121 | 200 x 200 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | |
| 100 x 100mm Sheet of MaxiBlack Foil, Low Outgassing Adhesive | 28-945 | MaxiBlack™ | MXB-10X10-3 | -40 to +150 | 100 x 100 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | |
| 200 x 200mm Sheet of MaxiBlack Film, Low Outgassing Adhesive | 20-064 | MaxiBlack™ | MXB-20X20-3 | -40 to +150 | 200 x 200 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | |
| 100 x 100mm Sheet of Metal Velvet Foil, No Adhesive | 28-937 | Metal Velvet™ | MV-10X10-0 | -196 to +350 | 100 x 100 | No Adhesive | 5 - 7 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | ||
| 200 x 200mm Sheet of Metal Velvet Foil, No Adhesive | 20-047 | Metal Velvet™ | MV-20X20-0 | -196 to +350 | 200 x 200 | No Adhesive | 5 - 7 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | ||
| 100 x 100mm Sheet of Metal Velvet Foil, Standard Adhesive | 28-938 | Metal Velvet™ | MV-10X10-1 | -40 to +121 | 100 x 100 | Standard Adhesive | 5 - 7 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 200mm Sheet of Metal Velvet Foil, Adhesive | 12-695 | Metal Velvet™ | MV-20X20-1 | -40 to +121 | 200 x 200 | Standard Adhesive | 5 - 7 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | |
| 100 x 100mm Sheet of Metal Velvet Foil, Low Outgassing Adhesive | 28-939 | Metal Velvet™ | MV-10X10-3 | -40 to +150 | 100 x 100 | Low Outgassing Adhesive | 5 - 7 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 200mm Sheet of Metal Velvet Foil, Low Outgassing Adhesive | 20-053 | Metal Velvet™ | MV-20X20-3 | -40 to +150 | 200 x 200 | Low Outgassing Adhesive | 5 - 7 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | |
| 100 x 100mm Sheet of Spectral Black Foil, No Adhesive | 28-940 | Spectral Black™ | SB-10X10-0 | -196 to +350 | 100 x 100 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | ||
| 200 x 200mm Sheet of Spectral Black Foil, No Adhesive | 20-048 | Spectral Black™ | SB-20X20-0 | -196 to +350 | 200 x 200 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | ||
| 100 x 100mm Sheet of Spectral Black Foil, Standard Adhesive | 28-941 | Spectral Black™ | SB-10X10-1 | -40 to +121 | 100 x 100 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 200mm Sheet of Spectral Black Foil, Adhesive | 14-727 | Spectral Black™ | SB-20X020-1 | -40 to +121 | 200 x 200 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | |
| 100 x 100mm Sheet of Spectral Black Foil, Low Outgassing Adhesive | 28-942 | Spectral Black™ | SB-10X10-3 | -40 to +150 | 100 x 100 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 200mm Sheet of Spectral Black Foil, Low Outgassing Adhesive | 20-063 | Spectral Black™ | SB-20X20-3 | -40 to +150 | 200 x 200 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 260mm Sheet of Lambertian Black Foil, No Adhesive | 20-010 | Lambertian Black | LB-20x026-0 | -269 to +380 | 200 x 260 | No Adhesive | 3-8 | 100 | Moderate | MIL-C-48497A | 0.3 - 10 | ||
| 200 x 260mm Sheet of Lambertian Black Foil, Adhesive | 20-011 | Lambertian Black | LB-20x026-1 | -40 to +121 | 200 x 260 | Standard Adhesive | 3-8 | 100 | Moderate | 60 | MIL-C-48497A | 0.3 - 10 | |
| 200 x 260mm Sheet of Lambertian Black Foil, Low Outgassing Adhesive | 20-012 | Lambertian Black | LB-20x026-3 | -50 to +150 | 200 x 260 | Low Outgassing Adhesive | 3-8 | 100 | Moderate | 60 | MIL-C-48497A | 0.3 - 10 | |
| 200 x 300mm Sheet of MaxiBlack Film, No Adhesive | 13-492 | MaxiBlack™ | MXB-20X30-0 | -250 to +290 | 200 x 300 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | ||
| 200 x 300mm Sheet of MaxiBlack Film, Adhesive | 13-490 | MaxiBlack™ | MXB-20X30-1 | -40 to +121 | 200 x 300 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | |
| 200 x 300mm Sheet of MaxiBlack Film, Low Outgassing Adhesive | 13-488 | MaxiBlack™ | MXB-20X30-3 | -40 to +150 | 200 x 300 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | |
| 200 x 300mm Sheet of Metal Velvet Foil, No Adhesive | 12-683 | Metal Velvet™ | MV-20X30-0 | -196 to +350 | 200 x 300 | No Adhesive | 5 - 7 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | ||
| 金属软箔片，带背胶，200 x 300mm | 88-241 | Metal Velvet™ | MV-20X030-1 | -40 to +121 | 200 x 300 | Standard Adhesive | 5 - 7 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 300mm Sheet of Metal Velvet Foil, Low Outgassing Adhesive | 12-515 | Metal Velvet™ | MV-20X030-3 | -40 to +150 | 200 x 300 | Low Outgassing Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 300mm Sheet of Spectral Black Foil, No Adhesive | 12-685 | Spectral Black™ | SB-20X30-0 | -196 to +350 | 200 x 300 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | ||
| 黑色吸光粘性铝箔胶片，200 x 300毫米 | 88-243 | Spectral Black™ | SB-20X030-1 | -40 to +121 | 200 x 300 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 300mm Sheet of Spectral Black Foil, Low Outgassing Adhesive | 12-517 | Spectral Black™ | SB-20X030-3 | -40 to +150 | 200 x 300 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 600mm Sheet of MaxiBlack Film, No Adhesive | 13-493 | MaxiBlack™ | MXB-20X60-0 | -250 to +290 | 200 x 600 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | ||
| 200 x 600mm Sheet of MaxiBlack Film, Adhesive | 13-491 | MaxiBlack™ | MXB-20X60-1 | -40 to +121 | 200 x 600 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | |
| 200 x 600mm Sheet of MaxiBlack Film, Low Outgassing Adhesive | 13-489 | MaxiBlack™ | MXB-20X60-3 | -40 to +150 | 200 x 600 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | |
| 200 x 600mm Sheet of Metal Velvet Foil, No Adhesive | 12-684 | Metal Velvet™ | MV-20X60-0 | -196 to +350 | 200 x 600 | No Adhesive | 5 - 7 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | ||
| 金属软箔片，带背胶，200 x 600mm | 88-242 | Metal Velvet™ | MV-20X060-1 | -40 to +121 | 200 x 600 | Standard Adhesive | 5 - 7 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 600mm Sheet of Metal Velvet Foil, Low Outgassing Adhesive | 12-516 | Metal Velvet™ | MV-20X060-3 | -40 to +150 | 200 x 600 | Low Outgassing Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 600mm Sheet of Spectral Black Foil, No Adhesive | 12-686 | Spectral Black™ | SB-20X60-0 | -196 to +350 | 200 x 600 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | ||
| 黑色吸光粘性铝箔胶片，200 x 600毫米 | 88-244 | Spectral Black™ | SB-20X060-1 | -40 to +121 | 200 x 600 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | |
| 200 x 600mm Sheet of Spectral Black Foil, Low Outgassing Adhesive | 12-518 | Spectral Black™ | SB-20X060-3 | -40 to +150 | 200 x 600 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | |
| Hexablack Sheet 250 x 120 x 2mm | 37-836 | Vacuum Black™ Hexa-Black™ | HBS-250X120-0-001 | -65 to +250 | 250 x 120 | No Adhesive | Hexa-Black™ Sheet | High | MIL-C-48497A | 0.3 - 5 | |||
| 5m x 200mm Roll of Spectral Black Foil, No Adhesive | 72-866 | Spectral Black™ | SBR-20x500-0 | -196 to +350 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | |||
| 5m x 200mm Roll of Spectral Black Foil, Adhesive | 72-867 | Spectral Black™ | SBR-20x500-1 | -40 to +121 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 5m x 200mm Roll of Spectral Black Foil, Low Outgassing Adhesive | 72-868 | Spectral Black™ | SBR-20x500-3 | -40 to +150 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 5m x 200mm Roll of Metal Velvet Foil, No Adhesive | 72-869 | Metal Velvet™ | MVR-20x500-0 | -196 to +350 | No Adhesive | 5 - 8 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | |||
| 5m x 200mm Roll of Metal Velvet Foil, Adhesive | 72-870 | Metal Velvet™ | MVR-20x500-1 | -40 to +121 | Standard Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 5m x 200mm Roll of Metal Velvet Foil, Low Outgassing Adhesive | 72-871 | Metal Velvet™ | MVR-20x500-3 | -40 to +150 | Low Outgassing Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 5m x 200mm Roll of MaxiBlack Film, No Adhesive | 72-872 | MaxiBlack™ | MXBR-20x500-0 | -250 to +290 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | |||
| 5m x 200mm Roll of MaxiBlack Film, Adhesive | 72-873 | MaxiBlack™ | MXBR-20x500-1 | -40 to +121 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | ||
| 5m x 200mm Roll of MaxiBlack Film, Low Outgassing Adhesive | 72-874 | MaxiBlack™ | MXBR-20x500-3 | -40 to +150 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | ||
| 10m x 200mm Roll of Spectral Black Foil, No Adhesive | 72-875 | Spectral Black™ | SBR-20x1000-0 | -196 to +350 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | |||
| 10m x 200mm Roll of Spectral Black Foil, Adhesive | 72-876 | Spectral Black™ | SBR-20x1000-1 | -40 to +121 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 10m x 200mm Roll of Spectral Black Foil, Low Outgassing Adhesive | 72-877 | Spectral Black™ | SBR-20x1000-3 | -40 to +150 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 10m x 200mm Roll of Metal Velvet Foil, No Adhesive | 72-878 | Metal Velvet™ | MVR-20x1000-0 | -196 to +350 | No Adhesive | 5 - 8 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | |||
| 10m x 200mm Roll of Metal Velvet Foil, Adhesive | 72-879 | Metal Velvet™ | MVR-20x1000-1 | -40 to +121 | Standard Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 10m x 200mm Roll of Metal Velvet Foil, Low Outgassing Adhesive | 72-880 | Metal Velvet™ | MVR-20x1000-3 | -40 to +150 | Low Outgassing Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 10m x 200mm Roll of MaxiBlack Film, No Adhesive | 72-881 | MaxiBlack™ | MXBR-20x1000-0 | -250 to +290 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | |||
| 10m x 200mm Roll of MaxiBlack Film, Adhesive | 72-882 | MaxiBlack™ | MXBR-20x1000-1 | -40 to +121 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | ||
| 10m x 200mm Roll of MaxiBlack Film, Low Outgassing Adhesive | 72-883 | MaxiBlack™ | MXBR-20x1000-3 | -40 to +150 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | ||
| 25m x 200mm Roll of Spectral Black Foil, No Adhesive | 17-440 | Spectral Black™ | SBR-20x2500-0 | -196 to +350 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | |||
| 25m x 200mm Roll of Spectral Black Foil, Adhesive | 17-441 | Spectral Black™ | SBR-20x2500-1 | -40 to +121 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 25m x 200mm Roll of Spectral Black Foil, Low Outgassing Adhesive | 17-442 | Spectral Black™ | SBR-20x2500-3 | -40 to +150 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 25m x 200mm Roll of Metal Velvet Foil, No Adhesive | 17-443 | Metal Velvet™ | MVR-20x2500-0 | -196 to +350 | No Adhesive | 5 - 8 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | |||
| 25m x 200mm Roll of Metal Velvet Foil, Adhesive | 17-444 | Metal Velvet™ | MVR-20x2500-1 | -40 to +121 | Standard Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 25m x 200mm Roll of Metal Velvet Foil, Low Outgassing Adhesive | 17-445 | Metal Velvet™ | MVR-20x2500-3 | -40 to +150 | Low Outgassing Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 25m x 200mm Roll of MaxiBlack Film, No Adhesive | 17-446 | MaxiBlack™ | MXB-20x2500-0 | -250 to +290 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | |||
| 25m x 200mm Roll of MaxiBlack Film, Adhesive | 17-447 | MaxiBlack™ | MXB-20x2500-1 | -40 to +121 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | ||
| 25m x 200mm Roll of MaxiBlack Film, Low Outgassing Adhesive | 17-448 | MaxiBlack™ | MXB-20x2500-3 | -40 to +150 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | ||
| 50m x 200mm Roll of Spectral Black Foil, No Adhesive | 17-449 | Spectral Black™ | SBR-20x5000-0 | -196 to +350 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | |||
| 50m x 200mm Roll of Spectral Black Foil, Adhesive | 17-450 | Spectral Black™ | SBR-20x5000-1 | -40 to +121 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 50m x 200mm Roll of Spectral Black Foil, Low Outgassing Adhesive | 17-451 | Spectral Black™ | SBR-20x5000-3 | -40 to +150 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 50m x 200mm Roll of Metal Velvet Foil, No Adhesive | 17-452 | Metal Velvet™ | MVR-20x5000-0 | -196 to +350 | No Adhesive | 5 - 8 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | |||
| 50m x 200mm Roll of Metal Velvet Foil, Adhesive | 17-453 | Metal Velvet™ | MVR-20x5000-1 | -40 to +121 | Standard Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 50m x 200mm Roll of Metal Velvet Foil, Low Outgassing Adhesive | 17-454 | Metal Velvet™ | MVR-20x5000-3 | -40 to +150 | Low Outgassing Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | ||
| 50m x 200mm Roll of MaxiBlack Film, No Adhesive | 17-455 | MaxiBlack™ | MXB-20x5000-0 | -250 to +290 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | |||
| 50m x 200mm Roll of MaxiBlack Film, Adhesive | 17-456 | MaxiBlack™ | MXB-20x5000-1 | -40 to +121 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | ||
| 50m x 200mm Roll of MaxiBlack Film, Low Outgassing Adhesive | 17-457 | MaxiBlack™ | MXB-20x5000-3 | -40 to +150 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | ||
| 1" Dia. Maxi Black Labels, Standard Adhesive, 5 Labels | 29-030 | MaxiBlack™ | MCBDC_25.4OD-1_ACK0030 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | |||
| 1" Dia. Maxi Black Labels, Low Outgassing Adhesive, 5 Labels | 29-031 | MaxiBlack™ | MCBDC_25.4OD-3_ACK0030 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | |||
| 1" Dia. Spectral Black Labels, Standard Adhesive, 5 Labels | 29-028 | Spectral Black™ | SBDC_25.4OD-1_ACK0030 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | |||
| 1" Dia. Spectral Black Labels, Low Outgassing Adhesive, 5 Labels | 29-029 | Spectral Black™ | SBDC_25.4OD-3_ACK0030 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | |||
| 1" Dia. Metal Velvet Labels, Standard Adhesive, 5 Labels | 29-026 | Metal Velvet™ | MVDC_25.4OD-1_ACK0030 | Standard Adhesive | 5 - 7 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | |||
| 1" Dia. Metal Velvet Labels, Low Outgassing Adhesive, 5 Labels | 29-027 | Metal Velvet™ | MVDC_25.4OD-3_ACK0030 | Low Outgassing Adhesive | 5 - 7 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 |
产品概览

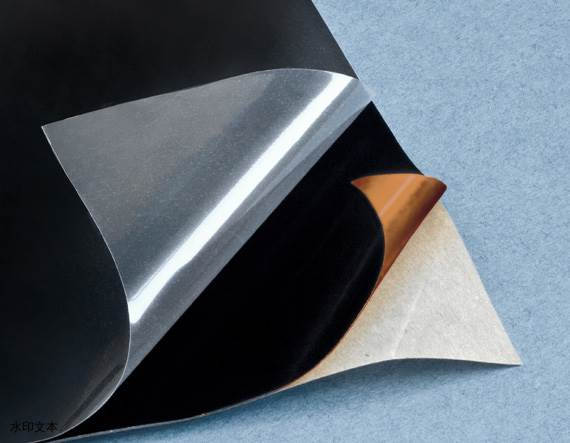

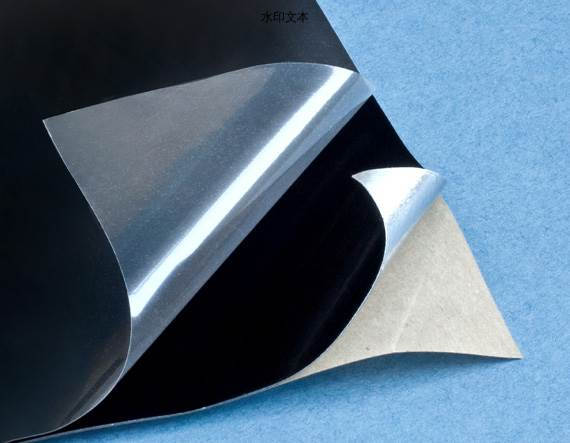

Acktar 吸光箔与吸光膜采用 Metal Velvet™ (铝上的漫射镀膜)、 Spectral Black™ (铝上的半镜面镀膜)、MaxiBlack™ (聚酰亚胺上的漫射镀膜) 或 Lambertian Black™ (不锈钢扩散镀膜)。Metal Velvet 具有卓越的光吸收性能，而 Spectral Black 更加耐用， Lambertian Black 在掠射角度下的性能更好。 Maxiblack, 不仅灵活耐用而且不导电，可用于需要使用不导电的吸光材料的应用。
请注意: Metal Velvet 耐磨性较差，因此在没有使用适当设备的情况下应避免所有表面接触.

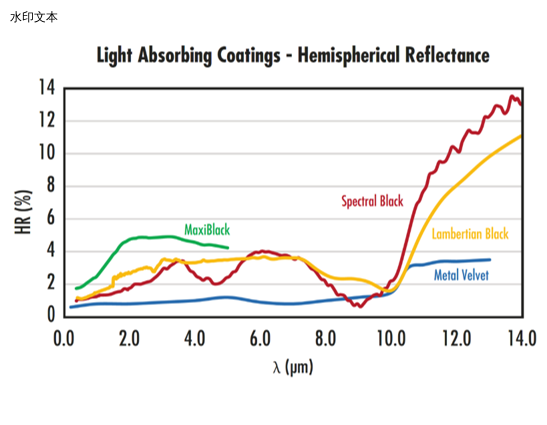

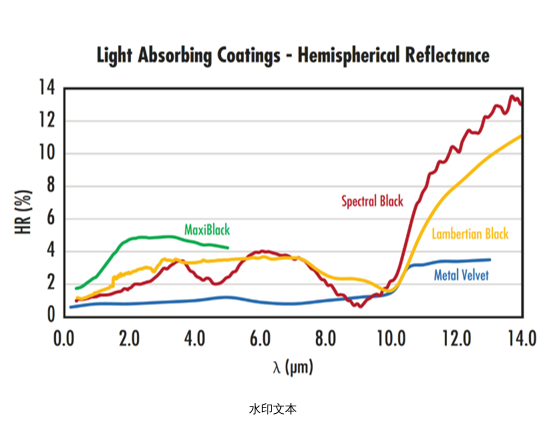

技术数据
| 产品类型 | Metal Velvet™ | Lambertian Black™ | MaxiBlack™ | Spectral Black™ | Hexa-Black™ |
| 核心特点 | Low reflectance of ~1% | High absorption at grazing angles | Thin polyimide, nonconductive substrate | Semi-specular finish | Ultra-high absorption at grazing angles |
| 基底材料 | Aluminum | Stainless Steel | Polyimide (Kapton) | Aluminum | Aluminum Honeycomb |
| 基底厚度 | 120µm | 100µm | 75µm | 130µm | 2mm |
| Appearance | Diffusive | Highly Diffusive | Diffusive | Specular | Diffusive 3D Structure |
| 光谱范围 | EUV - FIR | EUV - FIR | UV - MWIR | VIS - MWIR | EUV - FIR |
| AOI 范围 | 0 - 60° | 0 - 80° | 0 - 60° | 0 - 45o | 0 - 88° |
| 反射率 @ 0° AOI | ~1% | ~1.5% | ~2.5% | ~2% | ~1.5% |
| 耐磨性能 | Light | Moderate to High | Moderate | Moderate | Moderate |
| 洁净度 | Class 10000 - ISO 7 | Class 100 - ISO 5 | Class 100 - ISO 5 | Class 100 - ISO 5 | Class 10000 - ISO 7 |
