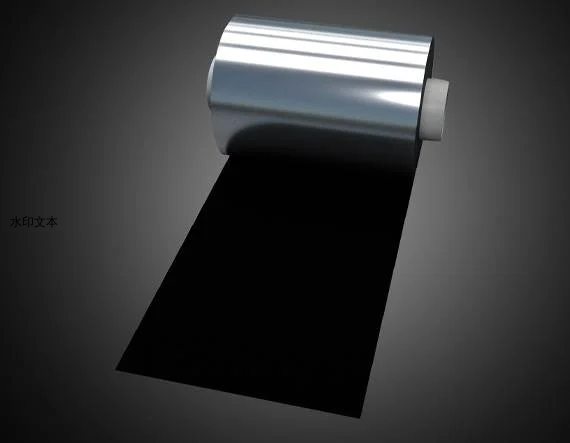

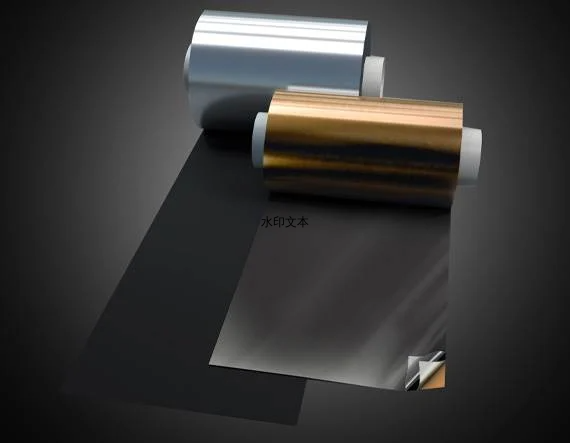

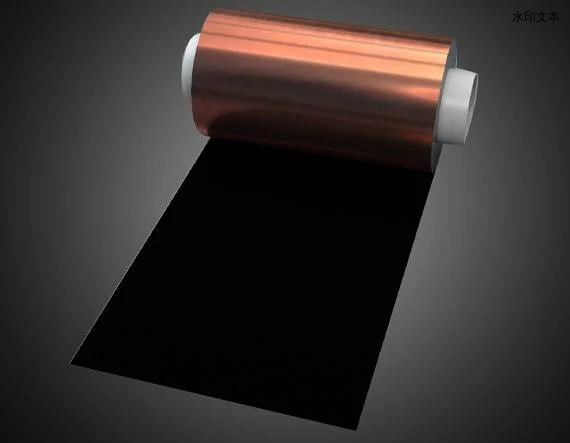

Acktar 吸光箔与吸光膜卷在 25 米大卷上采用 MaxiBlack™、Metal Velvet™ 和 Spectral Black™ 吸光镀膜。Acktar 黑色镀膜用于光学应用，以减少杂散光、提高信噪比并消除不需要的反射。这些完全无机的镀膜具有从 UV 到红外线的宽带性能、宽泛的工作温度范围、高振动稳定性和低释气性。Acktar 吸光箔与吸光膜卷是航空航天、汽车、国防和遥感等大面积需要黑化的批量应用的理想选择。
用于批量应用的 25 米大卷格式
用于批量应用的 25 米大卷格式
标准、低释气、无粘合剂选项
另有 模切标签 和 小尺寸 可选
产品
| 标题 | 产品编码 | 涂层 | 型号 | 工作温度 (°C) | 类型 | 镀膜厚度 (μm) | 薄片厚度 (μm) | 抗磨损性 | 背胶厚度 (μm) | 湿度阻抗 | 波长范围 (μm) | 尺寸 (cm) |
| 5m x 200mm Roll of Spectral Black Foil, No Adhesive | 72-866 | Spectral Black™ | SBR-20x500-0 | -196 to +350 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | 20 x 500 | |
| 5m x 200mm Roll of Spectral Black Foil, Adhesive | 72-867 | Spectral Black™ | SBR-20x500-1 | -40 to +121 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 500 |
| 5m x 200mm Roll of Spectral Black Foil, Low Outgassing Adhesive | 72-868 | Spectral Black™ | SBR-20x500-3 | -40 to +150 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 500 |
| 5m x 200mm Roll of Metal Velvet Foil, No Adhesive | 72-869 | Metal Velvet™ | MVR-20x500-0 | -196 to +350 | No Adhesive | 5 - 8 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | 20 x 500 | |
| 5m x 200mm Roll of Metal Velvet Foil, Adhesive | 72-870 | Metal Velvet™ | MVR-20x500-1 | -40 to +121 | Standard Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 500 |
| 5m x 200mm Roll of Metal Velvet Foil, Low Outgassing Adhesive | 72-871 | Metal Velvet™ | MVR-20x500-3 | -40 to +150 | Low Outgassing Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 500 |
| 5m x 200mm Roll of MaxiBlack Film, No Adhesive | 72-872 | MaxiBlack™ | MXBR-20x500-0 | -250 to +290 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | 20 x 500 | |
| 5m x 200mm Roll of MaxiBlack Film, Adhesive | 72-873 | MaxiBlack™ | MXBR-20x500-1 | -40 to +121 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | 20 x 500 |
| 5m x 200mm Roll of MaxiBlack Film, Low Outgassing Adhesive | 72-874 | MaxiBlack™ | MXBR-20x500-3 | -40 to +150 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | 20 x 500 |
| 10m x 200mm Roll of Spectral Black Foil, No Adhesive | 72-875 | Spectral Black™ | SBR-20x1000-0 | -196 to +350 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | 20 x 1000 | |
| 10m x 200mm Roll of Spectral Black Foil, Adhesive | 72-876 | Spectral Black™ | SBR-20x1000-1 | -40 to +121 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 1000 |
| 10m x 200mm Roll of Spectral Black Foil, Low Outgassing Adhesive | 72-877 | Spectral Black™ | SBR-20x1000-3 | -40 to +150 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 1000 |
| 10m x 200mm Roll of Metal Velvet Foil, No Adhesive | 72-878 | Metal Velvet™ | MVR-20x1000-0 | -196 to +350 | No Adhesive | 5 - 8 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | 20 x 1000 | |
| 10m x 200mm Roll of Metal Velvet Foil, Adhesive | 72-879 | Metal Velvet™ | MVR-20x1000-1 | -40 to +121 | Standard Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 1000 |
| 10m x 200mm Roll of Metal Velvet Foil, Low Outgassing Adhesive | 72-880 | Metal Velvet™ | MVR-20x1000-3 | -40 to +150 | Low Outgassing Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 1000 |
| 10m x 200mm Roll of MaxiBlack Film, No Adhesive | 72-881 | MaxiBlack™ | MXBR-20x1000-0 | -250 to +290 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | 20 x 1000 | |
| 10m x 200mm Roll of MaxiBlack Film, Adhesive | 72-882 | MaxiBlack™ | MXBR-20x1000-1 | -40 to +121 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | 20 x 1000 |
| 10m x 200mm Roll of MaxiBlack Film, Low Outgassing Adhesive | 72-883 | MaxiBlack™ | MXBR-20x1000-3 | -40 to +150 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | 20 x 1000 |
| 25m x 200mm Roll of Spectral Black Foil, No Adhesive | 17-440 | Spectral Black™ | SBR-20x2500-0 | -196 to +350 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | 20 x 2500 | |
| 25m x 200mm Roll of Spectral Black Foil, Adhesive | 17-441 | Spectral Black™ | SBR-20x2500-1 | -40 to +121 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 2500 |
| 25m x 200mm Roll of Spectral Black Foil, Low Outgassing Adhesive | 17-442 | Spectral Black™ | SBR-20x2500-3 | -40 to +150 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 2500 |
| 25m x 200mm Roll of Metal Velvet Foil, No Adhesive | 17-443 | Metal Velvet™ | MVR-20x2500-0 | -196 to +350 | No Adhesive | 5 - 8 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | 20 x 2500 | |
| 25m x 200mm Roll of Metal Velvet Foil, Adhesive | 17-444 | Metal Velvet™ | MVR-20x2500-1 | -40 to +121 | Standard Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 2500 |
| 25m x 200mm Roll of Metal Velvet Foil, Low Outgassing Adhesive | 17-445 | Metal Velvet™ | MVR-20x2500-3 | -40 to +150 | Low Outgassing Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 2500 |
| 25m x 200mm Roll of MaxiBlack Film, No Adhesive | 17-446 | MaxiBlack™ | MXB-20x2500-0 | -250 to +290 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | 20 x 2500 | |
| 25m x 200mm Roll of MaxiBlack Film, Adhesive | 17-447 | MaxiBlack™ | MXB-20x2500-1 | -40 to +121 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | 20 x 2500 |
| 25m x 200mm Roll of MaxiBlack Film, Low Outgassing Adhesive | 17-448 | MaxiBlack™ | MXB-20x2500-3 | -40 to +150 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | 20 x 2500 |
| 50m x 200mm Roll of Spectral Black Foil, No Adhesive | 17-449 | Spectral Black™ | SBR-20x5000-0 | -196 to +350 | No Adhesive | 3 - 7 | 125 | Moderate | MIL-C-48497A | 0.3 - 14 | 20 x 5000 | |
| 50m x 200mm Roll of Spectral Black Foil, Adhesive | 17-450 | Spectral Black™ | SBR-20x5000-1 | -40 to +121 | Standard Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 5000 |
| 50m x 200mm Roll of Spectral Black Foil, Low Outgassing Adhesive | 17-451 | Spectral Black™ | SBR-20x5000-3 | -40 to +150 | Low Outgassing Adhesive | 3 - 7 | 125 | Moderate | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 5000 |
| 50m x 200mm Roll of Metal Velvet Foil, No Adhesive | 17-452 | Metal Velvet™ | MVR-20x5000-0 | -196 to +350 | No Adhesive | 5 - 8 | 115 | Light, do not touch | MIL-C-48497A | 0.3 - 14 | 20 x 5000 | |
| 50m x 200mm Roll of Metal Velvet Foil, Adhesive | 17-453 | Metal Velvet™ | MVR-20x5000-1 | -40 to +121 | Standard Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 5000 |
| 50m x 200mm Roll of Metal Velvet Foil, Low Outgassing Adhesive | 17-454 | Metal Velvet™ | MVR-20x5000-3 | -40 to +150 | Low Outgassing Adhesive | 5 - 8 | 115 | Light, do not touch | 60 | MIL-C-48497A | 0.3 - 14 | 20 x 5000 |
| 50m x 200mm Roll of MaxiBlack Film, No Adhesive | 17-455 | MaxiBlack™ | MXB-20x5000-0 | -250 to +290 | No Adhesive | 4 - 6 | 75 | Moderate | MIL-C-48497A | 0.3 - 5 | 20 x 5000 | |
| 50m x 200mm Roll of MaxiBlack Film, Adhesive | 17-456 | MaxiBlack™ | MXB-20x5000-1 | -40 to +121 | Standard Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | 20 x 5000 |
| 50m x 200mm Roll of MaxiBlack Film, Low Outgassing Adhesive | 17-457 | MaxiBlack™ | MXB-20x5000-3 | -40 to +150 | Low Outgassing Adhesive | 4 - 6 | 75 | Moderate | 60 | MIL-C-48497A | 0.3 - 5 | 20 x 5000 |
技术数据
