Acktar 涂黑针孔

Acktar 涂黑针孔

￥ 0.00
0.00

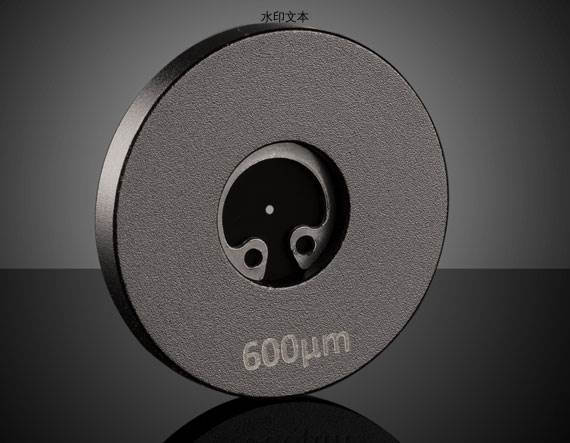

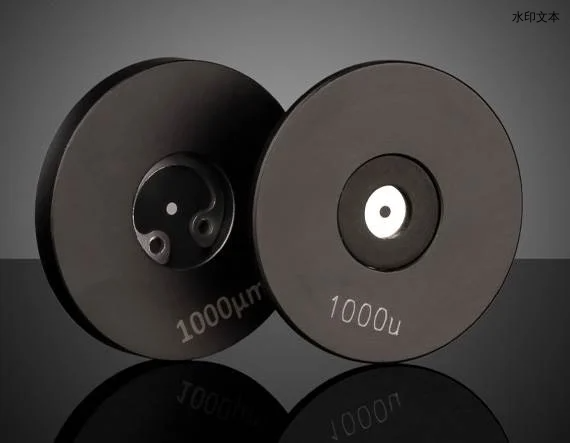

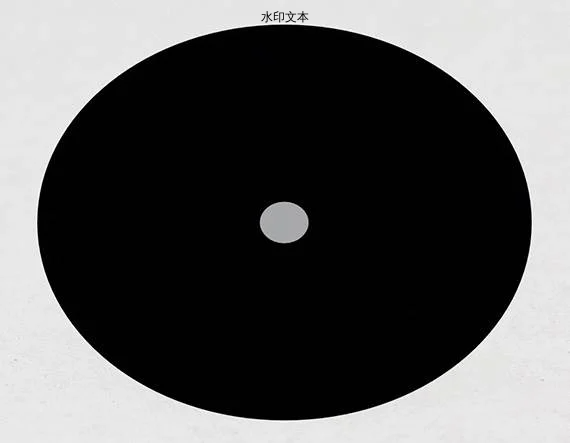

Acktar 涂黑针孔具有 Acktar Magic Black™ 涂黑镀膜，提供从极紫外线 (EUV) 到短波红外 (SWIR) 的宽带低反射率。该镀膜的排放气体接近于零，可以在高达 380 摄氏度的温度下使用. Acktar 涂黑针孔两侧（包括针孔边缘）涂黑，并且备有未封装版或 25 mm 封装版，便于集成到光学系统中。这这些不锈钢基片针孔是需要对光源低背反射和散射的空间滤光应用的理想之选.


  • 从 EUV 到 SWIR均具备低反射率

  • 99% 吸光度的涂黑镀膜

  • 从 50 到 1000μm的孔径大小

  • 备有封装版和未封装版

                                         产品

标题产品编码类型外径 (mm)构造 固定孔径直径 (μm)Diameter of Mount (mm)涂层Mount Thickness (mm)吸收率型号厚度 (μm)
20μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole15-386Unmounted 9.53 ±0.1Stainless Steel 20 ±2.5
Magic Black™
99 PA-1-2-20 17 nominal
25μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole15-387Unmounted 9.53 ±0.1Stainless Steel 25 ±2.5
Magic Black™
99 PA-1-2-25 17 nominal
50μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole12-166Unmounted 9.53 ±0.1Stainless Steel 50 ±3
Magic Black™
99 PA-1-2-50 17 nominal
75μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole15-388Unmounted 9.53 ±0.1Stainless Steel 75 ±3
Magic Black™
99 PA-1-2-75 17 nominal
100μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole12-167Unmounted 9.53 ±0.1Stainless Steel 100 ±3
Magic Black™
99 PA-1-2-100 17 nominal
150μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole15-389Unmounted 9.53 ±0.1Stainless Steel 150 ±3
Magic Black™
99 PA-1-2-150 17 nominal
200μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole12-168Unmounted 9.53 ±0.1Stainless Steel 200 ±3
Magic Black™
99 PA-1-2-200 17 nominal
300μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole15-390Unmounted 9.53 ±0.1Stainless Steel 300 ±3
Magic Black™
99 PA-1-2-300 17 nominal
400μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole15-391Unmounted 9.53 ±0.1Stainless Steel 400 ±5
Magic Black™
99 PA-1-2-400 17 nominal
500μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole12-169Unmounted 9.53 ±0.1Stainless Steel 500 ±5
Magic Black™
99 PA-1-2-500 17 nominal
600μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole15-392Unmounted 9.53 ±0.1Stainless Steel 600 ±5
Magic Black™
99 PA-1-2-600 17 nominal
800μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole16-738Unmounted 9.53 ±0.1Stainless Steel 800 ±7
Magic Black™
99 PA-1-2-800 17 nominal
1000μm Aperture Diameter, Unmounted, Acktar Blackened Pinhole12-170Unmounted 9.53 ±0.1Stainless Steel 1000 ±10
Magic Black™
99 PA-1-2-1000 17 nominal
25μm Aperture Diameter, 12.7mm Mounted, Acktar Blackened Pinhole16-821Mounted 12.7 ±0.2Stainless Steel 25 ±2.512.7 ±0.2Magic Black™ 2.0 ±0.199 PA-1-2-25-05 20 nominal
50μm Aperture Diameter, 12.7mm Mounted, Acktar Blackened Pinhole16-822Mounted 12.7 ±0.2Stainless Steel 50 ±312.7 ±0.2Magic Black™ 2.0 ±0.199 PA-1-2-50-05 20 nominal
75μm Aperture Diameter, 12.7mm Mounted, Acktar Blackened Pinhole16-823Mounted 12.7 ±0.2Stainless Steel 75 ±312.7 ±0.2Magic Black™ 2.0 ±0.199 PA-1-2-75-05 20 nominal
100μm Aperture Diameter, 12.7mm Mounted, Acktar Blackened Pinhole16-824Mounted 12.7 ±0.2Stainless Steel 100 ±312.7 ±0.2Magic Black™ 2.0 ±0.199 PA-1-2-100-05 20 nominal
150μm Aperture Diameter, 12.7mm Mounted, Acktar Blackened Pinhole16-825Mounted 12.7 ±0.2Stainless Steel 150 ±312.7 ±0.2Magic Black™ 2.0 ±0.199 PA-1-2-150-05 20 nominal
200μm Aperture Diameter, 12.7mm Mounted, Acktar Blackened Pinhole16-826Mounted 12.7 ±0.2Stainless Steel 200 ±312.7 ±0.2Magic Black™ 2.0 ±0.199 PA-1-2-200-05 20 nominal
300μm Aperture Diameter, 12.7mm Mounted, Acktar Blackened Pinhole16-827Mounted 12.7 ±0.2Stainless Steel 300 ±312.7 ±0.2Magic Black™ 2.0 ±0.199 PA-1-2-300-05 20 nominal
500μm Aperture Diameter, 12.7mm Mounted, Acktar Blackened Pinhole16-828Mounted 12.7 ±0.2Stainless Steel 500 ±512.7 ±0.2Magic Black™ 2.0 ±0.199 PA-1-2-500-05 20 nominal
1000μm Aperture Diameter, 12.7mm Mounted, Acktar Blackened Pinhole16-829Mounted 12.7 ±0.2Stainless Steel 1000 ±1012.7 ±0.2Magic Black™ 2.0 ±0.199 PA-1-2-1000-05 20 nominal
20μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole15-393Mounted 25.0 ±0.2Stainless Steel 20 ±2.525.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-20-25 20 nominal
25μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole15-394Mounted 25.0 ±0.2Stainless Steel 25 ±2.525.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-25-25 20 nominal
50μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole12-171Mounted 25.0 ±0.2Stainless Steel 50 ±325.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-50-25 15 nominal
75μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole15-395Mounted 25.0 ±0.2Stainless Steel 75 ±325.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-75-25 20 nominal
100μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole12-172Mounted 25.0 ±0.2Stainless Steel 100 ±325.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-100-25 15 nominal
150μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole15-396Mounted 25.0 ±0.2Stainless Steel 150 ±325.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-150-25 20 nominal
200μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole12-173Mounted 25.0 ±0.2Stainless Steel 200 ±325.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-200-25 15 nominal
300μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole15-397Mounted 25.0 ±0.2Stainless Steel 300 ±325.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-300-25 20 nominal
400μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole15-398Mounted 25.0 ±0.2Stainless Steel 400 ±525.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-400-25 20 nominal
500μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole12-174Mounted 25.0 ±0.2Stainless Steel 500 ±525.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-500-25 15 nominal
600μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole15-399Mounted 25.0 ±0.2Stainless Steel 600 ±525.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-600-25 20 nominal
800μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole16-739Mounted 25.0 ±0.2Stainless Steel 800 ±725.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-800-25 20 nominal
1000μm Aperture Diameter, 25mm Mounted, Acktar Blackened Pinhole12-175Mounted 25.0 ±0.2Stainless Steel 1000 ±1025.0 ±0.2Magic Black™ 3.0 ±0.199 PA-1-2-1000-25 15 nominal
