OD 6.0 超薄陷波滤光片

OD 6.0 超薄陷波滤光片

￥ 0.00
0.00

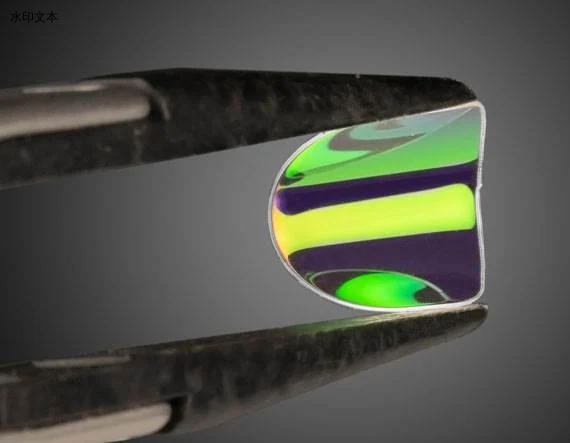

OD 6.0 超薄陷波滤光片的最大厚度为 300 微米，能提供与传统陷波滤光片相同的深度 OD 6.0 截止。这些滤光片由超薄的聚合物层及染料层构成，不易划伤，可以弯曲以便契合曲面。在 OD 6.0 截止带宽范围外，这些滤光片会提供很高的光通量以及 >85% 的平均透射率。OD 6.0 超薄陷波滤光片提供与常见激光波长（包括 405nm、532nm、633nm、785nm 和 1064nm）对应的中心波长。这些陷波滤光片非常适合集成到对空间或重量敏感的设备以及基于激光的一般 Raman 光谱学系统中。


  • 在 405 到 1064nm 的激光波长范围内实现 OD 6.0 截止

  • 最大厚度 300µm

  • 灵活，不易划伤

                                            产品

标题产品编码Dia. (mm)光密度 OD（平均）CWL (nm)FWHM (nm)透射率 (%) 传输波长 (nm)类型CA (%)Maximum Thickness (μm)
Everix Ultra-Thin OD 6 Notch Filter, 405nm, 12.5mm Diameter14-75012.50 +0.1/-0.2≥6.0 405.00 ±8.148.60 (maximum)Tavg >85% @ 375nm, 427.3 - 1200nm 375 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 457nm, 12.5mm Diameter14-75112.50 +0.1/-0.2≥6.0 457.00 ±9.1454.84 (maximum)Tavg >85% @ 375nm, 482.1 - 1200nm 375 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 473nm, 12.5mm Diameter14-75212.50 +0.1/-0.2≥6.0 473.00 ±9.4656.76 (maximum)Tavg >85% @ 400nm, 499 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 488nm, 12.5mm Diameter14-75312.50 +0.1/-0.2≥6.0 488.00 ±9.7658.56 (maximum)Tavg >85% @ 400 - 461.2nm, 514.8 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 514nm, 12.5mm Diameter14-75412.50 +0.1/-0.2≥6.0 514.00 ±10.2851.40 (maximum)Tavg >85% @ 400 - 485.7nm, 542.3 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 532nm, 12.5mm Diameter14-75512.50 +0.1/-0.2≥6.0 532.00 ±10.6442.56 (maximum)Tavg >85% @ 400 - 502.7nm, 561.3 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 561nm, 12.5mm Diameter14-75612.50 +0.1/-0.2≥6.0 561.00 ±11.2244.88 (maximum)Tavg >85% @ 400 - 530.1nm, 591.9 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 577nm, 12.5mm Diameter14-75712.50 +0.1/-0.2≥6.0 577.00 ±11.5446.16 (maximum)Tavg >85% @ 400 - 545.3nm, 608.7 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 594nm, 12.5mm Diameter14-75812.50 +0.1/-0.2≥6.0 594.00 ±11.8847.52 (maximum)Tavg >85% @ 400 - 561.3nm, 626.7 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 633nm, 12.5mm Diameter14-75912.50 +0.1/-0.2≥6.0 633.00 ±12.6650.64 (maximum)Tavg >85% @ 400 - 598.2nm, 667.8 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 642nm, 12.5mm Diameter14-76012.50 +0.1/-0.2≥6.0 642.00 ±12.8451.36 (maximum)Tavg >85% @ 400 - 606.7nm, 677.3 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 647nm, 12.5mm Diameter14-76112.50 +0.1/-0.2≥6.0 647.00 ±12.9451.76 (maximum)Tavg >85% @ 400 - 611.4nm, 682.6 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 658nm, 12.5mm Diameter14-76212.50 +0.1/-0.2≥6.0 658.00 ±13.1652.64 (maximum)Tavg >85% @ 400 - 621.8nm, 694.2 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 685nm, 12.5mm Diameter14-76312.50 +0.1/-0.2≥6.0 685.00 ±13.754.80 (maximum)Tavg >85% @ 400 - 647.3nm, 722.7 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 785nm, 12.5mm Diameter14-76412.50 +0.1/-0.2≥6.0 785.00 ±15.762.80 (maximum)Tavg >85% @ 425 - 741.8nm, 828.2 - 1200nm 425 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 808nm, 12.5mm Diameter14-76512.50 +0.1/-0.2≥6.0 808.00 ±16.1664.64 (maximum)Tavg >85% @ 450 - 763.6nm, 852.4 - 1200nm 450 - 1200 Notch Filter >90 400
Everix Ultra-Thin OD 6 Notch Filter, 830nm, 12.5mm Diameter14-76612.50 +0.1/-0.2≥6.0 830.00 ±16.666.40 (maximum)Tavg >85% @ 450 - 784.4nm, 875.7 - 1200nm 450 - 1200 Notch Filter >90 400
Everix Ultra-Thin OD 6 Notch Filter, 980nm, 12.5mm Diameter14-76712.50 +0.1/-0.2≥6.0 980.00 ±19.678.40 (maximum)Tavg >85% @ 525 - 926.1nm, 1033.9 - 1200nm 525 - 1200 Notch Filter >90 400
Everix Ultra-Thin OD 6 Notch Filter, 1064nm, 12.5mm Diameter14-76812.50 +0.1/-0.2≥6.0 1,064.00 ±21.2885.12 (maximum)Tavg >85% @ 600 - 1005.5nm, 1122.5 - 1300nm 600 - 1300 Notch Filter >90 400
Everix Ultra-Thin OD 6 Notch Filter, 532nm, 25mm Diameter14-76925.00 +0.1/-0.2≥6.0 532.00 ±10.6442.56 (maximum)Tavg >85% @ 400 - 502.7nm, 561.3 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 633nm, 25mm Diameter14-77025.00 +0.1/-0.2≥6.0 633.00 ±12.6650.64 (maximum)Tavg >85% @ 400 - 598.2nm, 667.8 - 1200nm 400 - 1200 Notch Filter >90 300
Everix Ultra-Thin OD 6 Notch Filter, 1064nm, 25mm Diameter14-77125.00 +0.1/-0.2≥6.0 1,064.00 ±21.2885.12 (maximum)Tavg >85% @ 600 - 1005.5nm, 1122.5 - 1300nm 600 - 1300 Notch Filter >90 400
