90° 专用反射镜

90° 专用反射镜

￥ 0.00
0.00

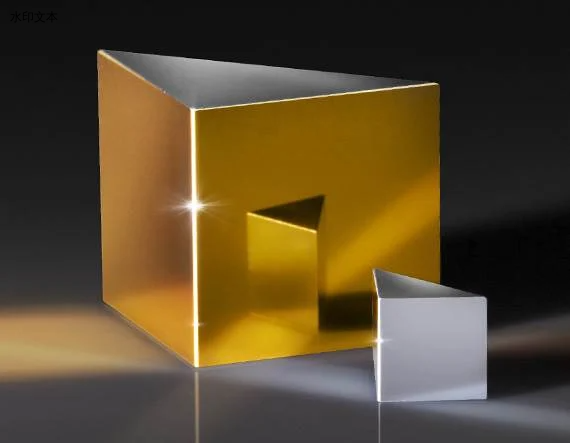

TECHSPEC® 90° 专用反射镜是由在两个直角边镀反射膜，而在斜面上不镀膜的直角棱镜形成的。两个反射表面形成一个精准的90° 角，可将单个成像镜头的图像分成两个，分别用在两个不同的相机上，或者将两个图像合成在一个相机中。


  • 以180° 将输入图像分成两个不同的路径

  • 备有各种尺寸以及带宽镀膜产品

  • 另外也备有可选的额外 直角棱镜

                                            产品

标题产品编码CA (mm)涂层基底表面质量类型尺寸容差 (mm)角度容差（弧分）倒角CA (%)斜边长度 (mm)支脚长度 (mm)
3mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror25-6862.7 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 4.20 3.00
5mm，镀加强铝膜，90度N-BK7专用反射镜49-4124.6 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 7.10 5.00
6.25mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror25-6875.6 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 8.80 6.25
10mm， 镀加强铝膜， N-BK7 90度专用反射镜47-0049.0 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 14.10 10.00
12.5mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror25-68811.2 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 17.70 12.50
15mm，镀加强铝膜，90度N-BK7专用反射镜49-41313.5 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 21.20 15.00
20mm，镀加强铝膜，90度N-BK7专用反射镜49-41419.4 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 28.30 20.00
25mm， 镀加强铝膜， N-BK7 90度专用反射镜47-00524.4 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 35.40 25.00
30mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror25-68927.0 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 42.40 30.00
35mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror25-69031.5 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 49.50 35.00
40mm, Enhanced Aluminum Coated, N-BK7 90° Specialty Mirror25-69136.0 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 56.60 40.00
50mm， 镀加强铝膜， N-BK7 90度专用反射镜47-00649.4 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 70.70 50.00
75mm， 镀增强铝， N-BK7 90° 专用反光镜47-30973.5 Enhanced Aluminum (450-650nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 106.10 75.00
3mm, Protected Gold Coated, N-BK7 90° Specialty Mirror25-6922.7 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 4.20 3.00
5mm，镀金保护膜，90度N-BK7专用反射镜65-8474.6 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 7.10 5.00
6.25mm, Protected Gold Coated, N-BK7 90° Specialty Mirror25-6935.6 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 8.80 6.25
10mm， 镀保护金， N-BK7 90°; 专用反光镜47-2379.0 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 14.10 10.00
12.5mm, Protected Gold Coated, N-BK7 90° Specialty Mirror25-69411.2 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 17.70 12.50
15mm，镀金保护膜，90度N-BK7专用反射镜65-84813.5 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 21.20 15.00
20mm，镀金保护膜，90度N-BK7专用反射镜65-84919.4 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 28.30 20.00
25mm， 镀保护金， N-BK7 90°; 专用反光镜47-23824.0 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 35.40 25.00
30mm, Protected Gold Coated, N-BK7 90° Specialty Mirror25-69527.0 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 42.40 30.00
35mm, Protected Gold Coated, N-BK7 90° Specialty Mirror25-69631.5 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 49.50 35.00
40mm, Protected Gold Coated, N-BK7 90° Specialty Mirror25-69736.0 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 56.60 40.00
50mm， 镀保护金， N-BK7 90°; 专用反光镜47-23949.0 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 70.70 50.00
75mm， 镀保护金， N-BK7 90° 专用反光镜47-31073.5 Protected Gold (700-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 106.10 75.00
5mm, Protected Silver Coated, N-BK7 90° Specialty Mirror21-1854.6 Protected Silver (450-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 7.10 5.00
6.25mm, Protected Silver Coated, N-BK7 90° Specialty Mirror25-6995.6 Protected Silver (450-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 8.80 6.25
10mm, Protected Silver Coated, N-BK7 90° Specialty Mirror21-1869.0 Protected Silver (450-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 14.10 10.00
12.5mm, Protected Silver Coated, N-BK7 90° Specialty Mirror25-70011.2 Protected Silver (450-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 17.70 12.50
15mm, Protected Silver Coated, N-BK7 90° Specialty Mirror21-18713.5 Protected Silver (450-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 21.20 15.00
20mm, Protected Silver Coated, N-BK7 90° Specialty Mirror21-18819.4 Protected Silver (450-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 28.30 20.00
25mm, Protected Silver Coated, N-BK7 90° Specialty Mirror21-18924.0 Protected Silver (450-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 35.40 25.00
30mm, Protected Silver Coated, N-BK7 90° Specialty Mirror25-70127.0 Protected Silver (450-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 42.40 30.00
40mm, Protected Silver Coated, N-BK7 90° Specialty Mirror25-70336.0 Protected Silver (450-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 56.60 40.00
50mm, Protected Silver Coated, N-BK7 90° Specialty Mirror21-19049.0 Protected Silver (450-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 70.70 50.00
75mm, Protected Silver Coated, N-BK7 90° Specialty Mirror21-19173.5 Protected Silver (450-10000nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 106.10 75.00
3mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-7042.7 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 4.20 3.00
5mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-7054.5 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 7.10 5.00
6.25mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-7065.6 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 8.80 6.25
10mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-7079.0 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 14.10 10.00
12.5mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-70811.2 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 17.70 12.50
15mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-70913.5 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 21.20 15.00
20mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-71018.0 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 28.30 20.00
25mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-71122.5 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 35.40 25.00
30mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-71227.0 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 42.40 30.00
35mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-71331.5 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 49.50 35.00
40mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-71436.0 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 56.60 40.00
50mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-71545.0 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 70.70 50.00
75mm, UV Enhanced Aluminum, N-BK7 90° Specialty Mirror25-71667.5 Enhanced Aluminum (250-700nm) N-BK7 40-20 Right Angle Mirror ±0.1 ±2 Protective bevel as needed 90.00 106.10 75.00


                                        技术数据

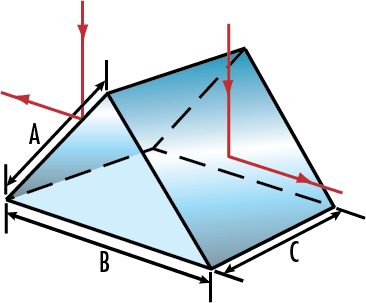

Stock No.CoatingABC
#49-412Enhanced Aluminum (450-650nm)5mm7.1mm5mm
#65-847Protected Gold (700-10000nm)
#21-185Protected Silver (450-10000nm)
#47-004Enhanced Aluminum (450-650nm)10mm14.1mm10mm
#47-237Protected Gold (700-10000nm)
#21-186Protected Silver (450-10000nm)
#49-413Enhanced Aluminum (450-650nm)15mm21.2mm15mm
#65-848Protected Gold (700-10000nm)
#21-187Protected Silver (450-10000nm)
#49-414Enhanced Aluminum (450-650nm)20mm28.3mm20mm
#65-849Protected Gold (700-10000nm)
#21-188Protected Silver (450-10000nm)
#47-005Enhanced Aluminum (450-650nm)25mm35.4mm25mm
#47-238Protected Gold (700-10000nm)
#21-189Protected Silver (450-10000nm)
#47-006Enhanced Aluminum (450-650nm)50mm70.7mm50mm
#47-239Protected Gold (700-10000nm)
#21-190Protected Silver (450-10000nm)
#47-309Enhanced Aluminum (450-650nm)75mm106.1mm75mm
#47-310Protected Gold (700-10000nm)
#21-191Protected Silver (450-10000nm)
