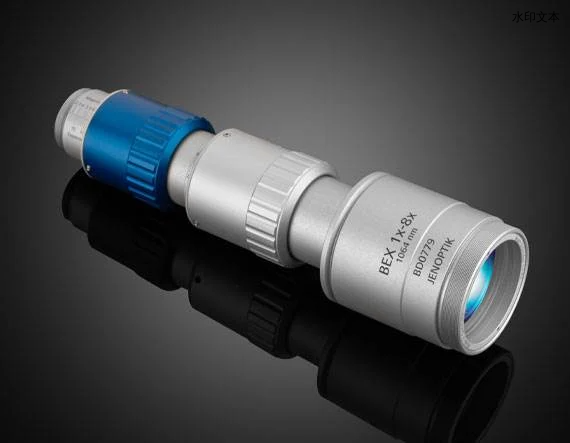

Jenoptik可变倍率扩束镜

Jenoptik可变倍率扩束镜

￥ 0.00
0.00


Jenoptik可变倍率扩束镜提供优异的性能和高损伤阈值，以满足激光材料加工的苛刻要求。该扩束镜经过镀膜处理，可最大限度提高常见 Nd:YAG 和光纤激光波长的透射率，并提供多种设计形式和放大范围。标准可变倍率扩束镜提供1X至4X或2X至10X配置，采用全熔融石英光学元件，设计适用于355nm，515-540nm或1030-1080nm。  1X至4X 稳定版本适用于相同的波长范围，具有以稳定、线性的方式引导可移动光学元件，从而减少振动或系统加速度影响的机械设计。Silverline™ 系列设计用于实现高性能，并在整个 1X 至 8X 的倍率范围内确保衍射极限的图像质量。Jenoptik可变倍率扩束镜是一系列高功率激光材料加工应用的理想选择，包括金属，聚合物或陶瓷的切割，焊接和雕刻。


  • 是高功率和超短脉冲系统的理想选择

  • 连续倍率范围从 1X 至 10X

  • 为衍射极限性能而设计


                                            产品

标题产品编码DWL (nm)入射孔径 (mm)扩束倍率基底长度 (mm)安装螺纹透射率 (%) 类型重量 (g)防护罩直径 (mm)波长范围 (nm)
1030 - 1080nm, 2X - 10X Jenoptik Variable Beam Expander73-0841064 8.0 - 3.0 (2X - 10X) 2X - 10X Entrance: Fused Silica Exit: Highly Resistant Laser Materials 159.00
≥96 Beam Expander 230 37.6 1030 - 1080
1030 - 1064nm, 1X - 4X Jenoptik Variable Beam Expander73-0851064 4.0 (1X - 4X) 1X - 4X Entrance: Fused Silica Exit: Fused Silica 127.80 Input: M30 X 1.0 ≥97 Beam Expander 190 37.6 1030 - 1064
532nm, 2X - 10X Jenoptik Variable Beam Expander73-087532 8.0 - 3.0 (2X - 10X) 2X - 10X Entrance: Fused Silica Exit: Highly Resistant Laser Materials 159.00
≥96 Beam Expander 230 37.6 515 - 540
532nm, 1X - 4X Jenoptik Variable Beam Expander73-089532 4.0 (1X - 4X) 1X - 4X Entrance: Fused Silica Exit: Fused Silica 127.90 Input: M30 X 1.0 ≥97 Beam Expander 190 37.6 515 - 540
355nm, 2X - 10X Jenoptik Variable Beam Expander73-090355 6.0 - 2.2 (2X - 10X) 2X - 10X Entrance: Fused Silica Exit: Fused Silica 159.00
≥96 Beam Expander 230 37.6
355nm, 1X - 4X Jenoptik Variable Beam Expander73-091355 4.0 (1X - 4X) 1X - 4X Entrance: Fused Silica Exit: Fused Silica 127.80 Input: M30 X 1.0 ≥97 Beam Expander 190 37.6
1064nm, 1X - 4X Jenoptik Steadfast Variable Beam Expander73-0941064 4.0 (1X - 4X) 1X - 4X Entrance: Fused Silica Exit: Fused Silica 155.00 Input: M30 X 1.0 ≥97 Beam Expander 370 45.0 1030 - 1064
532nm, 1X - 4X Jenoptik Steadfast Variable Beam Expander73-095532 4.0 (1X - 4X) 1X - 4X Entrance: Fused Silica Exit: Fused Silica 155.00 Input: M30 X 1.0 ≥97 Beam Expander 370 45.0 515 - 540
355nm, 1X - 4X Jenoptik Steadfast Variable Beam Expander73-097355 4.0 (1X - 4X) 1X - 4X Entrance: Fused Silica Exit: Fused Silica 155.00 Input: M30 X 1.0 ≥97 Beam Expander 370 45.0
1064nm, 1X - 8X Jenoptik Silverline™ Variable Beam Expander73-0981064 9.0 - 4.0 (1X - 8X) 1X - 8X Entrance: Fused Silica Exit: Fused Silica 210.00 Input: M30 X 1.0 Output: SM2 ≥97 Beam Expander 540 55.0 1030 - 1064
532nm, 1X - 8X Jenoptik Silverline™ Variable Beam Expander73-099532 9.0 - 4.0 (1X - 8X) 1X - 8X Entrance: Fused Silica Exit: Fused Silica 210.00 Input: M30 X 1.0 Output: SM2 ≥97 Beam Expander 540 55.0 515 - 540
355nm, 1X - 8X Jenoptik Silverline™ Variable Beam Expander73-101355 9.0 - 4.0 (1X - 8X) 1X - 8X Entrance: Fused Silica Exit: Fused Silica 210.00 Input: M30 X 1.0 Output: SM2 ≥97 Beam Expander 540 55.0
