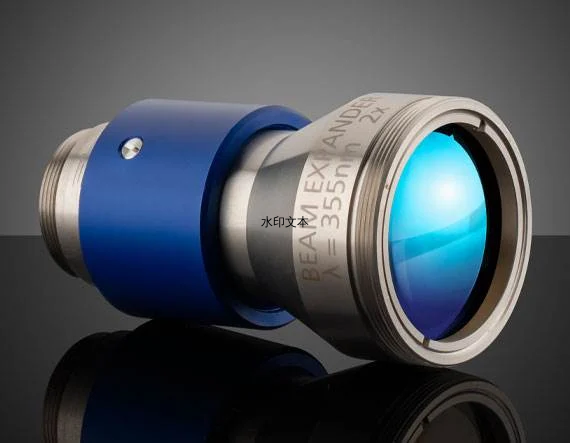

Jenoptik 固定倍率扩束镜

Jenoptik 固定倍率扩束镜

￥ 0.00
0.00


业纳固定Jenoptik 固定倍率扩束镜具有衍射极限性能和高损伤阈值，可满足激光材料加工的严格要求。式放大扩容器提供衍射受限性能和高损伤阈值,以满足激光材料加工的苛刻要求。该扩束镜经过镀膜处理，可在 266、355、532 和 1064 nm的 Nd:YAG 激光波长下实现最大透射率，并具有1.5 倍至8倍的多种固定倍率选项。不锈钢外壳和由坚固石英玻璃制成的光学元件确保了出色的耐磨性和耐用性。Jenoptik 固定倍率扩束镜非常适用于多种高功率激光材料加工应用，包括金属、聚合物和陶瓷的切割、焊接和雕刻。外壳前端配备 M50 x 1.0 螺纹，后端配备 M30 x 1.0 螺纹，便于系统集成以及反向操作的设置。


  • 大高功率和超短脉冲系统的理想之选

  • 可提供 1.5 倍至 8倍的固定放大率

  • 为实现衍射极限性能而设计


                                        产品

标题产品编码DWL (nm)入射孔径 (mm)最大出射孔径 (mm)扩束倍率长度 (mm)安装螺纹透射率 (%) 类型重量 (g)注意 波长范围 (nm)
2X, 266nm Jenoptik Fixed Beam Expander73-132266 16 40 2X 90.00 Input: M30 x 1 Output: M50 x 1 99 Beam Expander


1.5X, 355nm Jenoptik Fixed Beam Expander73-103355 16 40 1.5X 90.00 Input: M30 x 1 Output: M50 x 1 99 Beam Expander 421 Diffraction Limited up to an 1/e² Diameter of 8mm
2X, 355nm Jenoptik Fixed Beam Expander73-104355 16 40 2X 90.00 Input: M30 x 1 Output: M50 x 1 99 Beam Expander 421 Diffraction Limited up to an 1/e² Diameter of 8mm
4X, 355nm Jenoptik Fixed Beam Expander73-105355 12 40 4X 126.50 Input: M30 x 1 Output: M50 x 1 99 Beam Expander 601 Diffraction Limited up to an 1/e² Diameter of 5mm
8X, 355nm Jenoptik Fixed Beam Expander73-110355 7 40 8X 160.40 Input: M30 x 1 Output: M50 x 1 >98 Beam Expander 662 Diffraction Limited up to an 1/e² Diameter of 3mm
1.5X, 532nm Jenoptik Fixed Beam Expander73-112532 16 40 1.5X 93.00 Input: M30 x 1 Output: M50 x 1 99 Beam Expander 243 Diffraction Limited up to an 1/e² Diameter of 8mm 515 - 540
2X, 532nm Jenoptik Fixed Beam Expander73-113532 16 40 2X 93.00 Input: M30 x 1 Output: M50 x 1 99 Beam Expander 243 Diffraction Limited up to an 1/e² Diameter of 8mm 515 - 540
4X, 532nm Jenoptik Fixed Beam Expander73-115532 12 40 4X 132.60 Input: M30 x 1 Output: M50 x 1 99 Beam Expander 297 Diffraction Limited up to an 1/e² Diameter of 5mm 515 - 540
8X, 532nm Jenoptik Fixed Beam Expander73-117532 7 40 8X 168.50 Input: M30 x 1 Output: M50 x 1 >98 Beam Expander 324 Diffraction Limited up to an 1/e² Diameter of 3mm 515 - 540
1.5X, 1064nm Jenoptik Fixed Beam Expander73-1221064 16 40 1.5X 93.00 Input: M30 x 1 Output: M50 x 1 99 Beam Expander 243 Diffraction Limited up to an 1/e² Diameter of 8mm 1030 - 1080
2X, 1064nm Jenoptik Fixed Beam Expander73-1241064 16 40 2X 93.00 Input: M30 x 1 Output: M50 x 1 99 Beam Expander 243 Diffraction Limited up to an 1/e² Diameter of 8mm 1030 - 1080
4X, 1064nm Jenoptik Fixed Beam Expander73-1251064 12 40 4X 132.60 Input: M30 x 1 Output: M50 x 1 99 Beam Expander 297 Diffraction Limited up to an 1/e² Diameter of 5mm 1030 - 1080
8X, 1064nm Jenoptik Fixed Beam Expander73-1291064 7 40 8X 168.50 Input: M30 x 1 Output: M50 x 1 >98 Beam Expander 324 Diffraction Limited up to an 1/e² Diameter of 3mm 1030 - 1080
