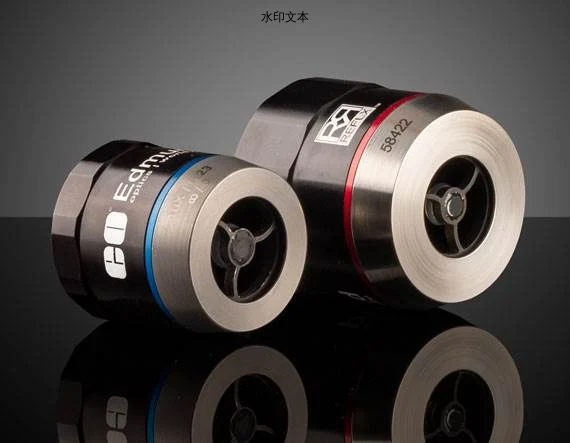

ReflX® 反射物镜

ReflX® 反射物镜

￥ 0.00
0.00


反射物镜经常被用在需要高质量像质的地方，以及在宽带宽上能很好的聚焦的场合。通过选择不同的墨系，Schwarzschild风格的物镜可以展示出近乎衍射极限的性能。通过消除色差和材料吸收，这些元件用在高透射和高分辨率的场合很合适，包括偏振光椭圆率测试仪、照相平板、和半导体检查等场合。


  • 具有行业领先水平的 19 至 31mm 工作距离

  • 爱特蒙特光学公司为聚焦或成像应用而设计并制造

  • 主动对准，以获得最佳性能

  • 从190nm 至 11μm 的超宽光谱带且无色差

  • 另有 TECHSPEC® 高性能ReflX® 物镜 可供选择


                                                 产品

标题产品编码入射瞳孔 (mm)Horizontal FOV, 1/2" SensorHorizontal FOV, 2/3" SensorFL (mm)涂层放大率NA安装螺纹类型模糊度 (%)

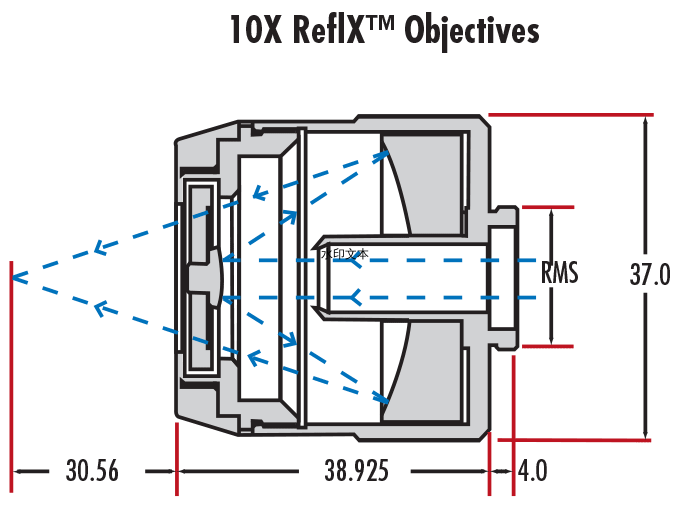

REFLX OBJ. 10X/0.22NA DUV INFIN89-7228.4921 (Diameter) 0.64mm 0.88mm 19.30 DUV Enhanced Aluminum (150-11000nm) 10X 0.22 RMS Microscope Objective 27.00
REFLX OBJ. 10X/0.23NA DUV FIN89-7238.4641 (Diameter) 0.64mm 0.88mm 18.40 DUV Enhanced Aluminum (150-11000nm) 10X 0.23 RMS Microscope Objective 27.00
REFLX OBJ. 10X/0.22NA UV-VIS INFIN89-7248.4921 (Diameter) 0.64mm 0.88mm 19.30 Enhanced Aluminum (200-11000nm) 10X 0.22 RMS Microscope Objective 27.00
REFLX OBJ. 10X/0.23NA UV-VIS FIN89-7258.4641 (Diameter) 0.64mm 0.88mm 18.40 Enhanced Aluminum (200-11000nm) 10X 0.23 RMS Microscope Objective 27.00
Infinite Conjugate, Ultrafast-Enhanced Silver Coated, 10X/0.22NA ReflX Objective13-4088.4921 (Diameter) 0.64mm 0.88mm 19.30 Ultrafast-Enhanced Silver 10X 0.22 RMS Microscope Objective 27.00
Finite Conjugate, Ultrafast-Enhanced Silver Coated, 10X/0.23NA ReflX Objective13-4098.4641 (Diameter) 0.64mm 0.88mm 18.40 Ultrafast-Enhanced Silver 10X 0.23 RMS Microscope Objective 27.00
REFLX OBJ. 10X/0.22NA IR INFIN89-7268.4921 (Diameter) 0.64mm 0.88mm 19.30 Protected Gold (700-11000nm) 10X 0.22 RMS Microscope Objective 27.00
REFLX OBJ. 10X/0.23NA IR FIN89-7278.4641 (Diameter) 0.64mm 0.88mm 18.40 Protected Gold (700-11000nm) 10X 0.23 RMS Microscope Objective 27.00

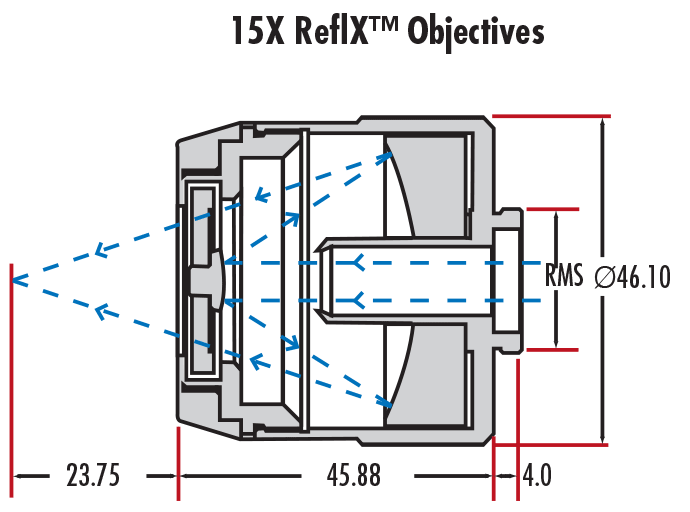

Reflx 物镜，无限远共轭，DUV镀膜，15x/0.28NA59-3157.4 (Diameter) 0.43mm 0.59mm 13.30 DUV Enhanced Aluminum (150-11000nm) 15X 0.28 RMS Microscope Objective 27.00
Reflx 物镜，有限共轭，DUV镀膜，15x/0.28NA59-3167.4 (Diameter) 0.43mm 0.59mm 13.30 DUV Enhanced Aluminum (150-11000nm) 15X 0.28 RMS Microscope Objective 27.00
无穷远共轭， UV 镀膜， 15X/0.28NA ReflX物镜58-4177.4 (Diameter) 0.43mm 0.59mm 13.30 Enhanced Aluminum (200-11000nm) 15X 0.28 RMS Microscope Objective 27.00
有限远共轭， UV 镀膜， 15X/0.28NA ReflX物镜58-4217.4 (Diameter) 0.43mm 0.59mm 13.30 Enhanced Aluminum (200-11000nm) 15X 0.28 RMS Microscope Objective 27.00
Infinite Conjugate, Ultrafast-Enhanced Silver Coated, 15X/0.28NA ReflX Objective13-4107.4 (Diameter) 0.43mm 0.59mm 13.30 Ultrafast-Enhanced Silver 15X 0.28 RMS Microscope Objective 27.00
Finite Conjugate, Ultrafast-Enhanced Silver Coated, 15X/0.28NA ReflX Objective13-4117.4 (Diameter) 0.43mm 0.59mm 13.30 Ultrafast-Enhanced Silver 15X 0.28 RMS Microscope Objective 27.00
无穷远共轭， 镀金膜， 15X/0.28NA ReflX物镜58-4187.4 (Diameter) 0.43mm 0.59mm 13.30 Protected Gold (700-11000nm) 15X 0.28 RMS Microscope Objective 27.00
有限远共轭， 镀金膜， 15X/0.28NA ReflX物镜58-4227.4 (Diameter) 0.43mm 0.59mm 13.30 Protected Gold (700-11000nm) 15X 0.28 RMS Microscope Objective 27.00

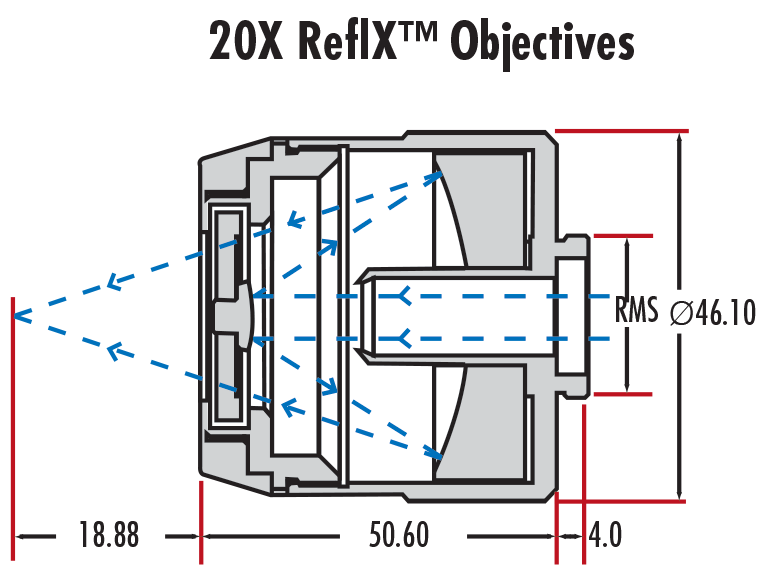

Infinite Conjugate, DUV Coated, 20X/0.33NA ReflX Objective39-1417 (Diameter) 0.32mm 0.44mm 10.06 DUV Enhanced Aluminum (150-11000nm) 20X 0.33 RMS Microscope Objective 30.19
Finite Conjugate, DUV Coated, 20X/0.33NA ReflX Objective39-1457 (Diameter) 0.32mm 0.44mm 9.91 DUV Enhanced Aluminum (150-11000nm) 20X 0.33 RMS Microscope Objective 30.46
Infinite Conjugate, UV Coated, 20X/0.33NA ReflX Objective39-1427 (Diameter) 0.32mm 0.44mm 10.06 Enhanced Aluminum (200-11000nm) 20X 0.33 RMS Microscope Objective 30.19
Finite Conjugate, UV Coated, 20X/0.33NA ReflX Objective39-1467 (Diameter) 0.32mm 0.44mm 9.91 Enhanced Aluminum (200-11000nm) 20X 0.33 RMS Microscope Objective 30.46
Finite Conjugate, Ultrafast-Enhanced Silver Coated, 20X/0.33NA ReflX Objective13-4137 (Diameter) 0.32mm 0.44mm 10.06 Ultrafast-Enhanced Silver 20X 0.33 RMS Microscope Objective 30.19
Infinite Conjugate, Ultrafast-Enhanced Silver Coated, 20X/0.33NA ReflX Objective13-4127 (Diameter) 0.32mm 0.44mm 9.91 Ultrafast-Enhanced Silver 20X 0.33 RMS Microscope Objective 30.46
Infinite Conjugate, Gold Coated, 20X/0.33NA ReflX Objective39-1437 (Diameter) 0.32mm 0.44mm 10.06 Protected Gold (700-11000nm) 20X 0.33 RMS Microscope Objective 30.19
Finite Conjugate, Gold Coated, 20X/0.33NA ReflX Objective39-1477 (Diameter) 0.32mm 0.44mm 9.91 Protected Gold (700-11000nm) 20X 0.33 RMS Microscope Objective 30.46


                                                  产品概览

有限和无限共轭类型的物镜都有。对于标准和紧凑设计，有限共轭是更为理想的选择，因为它们不需要额外的聚焦镜筒透镜。无限共轭设计需要配备一个 200mm 的镜筒透镜。无限共轭设计允许引入中间滤光片和分束器，使这些物镜也同样适合生物技术和荧光应用。


                                                  技术数据
