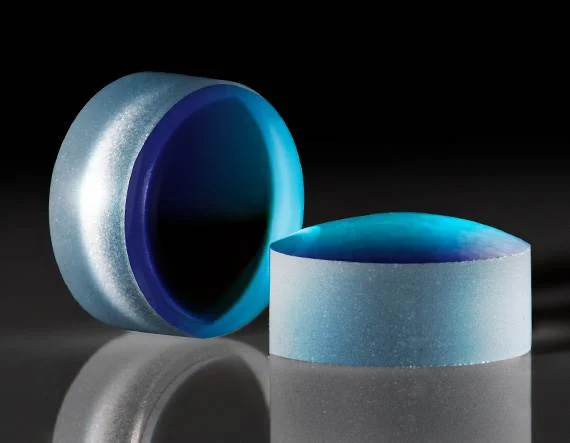

微型平凸 (PCX) 透镜
￥ 0.00
0.00
微型平凸 (PCX) 透镜具有与我们的标准 PCX 透镜相同的高性能，但外形尺寸小得多。这些透镜的直径小至 1mm，焦距短至 0.6mm。焦距短、重量轻的特点使其能够搭建出紧凑、轻便的光学系统。微型平凸 (PCX) 透镜适合设计集成到紧凑型手持设备中，如手机摄像头或医疗设备。这些微透镜提供各种增透膜，这些增透膜经过优化，适用于从可见光到红外的宽带波长范围。
直径小至 1 mm
焦距较短适用于集成到紧凑型设备中
可选择宽带增透膜窗口片
产品
| 标题 | 产品编码 | Dia. (mm) | EFL (mm) | BFL (mm) | 涂层 | 涂层规格 | 基底 | 表面质量 | Power (P-V) @ 632.8nm | Irregularity (P-V) @ 632.8nm | FL Tolerance (%) | |
| 平凸透镜，1.0mm直径x 0.6mm焦距，NIR-I镀膜 | 45-951 | 1.00 +0.0/-0.025 | 0.60 @ 587.6nm | 0.17 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm 直径 x 0.6mm焦距，未镀膜 | 45-588 | 1.00 +0.0/-0.025 | 0.60 @ 587.6nm | 0.17 | Uncoated | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | ||
| 平凸透镜，1.0mm直径x 1.0mm焦距，NIR-I镀膜 | 45-952 | 1.00 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm 直径 x1.0mm焦距，未镀膜 | 45-589 | 1.00 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | Uncoated | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | ||
| 平凸透镜，1.0mm直径x0.6mm焦距，MgF2镀膜 | 65-257 | 1.00 +0.0/-0.025 | 0.60 @ 587.6nm | 0.17 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 0.6 NIR II CTD TS | 67-423 | 1.00 +0.0/-0.025 | 0.60 @ 587.6nm | 0.17 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm直径x0.6mm焦距，VIS 0镀膜 | 65-273 | 1.00 +0.0/-0.025 | 0.60 @ 587.6nm | 0.17 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 0.6 VIS-EXT CTD TS | 35-694 | 1.00 +0.0/-0.025 | 0.60 @ 587.6nm | 0.17 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm直径x0.6mm焦距，VIS-NIR镀膜 | 65-289 | 1.00 +0.0/-0.025 | 0.60 @ 587.6nm | 0.17 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 0.6 YAG-BBAR CTD TS | 35-710 | 1.00 +0.0/-0.025 | 0.60 @ 587.6nm | 0.17 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm直径x1.0mm焦距，MgF2镀膜 | 65-258 | 1.00 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 1.0 NIR II CTD TS | 67-424 | 1.00 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm直径x1.0mm焦距，VIS 0镀膜 | 65-274 | 1.00 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 1.0 VIS-EXT CTD TS | 35-695 | 1.00 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm直径x1.0mm焦距，VIS-NIR镀膜 | 65-290 | 1.00 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 1.0 YAG-BBAR CTD TS | 35-711 | 1.00 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm直径x1.5mm焦距，MgF2镀膜 | 65-259 | 1.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm直径x1.5mm焦距，NIR I镀膜 | 65-305 | 1.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 1.5 NIR II CTD TS | 67-425 | 1.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm 直径 x 1.5mm焦距，未镀膜 | 65-252 | 1.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | Uncoated | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | ||
| 平凸透镜，1.0mm直径x1.5mm焦距，VIS 0镀膜 | 65-275 | 1.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 1.5 VIS-EXT CTD TS | 35-696 | 1.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm直径x1.5mm焦距，VIS-NIR镀膜 | 65-291 | 1.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 1.5 YAG-BBAR CTD TS | 35-712 | 1.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm直径x2.0mm焦距，MgF2镀膜 | 65-260 | 1.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm直径x2.0mm焦距，NIR I镀膜 | 65-306 | 1.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 2.0 NIR II CTD TS | 67-426 | 1.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm 直径 x 2.0mm焦距， 未镀膜 | 65-253 | 1.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | Uncoated | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | ||
| 平凸透镜，1.0mm直径x2.0mm焦距，VIS 0镀膜 | 65-276 | 1.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 2.0 VIS-EXT CTD TS | 35-697 | 1.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.0mm直径x2.0mm焦距，VIS-NIR镀膜 | 65-292 | 1.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| LENS PCX 1.0 X 2.0 YAG-BBAR CTD TS | 35-713 | 1.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 10λ | 2λ | ±1 | |
| 平凸透镜，1.5mm 直径x 1.0mm焦距，NIR-I镀膜 | 45-953 | 1.50 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，1.5mm直径 x 1.0mm焦距，不镀膜 | 43-394 | 1.50 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，1.5mm直径x1.0mm焦距，MgF2镀膜 | 65-261 | 1.50 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 1.5 X 1.0 NIR II CTD TS | 67-427 | 1.50 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，1.5mm直径x1.0mm焦距，VIS 0镀膜 | 65-277 | 1.50 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 1.5 X 1.0 VIS-EXT CTD TS | 35-698 | 1.50 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，1.5mm直径x1.0mm焦距，VIS-NIR镀膜 | 65-293 | 1.50 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 1.5 X 1.0 YAG-BBAR CTD TS | 35-714 | 1.50 +0.0/-0.025 | 1.00 @ 587.6nm | 0.57 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，1.5mm直径x1.5mm焦距，MgF2镀膜 | 65-262 | 1.50 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 1.5 X 1.5 NIR II CTD TS | 67-428 | 1.50 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，1.5mm 直径x 1.5mm焦距，NIR-I镀膜 | 45-954 | 1.50 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，1.5mm直径 x 1.5mm焦距，不镀膜 | 43-395 | 1.50 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，1.5mm直径x1.5mm焦距，VIS 0镀膜 | 65-278 | 1.50 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 1.5 X 1.5 VIS-EXT CTD TS | 35-699 | 1.50 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，1.5mm直径x1.5mm焦距，VIS-NIR镀膜 | 65-294 | 1.50 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 1.5 X 1.5 YAG-BBAR CTD TS | 35-715 | 1.50 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，1.5mm直径x2.0mm焦距，MgF2镀膜 | 65-263 | 1.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，1.5mm直径x2.0mm焦距，NIR-I镀膜 | 65-307 | 1.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 1.5 X 2.0 NIR II CTD TS | 67-429 | 1.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，1.5mm直径 x 2.0mm焦距，未镀膜 | 65-254 | 1.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，1.5mm直径x2.0mm焦距，VIS 0镀膜 | 65-279 | 1.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 1.5 X 2.0 VIS-EXT CTD TS | 35-700 | 1.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，1.5mm直径x2.0mm焦距，VIS-NIR镀膜 | 65-295 | 1.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 1.5 X 2.0 YAG-BBAR CTD TS | 35-716 | 1.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x 1.5mm焦距，NIR-I镀膜 | 45-955 | 2.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径 x 1.5mm焦距，不镀膜 | 43-396 | 2.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，2.0mm直径x 2.0mm焦距，NIR-I镀膜 | 45-956 | 2.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径 x 2.0mm焦距L，不镀膜 | 43-397 | 2.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，2.0mm直径x1.5mm焦距，MgF2镀膜 | 65-264 | 2.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 1.5 NIR II CTD TS | 67-430 | 2.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x1.5mm焦距，VIS 0镀膜 | 65-280 | 2.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 1.5 VIS-EXT CTD TS | 35-701 | 2.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x1.5mm焦距，VIS-NIR镀膜 | 65-296 | 2.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 1.5 YAG-BBAR CTD TS | 35-717 | 2.00 +0.0/-0.025 | 1.50 @ 587.6nm | 1.07 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x2.0mm焦距，MgF2镀膜 | 65-265 | 2.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 2.0 NIR II CTD TS | 67-431 | 2.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x2.0mm焦距，VIS 0镀膜 | 65-281 | 2.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 2.0 VIS-EXT CTD TS | 35-702 | 2.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x2.0mm焦距，VIS-NIR镀膜 | 65-297 | 2.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 2.0 YAG-BBAR CTD TS | 35-718 | 2.00 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x3.0mm焦距，MgF2镀膜 | 65-266 | 2.00 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x3.0mm焦距，NIR I镀膜 | 65-308 | 2.00 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 3.0 NIR II CTD TS | 67-432 | 2.00 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径 x 3.0mm焦距，未镀膜 | 65-255 | 2.00 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，2.0mm直径x3.0mm焦距，VIS 0镀膜 | 65-282 | 2.00 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 3.0 VIS-EXT CTD TS | 35-703 | 2.00 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x3.0mm焦距，VIS-NIR镀膜 | 65-298 | 2.00 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 3.0 YAG-BBAR CTD TS | 35-719 | 2.00 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x4.0mm焦距，MgF2镀膜 | 65-267 | 2.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x4.0mm焦距，NIR I镀膜 | 65-309 | 2.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 4.0 NIR II CTD TS | 67-433 | 2.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm 直径 x 4.0mm焦距，未镀膜 | 65-256 | 2.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，2.0mm直径x4.0mm焦距，VIS 0镀膜 | 65-283 | 2.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 4.0 VIS-EXT CTD TS | 35-704 | 2.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.0mm直径x4.0mm焦距，VIS-NIR镀膜 | 65-299 | 2.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.0 X 4.0 YAG-BBAR CTD TS | 35-720 | 2.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x 2.0mm焦距，NIR I镀膜 | 45-957 | 2.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径 x 2.0mm焦距L，不镀膜 | 43-398 | 2.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，2.5mm直径x2.0mm焦距，MgF2镀膜 | 65-268 | 2.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 2.0 NIR II CTD TS | 67-434 | 2.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x2.0mm焦距，VIS 0镀膜 | 65-284 | 2.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 2.0 VIS-EXT CTD TS | 35-705 | 2.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x2.0mm焦距，VIS-NIR镀膜 | 65-300 | 2.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 2.0 YAG-BBAR CTD TS | 35-721 | 2.50 +0.0/-0.025 | 2.00 @ 587.6nm | 1.57 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x2.5mm焦距，MgF2镀膜 | 65-269 | 2.50 +0.0/-0.025 | 2.50 @ 587.6nm | 2.05 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 2.5 NIR II CTD TS | 67-435 | 2.50 +0.0/-0.025 | 2.50 @ 587.6nm | 2.07 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm 直径 x 2.5mm焦距，NIR I镀膜 | 45-958 | 2.50 +0.0/-0.025 | 2.50 @ 587.6nm | 2.07 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径 x 2.5mm焦距，不镀膜 | 43-399 | 2.50 +0.0/-0.025 | 2.50 @ 587.6nm | 2.07 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，2.5mm直径x2.5mm焦距，VIS 0镀膜 | 65-285 | 2.50 +0.0/-0.025 | 2.50 @ 587.6nm | 2.05 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 2.5 VIS-EXT CTD TS | 35-706 | 2.50 +0.0/-0.025 | 2.50 @ 587.6nm | 2.07 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x2.5mm焦距，VIS-NIR镀膜 | 65-301 | 2.50 +0.0/-0.025 | 2.50 @ 587.6nm | 2.05 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 2.5 YAG-BBAR CTD TS | 35-722 | 2.50 +0.0/-0.025 | 2.50 @ 587.6nm | 2.07 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径 x 3.0mm焦距，未镀膜 | 45-590 | 2.50 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，2.5mm直径x3.0mm焦距，MgF2镀膜 | 65-270 | 2.50 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x 3.0mm焦距，NIR I镀膜 | 45-959 | 2.50 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 3.0 NIR II CTD TS | 67-436 | 2.50 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x3.0mm焦距，VIS 0镀膜 | 65-286 | 2.50 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 3.0 VIS-EXT CTD TS | 35-707 | 2.50 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x3.0mm焦距，VIS-NIR镀膜 | 65-302 | 2.50 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 3.0 YAG-BBAR CTD TS | 35-723 | 2.50 +0.0/-0.025 | 3.00 @ 587.6nm | 2.57 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x4.0mm焦距，MgF2镀膜 | 65-271 | 2.50 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x 4.0mm焦距，NIR I镀膜 | 48-646 | 2.50 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 4.0 NIR II CTD TS | 67-437 | 2.50 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径 x 4.0mm焦距，未镀膜 | 48-643 | 2.50 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，2.5mm直径x4.0mm焦距，VIS 0镀膜 | 65-287 | 2.50 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 4.0 VIS-EXT CTD TS | 35-708 | 2.50 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x4.0mm焦距，VIS-NIR镀膜 | 65-303 | 2.50 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 4.0 YAG-BBAR CTD TS | 35-724 | 2.50 +0.0/-0.025 | 4.00 @ 587.6nm | 3.57 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x5.0mm焦距，MgF2镀膜 | 65-272 | 2.50 +0.0/-0.025 | 5.00 @ 587.6nm | 4.57 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径 x 5.0mm焦距，NIR I镀膜 | 48-647 | 2.50 +0.0/-0.025 | 5.00 @ 587.6nm | 4.57 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 5.0 NIR II CTD TS | 67-438 | 2.50 +0.0/-0.025 | 5.00 @ 587.6nm | 4.57 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径 x 5.0mm焦距，未镀膜 | 48-644 | 2.50 +0.0/-0.025 | 5.00 @ 587.6nm | 4.57 | Uncoated | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，2.5mm直径x5.0mm焦距，VIS 0镀膜 | 65-288 | 2.50 +0.0/-0.025 | 5.00 @ 587.6nm | 4.57 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 5.0 VIS-EXT CTD TS | 35-709 | 2.50 +0.0/-0.025 | 5.00 @ 587.6nm | 4.57 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，2.5mm直径x5.0mm焦距，VIS-NIR镀膜 | 65-304 | 2.50 +0.0/-0.025 | 5.00 @ 587.6nm | 4.57 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 2.5 X 5.0 YAG-BBAR CTD TS | 35-725 | 2.50 +0.0/-0.025 | 5.00 @ 587.6nm | 4.57 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF9 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径. x 3.0mm焦距，VIS-EXT镀膜 | 88-615 | 3.00 +0.0/-0.025 | 3.00 @ 587.6nm | 1.88 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-SF11 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 3.0mm焦距， YAG-BBAR 镀膜 | 88-774 | 3.00 +0.0/-0.025 | 3.00 @ 587.6nm | 1.88 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-SF11 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3mmx 12mm FL，MgF2镀膜 | 45-273 | 3.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.29 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 12.0mm焦距，NIR I镀膜 | 45-964 | 3.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.29 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3mm直径x12mm焦距，不镀膜 | 45-272 | 3.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.29 | Uncoated | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，3.0mm直径x 12.0mm焦距，VIS 0镀膜 | 49-172 | 3.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.29 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 12.0mm焦距，VIS-EXT镀膜 | 88-620 | 3.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.29 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 12.0mm焦距，VIS-NIR镀膜 | 49-179 | 3.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.29 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 12.0mm焦距，YAG-BBAR镀膜 | 88-779 | 3.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.29 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3mm直径x15mm焦距，MgF2镀膜 | 45-426 | 3.00 +0.0/-0.025 | 15.00 @ 587.6nm | 14.17 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 15.0mm焦距，NIR I镀膜 | 45-965 | 3.00 +0.0/-0.025 | 15.00 @ 587.6nm | 14.22 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3mm直径x15mm焦距，不镀膜 | 45-425 | 3.00 +0.0/-0.025 | 15.00 @ 587.6nm | 14.22 | Uncoated | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，3.0mm直径 x 15.0mm焦距，VIS 0镀膜 | 49-173 | 3.00 +0.0/-0.025 | 15.00 @ 587.6nm | 14.17 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 15.0mm焦距，VIS-EXT镀膜 | 88-621 | 3.00 +0.0/-0.025 | 15.00 @ 587.6nm | 14.22 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 15.0mm焦距，VIS-NIR镀膜 | 49-180 | 3.00 +0.0/-0.025 | 15.00 @ 587.6nm | 14.17 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 15.0mm焦距，YAG-BBAR镀膜 | 88-780 | 3.00 +0.0/-0.025 | 15.00 @ 587.6nm | 14.22 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3mm直径x3mm焦距，MgF2镀膜 | 45-118 | 3.00 +0.0/-0.025 | 3.00 @ 587.6nm | 1.88 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-SF11 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 3.0mm焦距，NIR I镀膜 | 45-960 | 3.00 +0.0/-0.025 | 3.00 @ 587.6nm | 1.88 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-SF11 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3mm直径x3mm焦距，不镀膜 | 45-117 | 3.00 +0.0/-0.025 | 3.00 @ 587.6nm | 1.88 | Uncoated | N-SF11 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，3.0mm直径 x 3.0mm焦距，VIS 0镀膜 | 49-167 | 3.00 +0.0/-0.025 | 3.00 @ 587.6nm | 1.88 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-SF11 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 3.0mm焦距，VIS-NIR镀膜 | 49-174 | 3.00 +0.0/-0.025 | 3.00 @ 587.6nm | 1.88 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-SF11 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3mm直径x4.5mm焦距，MgF2镀膜 | 45-142 | 3.00 +0.0/-0.025 | 4.50 @ 587.6nm | 3.50 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 4.5mm焦距，NIR I镀膜 | 45-961 | 3.00 +0.0/-0.025 | 4.50 @ 587.6nm | 3.50 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3mm直径x4.5mm焦距，不镀膜 | 45-141 | 3.00 +0.0/-0.025 | 4.50 @ 587.6nm | 3.50 | Uncoated | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，3.0mm直径 x 4.5mm焦距，VIS 0镀膜 | 49-168 | 3.00 +0.0/-0.025 | 4.50 @ 587.6nm | 3.50 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 4.5mm焦距，VIS-NIR镀膜 | 49-175 | 3.00 +0.0/-0.025 | 4.50 @ 587.6nm | 3.50 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径x6.0mm焦距，MgF2镀膜 | 32-953 | 3.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.81 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 6.0mm焦距，NIR I镀膜 | 45-962 | 3.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.81 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径x6.0mm焦距，未镀膜 | 32-952 | 3.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.81 | Uncoated | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，3.0mm直径 x 6.0mm焦距，VIS 0镀膜 | 49-169 | 3.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.81 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 6.0mm焦距，VIS-EXT镀膜 | 88-617 | 3.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.81 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 6.0mm焦距，VIS-NIR镀膜 | 49-176 | 3.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.81 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 6.0mm焦距，YAG-BBAR镀膜 | 88-776 | 3.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.81 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 7.5mm焦距，未镀膜 | 48-645 | 3.00 +0.0/-0.025 | 7.50 @ 587.6nm | 6.51 | Uncoated | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，3.0mm直径 x 7.5mm焦距，VIS 0镀膜 | 49-170 | 3.00 +0.0/-0.025 | 7.50 @ 587.6nm | 6.51 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 7.5mm焦距，VIS-EXT镀膜 | 88-618 | 3.00 +0.0/-0.025 | 7.50 @ 587.6nm | 6.51 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 7.5mm焦距，VIS-NIR镀膜 | 49-177 | 3.00 +0.0/-0.025 | 7.50 @ 587.6nm | 6.51 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 7.5mm焦距，YAG-BBAR镀膜 | 88-777 | 3.00 +0.0/-0.025 | 7.50 @ 587.6nm | 6.51 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径x9.0mm焦距，MgF2镀膜 | 32-955 | 3.00 +0.0/-0.025 | 9.00 @ 587.6nm | 8.01 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 9.0mm焦距，NIR I镀膜 | 45-963 | 3.00 +0.0/-0.025 | 9.00 @ 587.6nm | 8.01 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径x9.0mm焦距，未镀膜 | 32-954 | 3.00 +0.0/-0.025 | 9.00 @ 587.6nm | 8.01 | Uncoated | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，3.0mm直径 x 9.0mm焦距，VIS 0镀膜 | 49-171 | 3.00 +0.0/-0.025 | 9.00 @ 587.6nm | 8.01 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 9.0mm焦距，VIS-EXT镀膜 | 88-619 | 3.00 +0.0/-0.025 | 9.00 @ 587.6nm | 8.01 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 9.0mm焦距，VIS-NIR镀膜 | 49-178 | 3.00 +0.0/-0.025 | 9.00 @ 587.6nm | 8.01 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 9.0mm焦距，YAG-BBAR镀膜 | 88-778 | 3.00 +0.0/-0.025 | 9.00 @ 587.6nm | 8.01 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 12.0mm焦距，NIR II镀膜 | 67-444 | 3.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.29 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 15.0mm焦距，NIR II镀膜 | 67-445 | 3.00 +0.0/-0.025 | 15.00 @ 587.6nm | 14.22 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 3.0mm焦距，NIR II镀膜 | 67-439 | 3.00 +0.0/-0.025 | 3.00 @ 587.6nm | 1.88 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-SF11 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 4.5mm焦距，NIR II镀膜 | 67-440 | 3.00 +0.0/-0.025 | 4.50 @ 587.6nm | 3.50 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 3.0 X 4.5 VIS EXT CTD TS | 88-616 | 3.00 +0.0/-0.025 | 4.50 @ 587.6nm | 3.50 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 3.0 X 4.5 YAG-BBAR CTD TS | 88-775 | 3.00 +0.0/-0.025 | 4.50 @ 587.6nm | 3.5 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 6.0mm焦距，NIR II镀膜 | 67-441 | 3.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.81 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 7.5mm焦距，MgF2镀膜 | 48-910 | 3.00 +0.0/-0.025 | 7.50 @ 587.6nm | 6.51 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 7.5mm焦距，NIR I镀膜 | 48-648 | 3.00 +0.0/-0.025 | 7.50 @ 587.6nm | 6.51 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 7.5mm焦距，NIR II镀膜 | 67-442 | 3.00 +0.0/-0.025 | 7.50 @ 587.6nm | 6.51 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，3.0mm直径 x 9.0mm焦距，NIR II镀膜 | 67-443 | 3.00 +0.0/-0.025 | 9.00 @ 587.6nm | 8.01 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4mm直径x 10mm焦距，MgF2镀膜 | 45-430 | 4.00 +0.0/-0.025 | 10.00 @ 587.6nm | 8.92 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 10.0mm焦距，NIR I镀膜 | 48-705 | 4.00 +0.0/-0.025 | 10.00 @ 587.6nm | 8.92 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4mm直径x 10mm焦距，不镀膜 | 45-429 | 4.00 +0.0/-0.025 | 10.00 @ 587.6nm | 8.92 | Uncoated | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，4.0mm直径 x 10.0mm焦距， VIS 0镀膜 | 47-864 | 4.00 +0.0/-0.025 | 10.00 @ 587.6nm | 8.92 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 10.0mm焦距，VIS-EXT镀膜 | 88-625 | 4.00 +0.0/-0.025 | 10.00 @ 587.6nm | 8.92 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 10.0mm焦距， VIS-NIR 镀膜 | 47-853 | 4.00 +0.0/-0.025 | 10.00 @ 587.6nm | 8.92 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 10.0mm焦距，YAG-BBAR镀膜 | 88-784 | 4.00 +0.0/-0.025 | 10.00 @ 587.6nm | 8.92 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4mm直径x 12mm焦距，MgF2镀膜 | 45-432 | 4.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.00 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 12.0mm焦距，NIR I镀膜 | 48-706 | 4.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.00 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4mm直径x 12mm焦距，不镀膜 | 45-431 | 4.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.00 | Uncoated | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，4.0mm直径 x 12.0mm焦距， VIS 0镀膜 | 47-865 | 4.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.00 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 12.0mm焦距，VIS-EXT镀膜 | 88-626 | 4.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.00 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 12.0mm焦距， VIS-NIR镀膜 | 47-854 | 4.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.00 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 12.0mm焦距，YAG-BBAR镀膜 | 88-785 | 4.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11.00 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4mm直径x 4mm焦距，MgF2镀膜 | 45-224 | 4.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.06 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 4.0mm焦距，NIR I镀膜 | 48-702 | 4.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.06 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4mm直径x 4mm焦距，不镀膜 | 45-223 | 4.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.06 | Uncoated | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，4.0mm直径 x 4.0mm焦距， VIS 0镀膜 | 47-861 | 4.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.06 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 4.0mm焦距， VIS-NIR镀膜 | 47-850 | 4.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.06 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4mm直径x 6mm焦距，MgF2镀膜 | 45-428 | 4.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.51 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 6.0mm焦距，NIR I镀膜 | 48-703 | 4.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.51 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4mm直径x 6mm焦距，不镀膜 | 45-427 | 4.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.51 | Uncoated | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，4.0mm直径 x 6.0mm焦距， VIS 0镀膜 | 47-862 | 4.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.51 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 6.0mm焦距，VIS-EXT镀膜 | 88-623 | 4.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.51 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 6.0mm焦距， VIS-NIR镀膜 | 47-851 | 4.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.51 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 6.0mm焦距，YAG-BBAR镀膜 | 88-782 | 4.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.51 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4mm直径x 8mm焦距，MgF2镀膜 | 45-226 | 4.00 +0.0/-0.025 | 8.00 @ 587.6nm | 7.17 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-BAF10 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 8.0mm焦距，NIR I镀膜 | 48-704 | 4.00 +0.0/-0.025 | 8.00 @ 587.6nm | 7.17 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-BAF10 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4mm直径x 8mm焦距，不镀膜 | 45-225 | 4.00 +0.0/-0.025 | 8.00 @ 587.6nm | 7.17 | Uncoated | N-BAF10 | 20-10 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，4.0mm直径 x 8.0mm焦距， VIS 0镀膜 | 47-863 | 4.00 +0.0/-0.025 | 8.00 @ 587.6nm | 7.17 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-BAF10 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 8.0mm焦距L， VIS-NIR镀膜 | 47-852 | 4.00 +0.0/-0.025 | 8.00 @ 587.6nm | 7.17 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-BAF10 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 10.0mm焦距，NIR II镀膜 | 67-449 | 4.00 +0.0/-0.025 | 10.00 @ 587.6nm | 8.96 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 12.0mm焦距，NIR II镀膜 | 67-450 | 4.00 +0.0/-0.025 | 12.00 @ 587.6nm | 11 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 4.0mm焦距，NIR II镀膜 | 67-446 | 4.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.06 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 4.0 X 4.0 VIS EXT CTD TS | 88-622 | 4.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.06 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 4.0 X 4.0 YAG-BBAR CTD TS | 88-781 | 4.00 +0.0/-0.025 | 4.00 @ 587.6nm | 3.06 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF44 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 6.0mm焦距，NIR II镀膜 | 67-447 | 4.00 +0.0/-0.025 | 6.00 @ 587.6nm | 4.51 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-BK7 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.0mm直径 x 8.0mm焦距，NIR II镀膜 | 67-448 | 4.00 +0.0/-0.025 | 8.00 @ 587.6nm | 7.17 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-BAF10 | 20-10 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径x 4.5mm焦距，MgF2镀膜 | 45-144 | 4.50 +0.0/-0.025 | 4.50 @ 587.6nm | 3.05 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-LASF44 | 40-20 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径 x 4.5mm焦距，NIR II镀膜 | 48-707 | 4.50 +0.0/-0.025 | 4.50 @ 587.6nm | 3.05 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-LASF44 | 40-20 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径 x 4.5mm焦距，NIR II镀膜 | 67-451 | 4.50 +0.0/-0.025 | 4.50 @ 587.6nm | 3.05 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-LASF44 | 40-20 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径x 4.5mm焦距，不镀膜 | 45-143 | 4.50 +0.0/-0.025 | 4.50 @ 587.6nm | 3.05 | Uncoated | N-LASF44 | 40-20 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，4.5mm直径 x 4.5mm焦距， VIS 0镀膜 | 47-866 | 4.50 +0.0/-0.025 | 4.50 @ 587.6nm | 3.05 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-LASF44 | 40-20 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 4.5 X 4.5 VIS EXT CTD TS | 88-627 | 4.50 +0.0/-0.025 | 4.50 @ 587.6nm | 3.05 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-LASF44 | 40-20 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径 x 4.5mm焦距， VIS-NIR镀膜 | 47-855 | 4.50 +0.0/-0.025 | 4.50 @ 587.6nm | 3.05 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-LASF44 | 40-20 | 1.5λ | λ/4 | ±1 | |
| LENS PCX 4.5 X 4.5 YAG-BBAR CTD TS | 88-786 | 4.50 +0.0/-0.025 | 4.50 @ 587.6nm | 3.05 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-LASF44 | 40-20 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径x 9mm焦距，MgF2镀膜 | 45-148 | 4.50 +0.0/-0.025 | 9.00 @ 587.6nm | 7.41 | MgF2 (400-700nm) | Ravg ≤1.75% @ 400 - 700nm | N-BK7 | 40-20 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径 x 9.0mm焦距，NIR I镀膜 | 48-708 | 4.50 +0.0/-0.025 | 9.00 @ 587.6nm | 7.41 | NIR I (600-1050nm) | Ravg ≤0.5% @ 600 - 1050nm | N-BK7 | 40-20 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径x 9mm焦距，不镀膜 | 45-147 | 4.50 +0.0/-0.025 | 9.00 @ 587.6nm | 7.41 | Uncoated | N-BK7 | 40-20 | 1.5λ | λ/4 | ±1 | ||
| 平凸透镜，4.5mm直径 x 9.0mm焦距， VIS 0镀膜 | 47-867 | 4.50 +0.0/-0.025 | 9.00 @ 587.6nm | 7.41 | VIS 0° (425-675nm) | Ravg ≤0.4% @ 425 - 675nm | N-BK7 | 40-20 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径 x 9.0mm焦距，VIS-EXT镀膜 | 88-628 | 4.50 +0.0/-0.025 | 9.00 @ 587.6nm | 7.41 | VIS-EXT (350-700nm) | Ravg <0.5% @ 350 - 700nm | N-BK7 | 40-20 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径 x 9.0mm焦距， VIS-NIR镀膜 | 47-856 | 4.50 +0.0/-0.025 | 9.00 @ 587.6nm | 7.41 | VIS-NIR (400-1000nm) | Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm | N-BK7 | 40-20 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径 x 9.0mm焦距，YAG-BBAR镀膜 | 88-787 | 4.50 +0.0/-0.025 | 9.00 @ 587.6nm | 7.41 | YAG-BBAR (500-1100nm) | Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm | N-BK7 | 40-20 | 1.5λ | λ/4 | ±1 | |
| 平凸透镜，4.5mm直径 x 9.0mm焦距，NIR II镀膜 | 67-452 | 4.50 +0.0/-0.025 | 9.00 @ 587.6nm | 7.41 | NIR II (750-1550nm) | Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm | N-BK7 | 40-20 | 1.5λ | λ/4 | ±1 |
Copyright © 2020 上海晰微光电技术有限公司 Shanghai Gewtec Co., Ltd.
ALL RIGHTS RESERVED 沪ICP备20020489号-1
