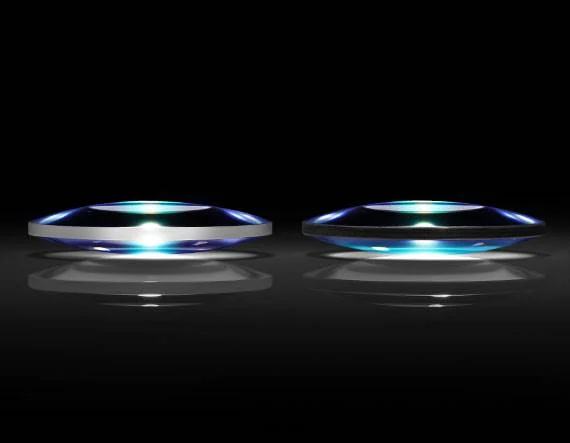

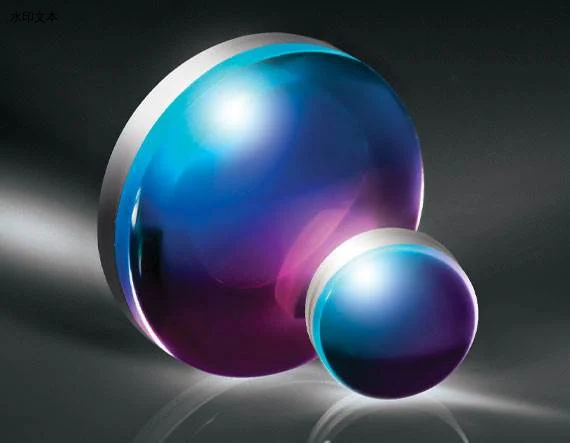

YAG-BBAR 镀膜双凸透镜

YAG-BBAR 镀膜双凸透镜

￥ 0.00
0.00


TECHSPEC® YAG-BBAR 镀膜双凸透镜有两个正的、对称的面，两边的半径相等。这些透镜通常被推荐用于共轭比（物距和像距之间的比率）在0.2和5之间的有限成像应用。在共轭比为1时，由于对称透镜的设计，球差、色差、慧差和畸变等像差得以最小化或消除。TECHSPEC 双凸透镜有多种基底和镀膜可选，适用于可见光和近红外光谱。

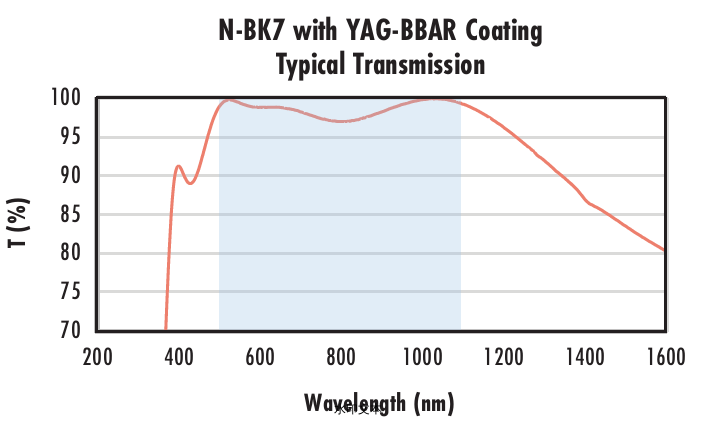

  • 针对在532nm 和 1064nm下R<0.25% 进行了优化

  • 最大限度地减少球差和慧差

  • 提供紫外熔融石英双凸透镜

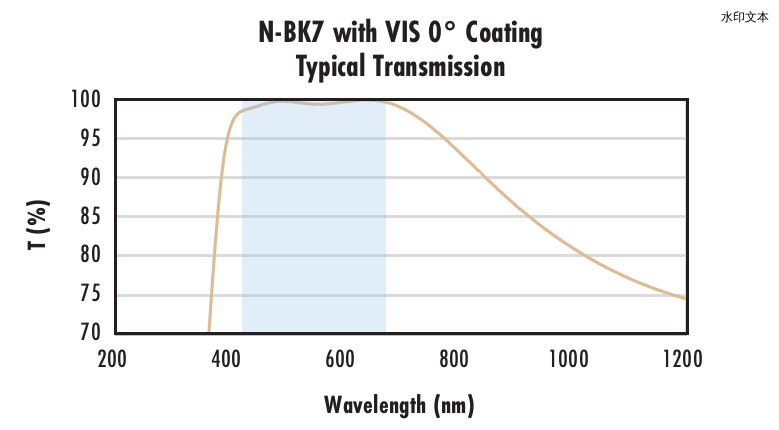

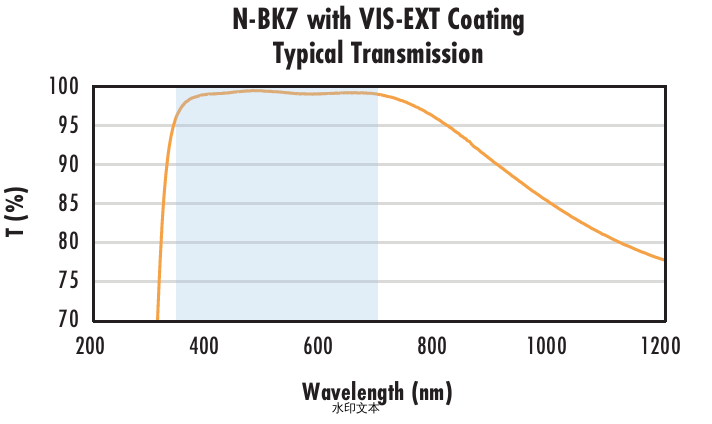

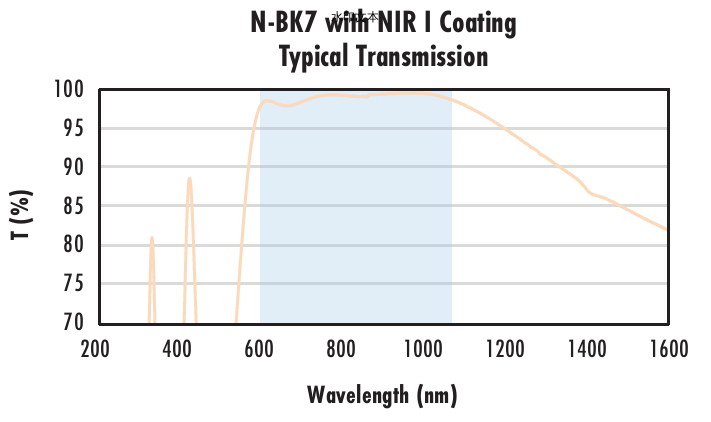

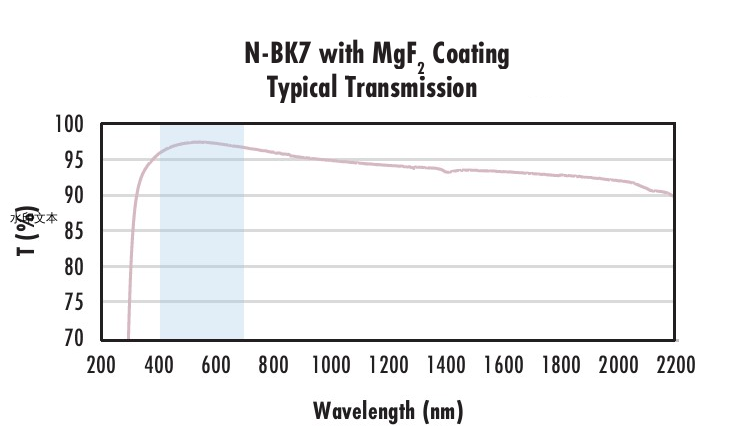

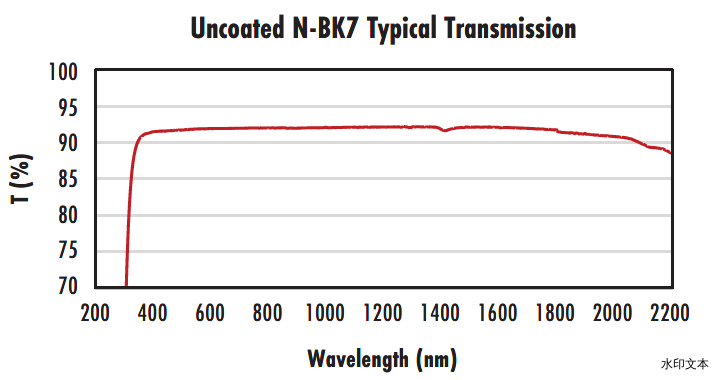

  • 其他镀膜选项： 未镀膜、 MgF2、NIR I、 NIR II、 VIS-EXT、 VIS-NIR 和 YAG-BBAR


                           产品

标题产品编码Dia. (mm)BFL (mm)EFL (mm)涂层涂层规格基底表面质量Power (P-V) @ 632.8nmIrregularity (P-V) @ 632.8nm中心偏（弧分）
LENS DCX 3 X 3 YAG-BBAR TS89-2053.00 +0.0/-0.0252.21 3.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF5 20-10 1.5λ λ/4 30-45, typical
LENS DCX 3 X 4.5 YAG-BBAR TS89-2063.00 +0.0/-0.0253.78 4.50 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 20-10 1.5λ λ/4 30-45, typical
LENS DCX 3 X 6 YAG-BBAR TS89-2073.00 +0.0/-0.0255.37 6.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 20-10 1.5λ λ/4 <3
LENS DCX 3 X 9 YAG-BBAR TS89-2083.00 +0.0/-0.0258.46 9.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 20-10 1.5λ λ/4 <3
LENS DCX 4.5 X 4.5 YAG-BBAR CTD TS89-2094.50 +0.000/-0.0253.7 4.50 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-LASF44 40-20 1.5λ λ/4 30-45, typical
LENS DCX 4.5 X 9 YAG-BBAR TS89-2104.50 +0.0/-0.0258.16 9.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <3
LENS DCX 5 X 5 YAG-BBAR TS89-2115.00 +0.0/-0.0254.19 5.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF5 40-20 1.5λ λ/4 30-45, typical
LENS DCX 5 X 10 YAG-BBAR TS89-2125.00 +0.0/-0.0259.31 10.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <3
LENS DCX 5 X 15 YAG-BBAR TS89-2135.00 +0.0/-0.02514.33 15.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 5 X 20 YAG-BBAR TS89-2145.00 +0.0/-0.02519.5 20.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 5 X 25 YAG-BBAR TS89-2155.00 +0.0/-0.02524.5 25.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 6 X 6 YAG-BBAR TS89-2166.00 +0.0/-0.0255.19 6.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF5 40-20 1.5λ λ/4 <3
LENS DCX 6 X 9 YAG-BBAR TS89-2176.00 +0.0/-0.0258.22 9.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <3
LENS DCX 6 X 12 YAG-BBAR TS89-2186.00 +0.0/-0.02511.18 12.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 6 X 18 YAG-BBAR TS89-2196.00 +0.0/-0.02517.26 18.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 6 X 24 YAG-BBAR TS89-2206.00 +0.0/-0.02523.13 24.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 6 X 30 YAG-BBAR TS89-2216.00 +0.0/-0.02529.23 30.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 6 X 36 YAG-BBAR TS89-2226.00 +0.0/-0.02535.33 36.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 9 X 9 YAG-BBAR TS89-2239.00 +0.0/-0.0257.9 9.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF5 40-20 1.5λ λ/4 <3
LENS DCX 9 X 13.5 YAG-BBAR TS89-2249.00 +0.0/-0.02512.56 13.50 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 9 X 18 YAG-BBAR TS89-2259.00 +0.0/-0.02517.12 18.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 9 X 27 YAG-BBAR TS89-2269.00 +0.0/-0.02526.08 27.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 9 X 36 YAG-BBAR TS89-2279.00 +0.0/-0.02535.15 36.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 9 X 45 YAG-BBAR TS89-2289.00 +0.0/-0.02544.17 45.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 10 X 10 YAG-BBAR TS89-22910.00 +0.0/-0.0258.89 10.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF5 40-20 1.5λ λ/4 <1
LENS DCX 10 X 15 YAG-BBAR TS89-23110.00 +0.0/-0.02513.8 15.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 10 X 20 YAG-BBAR TS89-23310.00 +0.0/-0.02519.16 20.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 10 X 25 YAG-BBAR TS89-23410.00 +0.0/-0.02524.16 25.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 10 X 30 YAG-BBAR TS89-23510.00 +0.0/-0.02529.17 30.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 10 X 40 YAG-BBAR TS89-23610.00 +0.0/-0.02539.16 40.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 10 X 50 YAG-BBAR TS89-23710.00 +0.0/-0.02549.17 50.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 10 X 100 YAG-BBAR TS89-23810.00 +0.0/-0.02599.17 100.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 12 X 12 YAG-BBAR TS89-23912.00 +0.0/-0.02510.79 12.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF5 40-20 1.5λ λ/4 <1
LENS DCX 12 X 18 YAG-BBAR TS89-24012.00 +0.0/-0.02516.81 18.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 12 x 24 YAG-BBAR TS34-19412.00 +0.0/-0.02522.65 24.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 12 X 30 YAG-BBAR TS89-24212.00 +0.0/-0.02528.75 30.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 12 X 36 YAG-BBAR TS89-24312.00 +0.0/-0.02534.9 36.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 12 X 48 YAG-BBAR TS89-24412.00 +0.0/-0.02547.09 48.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 12 X 72 YAG-BBAR TS89-24512.00 +0.0/-0.02571.07 72.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 15 X 15 YAG-BBAR TS89-24615.00 +0.0/-0.02513.68 15.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF11 40-20 1.5λ λ/4 <1
LENS DCX 15 X 20 YAG-BBAR TS89-24715.00 +0.0/-0.02518.99 20.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF11 40-20 1.5λ λ/4 <1
LENS DCX 15 X 22.5 YAG-BBAR TS89-24815.00 +0.0/-0.02521.29 22.50 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF11 40-20 1.5λ λ/4 <1
LENS DCX 15 X 25 YAG-BBAR TS89-24915.00 +0.0/-0.02523.82 25.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 15 X 30 YAG-BBAR TS89-25015.00 +0.0/-0.02528.82 30.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 15 X 45 YAG-BBAR TS89-25115.00 +0.0/-0.02544.00 45.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 15 X 50 YAG-BBAR TS89-25215.00 +0.0/-0.02549.00 50.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 15 X 60 YAG-BBAR TS89-25315.00 +0.0/-0.02559.00 60.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 18 X 18 YAG-BBAR TS89-25418.00 +0.0/-0.02516.69 18.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF11 40-20 1.5λ λ/4 <1
LENS DCX 18 X 27 YAG-BBAR TS89-25518.00 +0.0/-0.02525.25 27.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 18 X 36 YAG-BBAR TS89-25618.00 +0.0/-0.02534.59 36.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 20 X 20 YAG-BBAR TS89-25720.00 +0.0/-0.02518.55 20.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF11 40-20 1.5λ λ/4 <1
LENS DCX 20 X 25 YAG-BBAR TS89-25820.00 +0.0/-0.02523.86 25.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF11 40-20 1.5λ λ/4 <1
LENS DCX 20 X 30 YAG-BBAR TS89-25920.00 +0.0/-0.02528.2 30.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 20 X 40 YAG-BBAR TS89-26020.00 +0.0/-0.02538.44 40.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 20 X 50 YAG-BBAR TS89-26120.00 +0.0/-0.02548.84 50.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 20 X 60 YAG-BBAR TS89-26220.00 +0.0/-0.02558.67 60.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 20 X 80 YAG-BBAR TS89-26320.00 +0.0/-0.02578.67 80.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 25 X 25 YAG-BBAR TS89-26425.00 +0.0/-0.02522.47 25.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF5 40-20 1.5λ λ/4 <1
LENS DCX 25 X 30 YAG-BBAR TS89-26525.00 +0.0/-0.02528.31 30.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF5 40-20 1.5λ λ/4 <1
LENS DCX 25 X 35 YAG-BBAR TS89-26625.00 +0.0/-0.02532.81 35.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 25 X 40 YAG-BBAR TS89-26725.00 +0.0/-0.02538.21 40.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 25 X 50 YAG-BBAR TS89-26825.00 +0.0/-0.02548.29 50.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 25 X 75 YAG-BBAR TS89-26925.00 +0.0/-0.02573.84 75.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 25 X 100 YAG-BBAR TS89-27025.00 +0.0/-0.02598.95 100.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 25 X 125 YAG-BBAR TS89-27125.00 +0.0/-0.025123.84 125.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 25 X 150 YAG-BBAR TS89-27225.00 +0.0/-0.025148.88 150.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 25 X 175 YAG-BBAR TS89-27325.00 +0.0/-0.025173.94 175.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 25 x 200 YAG-BBAR TS34-19525.00 +0.0/-0.025198.35 200.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 30 X 30 YAG-BBAR TS89-27630.00 +0.0/-0.02528.12 30.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF11 40-20 1.5λ λ/4 <1
LENS DCX 30 X 50 YAG-BBAR TS89-27730.00 +0.0/-0.02547.82 50.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 30 X 60 YAG-BBAR TS89-27830.00 +0.0/-0.02558.33 60.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 30 X 75 YAG-BBAR TS89-27930.00 +0.0/-0.02573.35 75.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 30 X 100 YAG-BBAR TS89-28030.00 +0.0/-0.02598.34 100.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 30 X 120 YAG-BBAR TS89-28130.00 +0.0/-0.025118.34 120.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 40 X 40 YAG-BBAR TS89-28240.00 +0.0/-0.02537.54 40.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF11 40-20 1.5λ λ/4 <1
LENS DCX 40 X 60 YAG-BBAR TS89-28340.00 +0.0/-0.02557.1 60.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 40 x 80 YAG-BBAR TS34-19640.00 +0.0/-0.02577.32 80.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 40 x 100 YAG-BBAR TS34-19740.00 +0.0/-0.02597.33 100.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 40 X 120 YAG-BBAR TS89-28640.00 +0.0/-0.025117.67 120.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 40 x 200 YAG-BBAR TS34-19840.00 +0.0/-0.025197.35 200.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 50 X 50 YAG-BBAR TS89-28950.00 +0.0/-0.02545.3 50.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-SF11 40-20 1.5λ λ/4 <1
LENS DCX 50 X 100 YAG-BBAR TS89-29050.00 +0.0/-0.02596.65 100.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 50 X 150 YAG-BBAR TS89-29150.00 +0.0/-0.025147.00 150.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 50 X 200 YAG-BBAR TS89-29250.00 +0.0/-0.025198.33 200.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1
LENS DCX 50 X 250 YAG-BBAR TS89-29350.00 +0.0/-0.025248.37 250.00 YAG-BBAR (500-1100nm) Rabs <0.25% @ 532nm Rabs <0.25% @ 1064nm Ravg <1.0% @ 500 - 1100nm N-BK7 40-20 1.5λ λ/4 <1


                             技术数据
