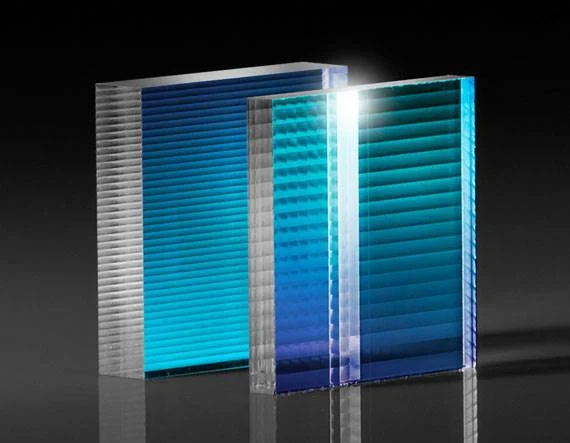

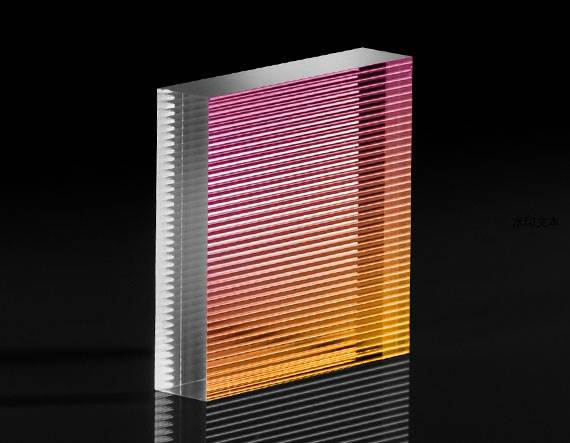

微透镜阵列可用于将各种现代光发射器从窄线准分子激光器均匀化为高功率LED。微透镜非常适合需要高效率和非高斯均匀性的应用。所有微透镜阵列均由紫外级熔融石英构成，具有200nm至2.5μm的卓越性能。微透镜阵列使用标准半导体技术制造，能够实现非常精确的透镜轮廓形状和透镜在阵列内的精确定位。我们提供两种配置的阵列：


  • 方形透镜和蝇眼配置

  • 精密熔融石英基片

                           产品

标题产品编码EFL (mm)基底涂层类型波长范围 (nm)CA (mm)涂层规格尺寸容差 (mm)尺寸 (mm)发散角 (°)
复眼透镜阵列10 x 10毫米，阵列间距250微米，6度扩散角64-4891.60 Fused Silica (Corning 7980)Uncoated Fly's Eye Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±5
复眼透镜阵列10 x 10毫米，阵列间距300微米，10度扩散角64-4900.80 Fused Silica (Corning 7980)Uncoated Fly's Eye Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±10
复眼透镜阵列，10 x 10mm，300μm间隔，13°发散角83-9100.60 Fused Silica (Corning 7980)Uncoated Fly's Eye Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±13
Fly's Eye Array 10 x 10mm, 350µm Pitch, 6.5° Divergence12-8441.59 Fused Silica (Corning 7980)Uncoated Fly's Eye Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±6.5
Fly's Eye Array 10 x 10mm, 400µm Pitch, 6° Divergence12-8451.53 Fused Silica (Corning 7980)Uncoated Fly's Eye Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±6
复眼透镜阵列5 x 5毫米，阵列间距250微米，5度扩散角64-4881.60 Fused Silica (Corning 7980)Uncoated Fly's Eye Lens Array 200 - 2200 4.00 x 4.00
±0.05 5.0 x 5.0 ±5
复眼透镜阵列，5 x 5mm，300μm间隔，13°发散角84-1320.60 Fused Silica (Corning 7980)Uncoated Fly's Eye Lens Array 200 - 2200 4.00 x 4.00
±0.05 5.0 x 5.0 ±13
微阵列透镜，尺寸10 x 10毫米，阵列间距300微米，0.5度扩散角64-47818.80 Fused Silica (Corning 7980)Uncoated Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±0.5
Microlens Array 10 x 10mm, 300μm Pitch, 0.5° Divergence, UV-VIS Coated21-14618.80 Fused Silica UV-VIS (250-700nm) Lens Array 250 - 700
Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm ±0.05 10.0 x 10.0 ±0.5
Microlens Array 10 x 10mm, 300μm Pitch, 0.5° Divergence, VIS-NIR Coated15-81218.80 Fused Silica (Corning 7980)VIS-NIR (400-1000nm) Lens Array 400 - 1000
Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm ±0.05 10.0 x 10.0 ±0.5
Microlens Array 10 x 10mm, 300μm Pitch, 0.5° Divergence, NIR II Coated21-14718.80 Fused Silica NIR II (750-1550nm) Lens Array 750 - 1550
Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm ±0.05 10.0 x 10.0 ±0.5
Microlens Array 10 x 10mm, 300μm Pitch, 0.5° Divergence, VIS 0° Coated72-24318.80 Fused Silica (Corning 7980)VIS 0° (425-675nm) Lens Array 425 - 675 9.00 x 9.00 Ravg ≤ 0.4% @ 425 - 675nm ±0.05 10.0 x 10.0 ±0.5
微阵列透镜，尺寸10 x 10毫米，阵列间距300微米，1度扩散角64-4778.70 Fused Silica (Corning 7980)Uncoated Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±1
Microlens Array 10 x 10mm, 300μm Pitch, 1° Divergence, UV-VIS Coated21-1488.70 Fused Silica UV-VIS (250-700nm) Lens Array 250 - 700
Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm ±0.05 10.0 x 10.0 ±1
Microlens Array 10 x 10mm, 300μm Pitch, 1° Divergence, VIS-NIR Coated15-8118.70 Fused Silica (Corning 7980)VIS-NIR (400-1000nm) Lens Array 400 - 1000
Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm ±0.05 10.0 x 10.0 ±1
Microlens Array 10 x 10mm, 300μm Pitch, 1° Divergence, NIR II Coated21-1498.70 Fused Silica NIR II (750-1550nm) Lens Array 750 - 1550
Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm ±0.05 10.0 x 10.0 ±1
Microlens Array 10 x 10mm, 300μm Pitch, 1° Divergence, VIS 0° Coated72-2428.70 Fused Silica (Corning 7980)VIS 0° (425-675nm) Lens Array 425 - 675 9.00 x 9.00 Ravg ≤ 0.4% @ 425 - 675nm ±0.05 10.0 x 10.0 ±1
微阵列透镜，尺寸10 x 10毫米，阵列间距300微米，1.6度扩散角64-4765.10 Fused Silica (Corning 7980)Uncoated Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±1.6
Microlens Array 10 x 10mm, 300μm Pitch, 1.6° Divergence, UV-VIS Coated21-1505.10 Fused Silica UV-VIS (250-700nm) Lens Array 250 - 750
Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm ±0.05 10.0 x 10.0 ±1.6
Microlens Array 10 x 10mm, 300μm Pitch, 1.6° Divergence, VIS-NIR Coated15-8105.10 Fused Silica (Corning 7980)VIS-NIR (400-1000nm) Lens Array 400 - 1000
Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm ±0.05 10.0 x 10.0 ±1.6
Microlens Array 10 x 10mm, 300μm Pitch, 1.6° Divergence, NIR II Coated21-1515.10 Fused Silica NIR II (750-1550nm) Lens Array 750 - 1550
Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm ±0.05 10.0 x 10.0 ±1.6
Microlens Array 10 x 10mm, 300μm Pitch, 1.6° Divergence, VIS 0° Coated72-2415.10 Fused Silica (Corning 7980)VIS 0° (425-675nm) Lens Array 425 - 675 9.00 x 9.00 Ravg ≤ 0.4% @ 425 - 675nm ±0.05 10.0 x 10.0 ±1.6
微镜片阵列，10 x 10mm，300μm间距，2°发散角86-7454.80 Fused Silica (Corning 7980)Uncoated Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±2.0
Microlens Array 10 x 10mm, 300μm Pitch, 2° Divergence, UV-VIS Coated21-1524.80 Fused Silica UV-VIS (250-700nm) Lens Array 250 - 750
Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm ±0.05 10.0 x 10.0 ±2.0
Microlens Array 10 x 10mm, 300μm Pitch, 2° Divergence, VIS-NIR Coated15-8094.80 Fused Silica (Corning 7980)VIS-NIR (400-1000nm) Lens Array 400 - 1000
Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm ±0.05 10.0 x 10.0 ±2.0
Microlens Array 10 x 10mm, 300μm Pitch, 2° Divergence, NIR II Coated21-1534.80 Fused Silica NIR II (750-1550nm) Lens Array 750 - 1550
Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm ±0.05 10.0 x 10.0 ±2.0
Microlens Array 10 x 10mm, 300μm Pitch, 2° Divergence, VIS 0° Coated72-2404.80 Fused Silica (Corning 7980)VIS 0° (425-675nm) Lens Array 425 - 675 9.00 x 9.00 Ravg ≤ 0.4% @ 425 - 675nm ±0.05 10.0 x 10.0 ±2.0
微阵列透镜，尺寸10 x 10毫米，阵列间距500微米，0.25度扩散角64-48346.70 Fused Silica (Corning 7980)Uncoated Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±0.25
Microlens Array 10 x 10mm, 500μm Pitch, 0.25° Divergence, UV-VIS Coated21-15446.70 Fused Silica UV-VIS (250-700nm) Lens Array 250 - 750
Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm ±0.05 10.0 x 10.0 ±0.25
Microlens Array 10 x 10mm, 500μm Pitch, 0.25° Divergence, VIS-NIR Coated15-81646.70 Fused Silica (Corning 7980)VIS-NIR (400-1000nm) Lens Array 400 - 1000
Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm ±0.05 10.0 x 10.0 ±0.25
Microlens Array 10 x 10mm, 500μm Pitch, 0.25° Divergence, NIR II Coated21-15546.70 Fused Silica NIR II (750-1550nm) Lens Array 750 - 1550
Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm ±0.05 10.0 x 10.0 ±0.25
Microlens Array 10 x 10mm, 500μm Pitch, 0.25° Divergence, VIS 0° Coated72-24846.70 Fused Silica (Corning 7980)VIS 0° (425-675nm) Lens Array 425 - 675 9.00 x 9.00 Ravg ≤ 0.4% @ 425 - 675nm ±0.05 10.0 x 10.0 ±0.25
微阵列透镜，尺寸10 x 10毫米，阵列间距500微米，0.5度扩散角64-48232.80 Fused Silica (Corning 7980)Uncoated Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±0.5
Microlens Array 10 x 10mm, 500μm Pitch, 0.5° Divergence, UV-VIS Coated21-15632.80 Fused Silica UV-VIS (250-700nm) Lens Array 250 - 750
Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm ±0.05 10.0 x 10.0 ±0.5
Microlens Array 10 x 10mm, 500μm Pitch, 0.5° Divergence, VIS-NIR Coated15-81532.80 Fused Silica (Corning 7980)VIS-NIR (400-1000nm) Lens Array 400 - 1000
Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm ±0.05 10.0 x 10.0 ±0.5
Microlens Array 10 x 10mm, 500μm Pitch, 0.5° Divergence, NIR II Coated21-15732.80 Fused Silica NIR II (750-1550nm) Lens Array 750 - 1550
Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm ±0.05 10.0 x 10.0 ±0.5
Microlens Array 10 x 10mm, 500μm Pitch, 0.5° Divergence, VIS 0° Coated72-24632.80 Fused Silica (Corning 7980)VIS 0° (425-675nm) Lens Array 425 - 675 9.00 x 9.00 Ravg ≤ 0.4% @ 425 - 675nm ±0.05 10.0 x 10.0 ±0.5
微阵列透镜，尺寸10 x 10毫米，阵列间距500微米，1度扩散角64-48015.30 Fused Silica (Corning 7980)Uncoated Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±1
Microlens Array 10 x 10mm, 500μm Pitch, 1° Divergence, UV-VIS Coated21-15815.30 Fused Silica UV-VIS (250-700nm) Lens Array 250 - 750
Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm ±0.05 10.0 x 10.0 ±1
Microlens Array 10 x 10mm, 500μm Pitch, 1° Divergence, VIS-NIR Coated15-81415.30 Fused Silica (Corning 7980)VIS-NIR (400-1000nm) Lens Array 400 - 1000
Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm ±0.05 10.0 x 10.0 ±1
Microlens Array 10 x 10mm, 500μm Pitch, 1° Divergence, NIR II Coated21-15915.30 Fused Silica NIR II (750-1550nm) Lens Array 750 - 1550
Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm ±0.05 10.0 x 10.0 ±1
Microlens Array 10 x 10mm, 500μm Pitch, 1° Divergence, VIS 0° Coated72-24515.30 Fused Silica (Corning 7980)VIS 0° (425-675nm) Lens Array 425 - 675 9.00 x 9.00 Ravg ≤ 0.4% @ 425 - 675nm ±0.05 10.0 x 10.0 ±1
微阵列透镜，尺寸10 x 10毫米，阵列间距500微米，1.2度扩散角64-47913.80 Fused Silica (Corning 7980)Uncoated Lens Array 200 - 2200 9.00 x 9.00
±0.05 10.0 x 10.0 ±1.2
Microlens Array 10 x 10mm, 500μm Pitch, 1.2° Divergence, UV-VIS Coated21-16013.80 Fused Silica UV-VIS (250-700nm) Lens Array 250 - 750
Rabs ≤1.0% @ 350 - 450nm Ravg ≤1.5% @ 250 - 700nm ±0.05 10.0 x 10.0 ±1.2
Microlens Array 10 x 10mm, 500μm Pitch, 1.2° Divergence, VIS-NIR Coated15-81313.80 Fused Silica (Corning 7980)VIS-NIR (400-1000nm) Lens Array 400 - 1000
Rabs ≤0.25% @ 880nm Ravg ≤1.25% @ 400 - 870nm Ravg ≤1.25% @ 890 - 1000nm ±0.05 10.0 x 10.0 ±1.2
Microlens Array 10 x 10mm, 500μm Pitch, 1.2° Divergence, NIR II Coated21-16113.80 Fused Silica NIR II (750-1550nm) Lens Array 750 - 1550
Rabs ≤1.5% @ 750 - 800nm Rabs ≤1.0% @ 800 - 1550nm Ravg ≤0.7% @ 750 - 1550nm ±0.05 10.0 x 10.0 ±1.2
Microlens Array 10 x 10mm, 500μm Pitch, 1.2° Divergence, VIS 0° Coated72-24413.80 Fused Silica (Corning 7980)VIS 0° (425-675nm) Lens Array 425 - 675 9.00 x 9.00 Ravg ≤ 0.4% @ 425 - 675nm ±0.05 10.0 x 10.0 ±1.2


产品概览

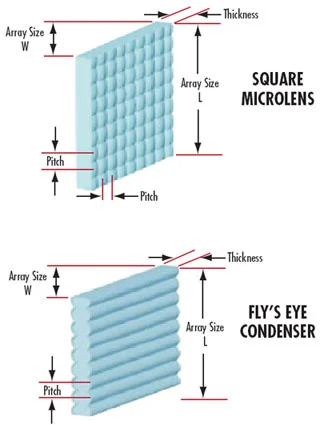

方形微透镜阵列

我们的方形阵列采用标准的10mm x 10mm配置，提供各种透镜间距和焦距选项。方形微透镜通常用于光束均匀化和成形，产生斑点图案或方形平顶图案。这些透镜具有高填充系数，可消除照明区域中的零阶热点。方形透镜通常成对使用，与PCX透镜配合使用（见上文）。典型应用包括焊接、钻孔、激光烧蚀和光纤耦合.

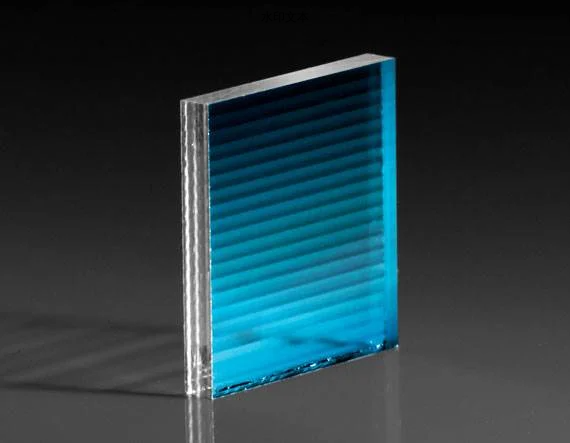

蝇眼聚光镜阵列

我们的蝇眼聚光镜阵列有5和10mm方形配置，专为平顶和线性生成而设计。聚光镜阵列是双表面圆柱形微透镜的整体组件，产生完全无需调节的聚光镜。这些微透镜通常用于需要大照明场的短工作距离应用中，例如医用激光器、太阳能模拟、UV固化、半导体仪器和荧光显微镜.


技术数据
