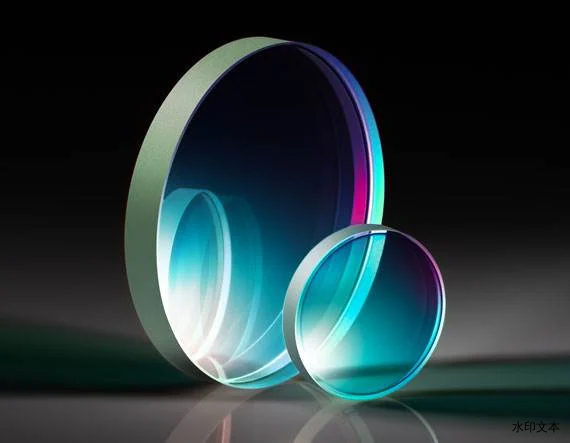

宽带介质膜 ZERODUR®λ/10 反射镜

宽带介质膜 ZERODUR®λ/10 反射镜

￥ 0.00
0.00


TECHSPEC® 宽带介质膜 ZERODUR® λ/10反射镜结合了宽波长范围内的高反射率和接近零的热膨胀系数（CTE），使其成为温度波动可能影响光学性能的激光应用的理想选择。ZERODUR® 基底的热膨胀系数（CTE）为±0.10 x 10-6/°C，这比大多数玻璃类型（包括熔融石英）低一个数量级。这些电介质镀膜的反射镜具有为0-45°AOI和>99%的平均反射率而设计的镀膜，比金属镀膜的反射镜具有更高的反射率，通过最大限度地减少能量损失来提高系统的产量。TECHSPEC® 宽带介质 ZERODUR® λ/10 反射镜是紫外到近红外波长光束转向和光束折叠应用的理想选择，包括 荧光显微镜、流式细胞仪和 激光通信.


  • ZERODUR® 基材的热膨胀近乎零

  • 在金属镀膜上增强反射率和LDT

  • 设计用于 0-45°AOI 的紫外、可见光和近红外反射镀膜

  • 另有 金属镀膜 ZERODUR® 反射镜可供选择


                             产品

标题产品编码Dia. (mm)表面平整度 (P-V)基底后表面表面质量涂层规格涂层镀膜类型AOI (°)

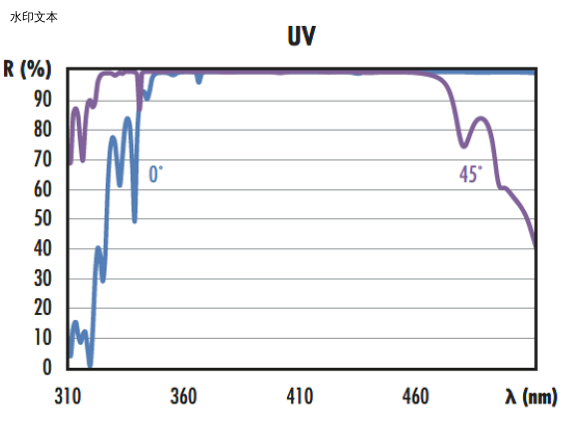

10mm Dia. 320 - 450nm Broadband λ/10 ZERODUR® Mirror24-00910.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 340 - 488nm (0°, All Polarizations) Ravg >98% @ 320 - 450nm (45°, All Polarizations) Ravg >99% @ 320 - 450nm (45°, S-Polarization) Dielectric Mirror (320-450nm) Dielectric 0-45
15mm Dia. 320 - 450nm Broadband λ/10 ZERODUR® Mirror24-01115.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 340 - 488nm (0°, All Polarizations) Ravg >98% @ 320 - 450nm (45°, All Polarizations) Ravg >99% @ 320 - 450nm (45°, S-Polarization) Dielectric Mirror (320-450nm) Dielectric 0-45
20mm Dia. 320 - 450nm Broadband λ/10 ZERODUR® Mirror24-01320.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 340 - 488nm (0°, All Polarizations) Ravg >98% @ 320 - 450nm (45°, All Polarizations) Ravg >99% @ 320 - 450nm (45°, S-Polarization) Dielectric Mirror (320-450nm) Dielectric 0-45
25mm Dia. 320 - 450nm Broadband λ/10 ZERODUR® Mirror24-01525.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 340 - 488nm (0°, All Polarizations) Ravg >98% @ 320 - 450nm (45°, All Polarizations) Ravg >99% @ 320 - 450nm (45°, S-Polarization) Dielectric Mirror (320-450nm) Dielectric 0-45
40mm Dia. 320 - 450nm Broadband λ/10 ZERODUR® Mirror24-01740.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 340 - 488nm (0°, All Polarizations) Ravg >98% @ 320 - 450nm (45°, All Polarizations) Ravg >99% @ 320 - 450nm (45°, S-Polarization) Dielectric Mirror (320-450nm) Dielectric 0-45
50mm Dia. 320 - 450nm Broadband λ/10 ZERODUR® Mirror24-01950.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 340 - 488nm (0°, All Polarizations) Ravg >98% @ 320 - 450nm (45°, All Polarizations) Ravg >99% @ 320 - 450nm (45°, S-Polarization) Dielectric Mirror (320-450nm) Dielectric 0-45

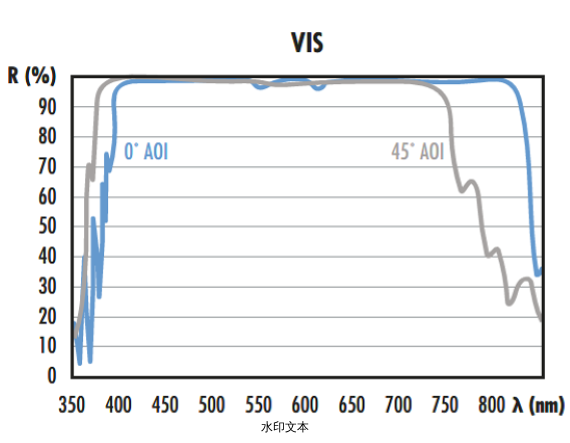

10mm Dia. 400 - 750nm Broadband λ/10 ZERODUR® Mirror24-02110.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 400 - 750nm (0 - 45°) Ravg >99% @ 400 - 750nm (0°) Dielectric Mirror (400-750nm) Dielectric 0-45
15mm Dia. 400 - 750nm Broadband λ/10 ZERODUR® Mirror24-02315.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 400 - 750nm (0 - 45°) Ravg >99% @ 400 - 750nm (0°) Dielectric Mirror (400-750nm) Dielectric 0-45
20mm Dia. 400 - 750nm Broadband λ/10 ZERODUR® Mirror24-02520.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 400 - 750nm (0 - 45°) Ravg >99% @ 400 - 750nm (0°) Dielectric Mirror (400-750nm) Dielectric 0-45
25mm Dia. 400 - 750nm Broadband λ/10 ZERODUR® Mirror24-02725.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 400 - 750nm (0 - 45°) Ravg >99% @ 400 - 750nm (0°) Dielectric Mirror (400-750nm) Dielectric 0-45
40mm Dia. 400 - 750nm Broadband λ/10 ZERODUR® Mirror24-02940.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 400 - 750nm (0 - 45°) Ravg >99% @ 400 - 750nm (0°) Dielectric Mirror (400-750nm) Dielectric 0-45
50mm Dia. 400 - 750nm Broadband λ/10 ZERODUR® Mirror24-03150.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 400 - 750nm (0 - 45°) Ravg >99% @ 400 - 750nm (0°) Dielectric Mirror (400-750nm) Dielectric 0-45

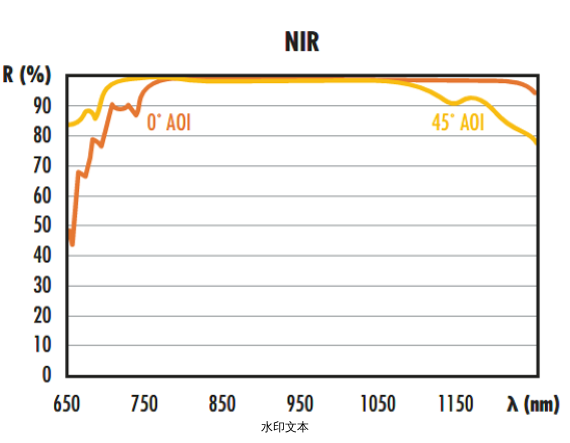

10mm Dia. 750 - 1100nm Broadband λ/10 ZERODUR® Mirror24-03310.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 750 - 1100nm (0 - 45°) Ravg >99% @ 750 - 1100nm (0°) Dielectric Mirror (750-1100nm) Dielectric 0-45
15mm Dia. 750 - 1100nm Broadband λ/10 ZERODUR® Mirror24-03515.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 750 - 1100nm (0 - 45°) Ravg >99% @ 750 - 1100nm (0°) Dielectric Mirror (750-1100nm) Dielectric 0-45
20mm Dia. 750 - 1100nm Broadband λ/10 ZERODUR® Mirror24-03720.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 750 - 1100nm (0 - 45°) Ravg >99% @ 750 - 1100nm (0°) Dielectric Mirror (750-1100nm) Dielectric 0-45
25mm Dia. 750 - 1100nm Broadband λ/10 ZERODUR® Mirror24-03925.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 750 - 1100nm (0 - 45°) Ravg >99% @ 750 - 1100nm (0°) Dielectric Mirror (750-1100nm) Dielectric 0-45
40mm Dia. 750 - 1100nm Broadband λ/10 ZERODUR® Mirror24-04140.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 750 - 1100nm (0 - 45°) Ravg >99% @ 750 - 1100nm (0°) Dielectric Mirror (750-1100nm) Dielectric 0-45
50mm Dia. 750 - 1100nm Broadband λ/10 ZERODUR® Mirror24-04350.00 +0.00/-0.20λ/10 ZERODUR® Commercial Polish 20-10 Ravg >98% @ 750 - 1100nm (0 - 45°) Ravg >99% @ 750 - 1100nm (0°) Dielectric Mirror (750-1100nm) Dielectric 0-45


                                 技术数据
