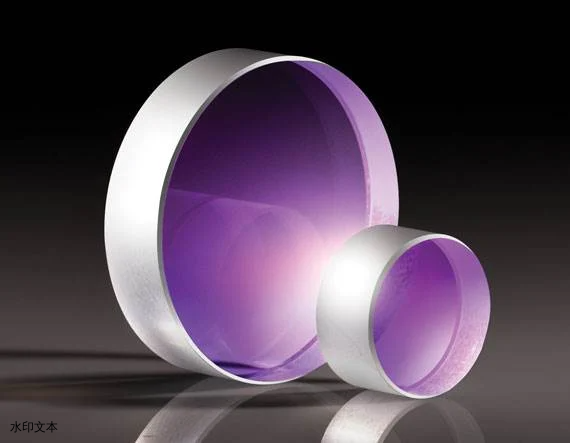

λ/10 激光线镀膜窗口片

λ/10 激光线镀膜窗口片

￥ 0.00
0.00


TECHSPEC λ/10 激光镀膜窗口片是为直接集成到激光应用而设计的。这个坚固的产品系列有常见的超大尺寸，其中很多都提供多种厚度选择。增透膜在普通激光波长上可用，为光学系统传输减少表面反射. TECHSPEC λ/10 激光镀膜窗口片具备激光等级规格，包括 λ/10 表面平坦度、10-5 表面质量以及 <3 弧分并行度。这些窗口片是从保护罩到分离各种环境等工业激光应用的理想选择.



  • 10-5 表面质量

  • 在设计波长内保证损坏阈值

  • 直径介于 12.7 毫米到 50.8 毫米

  • 另有未镀膜基片版本


                             产品

标题产品编码AOI (°)CA (mm)涂层DWL (nm)Dia. (mm)基底折射率 (nd)表面质量厚度 (mm)类型平行度（弧分）
266NM LASER WINDOW 12.5MM DIA48-2040 11.25 Laser V-Coat (266nm) 266 12.50 +0.00/-0.10Fused Silica Excimer Grade (Corning 7980 KrF)1.458 10-5 3.00 ±0.10Laser Line Window
12.7mm Dia., 6.35mm Thick, 266nm, λ/10 Fused Silica Window38-9180 11.43 Laser V-Coat (266nm) 266 12.70 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
19.1mm Dia., 6.35mm Thick, 266nm, λ/10 Fused Silica Window38-9210 17.19 Laser V-Coat (266nm) 266 19.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
266NM LASER WINDOW 25MM DIA48-2050 22.50 Laser V-Coat (266nm) 266 25.00 +0.00/-0.10Fused Silica Excimer Grade (Corning 7980 KrF)1.458 10-5 3.00 ±0.10Laser Line Window
25.4mm Dia., 6.35mm Thick, 266nm, λ/10 Fused Silica Window38-9230 22.86 Laser V-Coat (266nm) 266 25.40 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
38.1mm Dia., 6.35mm Thick, 266nm, λ/10 Fused Silica Window38-9250 34.29 Laser V-Coat (266nm) 266 38.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
50.8mm Dia., 9.53mm Thick, 266nm, λ/10 Fused Silica Window38-9280 45.72 Laser V-Coat (266nm) 266 50.80 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 9.53 ±0.20Laser Line Window <3
12.7mm Dia., 6.35mm Thick, 343nm, λ/10 Fused Silica Window39-6680 11.43 Laser V-Coat (343nm) 343 12.70 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
19.1mm Dia., 6.35mm Thick, 343nm, λ/10 Fused Silica Window39-6700 17.19 Laser V-Coat (343nm) 343 19.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
25.4mm Dia., 6.35mm Thick, 343nm, λ/10 Fused Silica Window39-6710 22.86 Laser V-Coat (343nm) 343 25.40 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
38.1mm Dia., 6.35mm Thick, 343nm, λ/10 Fused Silica Window39-6730 34.29 Laser V-Coat (343nm) 343 38.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
50.8mm Dia., 9.53mm Thick, 343nm, λ/10 Fused Silica Window39-6750 45.72 Laser V-Coat (343nm) 343 50.80 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 9.53 ±0.20Laser Line Window <3
76.2mm Dia., 12.7mm Thick, 343nm, λ/10 Fused Silica Window27-0400 68.58 Laser V-Coat (343nm) 343 76.20 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 12.70 ±0.20Laser Line Window <3
355NM LASER WINDOW 12.5MM DIA48-2060 11.25 Laser V-Coat (355nm) 355 12.50 +0.00/-0.10Fused Silica Excimer Grade (Corning 7980 KrF)1.458 10-5 3.00 ±0.10Laser Line Window
12.7mm Dia., 6.35mm Thick, 355nm, λ/10 Fused Silica Window38-9360 11.43 Laser V-Coat (355nm) 355 12.70 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
19.1mm Dia., 6.35mm Thick, 355nm, λ/10 Fused Silica Window38-9380 17.19 Laser V-Coat (355nm) 355 19.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
355NM LASER WINDOW 25MM DIA48-2070 22.50 Laser V-Coat (355nm) 355 25.00 +0.00/-0.10Fused Silica Excimer Grade (Corning 7980 KrF)1.458 10-5 3.00 ±0.10Laser Line Window
25.4mm Dia., 6.35mm Thick, 355nm, λ/10 Fused Silica Window38-9420 22.86 Laser V-Coat (355nm) 355 25.40 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
38.1mm Dia., 6.35mm Thick, 355nm, λ/10 Fused Silica Window38-9490 34.29 Laser V-Coat (355nm) 355 38.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
50.8mm Dia., 9.53mm Thick, 355nm, λ/10 Fused Silica Window38-9510 45.72 Laser V-Coat (355nm) 355 50.80 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 9.53 ±0.20Laser Line Window <3
12.7mm Dia., 6.35mm Thick, 515nm, λ/10 Fused Silica Window39-6810 11.43 Laser V-Coat (515nm) 515 12.70 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
19.1mm Dia., 6.35mm Thick, 515nm, λ/10 Fused Silica Window39-6830 17.19 Laser V-Coat (515nm) 515 19.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
25.4mm Dia., 6.35mm Thick, 515nm, λ/10 Fused Silica Window39-6840 22.86 Laser V-Coat (515nm) 515 25.40 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
38.1mm Dia., 6.35mm Thick, 515nm, λ/10 Fused Silica Window39-6880 34.29 Laser V-Coat (515nm) 515 38.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
50.8mm Dia., 9.53mm Thick, 515nm, λ/10 Fused Silica Window39-6900 45.72 Laser V-Coat (515nm) 515 50.80 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 9.53 ±0.20Laser Line Window <3
76.2mm Dia., 12.7mm Thick, 515nm, λ/10 Fused Silica Window27-0410 68.58 Laser V-Coat (515nm) 515 76.20 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 12.70 ±0.20Laser Line Window <3
532NM LASER WINDOW 12.5MM DIA48-2080 11.25 Laser V-Coat (532nm) 532 12.50 +0.00/-0.10Fused Silica Excimer Grade (Corning 7980 KrF)1.458 10-5 3.00 ±0.10Laser Line Window
12.7mm Dia., 6.35mm Thick, 532nm, λ/10 Fused Silica Window38-9660 11.43 Laser V-Coat (532nm) 532 12.70 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
19.1mm Dia., 6.35mm Thick, 532nm, λ/10 Fused Silica Window38-9680 17.19 Laser V-Coat (532nm) 532 19.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
532NM LASER WINDOW 25MM DIA48-2090 22.50 Laser V-Coat (532nm) 532 25.00 +0.00/-0.10Fused Silica Excimer Grade (Corning 7980 KrF)1.458 10-5 3.00 ±0.10Laser Line Window
25.4mm Dia., 6.35mm Thick, 532nm, λ/10 Fused Silica Window38-9690 22.86 Laser V-Coat (532nm) 532 25.40 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
38.1mm Dia., 6.35mm Thick, 532nm, λ/10 Fused Silica Window38-9730 34.29 Laser V-Coat (532nm) 532 38.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
50.8mm Dia., 9.53mm Thick, 532nm, λ/10 Fused Silica Window38-9750 45.72 Laser V-Coat (532nm) 532 50.80 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 9.53 ±0.20Laser Line Window <3
12.7mm Dia., 6.35mm Thick, 980nm, λ/10 Fused Silica Window39-7020 11.43 Laser V-Coat (980nm) 980 12.70 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
19.1mm Dia., 6.35mm Thick, 980nm, λ/10 Fused Silica Window39-7040 17.19 Laser V-Coat (980nm) 980 19.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
25.4mm Dia., 6.35mm Thick, 980nm, λ/10 Fused Silica Window39-7050 22.86 Laser V-Coat (980nm) 980 25.40 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
38.1mm Dia., 6.35mm Thick, 980nm, λ/10 Fused Silica Window39-7070 34.29 Laser V-Coat (980nm) 980 38.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
50.8mm Dia., 9.53mm Thick, 980nm, λ/10 Fused Silica Window39-7100 45.72 Laser V-Coat (980nm) 980 50.80 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 9.53 ±0.20Laser Line Window <3
12.7mm Dia., 6.35mm Thick, 1030nm, λ/10 Fused Silica Window39-7170 11.43 Laser V-Coat (1030nm) 1030 12.70 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
19.1mm Dia., 6.35mm Thick, 1030nm, λ/10 Fused Silica Window39-7190 17.19 Laser V-Coat (1030nm) 1030 19.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
25.4mm Dia., 6.35mm Thick, 1030nm, λ/10 Fused Silica Window39-7200 22.86 Laser V-Coat (1030nm) 1030 25.40 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
38.1mm Dia., 6.35mm Thick, 1030nm, λ/10 Fused Silica Window39-7220 34.29 Laser V-Coat (1030nm) 1030 38.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
50.8mm Dia., 9.53mm Thick, 1030nm, λ/10 Fused Silica Window39-7240 45.72 Laser V-Coat (1030nm) 1030 50.80 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 9.53 ±0.20Laser Line Window <3
76.2mm Dia., 12.7mm Thick, 1030nm, λ/10 Fused Silica Window27-0420 68.58 Laser V-Coat (1030nm) 1030 76.20 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 12.70 ±0.20Laser Line Window <3
1064NM LASER WINDOW 12.5MM DIA48-2100 11.25 Laser V-Coat (1064nm) 1064 12.50 +0.00/-0.10Fused Silica Excimer Grade (Corning 7980 KrF)1.458 10-5 3.00 ±0.10Laser Line Window
12.7mm Dia., 6.35mm Thick, 1064nm, λ/10 Fused Silica Window38-9820 11.43 Laser V-Coat (1064nm) 1064 12.70 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
19.1mm Dia., 6.35mm Thick, 1064nm, λ/10 Fused Silica Window38-9840 17.19 Laser V-Coat (1064nm) 1064 19.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
1064NM LASER WINDOW 25MM DIA48-2110 22.50 Laser V-Coat (1064nm) 1064 25.00 +0.00/-0.10Fused Silica Excimer Grade (Corning 7980 KrF)1.458 10-5 3.00 ±0.10Laser Line Window
25.4mm Dia., 6.35mm Thick, 1064nm, λ/10 Fused Silica Window38-9850 22.86 Laser V-Coat (1064nm) 1064 25.40 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
38.1mm Dia., 6.35mm Thick, 1064nm, λ/10 Fused Silica Window38-9880 34.29 Laser V-Coat (1064nm) 1064 38.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
50.8mm Dia., 9.53mm Thick, 1064nm, λ/10 Fused Silica Window38-9900 45.72 Laser V-Coat (1064nm) 1064 50.80 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 9.53 ±0.20Laser Line Window <3
12.7mm Dia., 6.35mm Thick, 1080nm, λ/10 Fused Silica Window11-3970 11.43 Laser V-Coat (1080nm) 1080 12.70 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
19.1mm Dia., 6.35mm Thick, 1080nm, λ/10 Fused Silica Window11-3990 17.19 Laser V-Coat (1080nm) 1080 19.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
25.4mm Dia., 6.35mm Thick, 1080nm, λ/10 Fused Silica Window11-4000 22.86 Laser V-Coat (1080nm) 1080 25.40 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
38.1mm Dia., 6.35mm Thick, 1080nm, λ/10 Fused Silica Window11-4020 34.29 Laser V-Coat (1080nm) 1080 38.10 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 6.35 ±0.20Laser Line Window <3
50.8mm Dia., 9.53mm Thick, 1080nm, λ/10 Fused Silica Window11-4040 45.72 Laser V-Coat (1080nm) 1080 50.80 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 9.53 ±0.20Laser Line Window <3
25.4mm Dia., 6.35mm Thick, 355nm, λ/10 N-BK7 Window38-9330 22.86 Laser V-Coat (355nm) 355 25.40 +0.00/-0.10N-BK7 1.516 10-5 6.35 ±0.20Laser Line Window <3
25.4mm Dia., 6.35mm Thick, 532nm, λ/10 N-BK7 Window38-9630 22.86 Laser V-Coat (532nm) 532 25.40 +0.00/-0.10N-BK7 1.516 10-5 6.35 ±0.20Laser Line Window <3
25.4mm Dia., 6.35mm Thick, 980nm, λ/10 N-BK7 Window39-6990 22.86 Laser V-Coat (980nm) 980 25.40 +0.00/-0.10N-BK7 1.516 10-5 6.35 ±0.20Laser Line Window <3
12.7mm Dia., 6.35mm Thick, 1064nm, λ/10 N-BK7 Window38-9770 11.43 Laser V-Coat (1064nm) 1064 12.70 +0.00/-0.10N-BK7 1.516 10-5 6.35 ±0.20Laser Line Window <3
38.1mm Dia., 6.35mm Thick, 1064nm, λ/10 N-BK7 Window11-4530 34.29 Laser V-Coat (1064nm) 1064 38.10 +0.00/-0.10N-BK7 1.516 10-5 6.35 ±0.20Laser Line Window <3
76.2mm Dia., 12.7mm Thick, 266nm, λ/10 Fused Silica Window20-4370 68.58 Laser V-Coat (266nm) 266 76.20 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 12.70 ±0.20Laser Line Window <3
76.2mm Dia., 12.7mm Thick, 355nm, λ/10 Fused Silica Window20-4440 68.58 Laser V-Coat (355nm) 355 76.20 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 12.70 ±0.20Laser Line Window <3
76.2mm Dia., 12.7mm Thick, 532nm, λ/10 Fused Silica Window20-4490 68.58 Laser V-Coat (532nm) 532 76.20 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 12.70 ±0.20Laser Line Window <3
76.2mm Dia., 12.7mm Thick, 1064nm, λ/10 Fused Silica Window20-4500 68.58 Laser V-Coat (1064nm) 1064 76.20 +0.00/-0.10Fused Silica (Corning 7980)1.458 10-5 12.70 ±0.20Laser Line Window <3

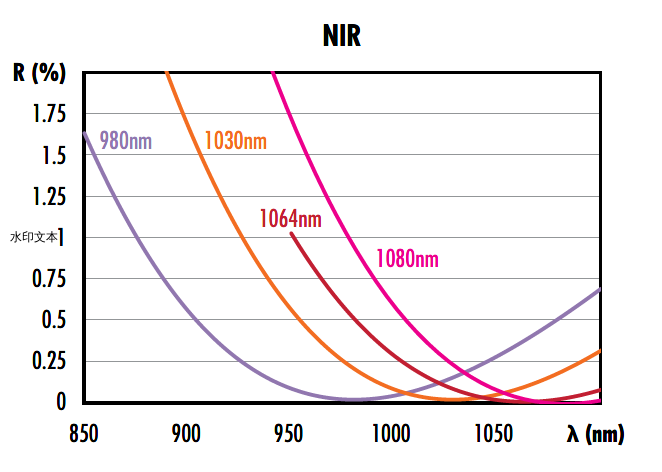

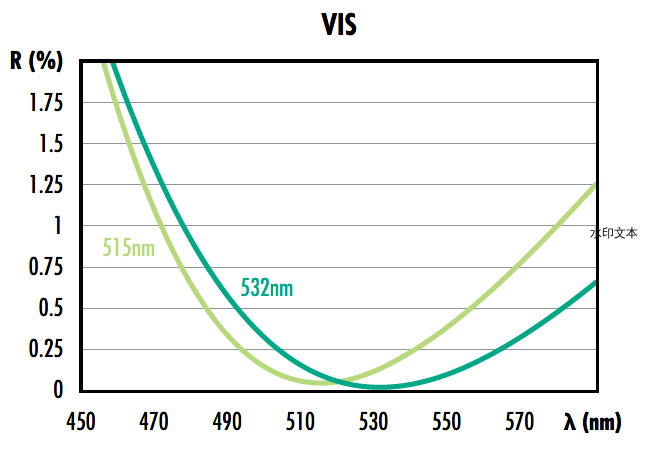

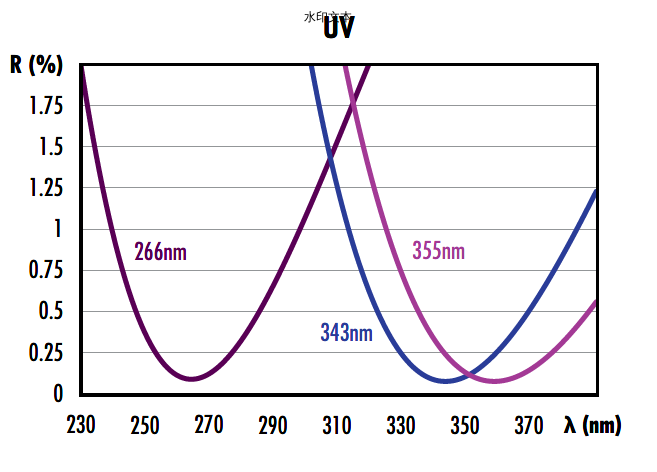

                                技术数据
