白色扩散玻璃
￥ 0.00
0.00

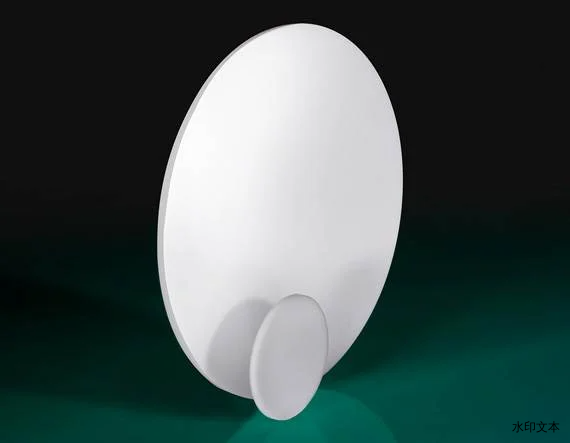

白色扩散玻璃是一种半透明扩散材料，旨在创建均匀的照明。跟其他材料不同，其他材料一般是通过镀膜或层压处理形成漫射，而白色扩散玻璃是一种固体光扩散材料，可在任意情况下使用。它的表面经过抛光，会产生一些反射光，透射光呈现近似朗伯分布。白色扩散玻璃非常适用于创建均匀的照明，可在衰减器或显示屏中使用。
半透明的白色玻璃
高扩散度，用于创建均匀照明
两个表面都会产生扩散
产品
| 标题 | 产品编码 | Dia. (mm) | 涂层 | 尺寸 (mm) | 基底 | 厚度 (mm) | 类型 | 波长范围 (nm) | 宽度 (mm) | 表面质量 | 长度 (mm) | 表面精度 |
| White Diffuser Glass 5mm | 34-467 | 5.00 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | Commercial Polish | |||
| White Diffuser Glass 5 x 5mm | 34-468 | Uncoated | 5.00 x 5.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 5.00 | 80-50 | 5.00 | Commercial Polish | |
| White Diffuser Glass 10mm Dia | 34-469 | 10.00 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | Commercial Polish | |||
| White Diffuser Glass 10 x 10mm | 34-470 | Uncoated | 10.00 x 10.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 10.00 | 80-50 | 10.00 | Commercial Polish | |
| White Diffuser Glass 12.5mm Dia | 34-471 | 12.50 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | Commercial Polish | |||
| White Diffuser Glass 12.5 x 12.5mm | 34-472 | Uncoated | 12.50 x 12.50 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 12.50 | 80-50 | 12.50 | Commercial Polish | |
| WHITE DIFFUSER GLASS 15MM DIA | 37-975 | 15.00 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | |||||
| 15 x 15mm White Diffusing Glass | 70-242 | Uncoated | 15.00 x 15.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 15.00 | 80-50 | 15.00 | ||
| 20mm Dia. White Diffusing Glass | 70-243 | 20.00 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | ||||
| 20 x 20mm White Diffusing Glass | 70-244 | Uncoated | 20.00 x 20.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 20.00 | 80-50 | 20.00 | ||
| White Diffuser Glass 25mm Dia | 34-473 | 25.00 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | Commercial Polish | |||
| White Diffuser Glass 25 x 25mm | 34-474 | Uncoated | 25.00 x 25.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 25.00 | 80-50 | 25.00 | Commercial Polish | |
| 25.4mm Dia. White Diffuser Glass | 29-422 | 25.40 +0.00/-0.20 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | ||||
| 30mm Dia. White Diffusing Glass | 70-245 | 30.00 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | ||||
| 30 x 30mm White Diffusing Glass | 70-246 | Uncoated | 30.00 x 30.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 30.00 | 80-50 | 30.00 | ||
| 35mm Dia. White Diffusing Glass | 70-247 | 35.00 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | ||||
| 35 x 35mm White Diffusing Glass | 70-248 | Uncoated | 35.00 x 35.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 35.00 | 80-50 | 35.00 | ||
| 40mm Dia. White Diffusing Glass | 70-249 | 40.00 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | ||||
| 40 x 40mm White Diffusing Glass | 70-250 | Uncoated | 40.00 x 40.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 40.00 | 80-50 | 40.00 | ||
| White Diffuser Glass 50mm Dia | 34-475 | 50.00 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | Commercial Polish | |||
| White Diffuser Glass 50 x 50mm | 34-476 | Uncoated | 50.00 x 50.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 50.00 | 80-50 | 50.00 | Commercial Polish | |
| White Diffuser Glass 75mm Dia | 34-477 | 75.00 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | Commercial Polish | |||
| White Diffuser Glass 75 x 75mm | 34-478 | Uncoated | 75.00 x 75.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 75.00 | 80-50 | 75.00 | Commercial Polish | |
| White Diffuser Glass 100mm Dia | 34-479 | 100.00 ±0.50 | Uncoated | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 80-50 | Commercial Polish | |||
| White Diffuser Glass 100 x 100mm | 34-480 | Uncoated | 100.00 x 100.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 100.00 | 80-50 | 100.00 | Commercial Polish | |
| White Diffuser Glass 200 x 200mm | 34-481 | Uncoated | 200.00 x 200.00 ±0.25 | White Diffusing Glass | 1.25 ±0.1 | Opal Diffuser | 400 - 700 | 200.00 | 80-50 | 200.00 | Commercial Polish |
技术数据
