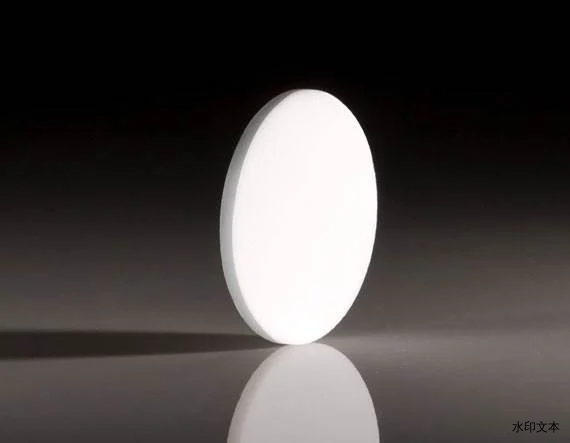

宽带混合扩散片

宽带混合扩散片

￥ 0.00
0.00


宽带混合扩散片是半透明的扩散器，专为从UV高效散射到NIR范围而设计。喷砂表面的粒度为120，采用1.75mm厚的散射介质，因此这些扩散器能以独特方式提供两种散射机制。每种散射机制都有自己的波长依赖性，在单一光学元件上结合使用时，会产生能在广泛的光谱范围进行散射的扩散器。宽带混合扩散器非常适用于需要对均匀照明进行高散射的应用，可以用作银幕。


  • 半透明白玻璃处理表面

  • 具有两种散射机制

  • 针对NIR范围有出众的散射能力


                           产品

标题产品编码Dia. (mm)涂层尺寸 (mm)砂砾基底厚度 (mm)类型波长范围 (nm)宽度 (mm)长度 (mm)
Broadband Hybrid Diffuser 5mm Dia36-6035.00 ±0.5Uncoated
120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100

Broadband Hybrid Diffuser 5x5mm36-604
Uncoated 5.00 x 5.00 ±0.3120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100 5.00 5.00
Broadband Hybrid Diffuser 10mm Dia36-60810.00 ±0.5Uncoated
120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100

Broadband Hybrid Diffuser 10x10mm36-609
Uncoated 10.00 x 10.00 ±0.3120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100 10.00 10.00
Broadband Hybrid Diffuser 12.5mm Dia36-61012.50 ±0.5Uncoated
120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100

Broadband Hybrid Diffuser 12.5x12.5mm36-611
Uncoated 12.50 x 12.50 ±0.3120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100 12.50 12.50
15mm Dia. Broadband Hybrid Diffuser37-97415.00 ±0.5Uncoated
120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100

15 x 15mm Broadband Hybrid Diffuser70-251
Uncoated 15.00 x 15.00 ±0.25120 White Diffusing Glass 1.75 ±0.10Opal Diffuser 400 - 1100 15.00 15.00
20mm Dia. Broadband Hybrid Diffuser70-25220.00 ±0.50Uncoated
120 White Diffusing Glass 1.75 ±0.10Opal Diffuser 400 - 1100

20 x 20mm Broadband Hybrid Diffuser70-253
Uncoated 20.00 x 20.00 ±0.25120 White Diffusing Glass 1.75 ±0.10Opal Diffuser 400 - 1100 20.00 20.00
Broadband Hybrid Diffuser 25mm Dia36-61225.00 ±0.5Uncoated
120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100

Broadband Hybrid Diffuser 25x25mm36-613
Uncoated 25.00 x 25.00 ±0.3120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100 25.00 25.00
30mm Dia. Broadband Hybrid Diffuser70-25430.00 ±0.50Uncoated
120 White Diffusing Glass 1.75 ±0.10Opal Diffuser 400 - 1100

30 x 30mm Broadband Hybrid Diffuser70-255
Uncoated 30.00 x 30.00 ±0.25120 White Diffusing Glass 1.75 ±0.10Opal Diffuser 400 - 1100 30.00 30.00
35mm Dia. Broadband Hybrid Diffuser70-25635.00 ±0.50Uncoated
120 White Diffusing Glass 1.75 ±0.10Opal Diffuser 400 - 1100

35 x 35mm Broadband Hybrid Diffuser70-257
Uncoated 35.00 x 35.00 ±0.25120 White Diffusing Glass 1.75 ±0.10Opal Diffuser 400 - 1100 35.00 35.00
40mm Dia. Broadband Hybrid Diffuser70-25840.00 ±0.50Uncoated
120 White Diffusing Glass 1.75 ±0.10Opal Diffuser 400 - 1100

40 x 40mm Broadband Hybrid Diffuser70-260
Uncoated 40.00 x 40.00 ±0.25120 White Diffusing Glass 1.75 ±0.10Opal Diffuser 400 - 1100 40.00 40.00
Broadband Hybrid Diffuser 50mm Dia36-61450.00 ±0.5Uncoated
120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100

Broadband Hybrid Diffuser 50x50mm36-615
Uncoated 50.00 x 50.00 ±0.3120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100 50.00 50.00
Broadband Hybrid Diffuser 75mm Dia36-67875.00 ±0.5Uncoated
120 White Diffusing Glass 1.75 ±0.1
400 - 1100

Broadband Hybrid Diffuser 75x75mm36-616
Uncoated 75.00 x 75.00 ±0.3120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100 75.00 75.00
Broadband Hybrid Diffuser 100mm Dia36-617100.00 ±0.5Uncoated
120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100

Broadband Hybrid Diffuser 100x100mm36-618
Uncoated 100.00 x 100.00 ±0.3120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100 100.00 100.00
Broadband Hybrid Diffuser 200x200mm36-619
Uncoated 200.00 x 200.00 ±0.3120 White Diffusing Glass 1.75 ±0.1Opal Diffuser 400 - 1100 200.00 200.00
