流式细胞仪带通滤光片

流式细胞仪带通滤光片

￥ 0.00
0.00

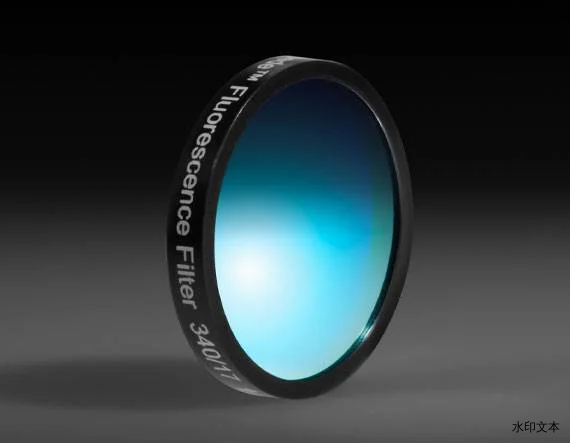

流式细胞仪带通滤光片提供52种不同的通带，设计波长从340nm到895nm，在近紫外（NUV）、可见光（VIS）和近红外（NIR）范围内以10-15nm为步长递增。这些高性价比的硬膜滤光片具有高透射率（>90%），半高宽（FWHM）为20nm（近红外为30nm），满足光学性能的关键指标需求。流式细胞仪带通滤光片在330 – 900nm范围内的截止度>OD5，非常适合流式细胞仪和单点荧光检测应用，如光度测定和点扫描。所有滤光片均安装在25mm直径的黑色阳极氧化铝固定环中，便于操作和系统集成。


  • 专为单点荧光检测和流式细胞仪应用设计

  • 52种不同的设计波长，覆盖近紫外（NUV）至近红外（NIR）光谱

  • 在330 – 900nm范围内，截止度>OD5

  • 安装于黑色阳极氧化铝固定环中，便于操作和系统集成

                          产品

标题产品编码Dia. (mm)AOI (°)带宽 (nm)光密度 OD（平均）CA (mm)CWL (nm)FWHM (nm)基底最小传输 (%)涂层表面质量
340nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-41025.00 ±0.100 ±516.6 >5 >22 340.00 (Nominal)20.00 (Nominal)Optical Grade Glass >90 @ 331.5 – 348.5nmHard Coated 80-50
350nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-41125.00 ±0.100 ±517 >5 >22 350.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 341.5 – 358.5nmHard Coated 80-50
360nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-41225.00 ±0.100 ±516 >5 >22 360.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 352 – 368nmHard Coated 80-50
370nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-41325.00 ±0.100 ±516 >5 >22 370.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 362 – 378nmHard Coated 80-50
380nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-41425.00 ±0.100 ±516 >5 >22 380.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 372 – 388nmHard Coated 80-50
390nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-41525.00 ±0.100 ±517 >5 >22 390.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 382 – 398nmHard Coated 80-50
400nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-41625.00 ±0.100 ±516 >5 >22 400.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 392 – 408nmHard Coated 80-50
410nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-41725.00 ±0.100 ±516 >5 >22 410.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 402 – 418nmHard Coated 80-50
420nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-41825.00 ±0.100 ±516 >5 >22 420.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 412 – 428nmHard Coated 80-50
430nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-41925.00 ±0.100 ±516 >5 >22 430.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 422 – 438nmHard Coated 80-50
440nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-42025.00 ±0.100 ±516 >5 >22 440.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 432 – 448nmHard Coated 80-50
450nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-42125.00 ±0.100 ±516 >5 >22 450.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 442 – 458nmHard Coated 80-50
460nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-42225.00 ±0.100 ±515 >5 >22 460.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 452.5 – 467.5nmHard Coated 80-50
470nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-42325.00 ±0.100 ±515 >5 >22 470.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 462.5 – 477.5nmHard Coated 80-50
480nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-42425.00 ±0.100 ±515 >5 >22 480.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 472.5 – 487.5nmHard Coated 80-50
490nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-42525.00 ±0.100 ±515 >5 >22 490.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 482.5 – 497.5nmHard Coated 80-50
500nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-42625.00 ±0.100 ±515 >5 >22 500.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 492.5 – 507.5nmHard Coated 80-50
510nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-42725.00 ±0.100 ±515 >5 >22 510.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 502.5 – 517.5nmHard Coated 80-50
520nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-42825.00 ±0.100 ±515 >5 >22 520.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 525 – 527.5nmHard Coated 80-50
530nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-42925.00 ±0.100 ±515 >5 >22 530.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 522.5 – 537.5nmHard Coated 80-50
540nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-43025.00 ±0.100 ±515 >5 >22 540.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 532.5 – 547.5nmHard Coated 80-50
550nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-43125.00 ±0.100 ±515 >5 >22 550.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 542.5 – 557.5nmHard Coated 80-50
560nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-43225.00 ±0.100 ±514 >5 >22 560.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 553 – 567nmHard Coated 80-50
570nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-43325.00 ±0.100 ±514 >5 >22 570.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 563 – 577nmHard Coated 80-50
580nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-43425.00 ±0.100 ±514 >5 >22 580.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 573 – 587nmHard Coated 80-50
590nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-43525.00 ±0.100 ±514 >5 >22 590.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 583 – 597nmHard Coated 80-50
600nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-43625.00 ±0.100 ±514 >5 >22 600.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 593 – 607nmHard Coated 80-50
610nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-43725.00 ±0.100 ±514 >5 >22 610.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 603 – 617nmHard Coated 80-50
620nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-43825.00 ±0.100 ±514 >5 >22 620.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 613 – 627nmHard Coated 80-50
630nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-43925.00 ±0.100 ±514 >5 >22 630.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 623 – 637nmHard Coated 80-50
640nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-44025.00 ±0.100 ±514 >5 >22 640.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 633 – 647nmHard Coated 80-50
650nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-44125.00 ±0.100 ±514 >5 >22 650.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 643 – 657nmHard Coated 80-50
660nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-44225.00 ±0.100 ±513 >5 >22 660.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 653.5 – 666.5nmHard Coated 80-50
670nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-44325.00 ±0.100 ±513 >5 >22 670.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 663.5 – 676.5nmHard Coated 80-50
680nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-44425.00 ±0.100 ±513 >5 >22 680.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 673.5 – 686.5nmHard Coated 80-50
690nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-44525.00 ±0.100 ±513 >5 >22 690.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 683.5 – 696.5nmHard Coated 80-50
700nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-44625.00 ±0.100 ±513 >5 >22 700.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 693.5 – 706.5nmHard Coated 80-50
710nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-44725.00 ±0.100 ±513 >5 >22 710.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 703.5 – 716.5nmHard Coated 80-50
720nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-44825.00 ±0.100 ±513 >5 >22 720.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 713.5 – 726.5nmHard Coated 80-50
730nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-44925.00 ±0.100 ±513 >5 >22 730.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 723.5 – 736.5nmHard Coated 80-50
740nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-45025.00 ±0.100 ±513 >5 >22 740.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 733.5 – 746.5nmHard Coated 80-50
750nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-45125.00 ±0.100 ±513 >5 >22 750.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 743.5 – 756.5nmHard Coated 80-50
765nm CWL, >OD5, 20nm FWHM Bandpass Filter, 25mm Dia.78-45225.00 ±0.100 ±522 >5 >22 765.00 (Nominal)20.00 (Nominal)Optical Grade Glass >93 @ 754 – 776nmHard Coated 80-50
775nm CWL, >OD5, 30nm FWHM Bandpass Filter, 25mm Dia.78-45325.00 ±0.100 ±522 >5 >22 775.00 (Nominal)30.00 (Nominal)Optical Grade Glass >93 @ 764 – 786nmHard Coated 80-50
795nm CWL, >OD5, 30nm FWHM Bandpass Filter, 25mm Dia.78-45425.00 ±0.100 ±522 >5 >22 795.00 (Nominal)30.00 (Nominal)Optical Grade Glass >93 @ 784 – 806nmHard Coated 80-50
805nm CWL, >OD5, 30nm FWHM Bandpass Filter, 25mm Dia.78-45525.00 ±0.100 ±522 >5 >22 805.00 (Nominal)30.00 (Nominal)Optical Grade Glass >93 @ 794 – 816nmHard Coated 80-50
825nm CWL, >OD5, 30nm FWHM Bandpass Filter, 25mm Dia.78-45625.00 ±0.100 ±522 >5 >22 825.00 (Nominal)30.00 (Nominal)Optical Grade Glass >93 @ 814 – 836nmHard Coated 80-50
835nm CWL, >OD5, 30nm FWHM Bandpass Filter, 25mm Dia.78-45725.00 ±0.100 ±522 >5 >22 835.00 (Nominal)30.00 (Nominal)Optical Grade Glass >93 @ 824 – 846nmHard Coated 80-50
855nm CWL, >OD5, 30nm FWHM Bandpass Filter, 25mm Dia.78-45825.00 ±0.100 ±521 >5 >22 855.00 (Nominal)30.00 (Nominal)Optical Grade Glass >93 @ 844.5 – 865.5nmHard Coated 80-50
865nm CWL, >OD5, 30nm FWHM Bandpass Filter, 25mm Dia.78-45925.00 ±0.100 ±521 >5 >22 865.00 (Nominal)30.00 (Nominal)Optical Grade Glass >93 @ 854.5 – 875.5nmHard Coated 80-50
885nm CWL, >OD5, 30nm FWHM Bandpass Filter, 25mm Dia.78-46025.00 ±0.100 ±521 >5 >22 885.00 (Nominal)30.00 (Nominal)Optical Grade Glass >93 @ 874.5 – 895.5nmHard Coated 80-50
895nm CWL, >OD5, 30nm FWHM Bandpass Filter, 25mm Dia.78-46125.00 ±0.100 ±521 >5 >22 895.00 (Nominal)30.00 (Nominal)Optical Grade Glass >93 @ 884.5 – 905.5nmHard Coated 80-50
