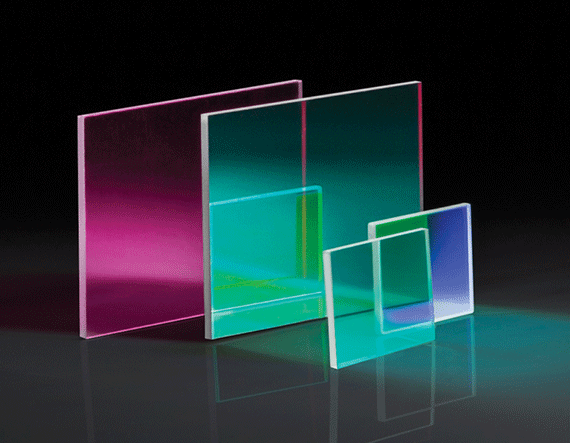

高性能荧光二向色滤光片
￥ 0.00
0.00
TECHSPEC®高性能荧光二向色滤光片，拥有和畅销的TECHSPEC®荧光二向色滤光片相同的宽泛而平坦的透射和反射范围，但性能参数更加出色。特别注意到表面平面度，透射波前和表面质量，这款滤光片达到了我们最高的精度水平。矩形的滤光片适用于常见的尼康，蔡司和奥林巴斯荧光显微镜。高性能荧光二向色滤光片可以作为TECHSPEC®荧光带通滤光片的完美补充。对于特定波长或尺寸要求，我们可为您提供定制服务。
提高平面度、透射波前和表面质量
荧光显微镜或高倍率成像应用的理想之选
最常见的荧光和长波通二向色滤光片的起始波长
也可提供标准 荧光二向色滤光片
产品
| 标题 | 产品编码 | 尺寸 (mm) | AOI (°) | 起始响应波长 (nm) | 基底 | 长度 (mm) | 涂层 | 反射 (%) | 反射波长 (nm) | 表面质量 | 厚度 (mm) | 透射率 (%) |
| HP Ultra Dichroic 409nm 12.5 x 17.6 mm | 34-724 | 12.5 x 17.6 | 45 | 409.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 325 - 404 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 409nm 25.2 x 35.6 mm | 34-725 | 25.2 x 35.6 | 45 | 409.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 325 - 404 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 435nm 12.5 x 17.6 mm | 34-726 | 12.5 x 17.6 | 45 | 435.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 325 - 425 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 435nm 25.2 x 35.6 mm | 34-727 | 25.2 x 35.6 | 45 | 435.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 325 - 425 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 450nm 12.5 x 17.6 mm | 34-728 | 12.5 x 17.6 | 45 | 450.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 350 - 430 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 450nm 25.2 x 35.6 mm | 34-729 | 25.2 x 35.6 | 45 | 450.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 350 - 430 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 482nm 12.5 x 17.6 mm | 34-730 | 12.5 x 17.6 | 45 | 482.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 350 - 470 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 482nm 25.2 x 35.6 mm | 34-731 | 25.2 x 35.6 | 45 | 482.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 350 - 470 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 495nm 12.5 x 17.6 mm | 34-732 | 12.5 x 17.6 | 45 | 495.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 435 - 488 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 495nm 25.2 x 35.6 mm | 34-733 | 25.2 x 35.6 | 45 | 495.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 435 - 488 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 506nm 12.5 x 17.6 mm | 34-734 | 12.5 x 17.6 | 45 | 506.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 440 - 500 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 506nm 25.2 x 35.6 mm | 34-735 | 25.2 x 35.6 | 45 | 506.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 440 - 500 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 552nm 12.5 x 17.6 mm | 34-736 | 12.5 x 17.6 | 45 | 552.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 350 - 544 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 552nm 25.2 x 35.6 mm | 34-737 | 25.2 x 35.6 | 45 | 552.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 350 - 544 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 600nm 12.5 x 17.6 mm | 34-738 | 12.5 x 17.6 | 45 | 600.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 460 - 570 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 600nm 25.2 x 35.6 mm | 34-739 | 25.2 x 35.6 | 45 | 600.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 460 - 570 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 605nm 12.5 x 17.6 mm | 34-740 | 12.5 x 17.6 | 45 | 605.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 350 - 596 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 605nm 25.2 x 35.6 mm | 34-741 | 25.2 x 35.6 | 45 | 605.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 350 - 596 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 660nm 12.5 x 17.6 mm | 34-742 | 12.5 x 17.6 | 45 | 660.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 580 - 651 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 660nm 25.2 x 35.6 mm | 34-743 | 25.2 x 35.6 | 45 | 660.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 580 - 651 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 750nm 12.5 x 17.6 mm | 34-744 | 12.5 x 17.6 | 45 | 750.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 565 - 715 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 750nm 25.2 x 35.6 mm | 34-745 | 25.2 x 35.6 | 45 | 750.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 565 - 715 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 800nm 12.5 x 17.6 mm | 34-746 | 12.5 x 17.6 | 45 | 800.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 600 - 760 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 800nm 25.2 x 35.6 mm | 34-747 | 25.2 x 35.6 | 45 | 800.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 600 - 760 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 850nm 12.5 x 17.6 mm | 34-748 | 12.5 x 17.6 | 45 | 850.00 | Fused Silica (Corning 7980) | 17.60 | Hard Coated | Ravg >98% | 635 - 805 | 40-20 | 1.05 ±0.1 | Tavg >90% |
| HP Ultra Dichroic 850nm 25.2 x 35.6 mm | 34-749 | 25.2 x 35.6 | 45 | 850.00 | Fused Silica (Corning 7980) | 35.60 | Hard Coated | Ravg >98% | 635 - 805 | 40-20 | 1.05 ±0.1 | Tavg >90% |
