消色差波片（相位延迟片）

消色差波片（相位延迟片）

￥ 0.00
0.00

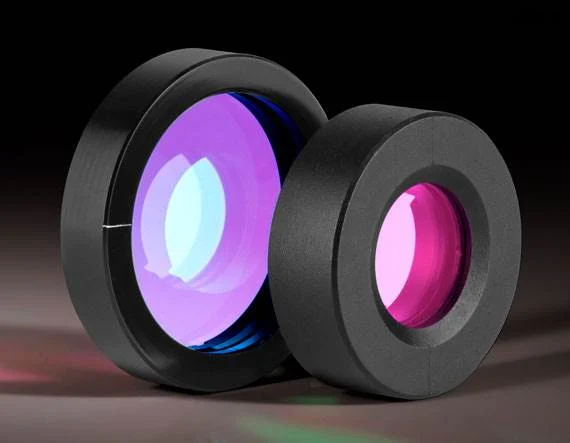

消色差波片（相位延迟片）能够提供恒定的相位偏移，不受使用光波长的影响。与入射光波长独立性的这一特性是通过结合两种不同的双折射晶体材料实现的。这两种材料在波长范围内的相对延迟偏移得到了精确平衡。凭借其平坦的响应特性，消色差波片（相位延迟片）特别适合应用于可调谐激光器、多激光线系统以及其他宽光谱光源。


  • 多个波长范围可选

  • 每个宽光谱范围内均有平直响应

  • λ/4 和λ/2 相位延迟

  • 安装于黑色阳极氧化铝外壳

产品

标题产品编码CA (mm)涂层Dia. (mm)基底延迟性表面质量厚度 (mm)类型平行度（弧分）尺寸容差 (mm)构造 传输波前，P-V (λ)
AWP 25.4mm/11.5mm CA 1/4W 465-610nm46-55811.5 Ravg <1% @ 465 - 610nm 25.40 Crystal Quartz and MgF2 λ/4 20-10 8.00 ±0.1Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 25.4mm/11.5mm CA 1/2W 465-610nm46-55911.5 Ravg <1% @ 465 - 610nm 25.40 Crystal Quartz and MgF2 λ/2 20-10 8.00 ±0.1Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 25.4mm/11.5mm CA 1/4W 610-850nm63-93511.5 Ravg <0.7% @ 610 - 850nm 25.40 Crystal Quartz and MgF2 λ/4 20-10 8.00 ±0.1Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 25.4mm/11.5mm CA 1/2W 610-850nm63-93611.5 Ravg <0.7% @ 610 - 850nm 25.40 Crystal Quartz and MgF2 λ/2 20-10 8.00 ±0.1Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 25.4mm/11.5mm CA 1/4W 700-1000nm46-56011.5 Ravg <0.6% @ 700 - 1000nm 25.40 Crystal Quartz and MgF2 λ/4 20-10 8.00 ±0.1Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 25.4mm/11.5mm CA 1/2W 700-1000nm46-56111.5 Ravg <0.6% @ 700 - 1000nm 25.40 Crystal Quartz and MgF2 λ/2 20-10 9.00 ±0.1Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 25.4mm/11.5mm CA 1/4W 1200-1650nm46-56211.5 Ravg <0.5% @ 1200 - 1650nm 25.40 Crystal Quartz and MgF2 λ/4 20-10 8.00 ±0.1Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 25.4mm/11.5mm CA 1/2W 1200-1650nm46-56311.5 Ravg <0.5% @ 1200 - 1650nm 25.40 Crystal Quartz and MgF2 λ/2 20-10 9.00 ±0.1Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 30mm/23mm CA 1/4W 465-610nm48-49723 Ravg <1% @ 465 - 610nm 30.00 Crystal Quartz and MgF2 λ/4 20-10 6.00 ±0.15Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 30mm/23mm CA 1/2W 465-610nm48-49823 Ravg <1% @ 465 - 610nm 30.00 Crystal Quartz and MgF2 λ/2 20-10 6.00 ±0.15Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 30mm/23mm CA 1/4W 610-850nm65-91923 Ravg <0.7% @ 610 - 850nm 30.00 Crystal Quartz and MgF2 λ/4 20-10 6.00 ±0.15Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 30mm/23mm CA 1/2W 610-850nm65-92023 Ravg <0.7% @ 610 - 850nm 30.00 Crystal Quartz and MgF2 λ/2 20-10 6.00 ±0.15Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 30mm/23mm CA 1/4W 700-1000nm48-49923 Ravg <0.6% @ 700 - 1000nm 30.00 Crystal Quartz and MgF2 λ/4 20-10 6.00 ±0.15Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 30mm/23mm CA 1/2W 700-1000nm48-50023 Ravg <0.6% @ 700 - 1000nm 30.00 Crystal Quartz and MgF2 λ/2 20-10 6.00 ±0.15Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 30mm/23mm CA 1/4W 1200-1650nm48-50123 Ravg <0.5% @ 1200 - 1650nm 30.00 Crystal Quartz and MgF2 λ/4 20-10 6.00 ±0.15Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
AWP 30mm/23mm CA 1/2W 1200-1650nm48-50223 Ravg <0.5% @ 1200 - 1650nm 30.00 Crystal Quartz and MgF2 λ/2 20-10 6.00 ±0.15Achromatic Waveplate <1 +0/-0.25 Crystalline λ/4 @ 633nm
12.7mm Dia, 340 - 560nm, λ/4 Achromatic Waveplate39-024>8.0 Ravg <0.75% @ 340 - 560nm 12.70 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
12.7mm Dia, 340 - 560nm, λ/2 Achromatic Waveplate39-025>8.0 Ravg <0.75% @ 340 - 560nm 12.70 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
25.4mm Dia, 340 - 560nm, λ/4 Achromatic Waveplate39-026>20.0 Ravg <0.75% @ 340 - 560nm 25.40 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
25.4mm Dia, 340 - 560nm, λ/2 Achromatic Waveplate39-027>20.0 Ravg <0.75% @ 340 - 560nm 25.40 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
50.8mm Dia, 340 - 560nm, λ/4 Achromatic Waveplate39-028>27.0 Ravg <0.75% @ 340 - 560nm 50.80 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
50.8mm Dia, 340 - 560nm, λ/2 Achromatic Waveplate39-029>34.0 Ravg <0.75% @ 340 - 560nm 50.80 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
12.7mm Dia, 450 - 650nm, λ/4 Achromatic Waveplate39-030>8.0 Ravg <0.75% @ 450 - 650nm 12.70 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
12.7mm Dia, 450 - 650nm, λ/2 Achromatic Waveplate39-031>8.0 Ravg <0.75% @ 450 - 650nm 12.70 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
25.4mm Dia, 450 - 650nm, λ/4 Achromatic Waveplate39-032>20.0 Ravg <0.75% @ 450 - 650nm 25.40 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
25.4mm Dia, 450 - 650nm, λ/2 Achromatic Waveplate39-033>20.0 Ravg <0.75% @ 450 - 650nm 25.40 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
50.8mm Dia, 450 - 650nm, λ/4 Achromatic Waveplate39-034>34.0 Ravg <0.75% @ 450 - 650nm 50.80 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
50.8mm Dia, 450 - 650nm, λ/2 Achromatic Waveplate39-035>34.0 Ravg <0.75% @ 450 - 650nm 50.80 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
12.7mm Dia, 550 - 750nm, λ/4 Achromatic Waveplate39-036>8.0 Ravg <0.75% @ 550 - 750nm 12.70 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
12.7mm Dia, 550 - 750nm, λ/2 Achromatic Waveplate39-037>8.0 Ravg <0.75% @ 550 - 750nm 12.70 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
25.4mm Dia, 550 - 750nm, λ/4 Achromatic Waveplate39-038>20.0 Ravg <0.75% @ 550 - 750nm 25.40 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
25.4mm Dia, 550 - 750nm, λ/2 Achromatic Waveplate39-039>20.0 Ravg <0.75% @ 550 - 750nm 25.40 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
50.8mm Dia, 550 - 750nm, λ/4 Achromatic Waveplate39-040>34.0 Ravg <0.75% @ 550 - 750nm 50.80 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
50.8mm Dia, 550 - 750nm, λ/2 Achromatic Waveplate39-041>34.0 Ravg <0.75% @ 550 - 750nm 50.80 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
12.7mm Dia, 650 - 1100nm, λ/4 Achromatic Waveplate39-042>8.0 Ravg <0.75% @ 650 - 1100nm 12.70 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
12.7mm Dia, 650 - 1100nm, λ/2 Achromatic Waveplate39-043>8.0 Ravg <0.75% @ 650 - 1100nm 12.70 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
25.4mm Dia, 650 - 1100nm, λ/4 Achromatic Waveplate39-044>20.0 Ravg <0.75% @ 650 - 1100nm 25.40 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
25.4mm Dia, 650 - 1100nm, λ/2 Achromatic Waveplate39-045>20.0 Ravg <0.75% @ 650 - 1100nm 25.40 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
50.8mm Dia, 650 - 1100nm, λ/4 Achromatic Waveplate39-046>34.0 Ravg <0.75% @ 650 - 1100nm 50.80 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
50.8mm Dia, 650 - 1100nm, λ/2 Achromatic Waveplate39-047>34.0 Ravg <0.75% @ 650 - 1100nm 50.80 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
12.7mm Dia, 900 - 2100nm, λ/4 Achromatic Waveplate39-048>8.0 Ravg <0.75% @ 900 - 2100nm 12.70 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
12.7mm Dia, 900 - 2100nm, λ/2 Achromatic Waveplate39-049>8.0 Ravg <0.75% @ 900 - 2100nm 12.70 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
25.4mm Dia, 900 - 2100nm, λ/4 Achromatic Waveplate39-050>20.0 Ravg <0.75% @ 900 - 2100nm 25.40 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
25.4mm Dia, 900 - 2100nm, λ/2 Achromatic Waveplate39-051>20.0 Ravg <0.75% @ 900 - 2100nm 25.40 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
50.8mm Dia, 900 - 2100nm, λ/4 Achromatic Waveplate39-052>34.0 Ravg <0.75% @ 900 - 2100nm 50.80 Crystal Quartz and MgF2 λ/4 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
50.8mm Dia, 900 - 2100nm, λ/2 Achromatic Waveplate39-053>34.0 Ravg <0.75% @ 900 - 2100nm 50.80 Crystal Quartz and MgF2 λ/2 40-20 6.00 ±0.2Achromatic Waveplate
+0/-0.25 Crystalline <λ/4 @ 632nm
