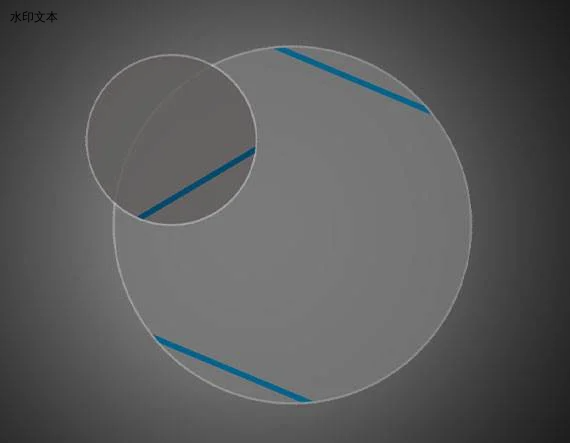

超薄近红外消色差聚合物相位延迟片

超薄近红外消色差聚合物相位延迟片

￥ 0.00
0.00


超薄近红外消色差聚合物相位延迟片采用光学融合且无粘合剂的结构，具有高耐温性、高透光率和超薄外形。这些延迟器采用多层聚合物堆叠设计，λ/2延迟片的厚度为0.35mm，λ/4延迟片的厚度为0.55mm。提供未镀膜和AR镀膜两种版本，这些延迟片在近红外范围内提供λ/100的延迟公差，有宽广的接收角。未镀膜的超薄近红外消色差聚合物延迟器提供700-1550nm的扩展延迟范围，而镀膜版本在700-1100nm范围内具有改进的透过率。这些波片适用于近红外成像和分析仪器，以及OEM集成和其他需要小型化外形的应用。


  • 超薄 ≤0.55mm 基底，适用于OEM集成

  • 提供600-1100nm和700-1550nm两种型号

  • 接收角的可容许范围 ±10°

                             产品

标题产品编码AOI (°)Dia. (mm)基底工作温度 (°C)延迟性表面质量厚度 (mm)注意 涂层规格波长范围 (nm)Damage Threshold, By Design
Film-Format Achromatic Polymer Retarder λ/2 12.7mm Dia AR70-575+/- 10 12.70 +/- 0.15Polymer Stack -20 to +40 λ/2 ± λ/10060-40 0.35 NominalSlow axis marked with blue dot on part and stripe on protective film BBAR: R<= 0.75% @ 700-1100nm (per surface)700 - 1100 500 Watt/cm2 CW, .3 J/cm2 10 nsec pulses @ 532nm, 2 J/cm2 20 nsec pulses @ 1064nm typical
Film-Format Achromatic Polymer Retarder λ/4 12.7mm Dia Unc70-708+/- 10 12.70 +/- 0.15Polymer Stack -20 to +40 λ/4 ± λ/10060-40 0.55 NominalSlow axis marked with blue dot on part and stripe on protective film
700 - 1550 500 Watt/cm2 CW, .3 J/cm2 10 nsec pulses @ 532nm, 2 J/cm2 20 nsec pulses @ 1064nm typical
Film-Format Achromatic Polymer Retarder λ/4 12.7mm Dia AR70-573+/- 10 12.70 +/- 0.15Polymer Stack -20 to +40 λ/4 ± λ/10060-40 0.55 NominalSlow axis marked with blue dot on part and stripe on protective film BBAR: R<= 0.75% @ 700-1100nm (per surface)700 - 1100 500 Watt/cm2 CW, .3 J/cm2 10 nsec pulses @ 532nm, 2 J/cm2 20 nsec pulses @ 1064nm typical
Film-Format Achromatic Polymer Retarder λ/2 25.4mm Dia AR70-576+/- 10 25.40 +/- 0.15Polymer Stack -20 to +40 λ/2 ± λ/10060-40 0.35 NominalSlow axis marked with blue dot on part and stripe on protective film BBAR: R<= 0.75% @ 700-1100nm (per surface)700 - 1100 500 Watt/cm2 CW, .3 J/cm2 10 nsec pulses @ 532nm, 2 J/cm2 20 nsec pulses @ 1064nm typical
Film-Format Achromatic Polymer Retarder λ/4 25.4mm Dia Uncoated70-709+/- 10 25.40 +/- 0.15Polymer Stack -20 to +40 λ/4 ± λ/10060-40 0.55 NominalSlow axis marked with blue dot on part and stripe on protective film
700 - 1550 500 Watt/cm2 CW, .3 J/cm2 10 nsec pulses @ 532nm, 2 J/cm2 20 nsec pulses @ 1064nm typical
Film-Format Achromatic Polymer Retarder λ/4 25.4mm Dia AR70-574+/- 10 25.40 +/- 0.15Polymer Stack -20 to +40 λ/4 ± λ/10060-40 0.55 NominalSlow axis marked with blue dot on part and stripe on protective film BBAR: R<= 0.75% @ 700-1100nm (per surface)700 - 1100 500 Watt/cm2 CW, .3 J/cm2 10 nsec pulses @ 532nm, 2 J/cm2 20 nsec pulses @ 1064nm typical
