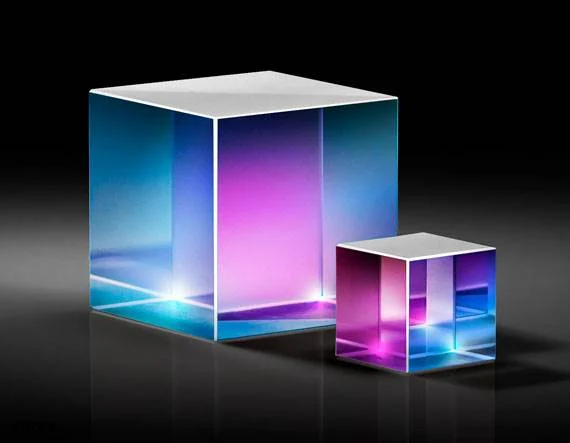

激光谱线高能量偏振立方分光镜

激光谱线高能量偏振立方分光镜

￥ 0.00
0.00


激光谱线高能量偏振立方分光镜是一款易于安装，高对比度的分光镜，可替代布鲁斯特窗口片。激光谱线高功率偏振立方体分光镜具有高于 96% 的 p 偏振光透射率，以及 λ/6 的表面平整度，以最大限度减少波前畸变。 为提高激光损伤阈值，这款分光镜通过接触式UV熔融石英直角棱镜构成，而不是使用普通胶合。激光谱线高能量偏振立方分光镜适用于多种常规Nd：YAG激光波长。


  • 接触式接合，可提高损伤阈值

  • P偏振光的透射率大于96％

  • 高消光比，比率大于1,000：1

                          产品

标题产品编码光束偏移（弧分）CA (%)构造 DWL (nm)尺寸 (mm)消光比反射 (%)基底表面平整度 (P-V)表面质量透射率 (%) 类型
HE BS CUBE POLARIZING 355NM 12.7MM88-232<3 90 Cube 355 12.7 x 12.7 x 12.7 +0.0/-0.31000:1 Rs >99.5%@355nm Fused Silica (Corning 7980)λ/6 40-20 Tp >96% @ 355nm Linear Polarizer
12.7mm 405nm, High Energy Polarizing Cube Beamsplitter71-024<3 90 Cube 405 12.7 x 12.7 x 12.7 +0.0/-0.31000:1 Rs >99.5%@405nm Fused Silica (Corning 7980)λ/6 40-20 Tp >97% @ 405nm Linear Polarizer
HE BS CUBE POLARIZING 532NM 12.7MM88-233<3 90 Cube 532 12.7 x 12.7 x 12.7 +0.0/-0.31000:1 Rs >99.5%@532nm Fused Silica (Corning 7980)λ/6 40-20 Tp >97% @ 532nm Linear Polarizer
12.7mm 755nm, High Energy Polarizing Cube Beamsplitter71-027<3 90 Cube 755 12.7 x 12.7 x 12.7 +0.0/-0.31000:1 Rs >99.5%@755nm Fused Silica (Corning 7980)λ/6 40-20 Tp >97% @ 755nm Linear Polarizer
HE BS CUBE POLARIZING 1064NM 12.7MM88-234<3 90 Cube 1064 12.7 x 12.7 x 12.7 +0.0/-0.31000:1 Rs >99.5%@1064nm Fused Silica (Corning 7980)λ/6 40-20 Tp >97%@ 1064nm Linear Polarizer
12.7mm 1550nm, High Energy Polarizing Cube Beamsplitter71-029<3 90 Cube 1550 12.7 x 12.7 x 12.7 +0.0/-0.31000:1 Rs >99.5%@1550nm Fused Silica (Corning 7980)λ/6 40-20 Tp >97% @ 1550nm Linear Polarizer
HE BS CUBE POLARIZING 355NM 25.4MM33-317<3 90 Cube 355 25.4 x 25.4 x 25.4 +0.0/-0.31000:1 Rs >99.5%@355nm Fused Silica (Corning 7980)λ/6 40-20 Tp >96% @ 355nm Linear Polarizer
25.4mm 405nm, High Energy Polarizing Cube Beamsplitter71-025<3 90 Cube 405 25.4 x 25.4 x 25.4 +0.0/-0.31000:1 Rs >99.5%@405nm Fused Silica (Corning 7980)λ/6 40-20 Tp >97% @ 405nm Linear Polarizer
HE BS CUBE POLARIZING 532NM 25.4MM33-318<3 90 Cube 532 25.4 x 25.4 x 25.4 +0.0/-0.31000:1 Rs >99.5%@532nm Fused Silica (Corning 7980)λ/6 40-20 Tp >97% @ 532nm Linear Polarizer
25.4mm 755nm, High Energy Polarizing Cube Beamsplitter71-028<3 90 Cube 755 25.4 x 25.4 x 25.4 +0.0/-0.31000:1 Rs >99.5%@755nm Fused Silica (Corning 7980)λ/6 40-20 Tp >97% @ 755nm Linear Polarizer
HE BS CUBE POLARIZING 1064NM 25.4MM33-319<3 90 Cube 1064 25.4 x 25.4 x 25.4 +0.0/-0.31000:1 Rs >99.5%@1064nm Fused Silica (Corning 7980)λ/6 40-20 Tp >97% @ 1064nm Linear Polarizer
25.4mm 1550nm, High Energy Polarizing Cube Beamsplitter71-030<3 90 Cube 1550 25.4 x 25.4 x 25.4 +0.0/-0.31000:1 Rs >99.5%@1550nm Fused Silica (Corning 7980)λ/6 40-20 Tp >97% @ 1550nm Linear Polarizer
