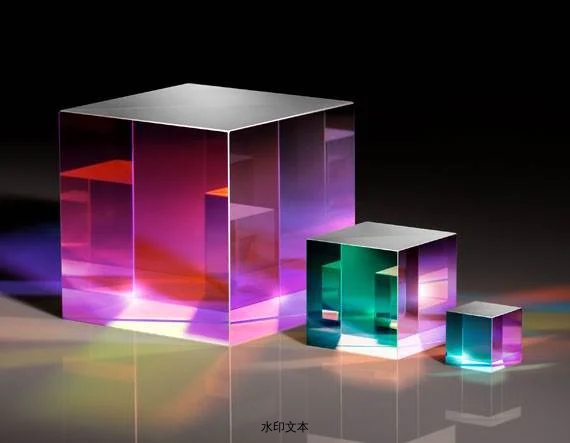

激光偏振分光棱镜

激光偏振分光棱镜

￥ 0.00
0.00


TECHSPEC® 激光偏振分光棱镜能够将随机偏振的光束分解为两个正交的、线性偏振的分量。S偏振光以90°角反射，而P偏振光则直接透射。这些分光镜由一对精密的直角棱镜粘合而成，以减少透射波前的畸变，并确保入射光束与透射光束之间的高度平行。TECHSPEC® 激光偏振分光棱镜针对多种常见激光波长进行了设计，并具有高消光比。这些分光镜适用于二极管、气体和固态激光器的常见应用。


  • 适用于常见的二极管、气体和固态激光器

  • 反射S偏振光，透射P偏振光

  • 具备高消光比

                         产品

标题产品编码光束偏移（弧分）倒角CA (%)涂层规格构造 DWL (nm)尺寸 (mm)消光比P 偏振传输 (%)S偏振反射 (%) 基底表面质量
5mm 532nm，激光线偏振立方分光镜48-570±3 Protective bevel as needed 90.00 Rabs <0.25% @ 532nm Cube 532 5.0 x 5.0 x 5.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
10mm 532nm，激光线偏振立方分光镜48-571±3 Protective bevel as needed 90.00 Rabs <0.25% @ 532nm Cube 532 10.0 x 10.0 x 10.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
12.5mm 532nm，激光线偏振立方分光镜48-861±3 Protective bevel as needed 90.00 Rabs <0.25% @ 532nm Cube 532 12.5 x 12.5 x 12.5 ±0.11000:1 >95 >99.5 N-BK7 40-20
15mm 532nm，激光线偏振立方分光镜48-572±3 Protective bevel as needed 90.00 Rabs <0.25% @ 532nm Cube 532 15.0 x 15.0 x 15.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
20mm 532nm，激光线偏振立方分光镜48-573±3 Protective bevel as needed 90.00 Rabs <0.25% @ 532nm Cube 532 20.0 x 20.0 x 20.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
25mm 532nm，激光线偏振立方分光镜48-574±3 Protective bevel as needed 90.00 Rabs <0.25% @ 532nm Cube 532 25.0 x 25.0 x 25.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
35mm 532nm，激光线偏振立方分光镜48-575±3 Protective bevel as needed 90.00 Rabs <0.25% @ 532nm Cube 532 35.0 x 35.0 x 35.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
50mm 532nm，激光线偏振立方分光镜48-862±3 Protective bevel as needed 90.00 Rabs <0.25% @ 532nm Cube 532 50.0 x 50.0 x 50.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
5mm 632.8nm， 激光线性偏振立方体分光镜47-776±3 Protective bevel as needed 90.00 Rabs <0.25% @ 632.8nm Cube 632.8 5.0 x 5.0 x 5.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
10mm 632.8nm， 激光线性偏振立方体分光镜47-777±3 Protective bevel as needed 90.00 Rabs <0.25% @ 632.8nm Cube 632.8 10.0 x 10.0 x 10.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
12.5mm 632.8nm，激光线偏振立方分光镜48-863±3 Protective bevel as needed 90.00 Rabs <0.25% @ 632.8nm Cube 632.8 12.5 x 12.5 x 12.5 ±0.11000:1 >95 >99.5 N-BK7 40-20
15mm 632.8nm， 激光线偏振立方体分光镜47-125±3 Protective bevel as needed 90.00 Rabs <0.25% @ 632.8nm Cube 632.8 15.0 x 15.0 x 15.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
20mm 632.8nm， 激光线偏振立方体分光镜47-126±3 Protective bevel as needed 90.00 Rabs <0.25% @ 632.8nm Cube 632.8 20.0 x 20.0 x 20.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
25mm 632.8nm， 激光线偏振立方体分光镜47-127±3 Protective bevel as needed 90.00 Rabs <0.25% @ 632.8nm Cube 632.8 25.0 x 25.0 x 25.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
35mm 632.8nm， 激光线性偏振立方体分光镜47-568±3 Protective bevel as needed 90.00 Rabs <0.25% @ 632.8nm Cube 632.8 35.0 x 35.0 x 35.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
50mm 632.8nm，激光线偏振立方分光镜48-864±3 Protective bevel as needed 90.00 Rabs <0.25% @ 632.8nm Cube 632.8 50.0 x 50.0 x 50.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
5mm 780nm， 激光线性偏振立方体分光镜47-778±3 Protective bevel as needed 90.00 Rabs <0.25% @ 780nm Cube 780 5.0 x 5.0 x 5.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
10mm 780nm， 激光线性偏振立方体分光镜47-779±3 Protective bevel as needed 90.00 Rabs <0.25% @ 780nm Cube 780 10.0 x 10.0 x 10.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
12.5mm 780nm，激光线偏振立方分光镜48-865±3 Protective bevel as needed 90.00 Rabs <0.25% @ 780nm Cube 780 12.5 x 12.5 x 12.5 ±0.11000:1 >95 >99.5 N-BK7 40-20
15mm 780nm， 激光线性偏振立方分光镜47-047±3 Protective bevel as needed 90.00 Rabs <0.25% @ 780nm Cube 780 15.0 x 15.0 x 15.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
20mm 780nm， 激光线性偏振立方体分光镜47-782±3 Protective bevel as needed 90.00 Rabs <0.25% @ 780nm Cube 780 20.0 x 20.0 x 20.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
25mm 780nm， 激光线性偏振立方分光镜47-048±3 Protective bevel as needed 90.00 Rabs <0.25% @ 780nm Cube 780 25.0 x 25.0 x 25.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
35mm 780nm， 激光线性偏振立方体分光镜47-569±3 Protective bevel as needed 90.00 Rabs <0.25% @ 780nm Cube 780 35.0 x 35.0 x 35.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
50mm 780nm，激光线偏振立方分光镜48-866±3 Protective bevel as needed 90.00 Rabs <0.25% @ 780nm Cube 780 50.0 x 50.0 x 50.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
5mm 850nm， 激光线性偏振立方体分光镜47-780±3 Protective bevel as needed 90.00 Rabs <0.25% @ 850nm Cube 850 5.0 x 5.0 x 5.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
10mm 850nm， 激光线性偏振立方体分光镜47-781±3 Protective bevel as needed 90.00 Rabs <0.25% @ 850nm Cube 850 10.0 x 10.0 x 10.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
12.5mm 850nm，激光线偏振立方分光镜48-867±3 Protective bevel as needed 90.00 Rabs <0.25% @ 850nm Cube 850 12.5 x 12.5 x 12.5 ±0.11000:1 >95 >99.5 N-BK7 40-20
15mm 850nm， 激光线性偏振立方分光镜47-049±3 Protective bevel as needed 90.00 Rabs <0.25% @ 850nm Cube 850 15.0 x 15.0 x 15.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
20mm 850nm， 激光线性偏振立方体分光镜47-783±3 Protective bevel as needed 90.00 Rabs <0.25% @ 850nm Cube 850 20.0 x 20.0 x 20.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
25mm 850nm， 激光线性偏振立方分光镜47-050±3 Protective bevel as needed 90.00 Rabs <0.25% @ 850nm Cube 850 25.0 x 25.0 x 25.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
35mm 850nm， 激光线性偏振立方体分光镜47-570±3 Protective bevel as needed 90.00 Rabs <0.25% @ 850nm Cube 850 35.0 x 35.0 x 35.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
50mm 850nm，激光线偏振立方分光镜48-868±3 Protective bevel as needed 90.00 Rabs <0.25% @ 850nm Cube 850 50.0 x 50.0 x 50.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
12.5mm 980nm，激光线偏振立方分光镜48-881±3 Protective bevel as needed 90.00 Rabs <0.25% @ 980nm Cube 980 12.5 x 12.5 x 12.5 ±0.11000:1 >90 >99.5 N-BK7 40-20
5mm 1064nm，激光线偏振立方分光镜48-576±3 Protective bevel as needed 90.00 Rabs <0.25% @ 1064nm Cube 1064 5.0 x 5.0 x 5.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
10mm 1064nm，激光线偏振立方分光镜48-577±3 Protective bevel as needed 90.00 Rabs <0.25% @ 1064nm Cube 1064 10.0 x 10.0 x 10.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
12.5mm 1064nm，激光线偏振立方分光镜48-869±3 Protective bevel as needed 90.00 Rabs <0.25% @ 1064nm Cube 1064 12.5 x 12.5 x 12.5 ±0.11000:1 >95 >99.5 N-BK7 40-20
15mm 1064nm，激光线偏振立方分光镜48-578±3 Protective bevel as needed 90.00 Rabs <0.25% @ 1064nm Cube 1064 15.0 x 15.0 x 15.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
20mm 1064nm，激光线偏振立方分光镜48-579±3 Protective bevel as needed 90.00 Rabs <0.25% @ 1064nm Cube 1064 20.0 x 20.0 x 20.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
25mm 1064nm，激光线偏振立方分光镜48-580±3 Protective bevel as needed 90.00 Rabs <0.25% @ 1064nm Cube 1064 25.0 x 25.0 x 25.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
35mm 1064nm，激光线偏振立方分光镜48-581±3 Protective bevel as needed 90.00 Rabs <0.25% @ 1064nm Cube 1064 35.0 x 35.0 x 35.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
50mm 1064nm，激光线偏振立方分光镜48-870±3 Protective bevel as needed 90.00 Rabs <0.25% @ 1064nm Cube 1064 50.0 x 50.0 x 50.0 ±0.11000:1 >95 >99.5 N-BK7 40-20
