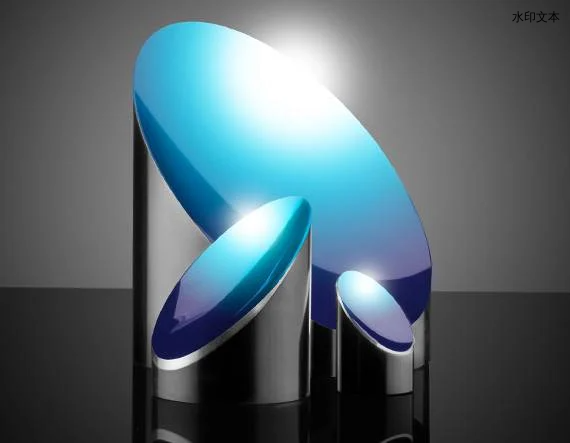

超快增强型银膜离轴抛物面 (OAP) 反射镜

超快增强型银膜离轴抛物面 (OAP) 反射镜

￥ 0.00
0.00


TECHSPEC® 超快增强型银膜离轴抛物面 (OAP) 反射镜用于准直或聚焦指定偏移角度的入射光。这些反射镜镀有超快增强型银膜，提供 >99% 的反射率，同时保持 0 ±20fs2 的低群延迟色散 (GDD)。这些反射镜的离轴设计将焦点与光束路径分开，从而在焦点周围提供更多交互空间，而不会干扰入射光束。TECHSPEC 超快增强型银膜 OAP 反射镜非常适合聚焦来自中低功率超快激光器的激光，包括 Ti:sapphire 和 Yb:doped 光纤激光器，同时最大限度地减少超快脉冲的时间扩展。带有垂直于光轴的孔的安装板可用于将这些反射镜安装到台式系统中。

  • 用于 Ti:sapphire 和 Yb:doped 激光器的超快增强型银膜

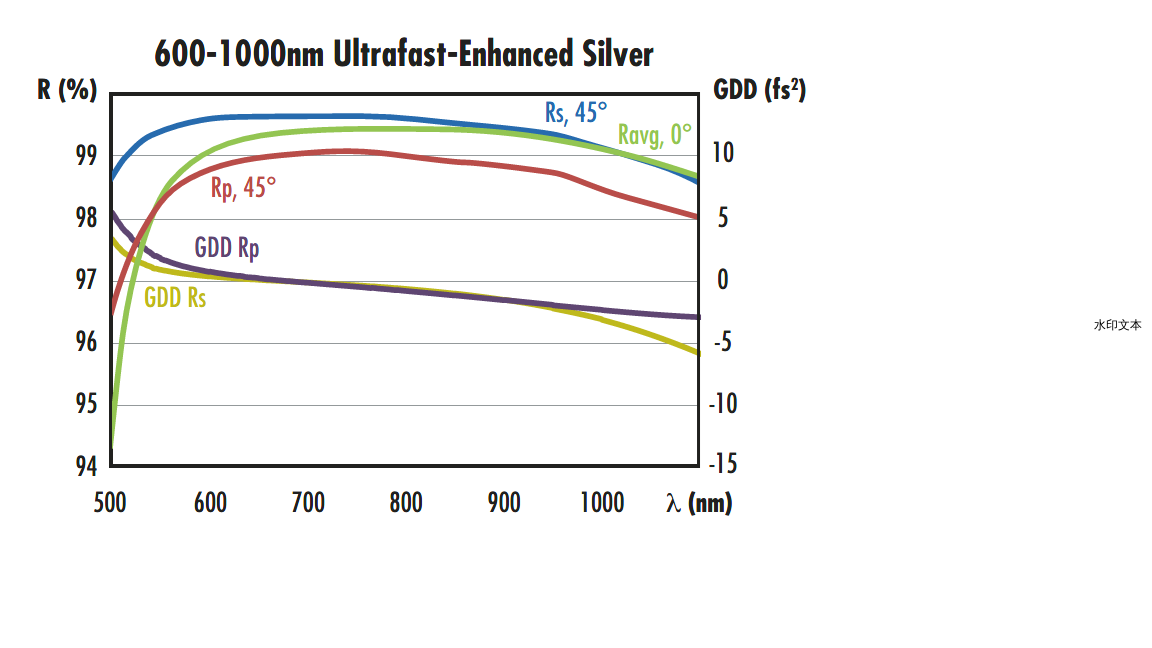

  • 在 600-1050nm 处的低群延迟色散为 0±20fs2

  • <50Å RMS 表面粗糙度，以最大程度地减少散射

产品

标题产品编码类型Dia. (mm)EFL (mm)FL Tolerance (%)Radius of Curvature (mm)涂层镀膜类型涂层规格偏离角度 (°)PFL (mm)面形计算 (RMS)表面粗糙度（埃）
12.7mm Dia. x 12.7mm EFL, 600-1000nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror17-133Off-Axis Parabolic Mirror 12.70 +0.00/-0.1012.70 ±1 12.70 Ultrafast-Enhanced Silver (600-1000nm) Ultrafast-Enhanced Silver Ravg  >99% @ 600 - 1000nm, 0° Rs >99% @ 540 - 1000nm, 45° Rp >98.5% @ ~730 - 870nm, 45° 90 6.35 λ/8 <50 RMS
12.7mm Dia. x 25.4mm EFL, 600-1000nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror17-134Off-Axis Parabolic Mirror 12.70 +0.00/-0.1025.40 ±1 25.40 Ultrafast-Enhanced Silver (600-1000nm) Ultrafast-Enhanced Silver Ravg  >99% @ 600 - 1000nm, 0° Rs >99% @ 540 - 1000nm, 45° Rp >98.5% @ ~730 - 870nm, 45° 90 12.70 λ/8 <50 RMS
12.7mm Dia. x 203.2mm EFL, 600-1000nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror17-138Off-Axis Parabolic Mirror 12.70 +0.00/-0.10203.20 ±1 203.20 Ultrafast-Enhanced Silver (600-1000nm) Ultrafast-Enhanced Silver Ravg  >99% @ 600 - 1000nm, 0° Rs >99% @ 540 - 1000nm, 45° Rp >98.5% @ ~730 - 870nm, 45° 90 101.60 λ/8 <50 RMS
25.4mm Dia. x 25.4mm EFL, 600-1000nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror17-139Off-Axis Parabolic Mirror 25.40 +0.00/-0.1025.40 ±1 25.40 Ultrafast-Enhanced Silver (600-1000nm) Ultrafast-Enhanced Silver Ravg  >99% @ 600 - 1000nm, 0° Rs >99% @ 540 - 1000nm, 45° Rp >98.5% @ ~730 - 870nm, 45° 90 12.70 λ/8 <50 RMS
25.4mm Dia. x 50.8mm EFL, 600-1000nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror17-140Off-Axis Parabolic Mirror 25.40 +0.00/-0.1050.80 ±1 50.80 Ultrafast-Enhanced Silver (600-1000nm) Ultrafast-Enhanced Silver Ravg  >99% @ 600 - 1000nm, 0° Rs >99% @ 540 - 1000nm, 45° Rp >98.5% @ ~730 - 870nm, 45° 90 25.40 λ/8 <50 RMS
25.4mm Dia. x 203.2mm EFL, 600-1000nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror17-146Off-Axis Parabolic Mirror 25.40 +0.00/-0.10203.20 ±1 203.20 Ultrafast-Enhanced Silver (600-1000nm) Ultrafast-Enhanced Silver Ravg  >99% @ 600 - 1000nm, 0° Rs >99% @ 540 - 1000nm, 45° Rp >98.5% @ ~730 - 870nm, 45° 90 101.60 λ/8 <50 RMS
50.8mm Dia. x 50.8mm EFL, 600-1000nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror17-147Off-Axis Parabolic Mirror 50.80 +0.00/-0.1050.80 ±1 50.80 Ultrafast-Enhanced Silver (600-1000nm) Ultrafast-Enhanced Silver Ravg  >99% @ 600 - 1000nm, 0° Rs >99% @ 540 - 1000nm, 45° Rp >98.5% @ ~730 - 870nm, 45° 90 25.40 λ/8 <50 RMS
50.8mm Dia. x 190.6mm EFL, 600-1000nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror17-152Off-Axis Parabolic Mirror 50.80 +0.00/-0.10190.60 ±1 190.60 Ultrafast-Enhanced Silver (600-1000nm) Ultrafast-Enhanced Silver Ravg  >99% @ 600 - 1000nm, 0° Rs >99% @ 540 - 1000nm, 45° Rp >98.5% @ ~730 - 870nm, 45° 90 95.30 λ/8 <50 RMS
12.7mm Dia. x 12.7mm EFL, 800-1150nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror25-598Off-Axis Parabolic Mirror 12.70 12.70 ±1 12.70 Ultrafast-Enhanced Silver (800 - 1150nm) Ultrafast-Enhanced Silver Ravg  >99% @ 800 - 1150mm, 0° Rs >99% @ 800 - 1100nm, 45° Rp >98.5% @ ~850 - 1100nm, 45° 90 6.35 λ/8 <50 RMS
12.7mm Dia. x 25.4mm EFL, 800-1150nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror25-599Off-Axis Parabolic Mirror 12.70 25.40 ±1 25.40 Ultrafast-Enhanced Silver (800 - 1150nm) Ultrafast-Enhanced Silver Ravg  >99% @ 800 - 1150mm, 0° Rs >99% @ 800 - 1100nm, 45° Rp >98.5% @ ~850 - 1100nm, 45° 90 12.70 λ/8 <50 RMS
12.7mm Dia. x 203.2mm EFL, 800-1150nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror25-600Off-Axis Parabolic Mirror 12.70 203.20 ±1 203.20 Ultrafast-Enhanced Silver (800 - 1150nm) Ultrafast-Enhanced Silver Ravg  >99% @ 800 - 1150mm, 0° Rs >99% @ 800 - 1100nm, 45° Rp >98.5% @ ~850 - 1100nm, 45° 90 101.60 λ/8 <50 RMS
25.4mm Dia. x 25.4mm EFL, 800-1150nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror25-601Off-Axis Parabolic Mirror 25.40 25.40 ±1 25.40 Ultrafast-Enhanced Silver (800 - 1150nm) Ultrafast-Enhanced Silver Ravg  >99% @ 800 - 1150mm, 0° Rs >99% @ 800 - 1100nm, 45° Rp >98.5% @ ~850 - 1100nm, 45° 90 12.70 λ/8 <50 RMS
25.4mm Dia. x 50.8mm EFL, 800-1150nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror25-602Off-Axis Parabolic Mirror 25.40 50.80 ±1 50.80 Ultrafast-Enhanced Silver (800 - 1150nm) Ultrafast-Enhanced Silver Ravg  >99% @ 800 - 1150mm, 0° Rs >99% @ 800 - 1100nm, 45° Rp >98.5% @ ~850 - 1100nm, 45° 90 25.40 λ/8 <50 RMS
25.4mm Dia. x 203.2mm EFL, 800-1150nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror25-603Off-Axis Parabolic Mirror 25.40 203.20 ±1 203.20 Ultrafast-Enhanced Silver (800 - 1150nm) Ultrafast-Enhanced Silver Ravg  >99% @ 800 - 1150mm, 0° Rs >99% @ 800 - 1100nm, 45° Rp >98.5% @ ~850 - 1100nm, 45° 90 101.60 λ/8 <50 RMS
50.8mm Dia. x 50.8mm EFL, 800-1150nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror25-604Off-Axis Parabolic Mirror 50.80 50.80 ±1 50.80 Ultrafast-Enhanced Silver (800 - 1150nm) Ultrafast-Enhanced Silver Ravg  >99% @ 800 - 1150mm, 0° Rs >99% @ 800 - 1100nm, 45° Rp >98.5% @ ~850 - 1100nm, 45° 90 25.40 λ/8 <50 RMS
50.8mm Dia. x 190.6mm EFL, 800-1150nm Ultrafast-Enhanced Silver Coated, 50Å OAP Mirror25-605Off-Axis Parabolic Mirror 50.80 190.60 ±1 190.60 Ultrafast-Enhanced Silver (800 - 1150nm) Ultrafast-Enhanced Silver Ravg  >99% @ 800 - 1150mm, 0° Rs >99% @ 800 - 1100nm, 45° Rp >98.5% @ ~850 - 1100nm, 45° 90 95.30 λ/8 <50 RMS


技术数据
