我司销售原装进口Adloptica激光光束整形器，货期短，咨询邮件：sales@gewtec.com 电话：021-5427 0855。

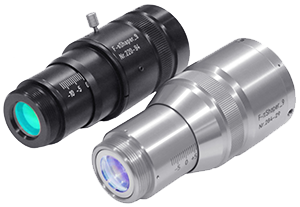

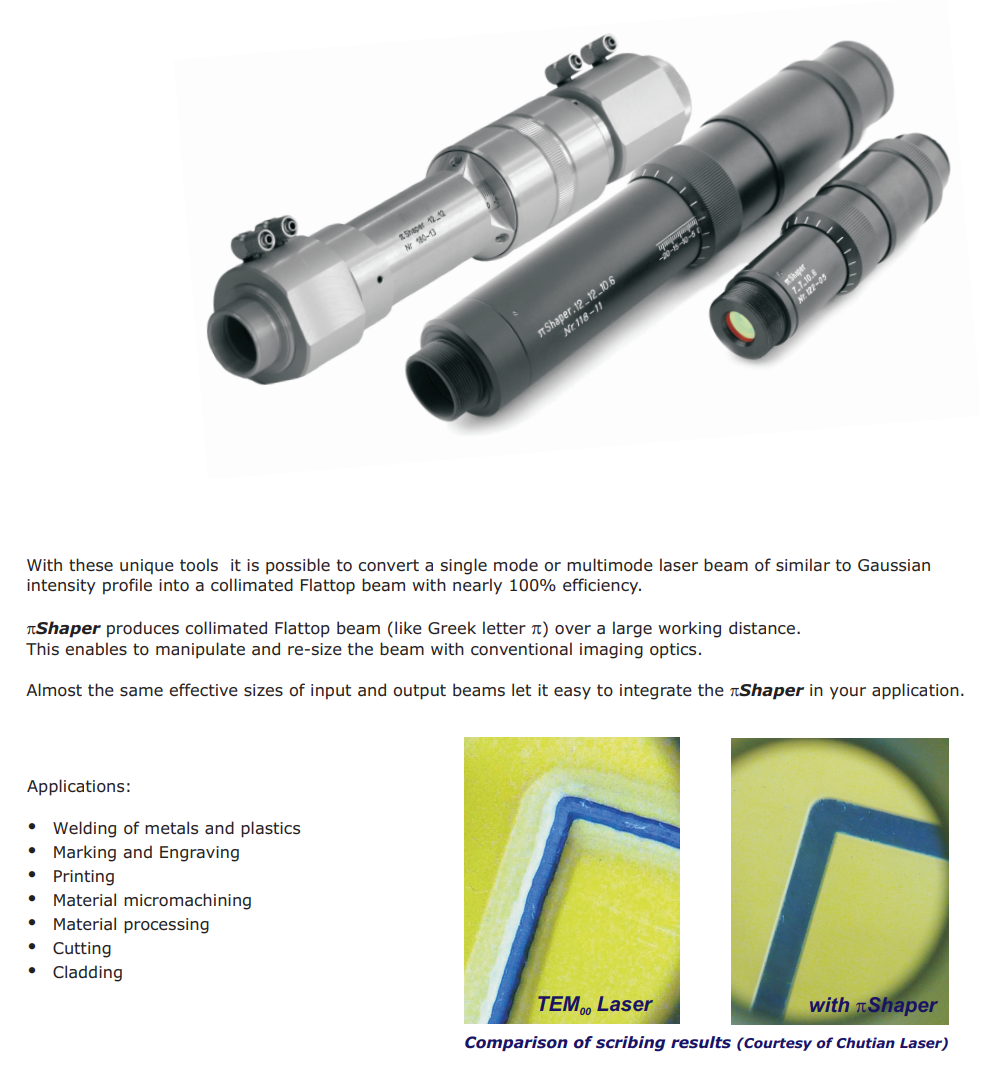

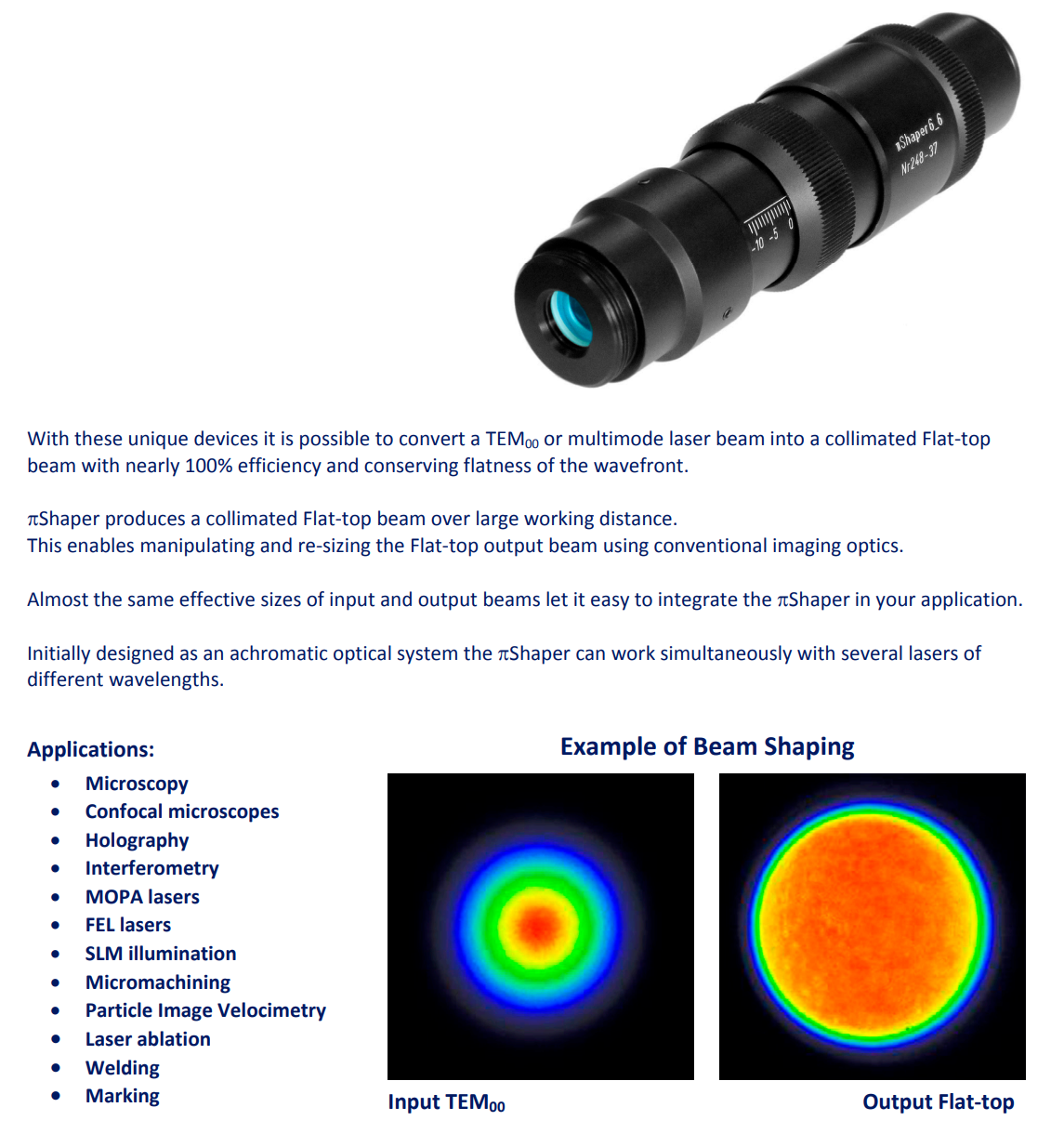

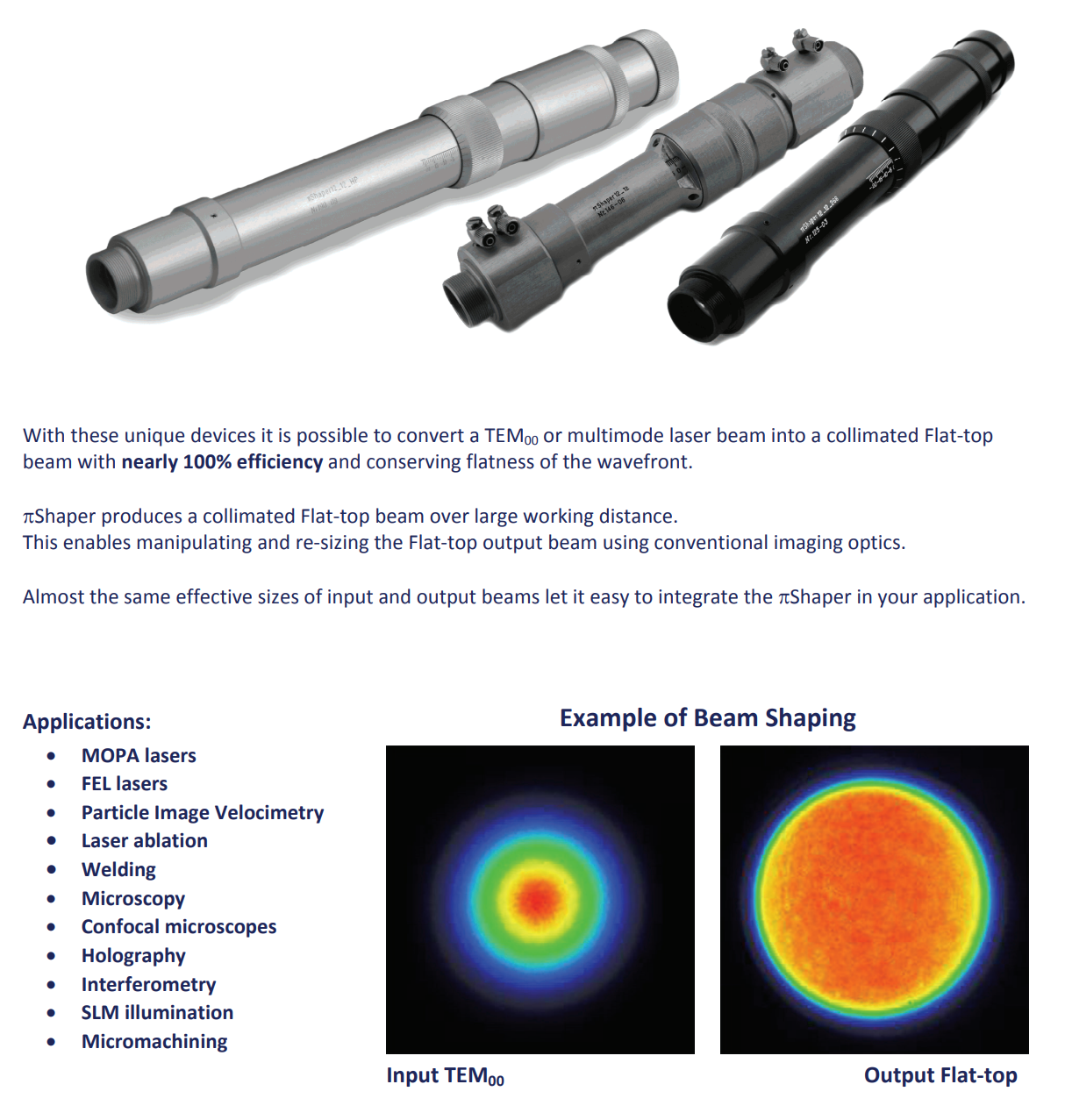

AdlOptica 平顶光束整形器是一种折射型光场映射光学系统，可使准直高斯输入光束转换为一个拥有均匀光强分布的平顶光束。采用这种光场映射光学设计，经转换后的光束拥有平坦的光强分布，在很远的距离上都能保持稳定，非常适用于全息摄影，显微镜和系统集成。设备不带内部对焦功能，它还适用于材料微加工，焊接和高功率激光器雕刻等应用。这款平顶光束整形器拥有多种设计波长，可用于YAG激光，光纤激光和CO2激光源。在一定波长范围内，整形器具有消色差功能，适用于激光调谐和多激光源。
| 设计波长 (nm) | 型号 | 损伤阈值（脉冲） | 入射光束直径 | 出射光束直径 |
| 266 | πShaper 6_6_266 | 50 mJ/cm2 @ 5ns (typical) | 6.3 | 5.2 |
| 266 | πShaper 12_12_266_HP | 3 J/cm2 @ 5ns (typical) | 12.0 - 12.1 | 10.6 |
| 355 | πShaper 6_6_350 | 50 mJ/cm2 @ 5ns (typical) | 6.3 | 5.6 |
| 355 | πShaper 12_12_355_HP | 3 J/cm2 @ 5ns (typical) | 12.0 - 12.1 | 11.3 |
| 442, 632.8 | πShaper 6_6_VIS | 20 mJ/cm2 @ 5ns (typical) | 6.0 | 6 |
| 532 | πShaper 6_6_532 | 50 mJ/cm2 @ 5ns (typical) | 6.3 - 6.4 | 5.8 |
| 532 | πShaper 12_12_532_HP | 3 J/cm2 @ 5ns (typical) | 12.0 - 12.1 | 11.8 |
| 800 | πShaper 6_6_TiS | 20 mJ/cm2 @ 5ns (typical) | 6.4 - 6.5 | 6.0 |
| 800 | πShaper 12_12_TiS_HP | 3000 mJ/cm2 @ 5ns (typical) | 12.0 - 12.1 | 12.0 |
| 1064, 632.8 | πShaper 6_6_1064 | 50 mJ/cm2 @ 5ns (typical) | 6.4 | 6.1 |
| 1064 | πShaper 12_12_1064_HP | 3 J/cm2 @ 5ns (typical) | 12.0 - 12.1 | 12.0 |
| 1319, 1650 | πShaper 6_6_NIR | 20 mJ/cm2 @ 5ns (typical) | 5.9 - 6.0 | 6 |
| 1550 | πShaper 6_6_1550 | 20 mJ/cm2 @ 5ns (typical) | 6.4 | 6.2 |
| 2050 | πShaper 6_6_2.05 | 50 mJ/cm2 @ 5ns (typical) | 6.4 - 6.5 | 6.4 |
| 10500 | πShaper 7_7_10.6 | 20 mJ/cm2 @ 5ns (typical) | 6.5 | 7 |
| 10500 | πShaper 12_12_10.6 | 20 mJ/cm2 @ 5ns (typical) | 12 | 12 |
| 设计波长 (nm) | 输入光束直径 | 有效孔径 | 直径 | 型号 | 最大输入功率, 连续(kW) |
| 355, 532 | 4 - 6 | 20 | 42.00 | πShaper_NUV_Q-5 | 1 (typical) |
| 355, 532 | 6 - 9 | 20 | 42.00 | πShaper_NUV_Q-7.5 | 1.5 (typical) |
| 355, 532 | 8 - 12 | 20 | 42.00 | πShaper_NUV_Q‑10 | 1.5 (typical) |
| 1064 | 3 - 5 | 20 | 42.00 | πShaper_1064_Q-4 | 0.5 (typical) |
| 1064 | 4 - 6 | 20 | 42.00 | πShaper_1064_Q-5 | 1 (typical) |
| 1064 | 6 - 9 | 20 | 42.00 | πShaper_1064_Q-7.5 | 1.5 (typical) |
| 1064 | 8 - 12 | 20 | 42.00 | πShaper_1064_Q-10 | 1.5 (typical) |
| 1064 | 15 - 20 | 38 | 64.00 | πShaper_1064_Q-17 | 2 (typical) |
| 1064 | 18 - 23 | 38 | 64.00 | πShaper_1064_Q-20 | 2 (typical) |
| 1070 | 8-12 | 10 | 42.00 | πShaper_1070_Q-10_HP | 30 (typical) |
| 1070 | 18-23 | 38 | 64.00 | πShaper_1070_Q-20_HP | 50 (typical) |
| 10600 | 8-12 | 20 | 42.00 | πShaper_CO2_Q-10 | 2 (typical) |
